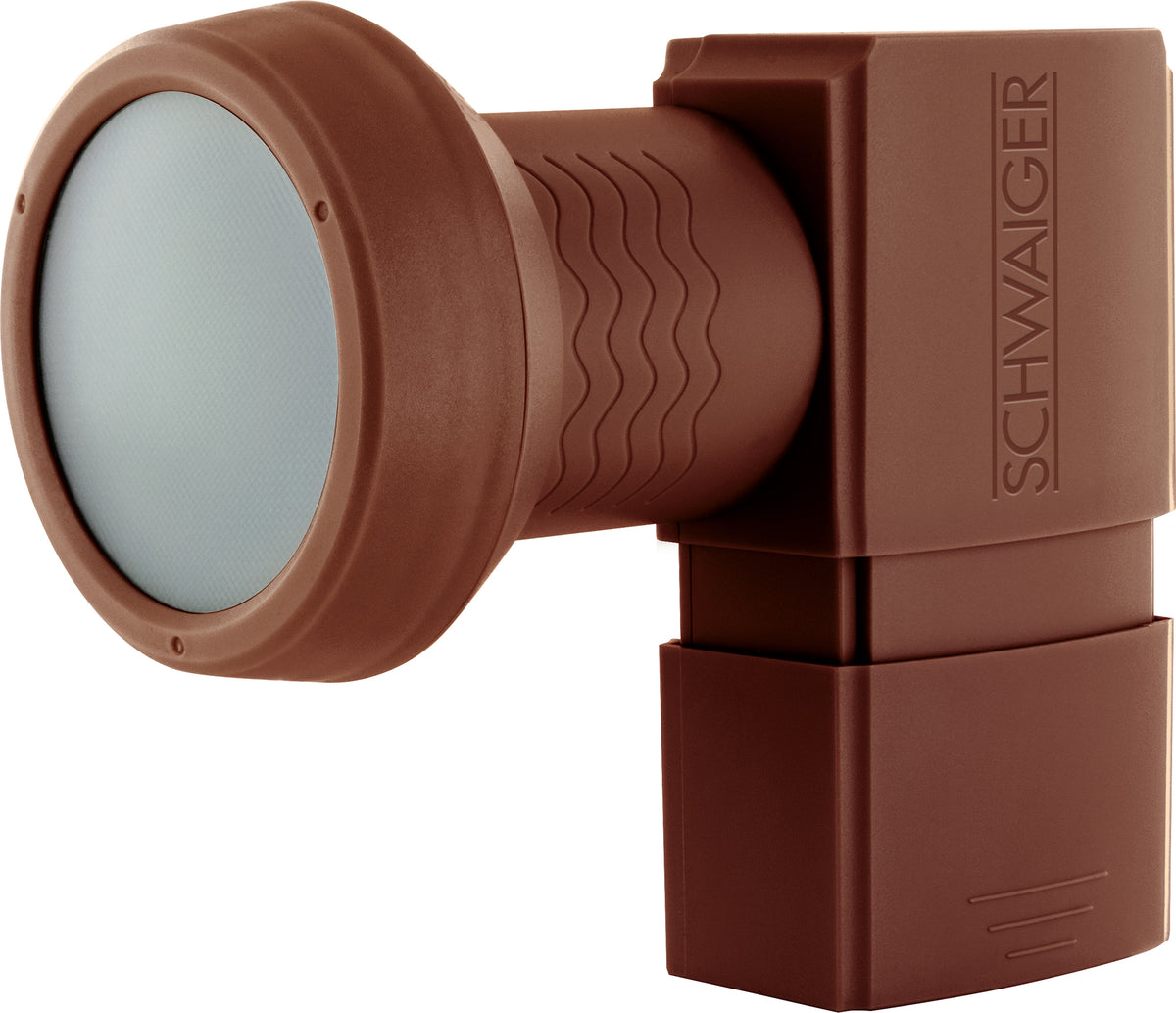

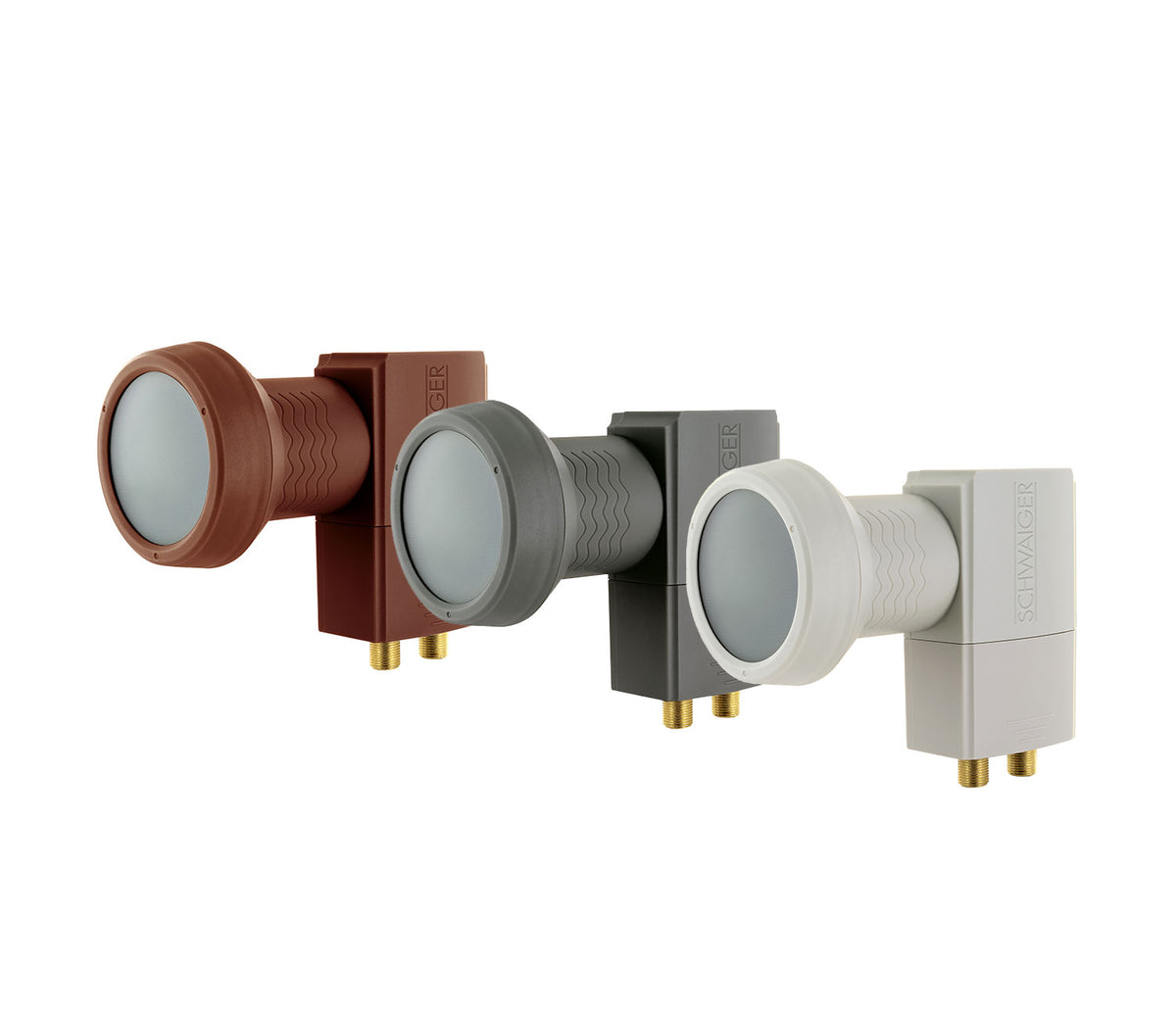

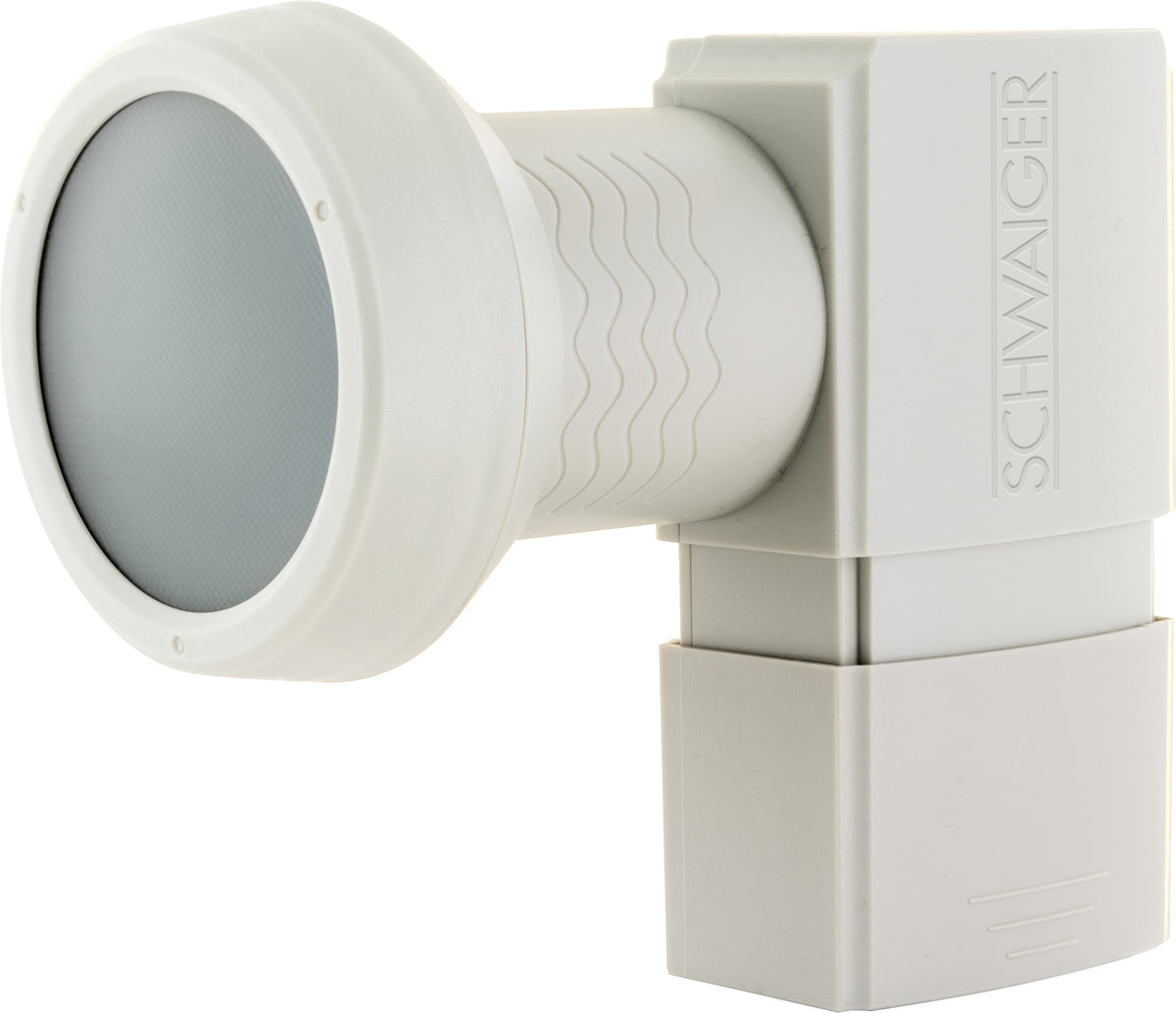

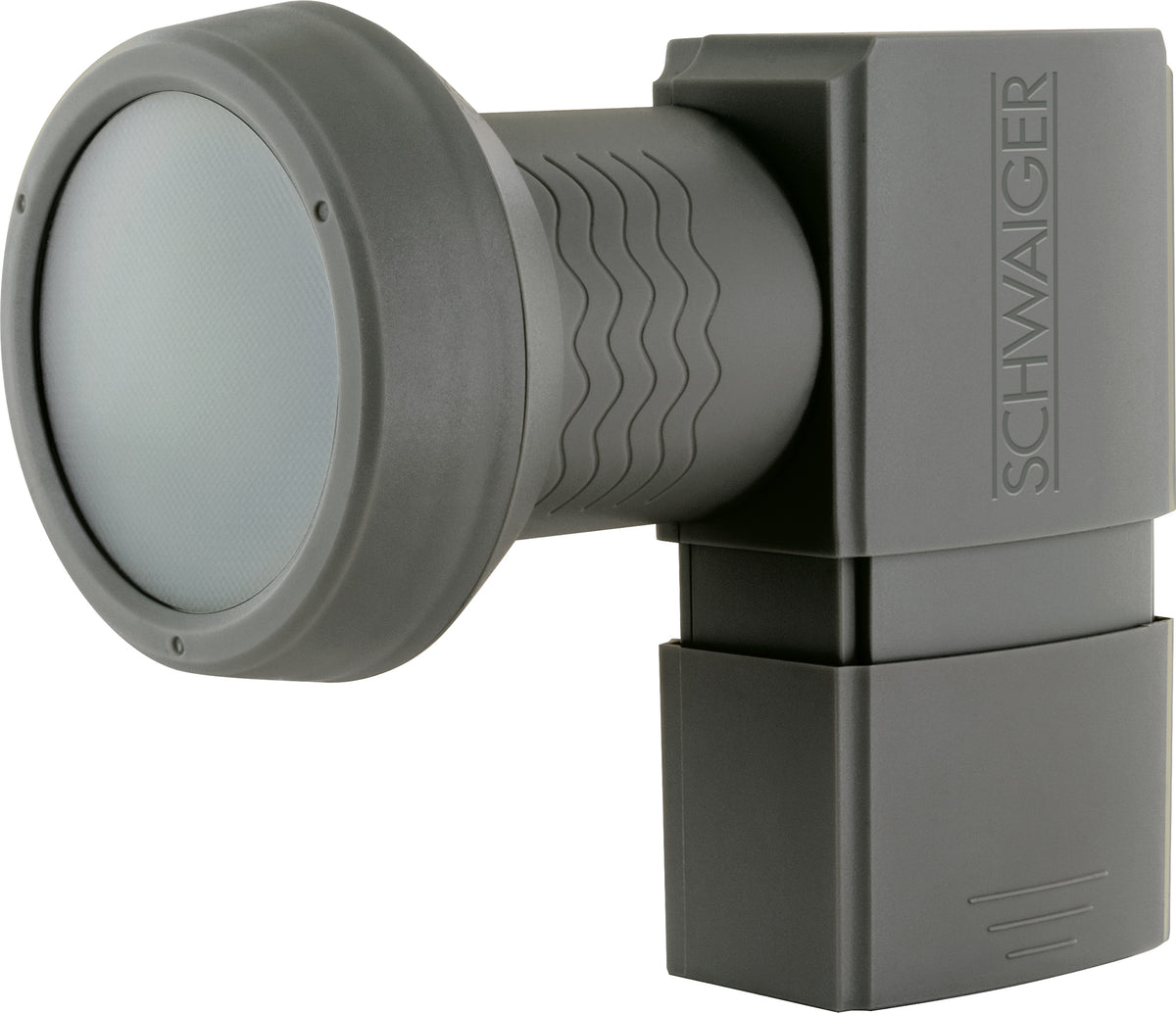

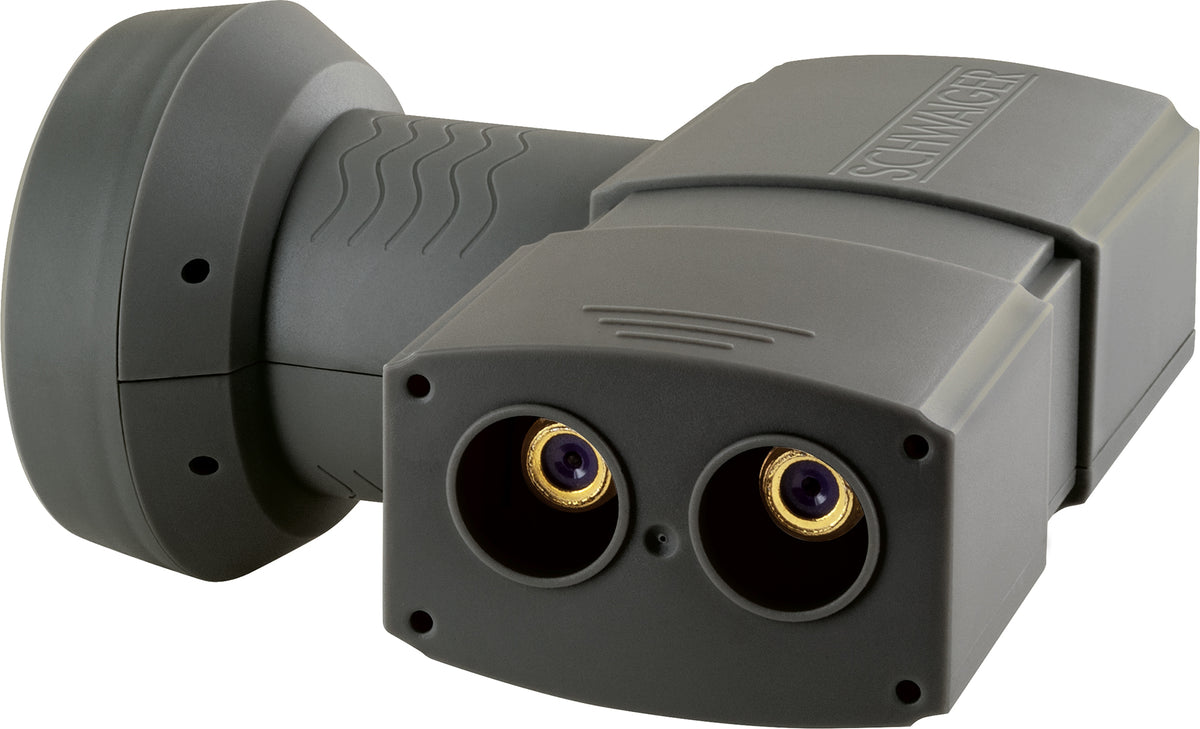

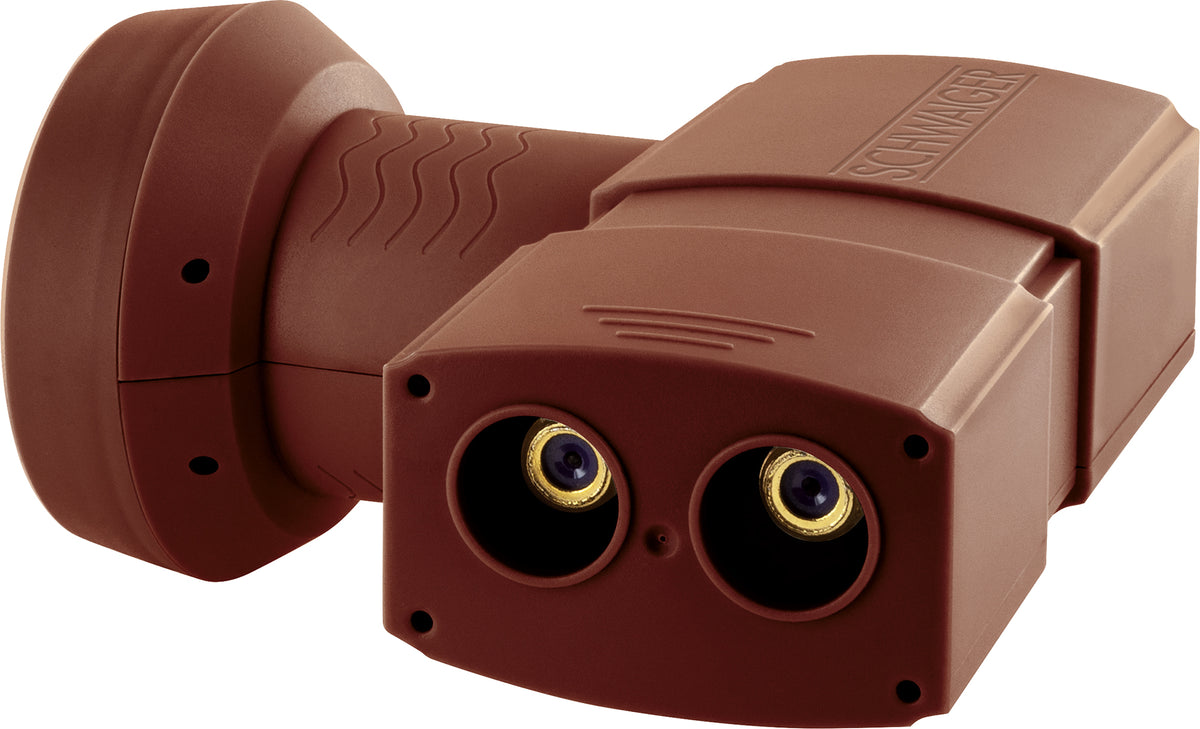

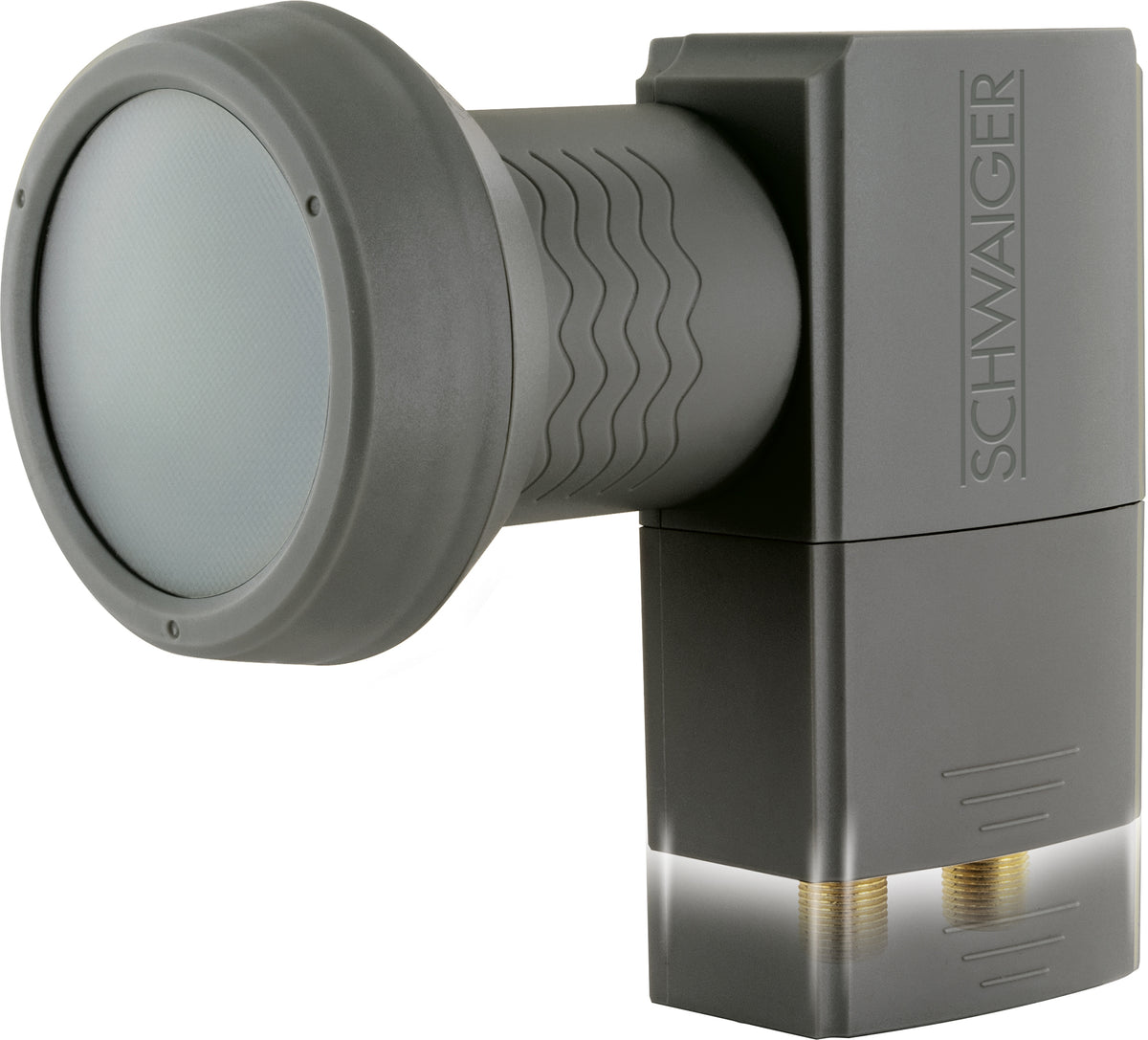

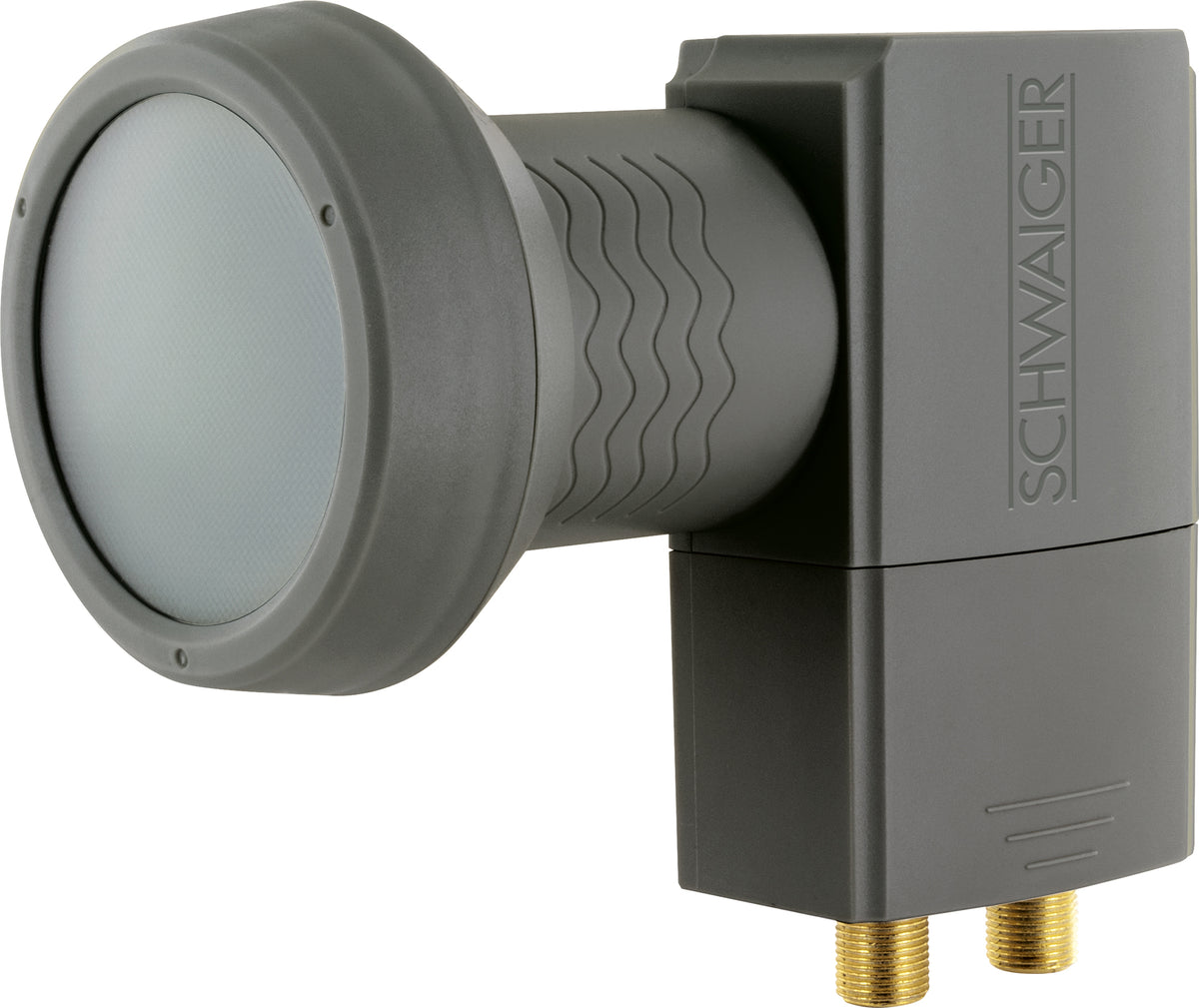

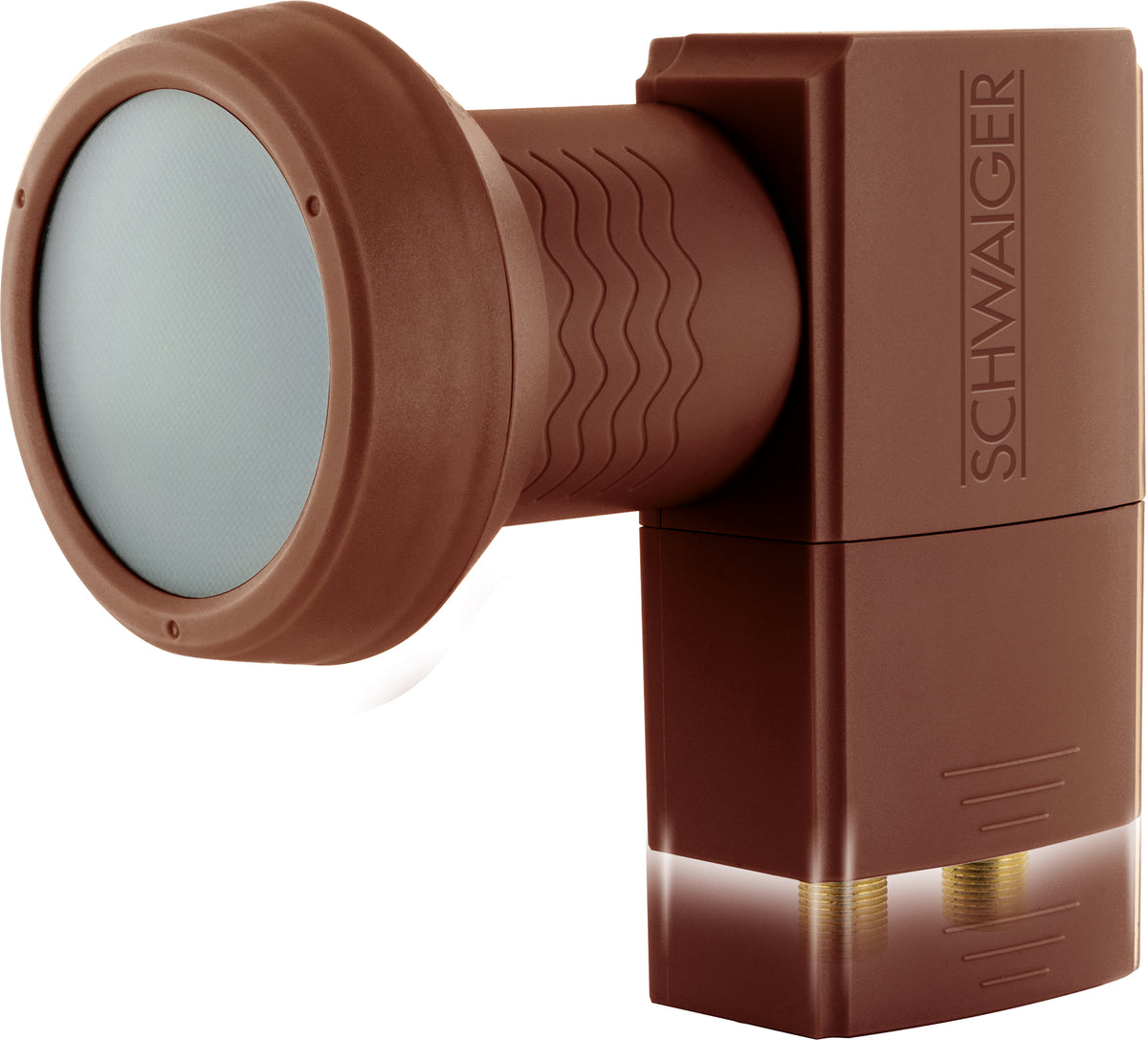

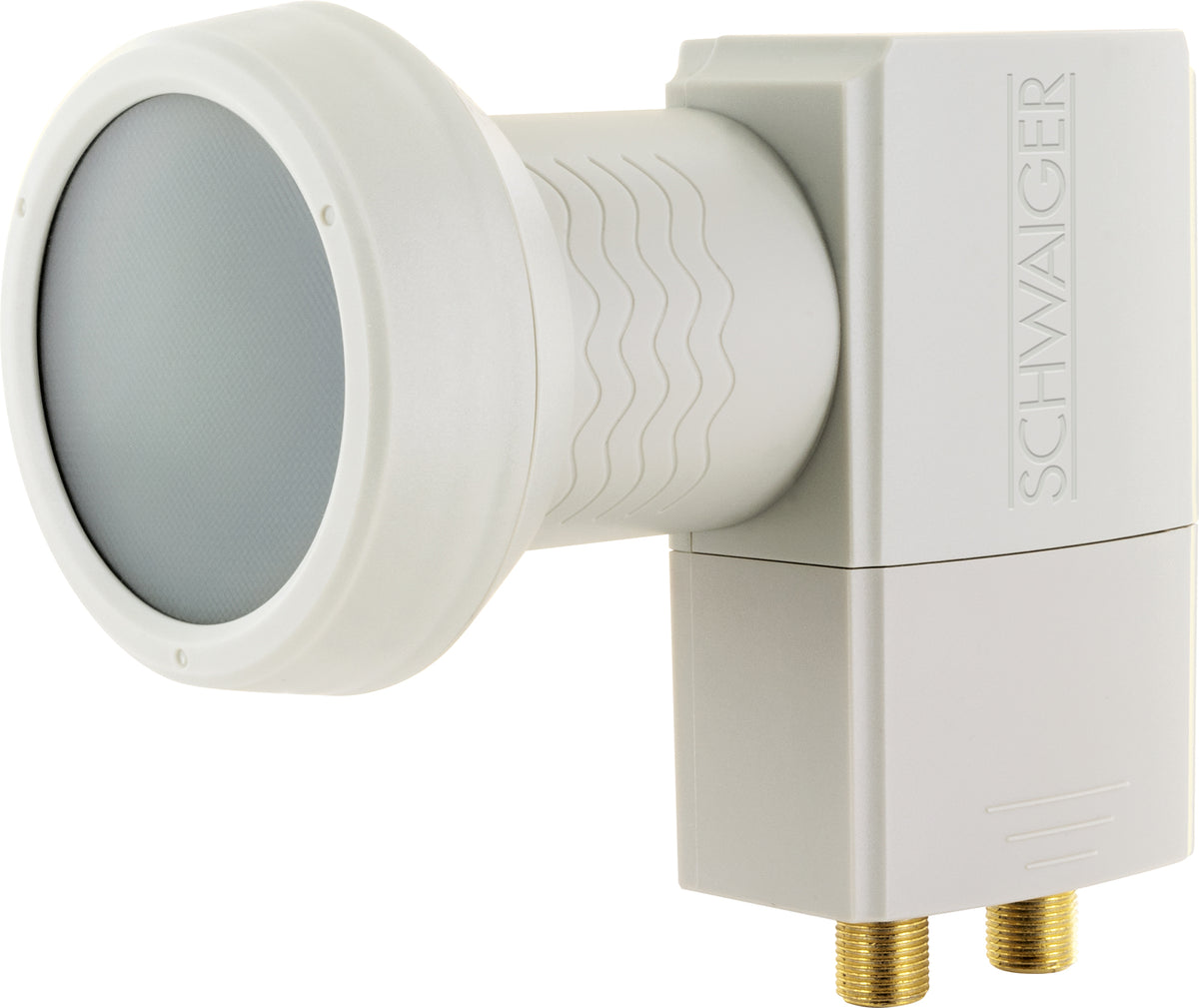

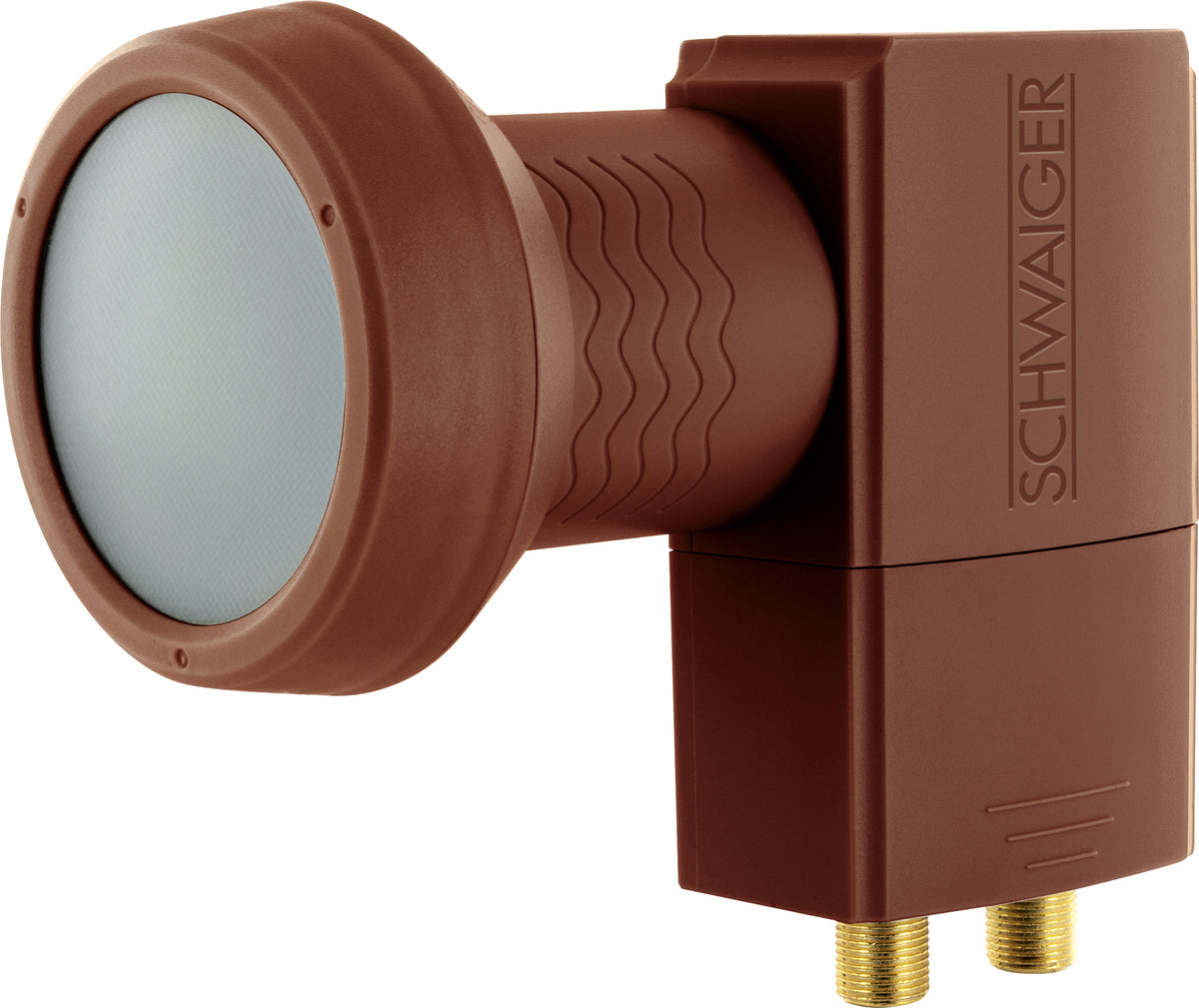

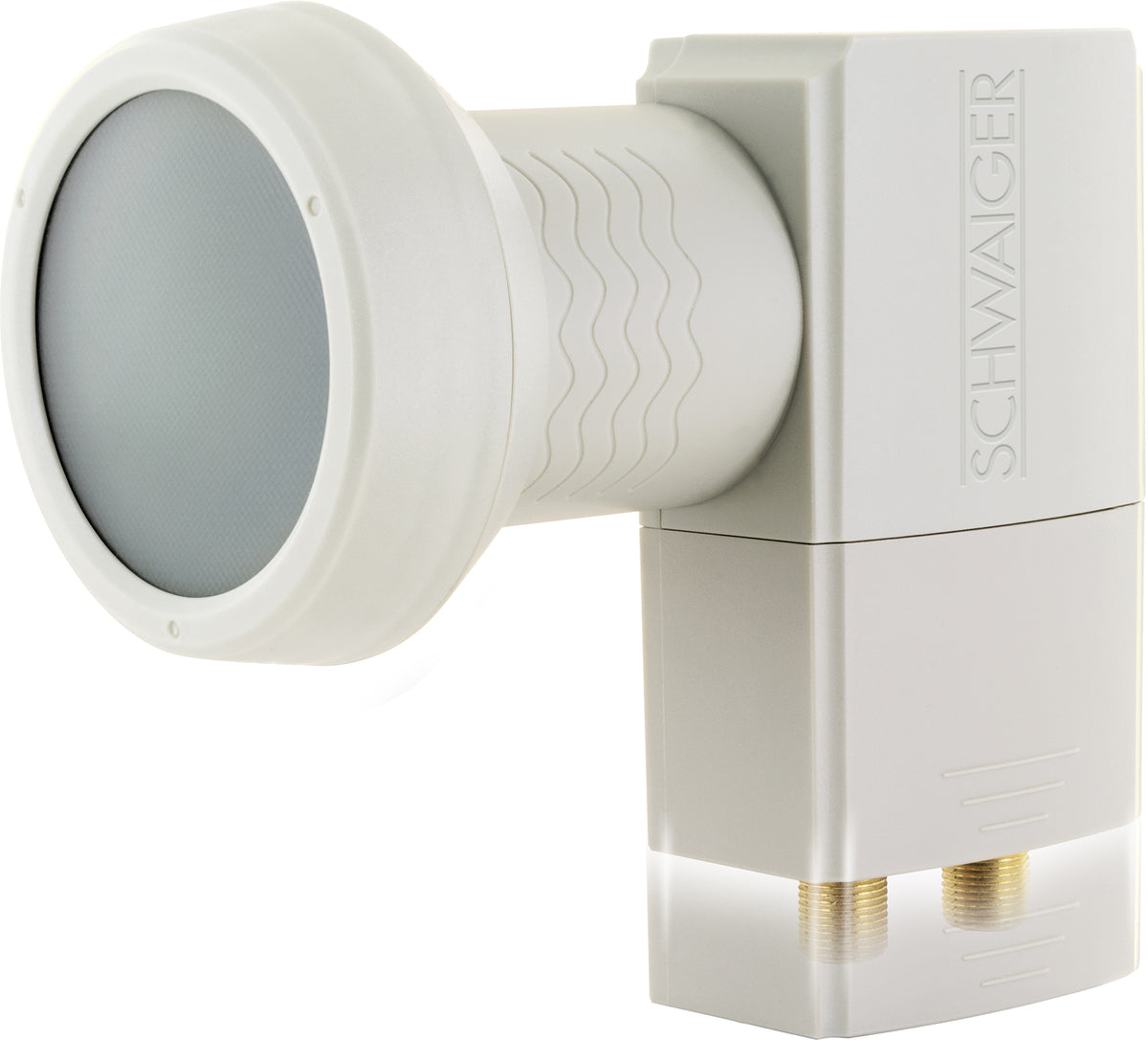

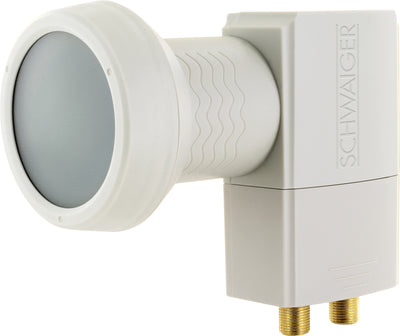

SUN PROTECT - Digitales Twin LNB
SKU LNCA0002
€40,79
- Reception system for setting up 2-participant satellite systems
- Suitable for multifeed systems
- Extremely heat-resistant feedhorn cap (permanently at 150°C, 20 min at 150°C - 200°C, 10 min at over 220°C)

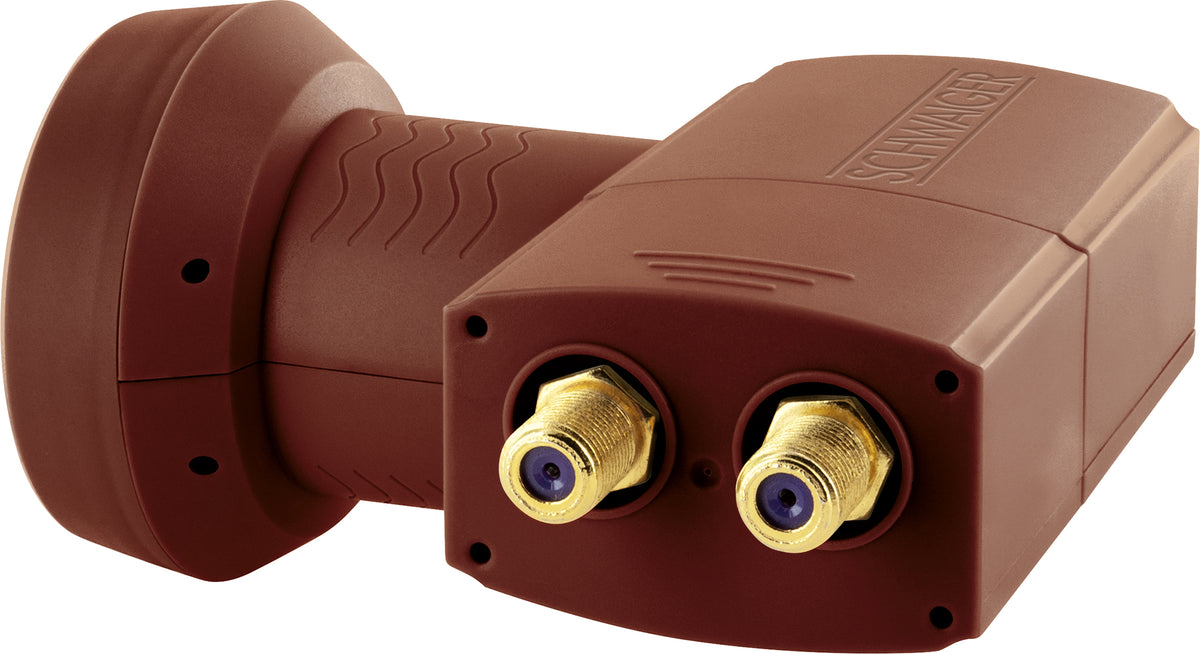

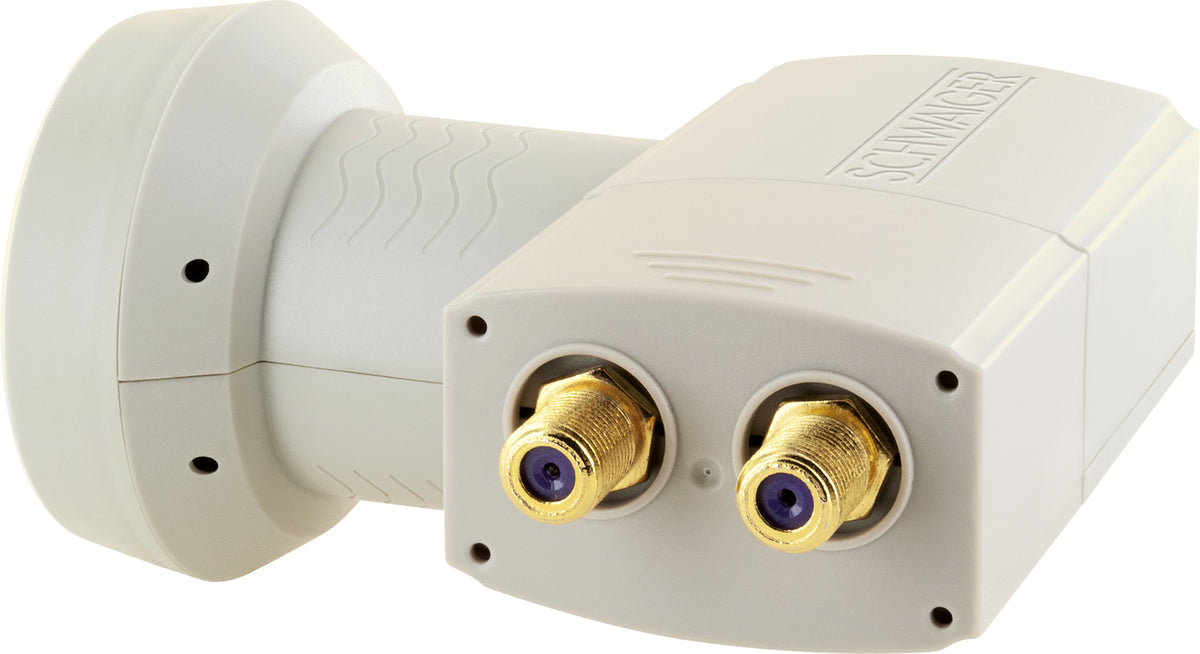

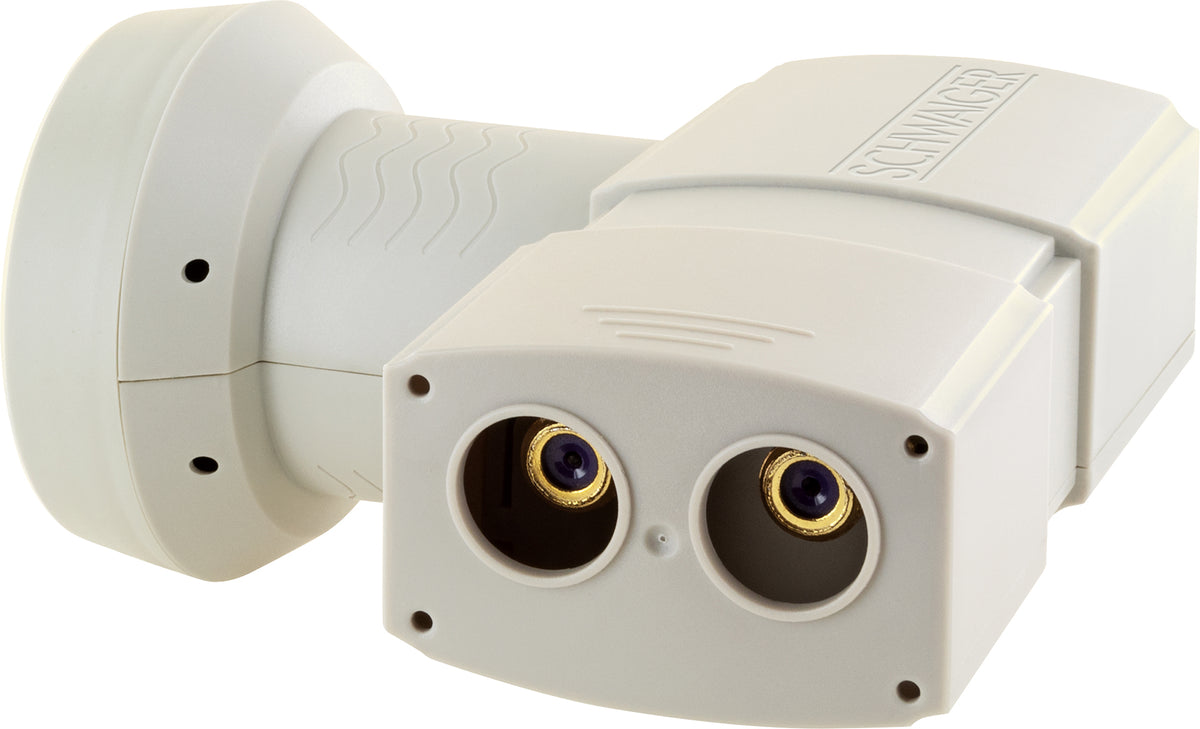

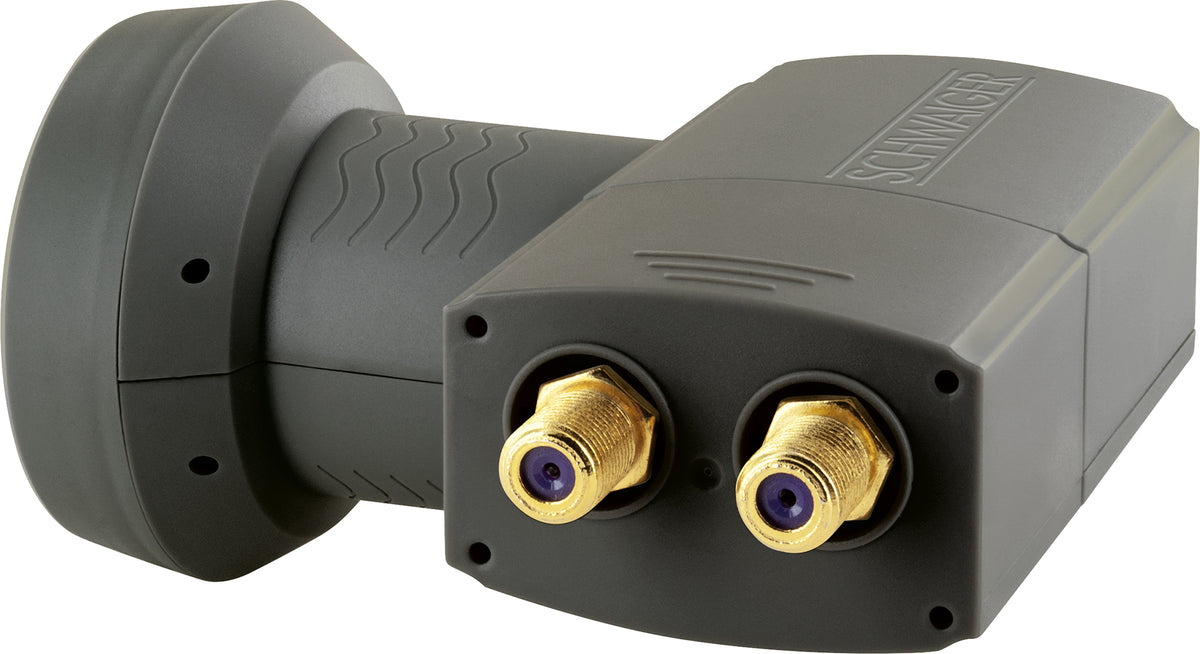

- The F-connections are protected by a pull-out weather protection cover made of weather-resistant plastic
- Best conductivity through gold-plated connections
Auf Lager
Sichere Zahlung
Passend dazu
SUN PROTECT - Digitales Twin LNB
anthracite / Cardboard
€40,79
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwbestaiger.com
Produktbeschreibung
In clear weather, extremely high temperatures (up to 200°C) can occur on the LNB feed horn and damage it. The header cap of this SCHWAIGER® Twin LNB withstands deformation within 10 minutes at over 220°C! With this twin LNB, which is suitable for multi-feed systems, a digital-capable satellite system can be set up with a maximum of two participants. The gold-plated F-connectors are protected by a pull-out weatherproof cover.
Technische Daten
| connections | 2 x F-Female |
| plug | Metal contact gold-plated |
| input frequency | 10,7 - 11,7 GHz (low) 11,7 - 12,75 GHz (high) |
| output frequency | 950-2.150 MHz |
| decoupling | > 25 dB |
| oscillation frequency | 9,75 GHz (low) 10.6 GHz (high) |
| gain (typical) | > 55 dB |
| control function | 0 kHz (low) 22 kHz (high) |
| power supply | vertical: 10,5 - 14 V horizontal:16 - 19 V |
| power consumption | type. <220 mA |
| feed intake | 40 mm |
| Dimensions (width) | 105 mm |
| Dimensions (height) | 64 mm |
| Dimensions (depth) | 135 mm |
| scope of delivery | 1x Digital Twin LNB Sun Protect |
Downloads & Dokumente
Hier können Sie das vollständige Datenblatt herunterladen.
