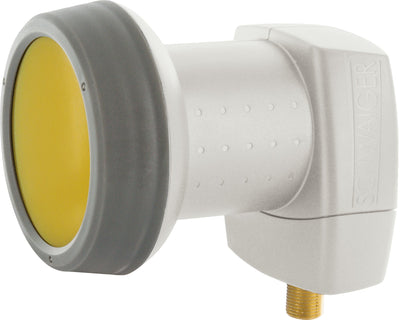

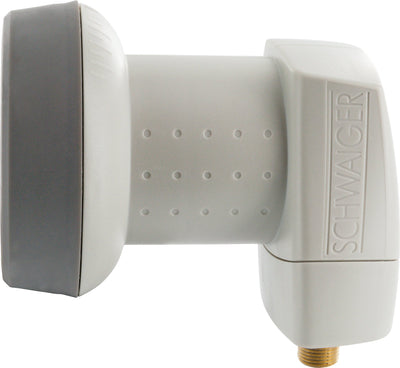

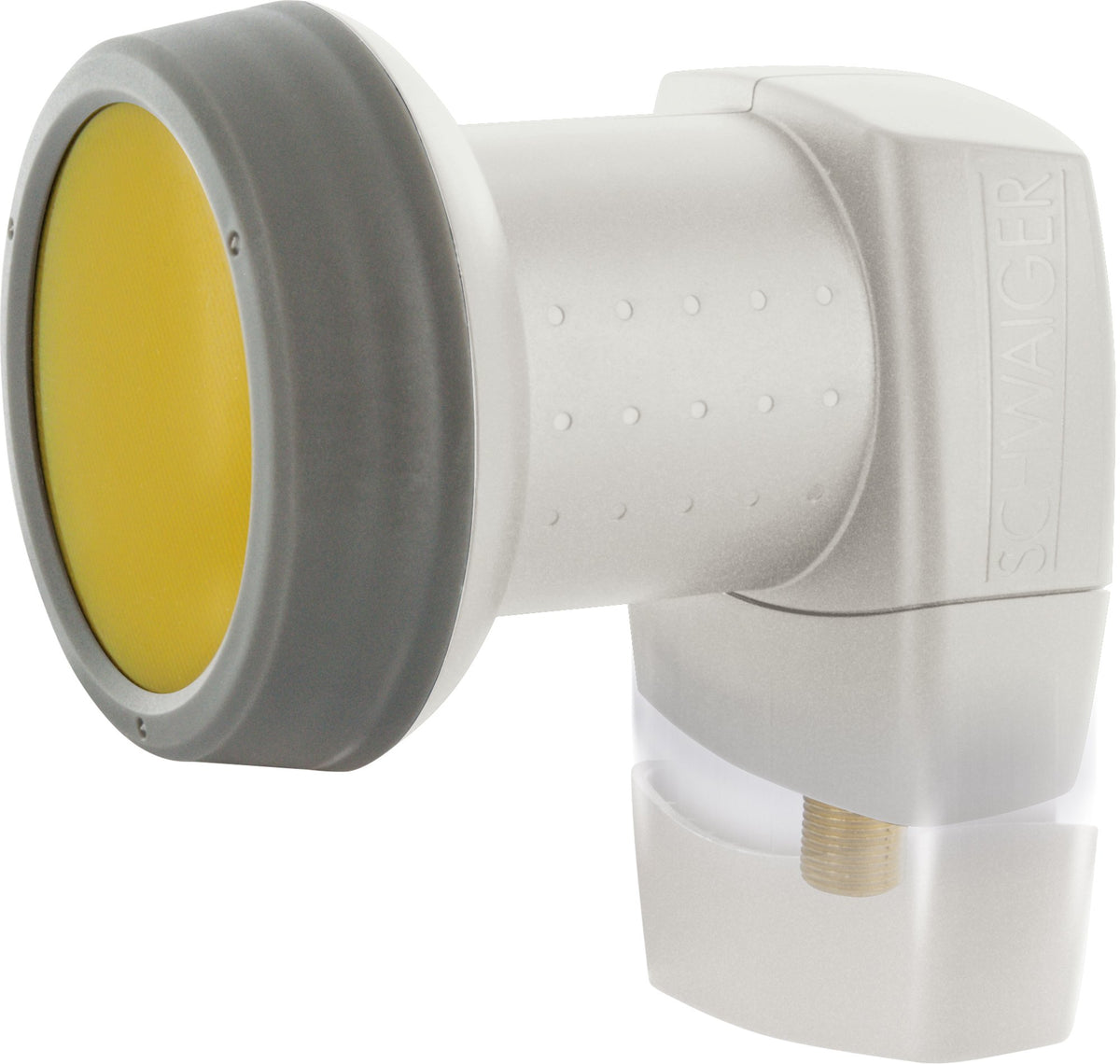

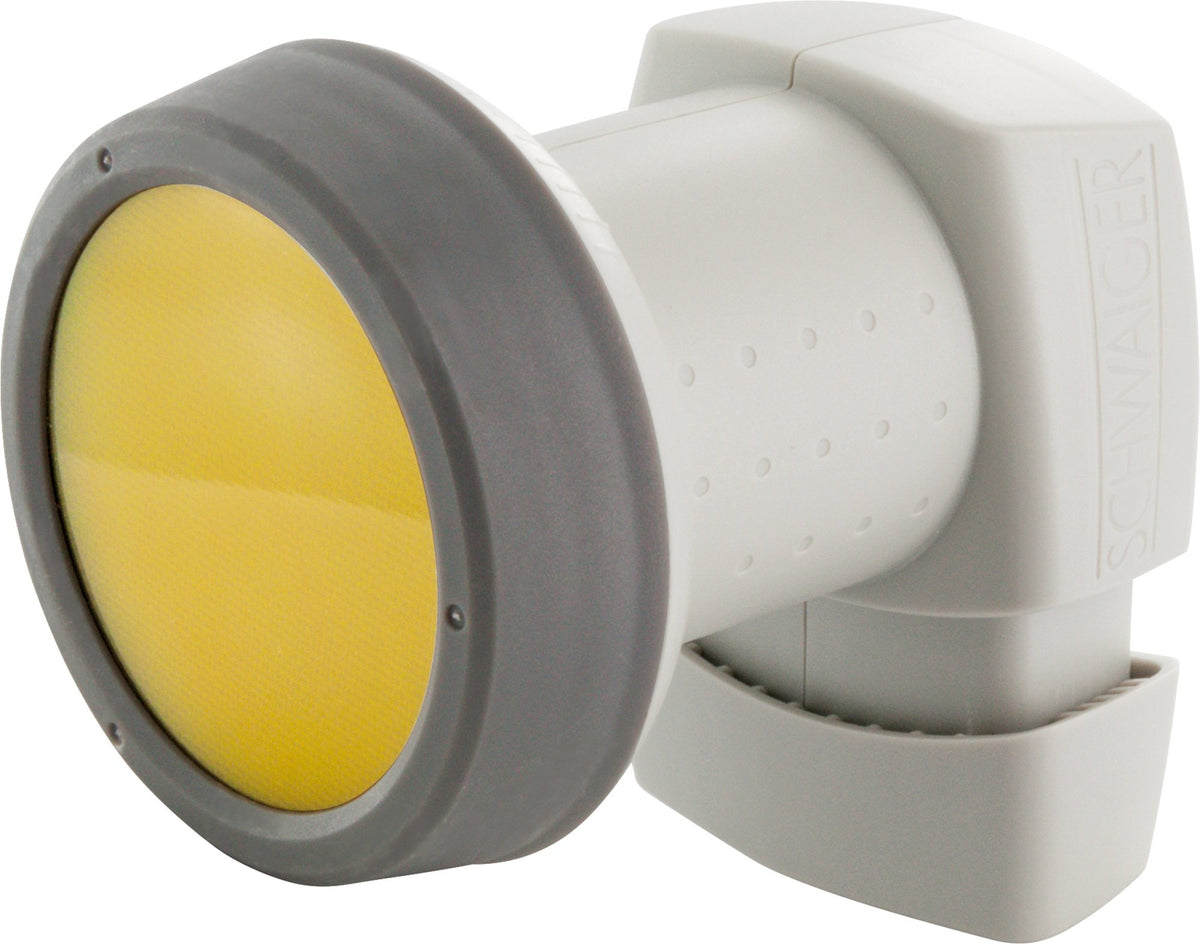

Single LNB digital SUN PROTECT light gray
SKU 714302
- reception system for setting up 1 subscriber satellite systems

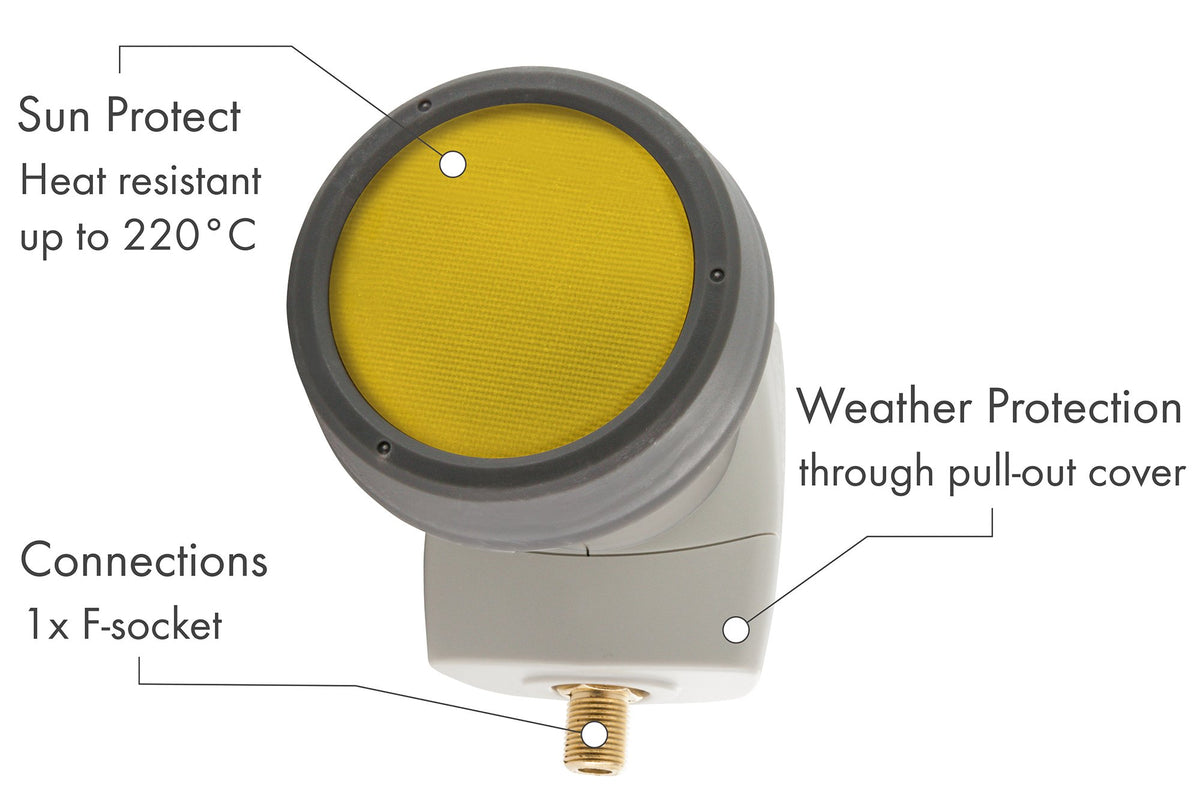

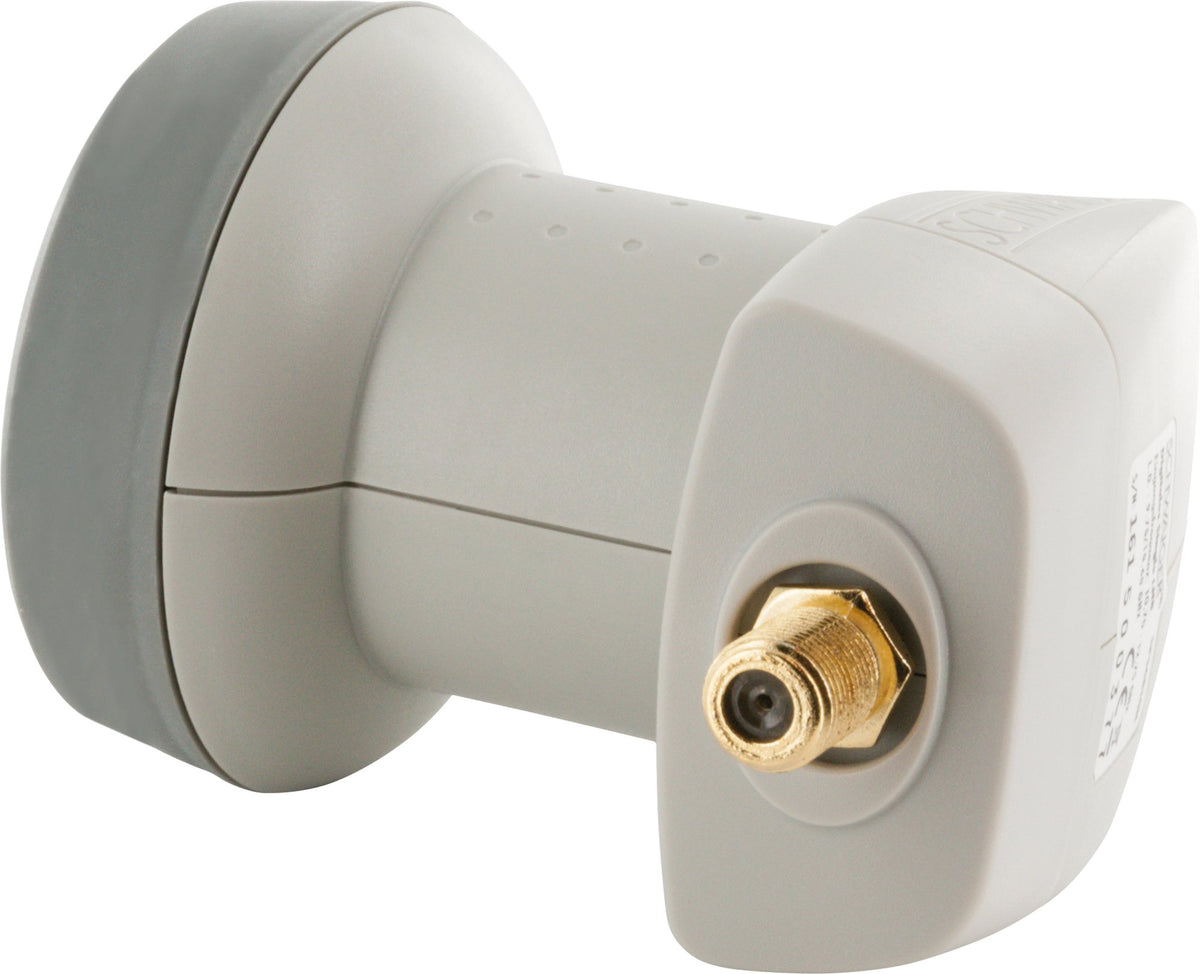

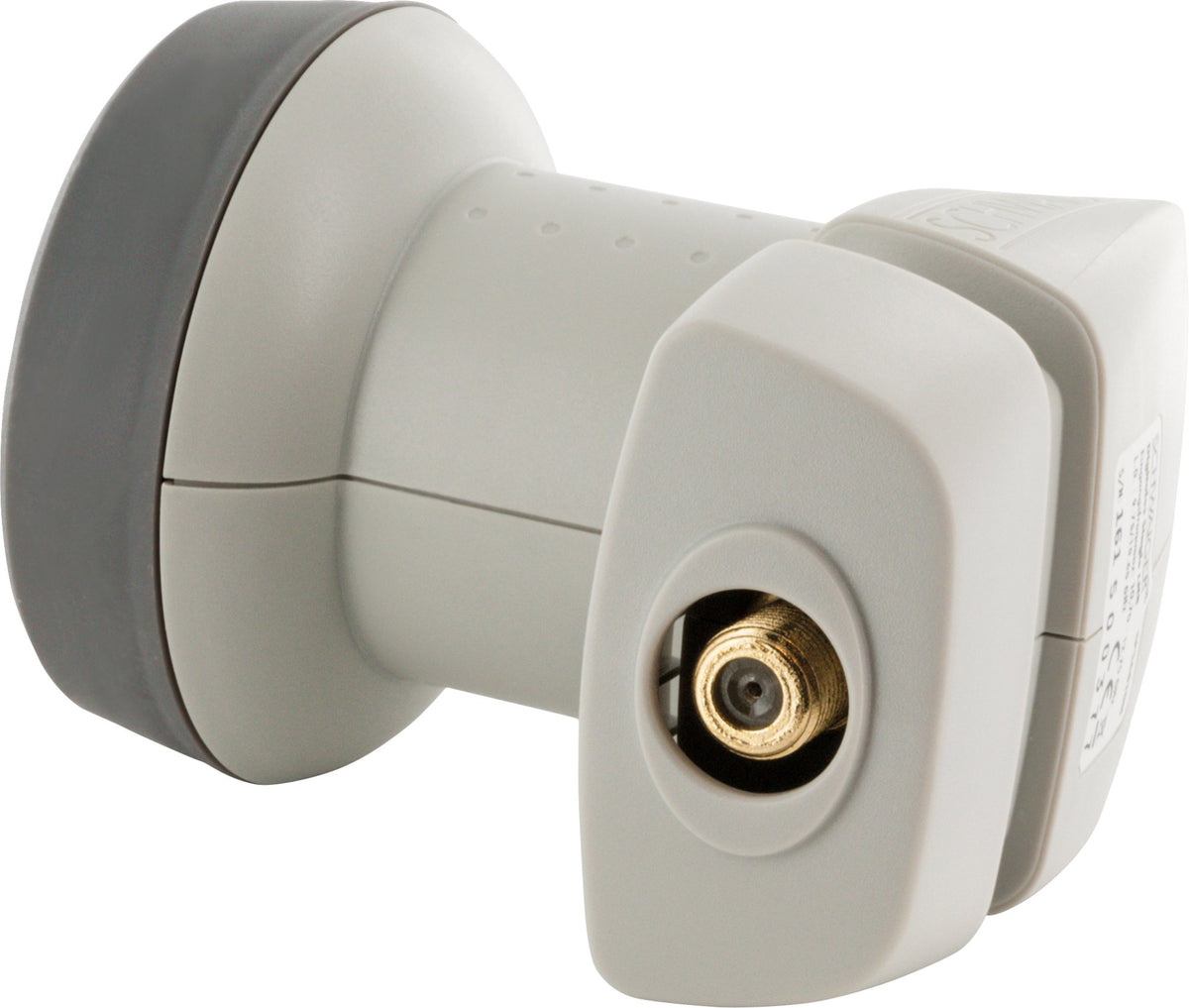

- Protection of the F-connectors through removable weather protection cover
- Weather protection through outer casing made of weather-resistant plastic
- Housing is completely encapsulated
- Suitable for receiving all available satellite positions
Sichere Zahlung
Passend dazu
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwbestaiger.com
Produkt Details

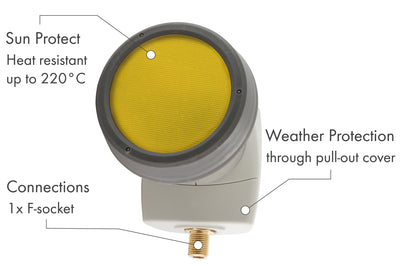

In clear weather, extremely high temperatures (up to 200°C) can occur on the LNB feedhorn, causing damage. The header cap of this SCHWAIGER® Single LNB resists deformation within 10 minutes at temperatures over 220°C! This single LNB, suitable for multifeed systems, allows you to set up a digital satellite system with a maximum of one subscriber. The gold-plated F-connectors are protected by a removable weatherproof cover.
Beschreibung
In clear weather, extremely high temperatures (up to 200°C) can occur on the LNB feedhorn, causing damage. The header cap of this SCHWAIGER® Single LNB resists deformation within 10 minutes at temperatures over 220°C! This single LNB, suitable for multifeed systems, allows you to set up a digital satellite system with a maximum of one subscriber. The gold-plated F-connectors are protected by a removable weatherproof cover.
Technische Daten
| connections | 1 x F-socket |
| Plug | metal contact gold-plated |
| Input frequency | 10.7 - 11.7 GHz (low) 11.7 - 12.75 GHz (high) |
| Output frequency | 950-2,150 MHz |
| oscillation frequency | 9.75 GHz (low) 10.6 GHz (high) |
| Gain (typical) | > 55dB |
| control function | 0 kHz (low) 22 kHz (high) |
| polarization | Decoupling: > 20 dB |
| Power supply | vertical: 11.5 - 14.5 V |
| horizontal | 15.5 - 19V |
| Power consumption | typ. < 130 mA |

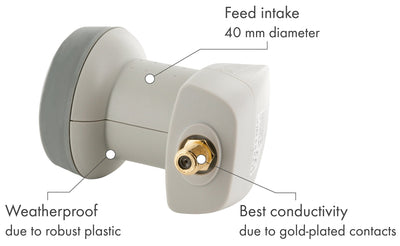

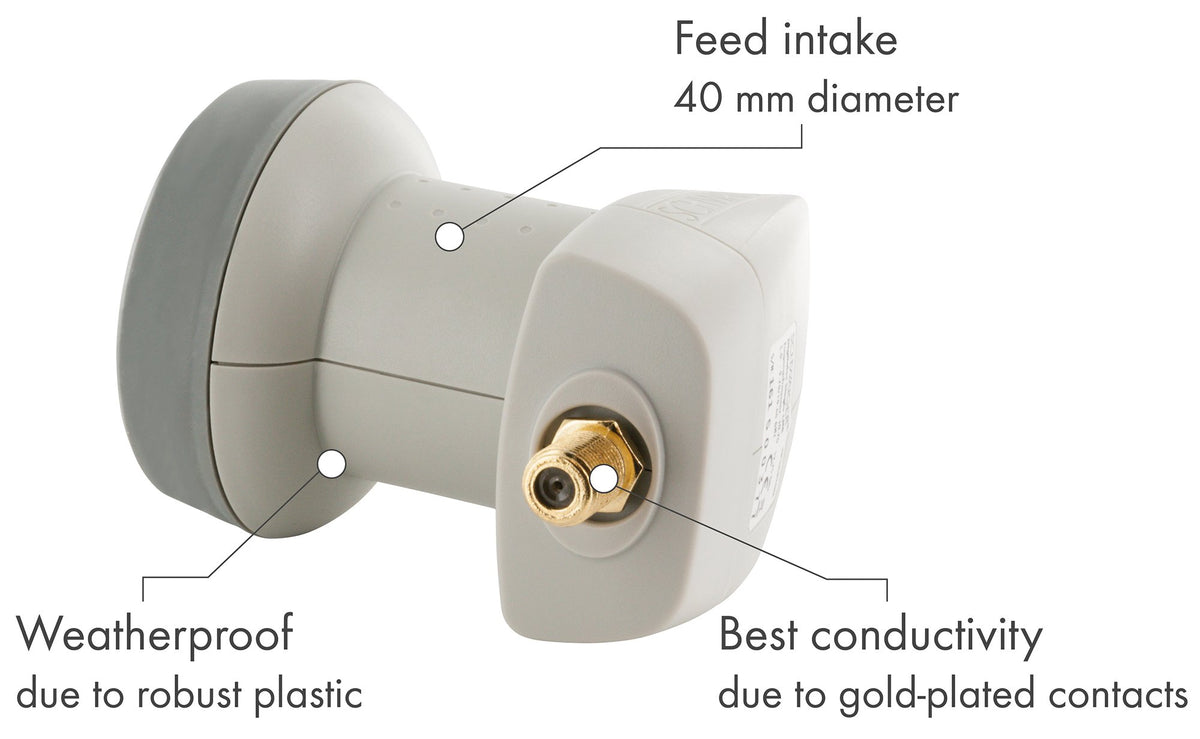

| feed intake | 40mm |
| product material | plastic weather-resistant |
| Color | Light grey |

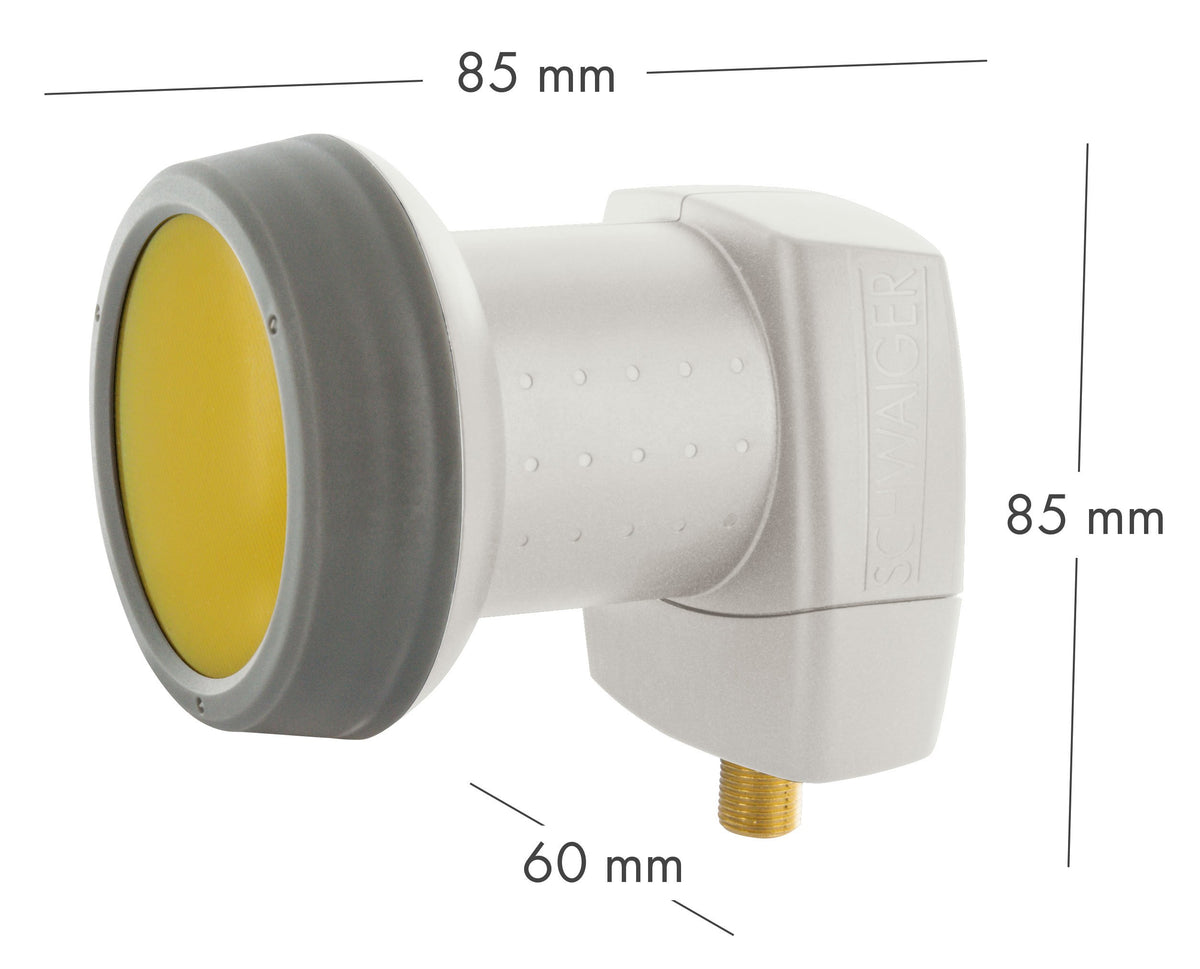

| Dimensions (Width) | 100mm |
| Dimensions (Height) | 76mm |
| Dimensions (depth) | 33mm |
| Scope of delivery | 1x Digital Single LNB Sun Protect |
