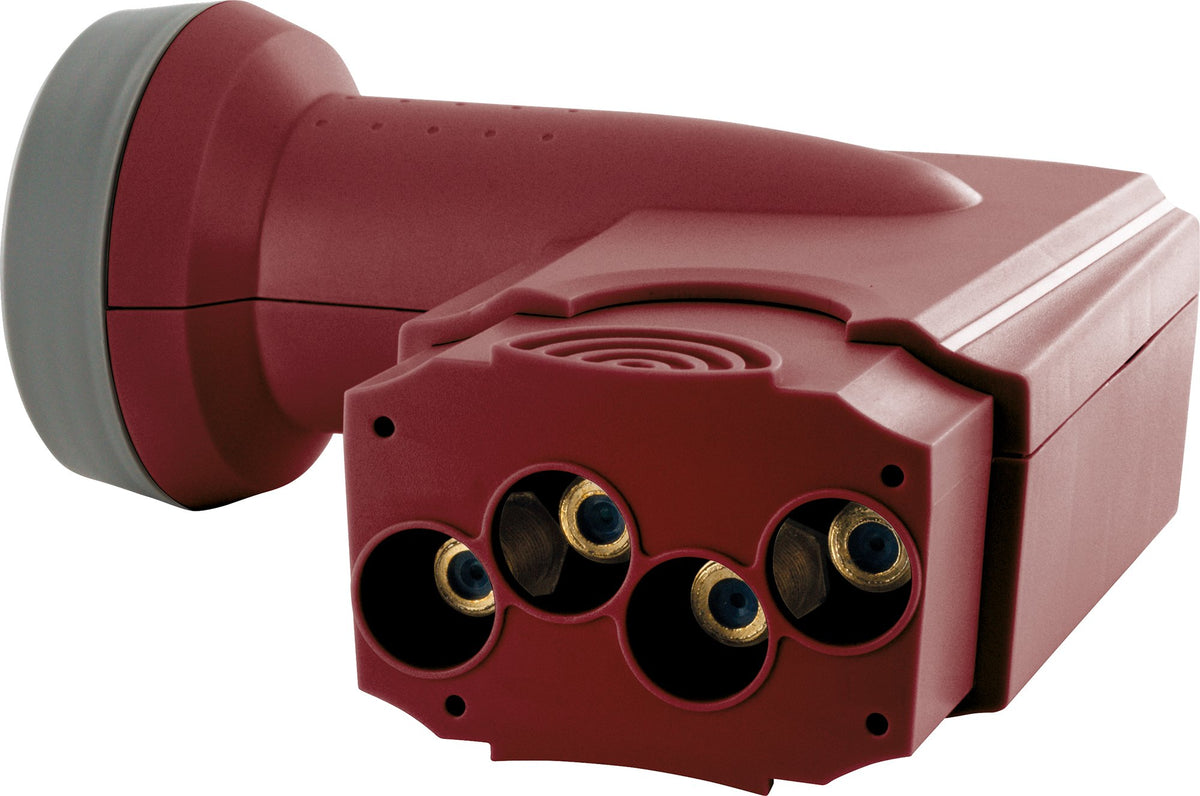

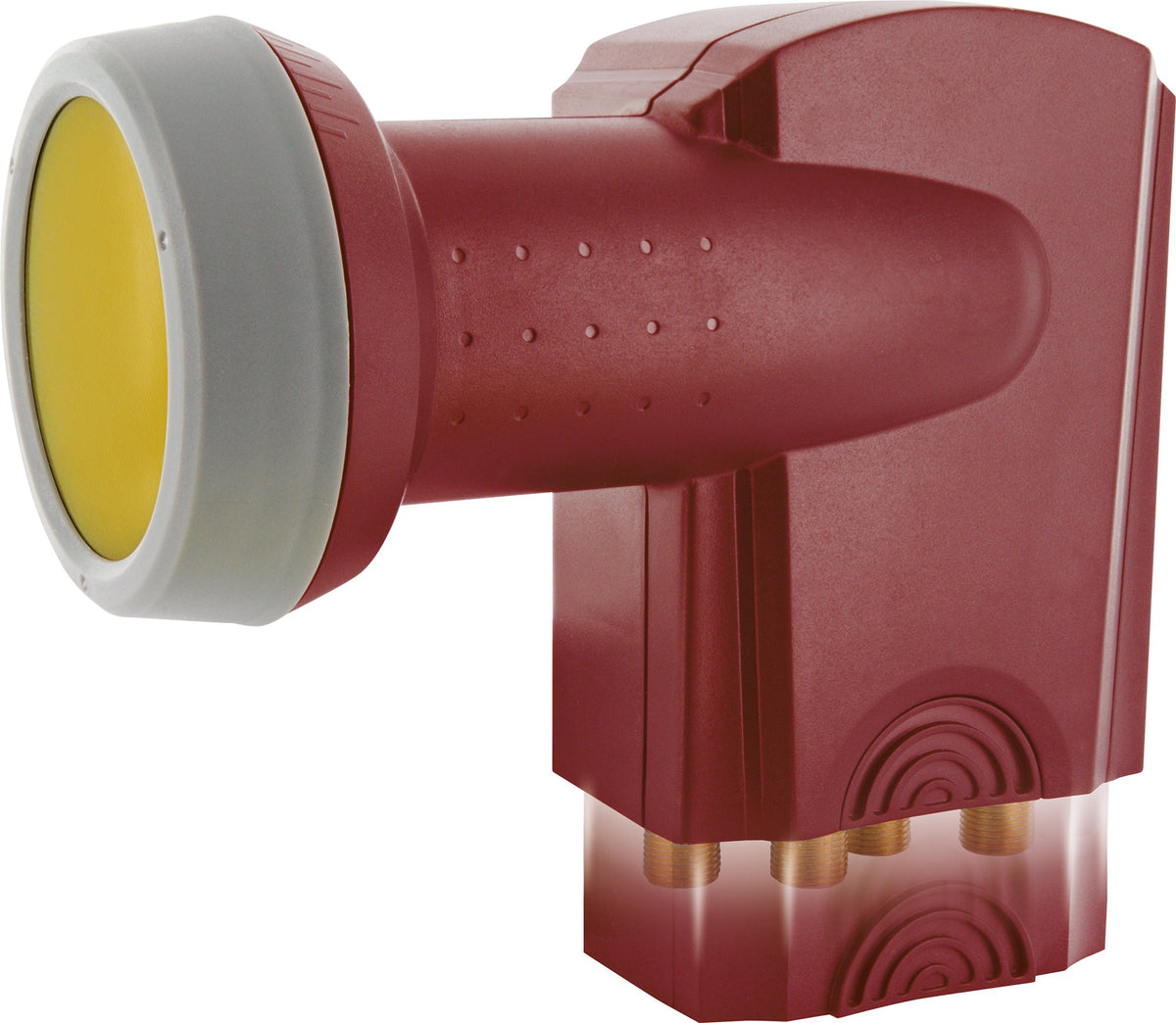

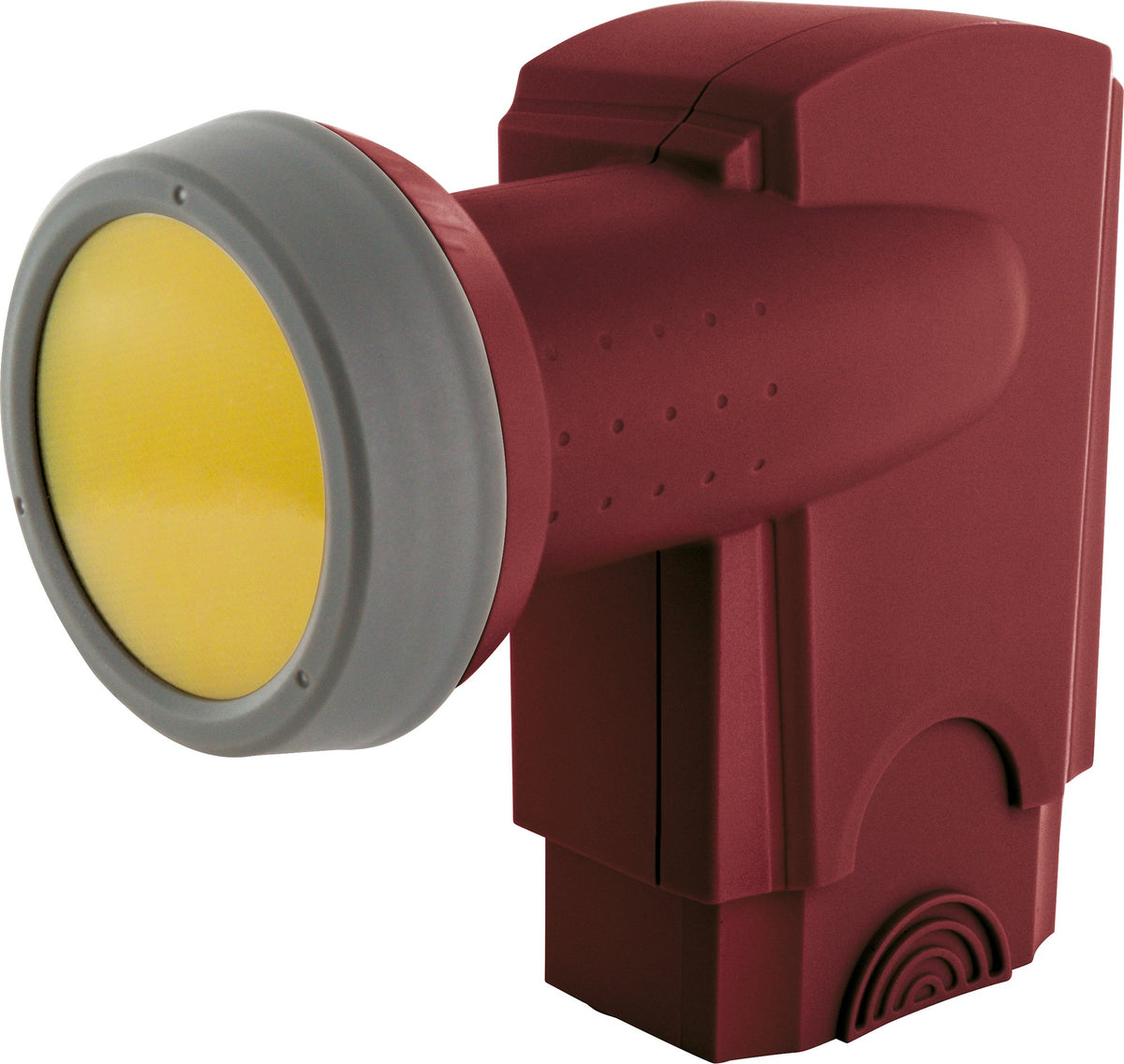

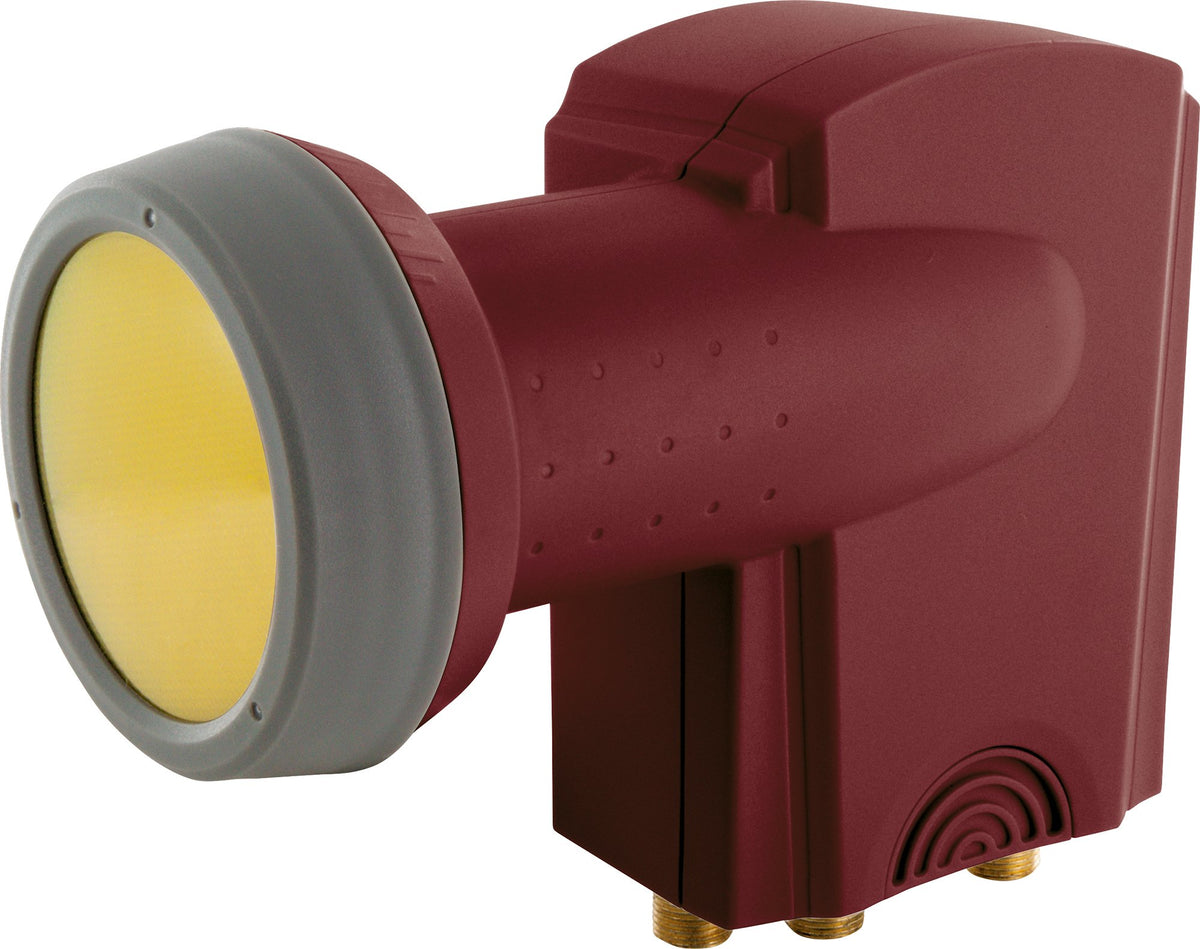

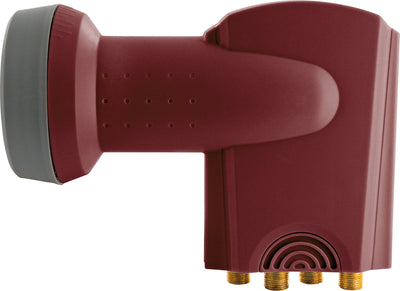

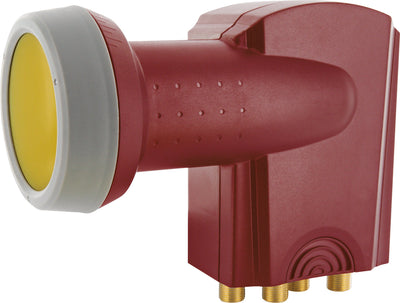

Quad LNB digital SUN PROTECT brick red
SKU 714388
- Reception system for setting up 2-subscriber satellite systems
- Suitable for multifeed systems

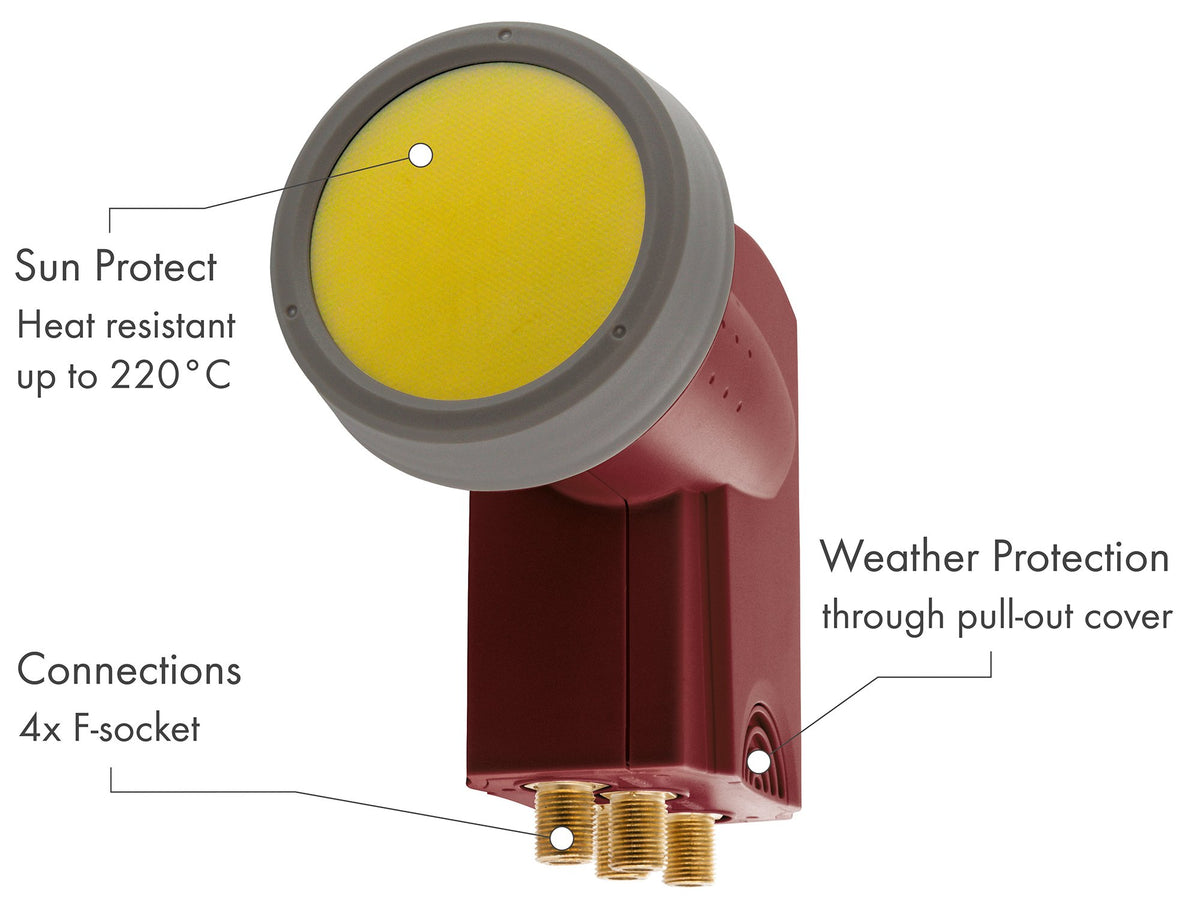

- Extremely heat-resistant feedhorn cap (permanent at 150°C, 20 min at 150°C - 200°C, 10 min at over 220°C)

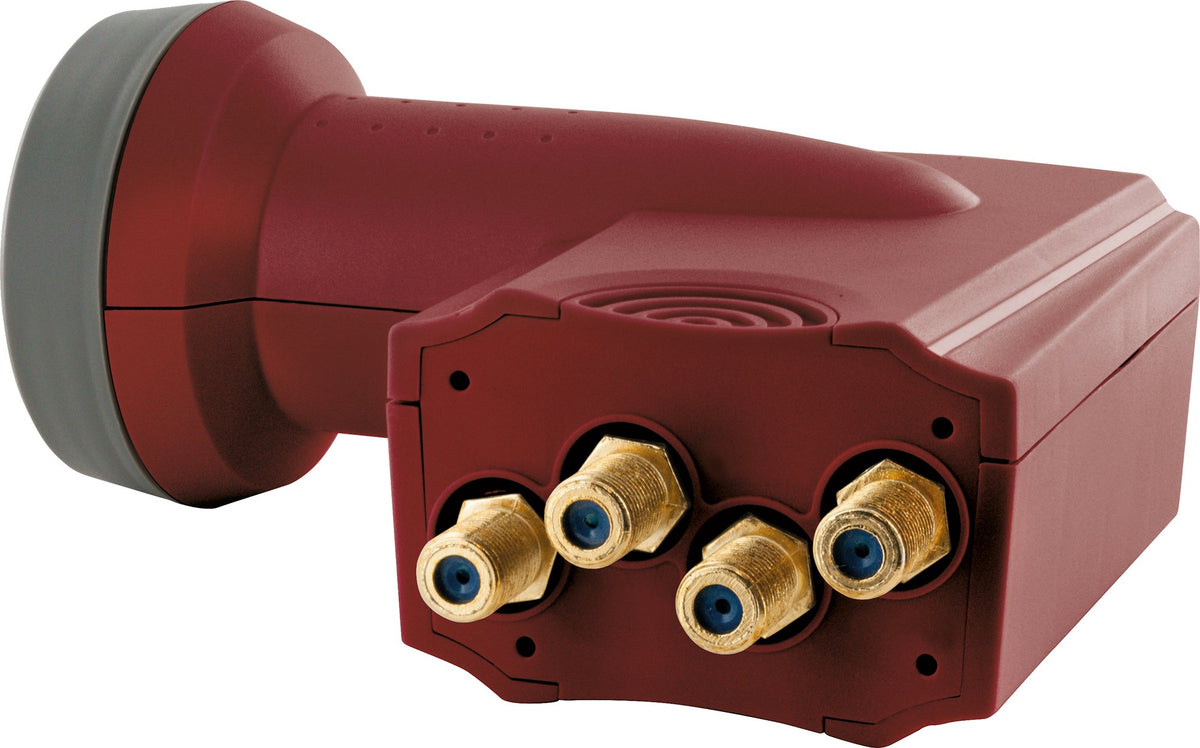

- Protection of the F-connectors through removable weather protection cover
- Weather protection through outer casing made of weather-resistant plastic
Sichere Zahlung
Passend dazu
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwbestaiger.com
Produkt Details
In clear weather, extremely high temperatures (up to 200°C) can occur on the LNB feedhorn, causing damage. The header cap of this SCHWAIGER® Quad LNB resists deformation within 10 minutes at temperatures over 220°C. The LNB can be used to set up a digital satellite system with up to four participants. The satellite receivers are connected directly to the LNB. The gold-plated F-connectors are protected by a removable weatherproof cover.
Beschreibung
In clear weather, extremely high temperatures (up to 200°C) can occur on the LNB feedhorn, causing damage. The header cap of this SCHWAIGER® Quad LNB resists deformation within 10 minutes at temperatures over 220°C. The LNB can be used to set up a digital satellite system with up to four participants. The satellite receivers are connected directly to the LNB. The gold-plated F-connectors are protected by a removable weatherproof cover.
Technische Daten
| connections | 2 x F-socket |
| Plug | metal contact gold-plated |
| Input frequency | 10.7 - 11.7 GHz (low) 11.7 - 12.75 GHz (high) |
| Output frequency | 950-2,150 MHz |
| decoupling | > 25 dB |
| Oscillation frequency | 9.75 GHz (low) 10.6 GHz (high) |
| Gain (typical) | > 55dB |
| Control function | 0 kHz (low) 22 kHz (high) |
| Power supply | vertical: 10.5 - 14 V |
| horizontal | 16 - 19 V |
| Power consumption | typ. < 220 mA |

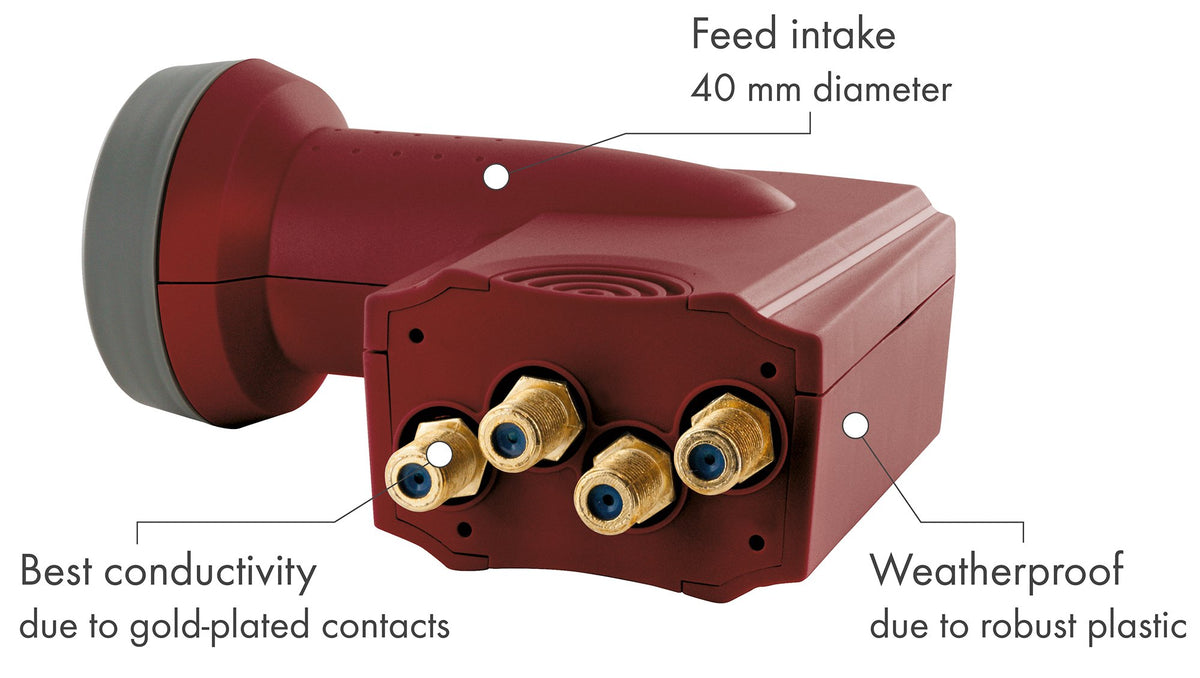

| Feed intake | 40mm |
| Product material | Plastic weatherproof |
| Color | anthracite |
| Dimensions (width) | 110mm |
| Dimensions (Height) | 100mm |
| Dimensions (depth) | 56 mm |
