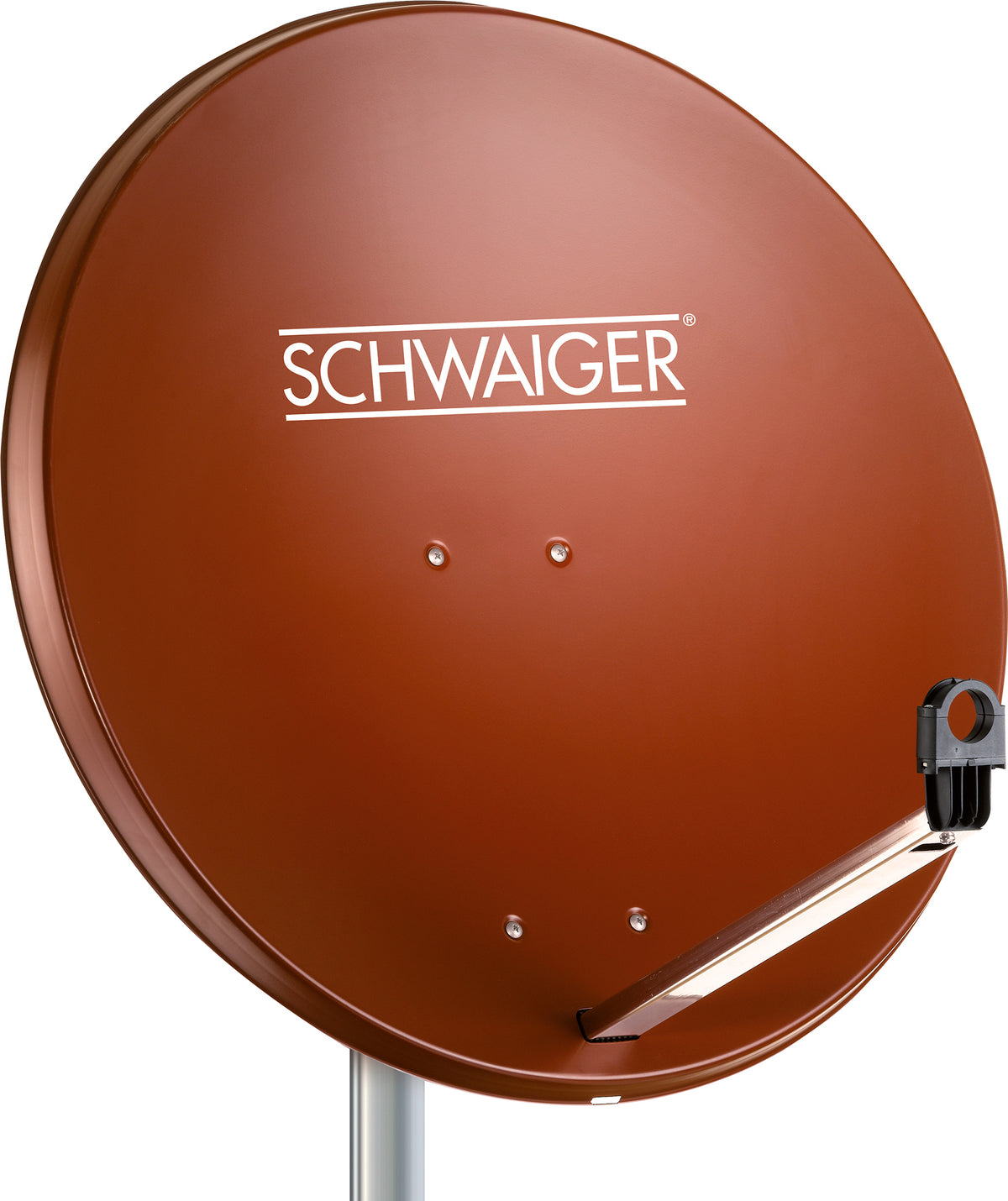

Steel offset antenna (75 cm)
SKU SPI996.2
€52,99

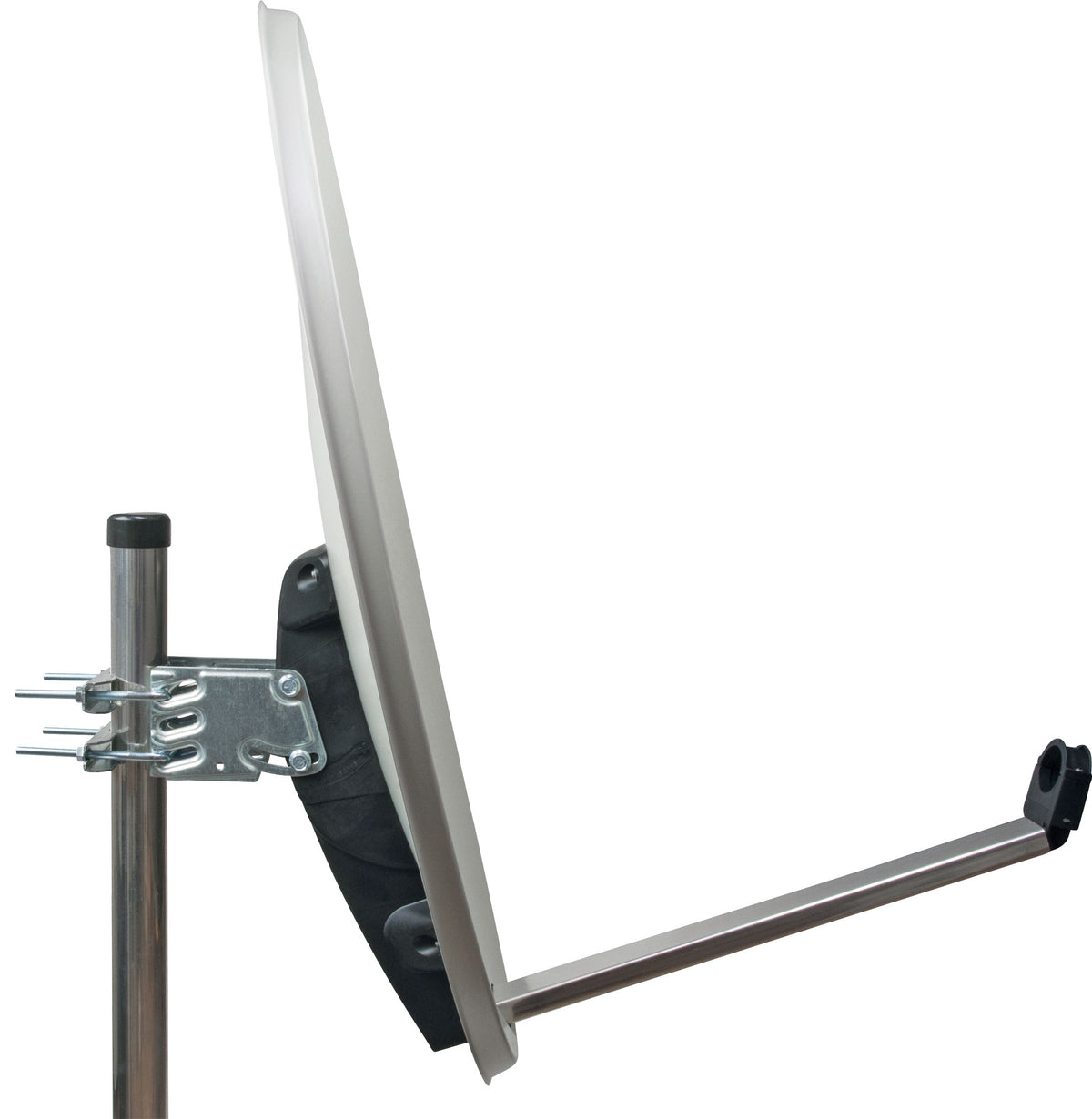

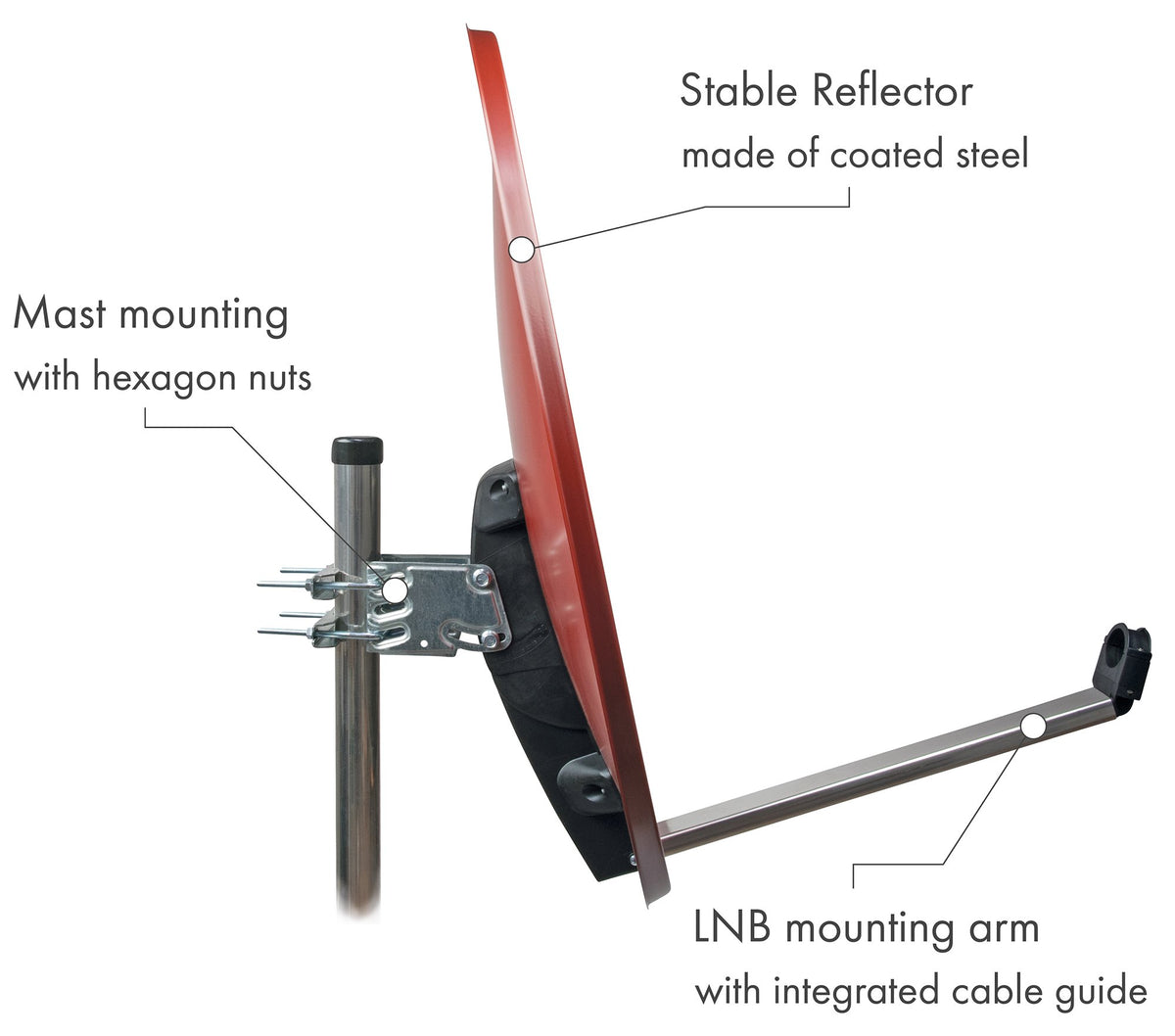

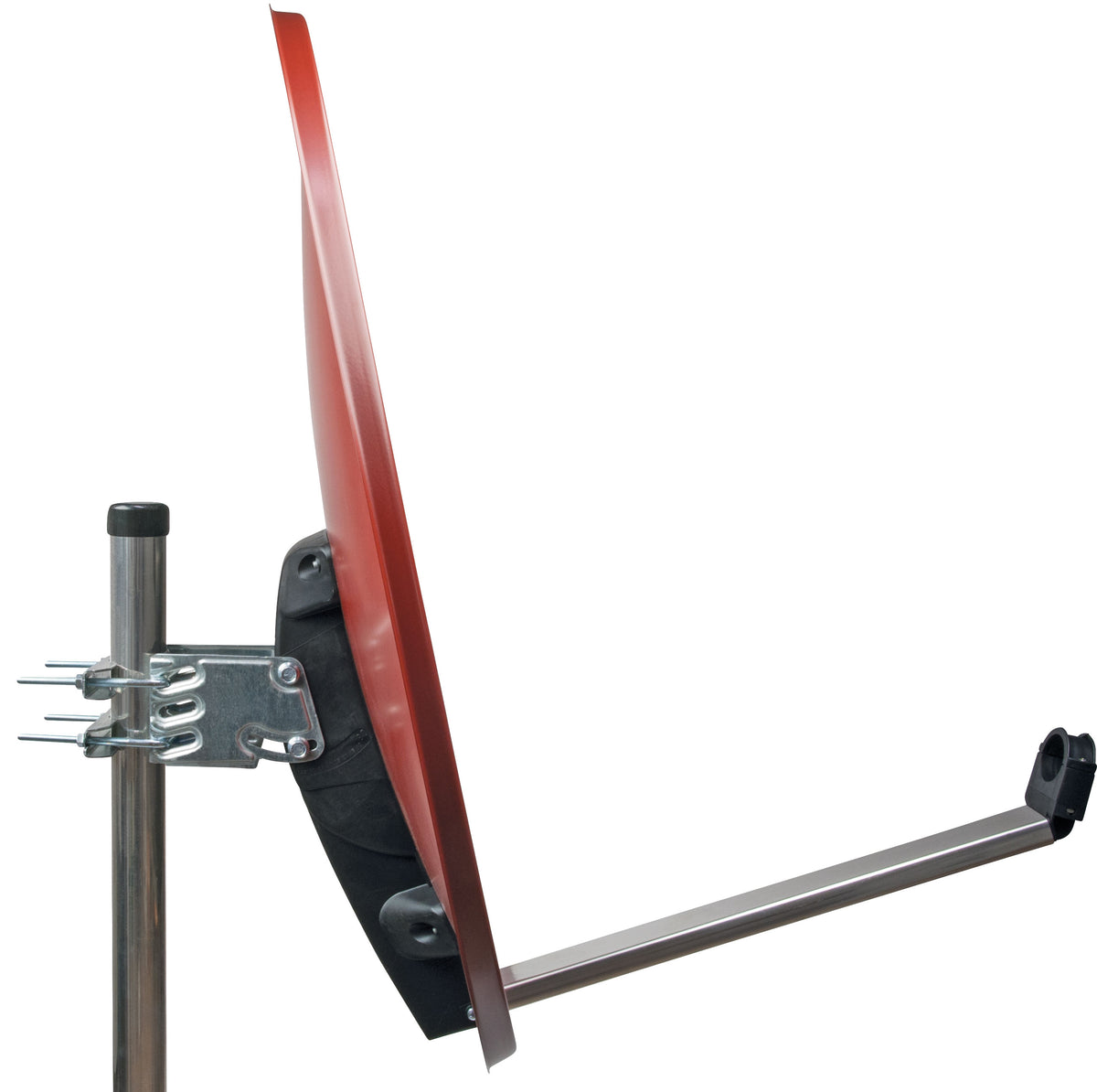

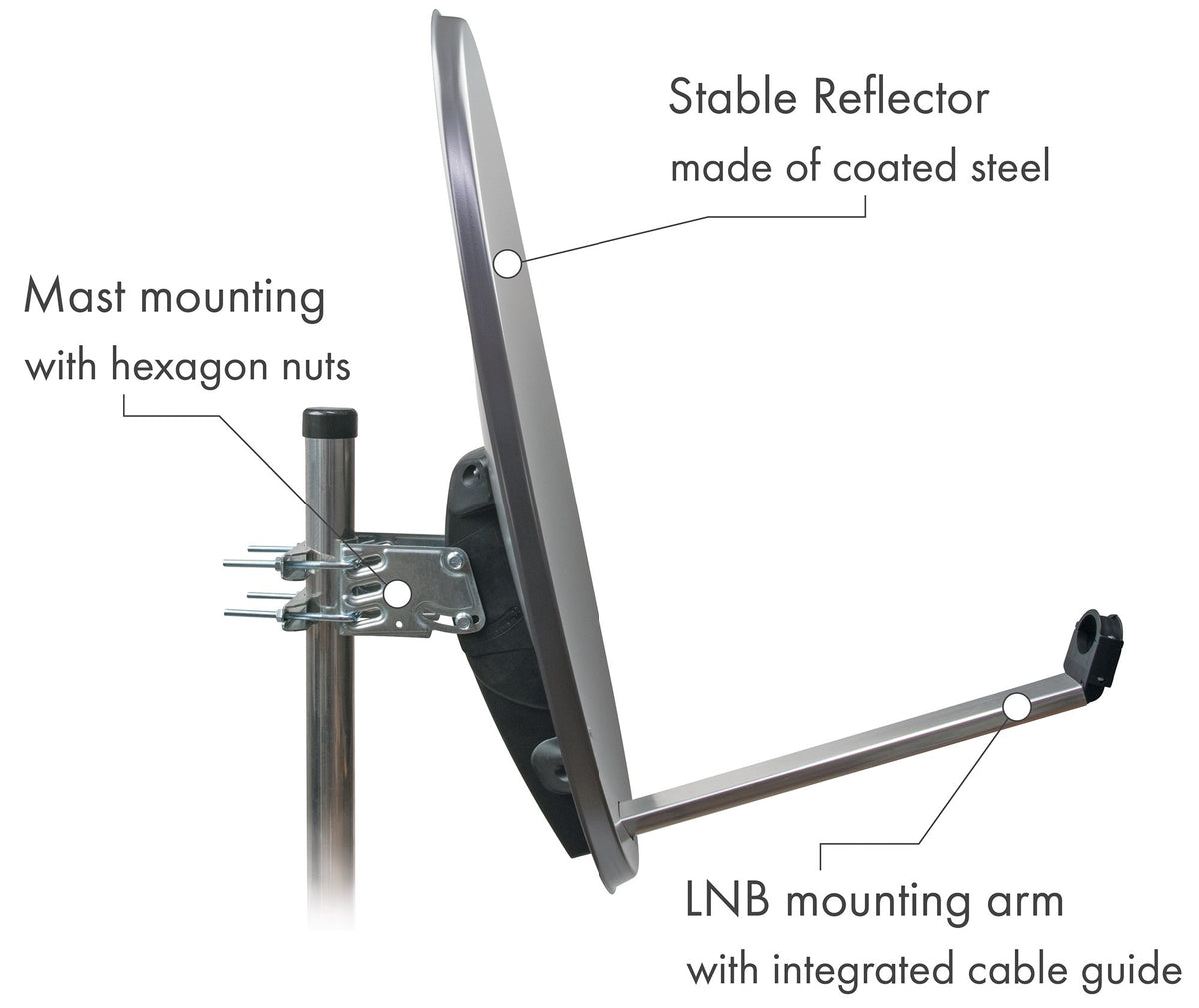

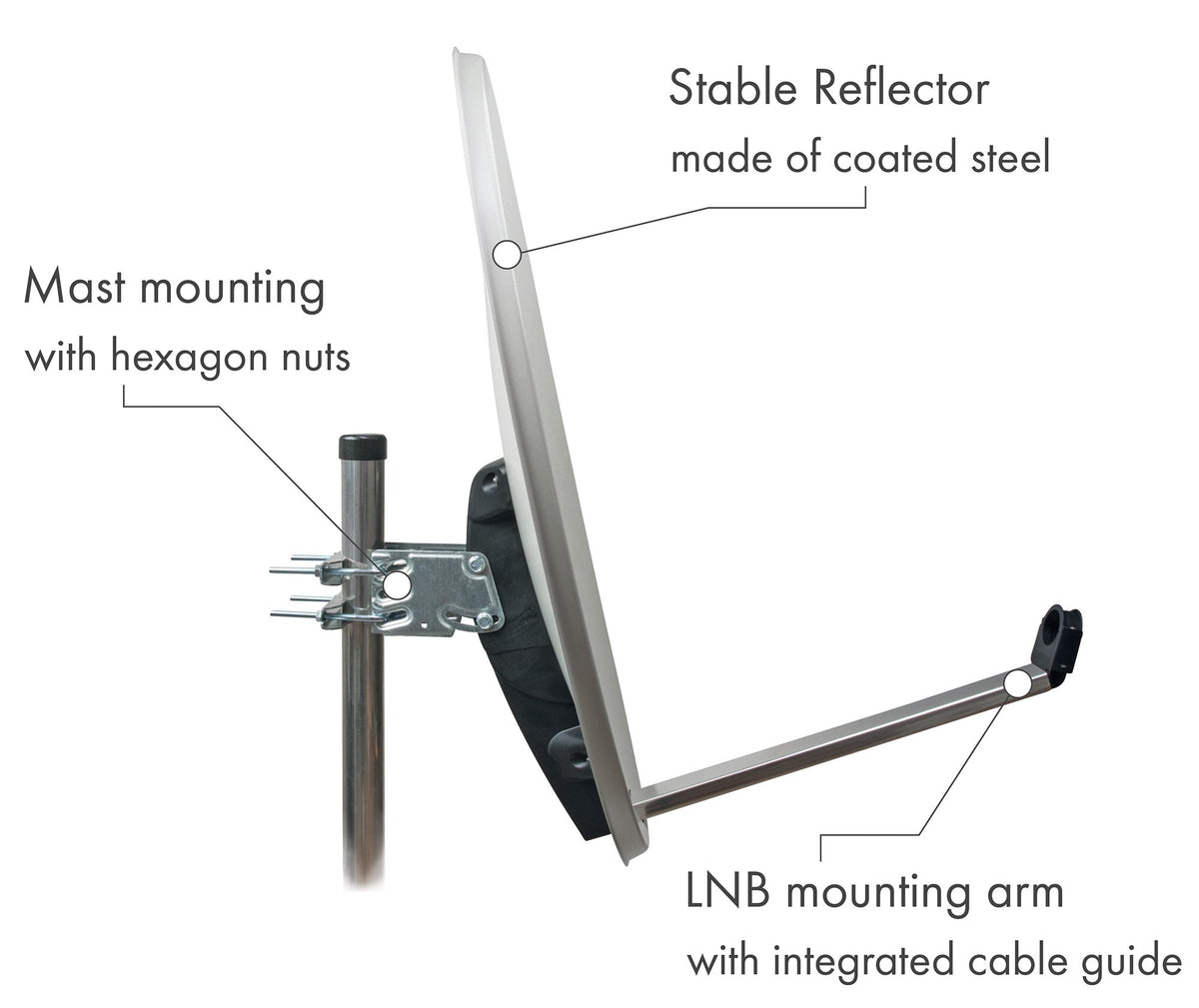

- LNB support arm with integrated cable routing

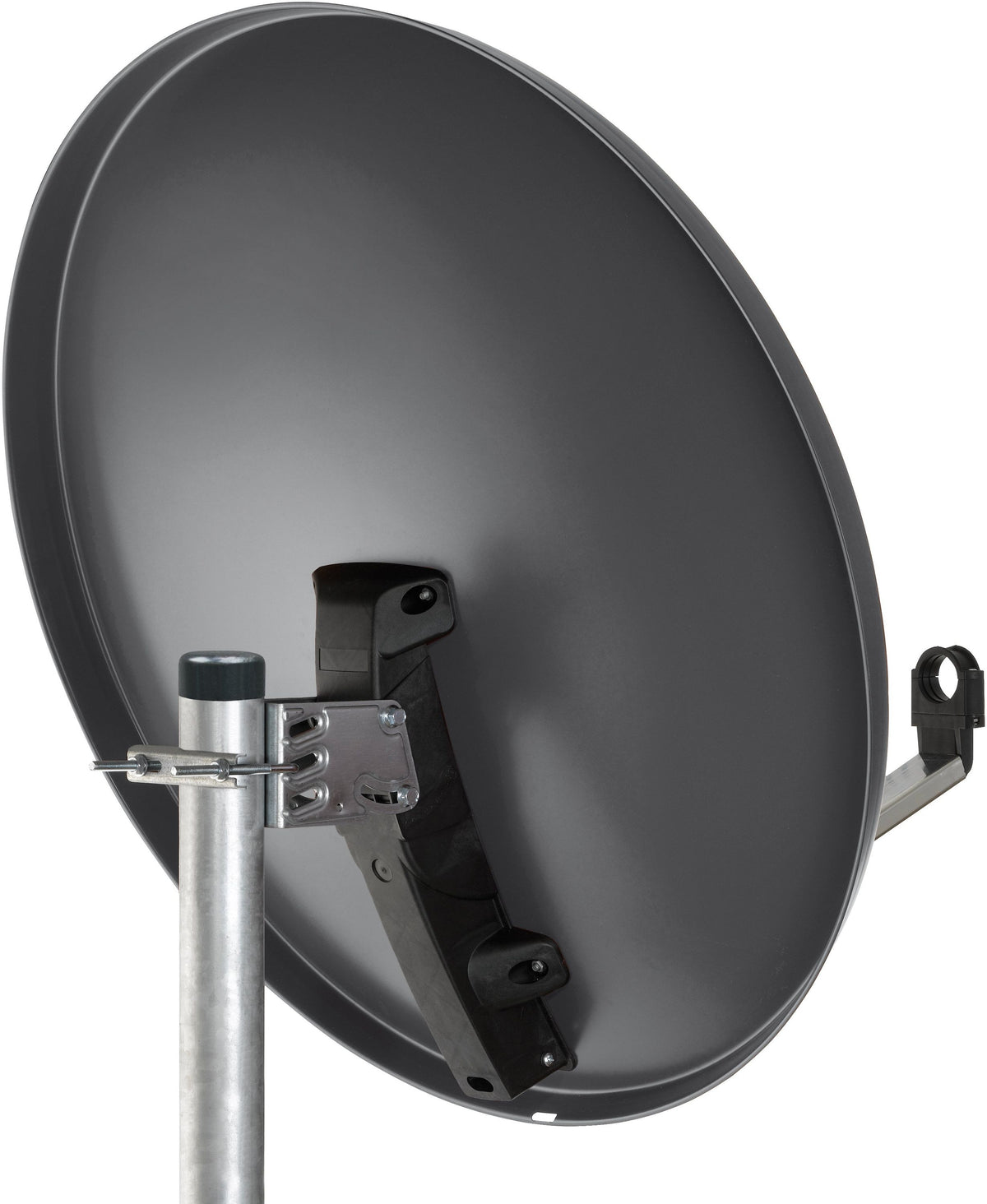

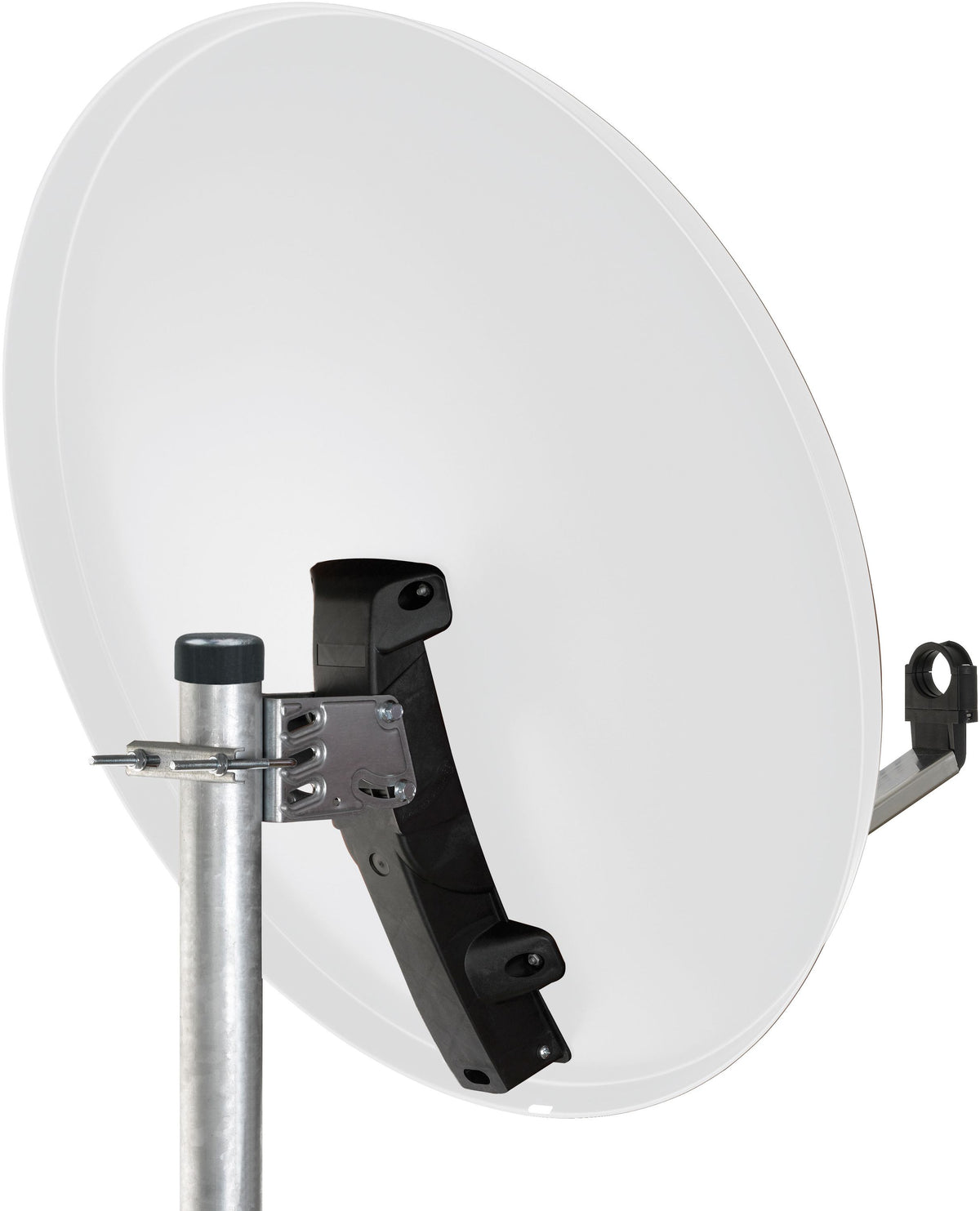

- Mast bracket with hex nuts
- Can be combined with all SCHWAIGER LNBs
- Suitable multifeed mount: UHA50
Auf Lager
Sichere Zahlung
Passend dazu
Steel offset antenna (75 cm)

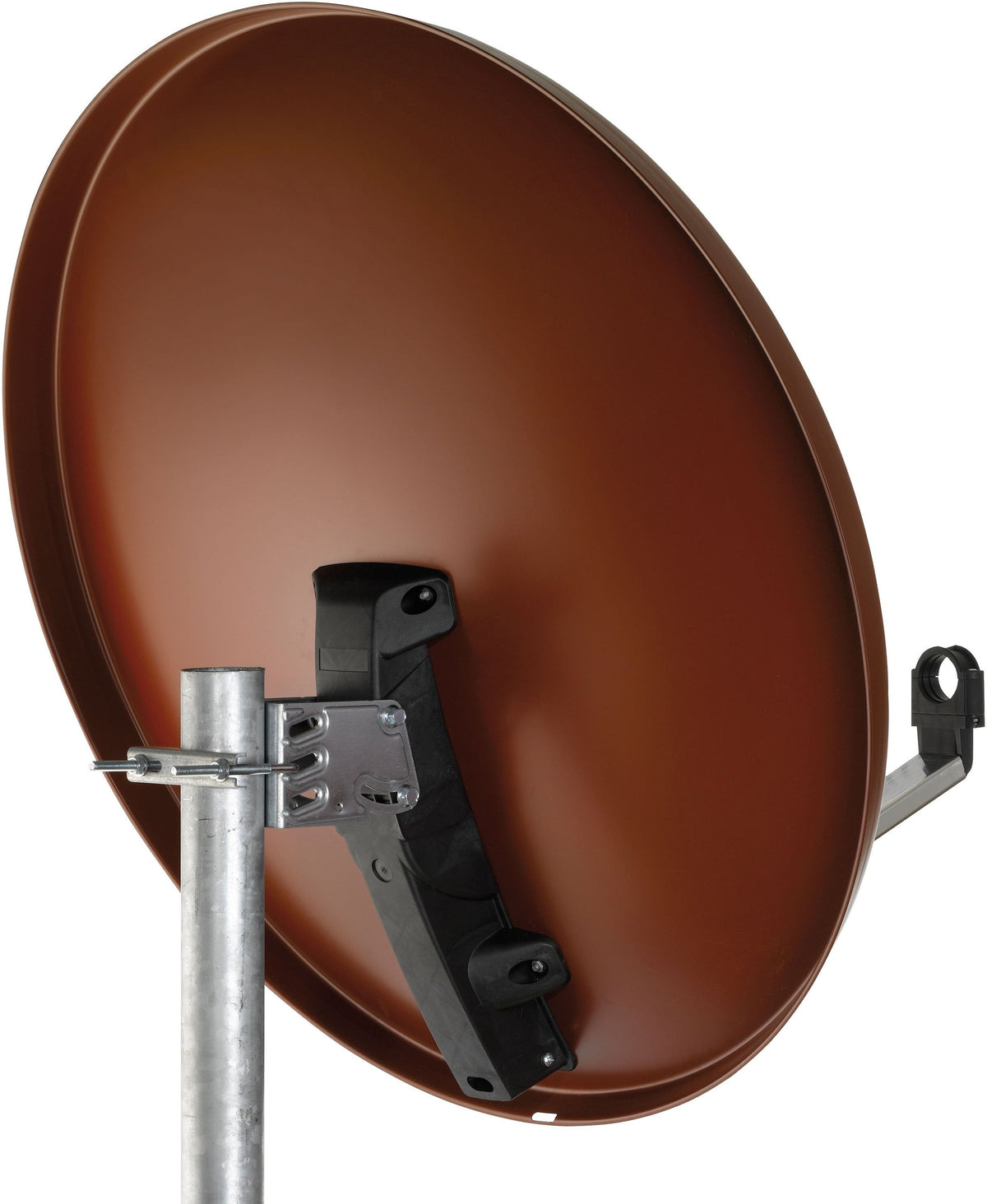

Brick red (RAL8012)
€52,99
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwbestaiger.com
Produktbeschreibung
With this SCHWAIGER® offset antenna, all free and encrypted television and radio programs can be received via satellite.
Technische Daten

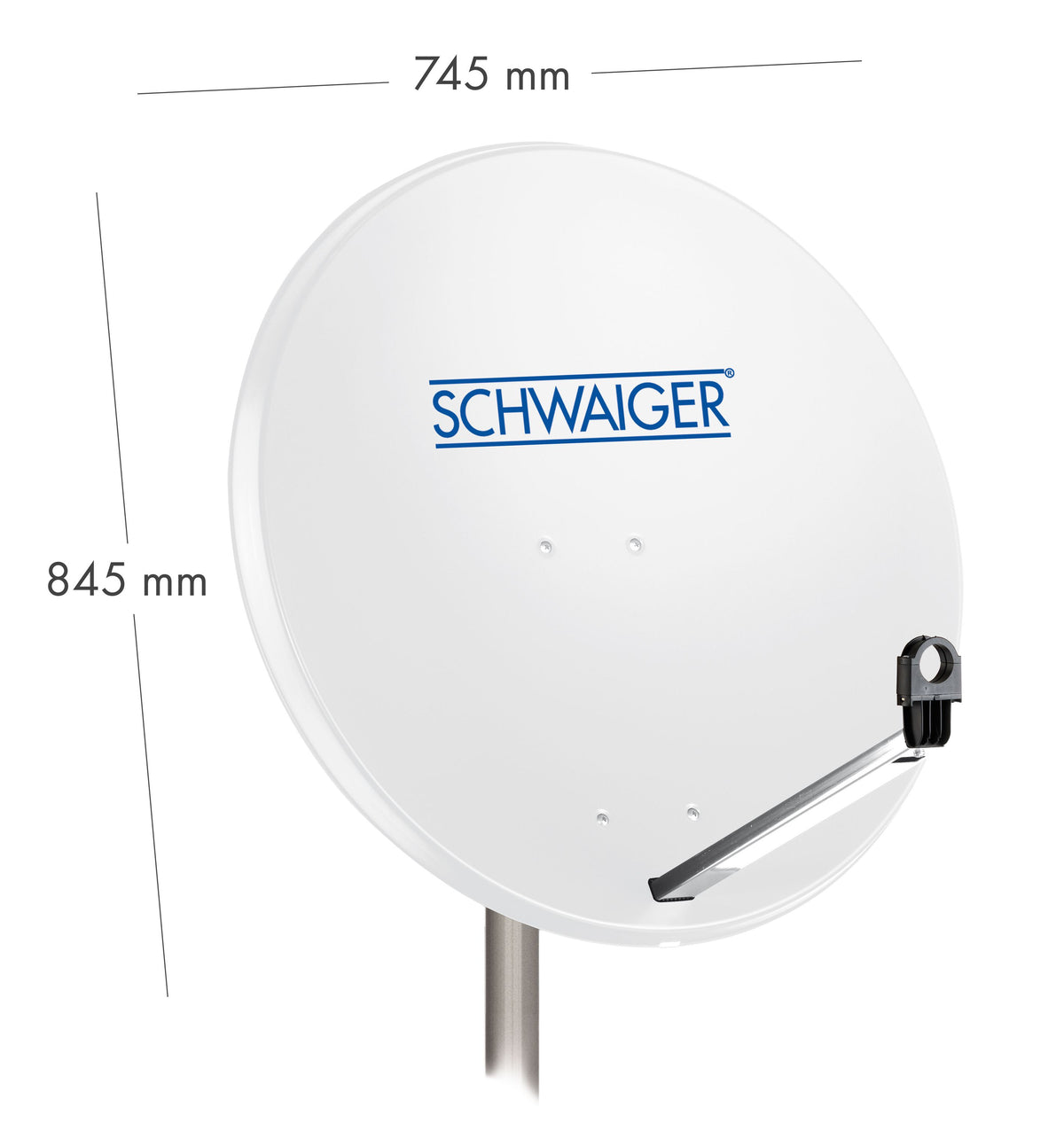

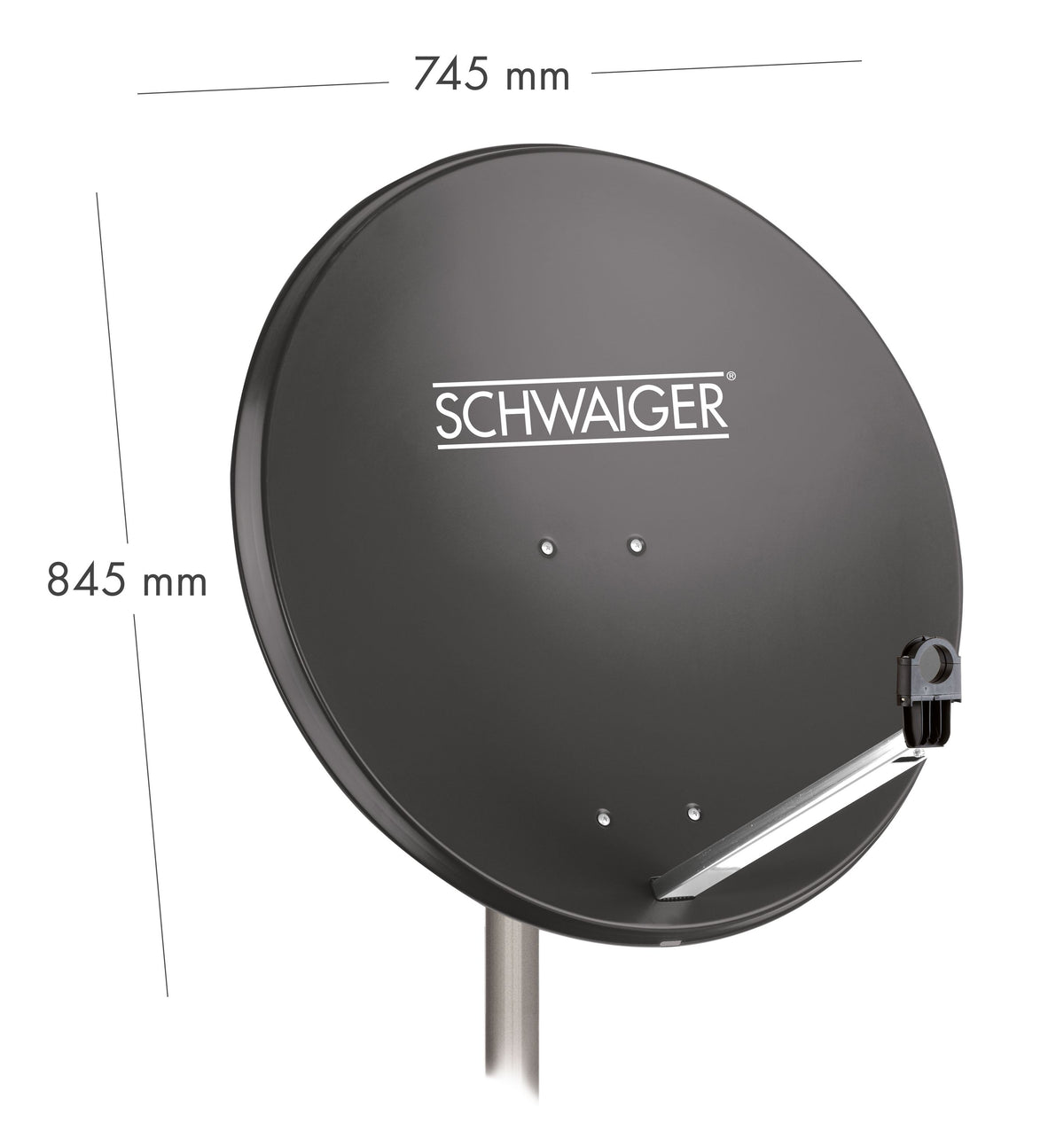

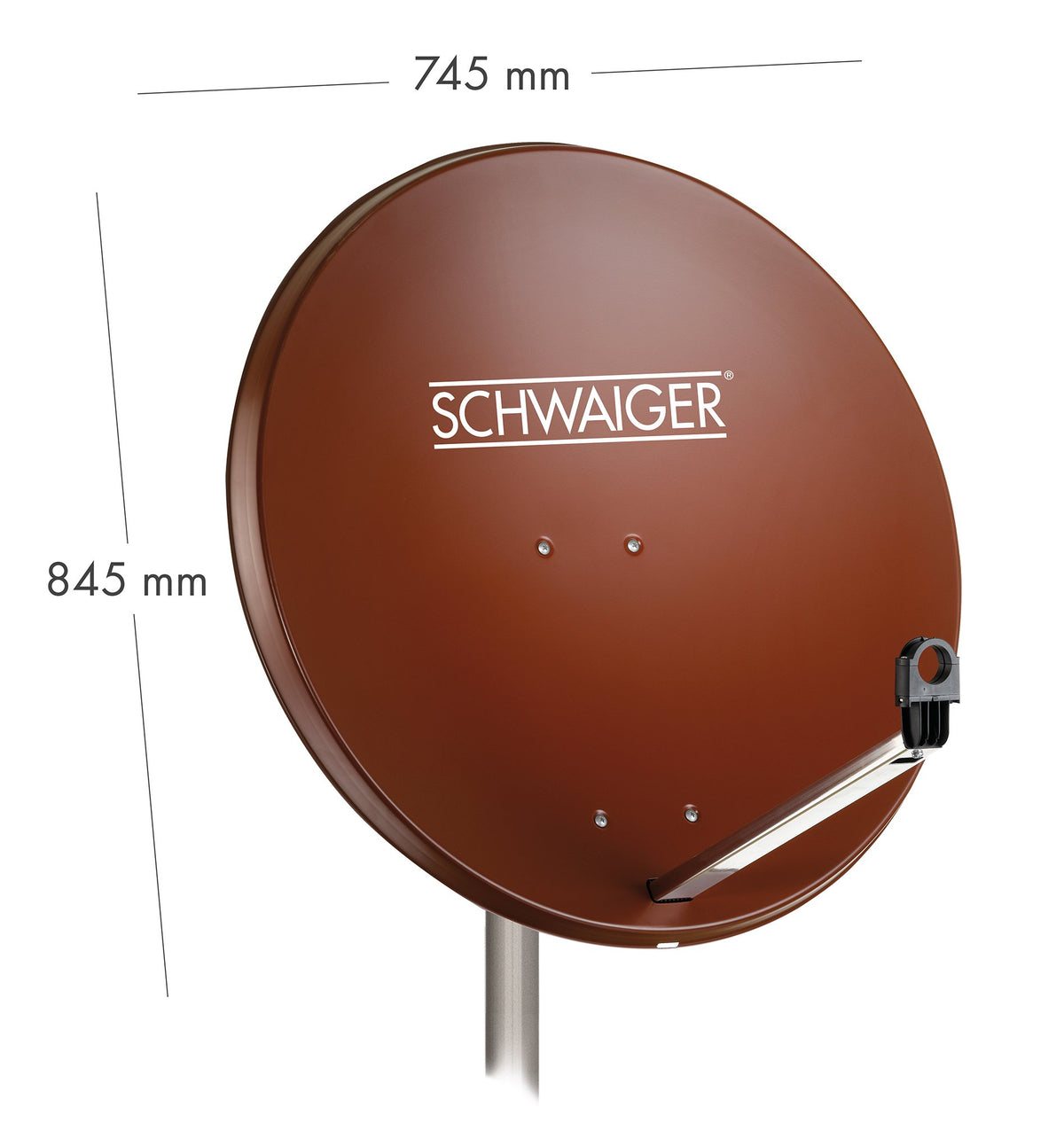

| Reflector (width) | 745 mm |
| Reflector (height) | 845 mm |
| Frequency range | 10.7 - 12.75 GHz |
| Feed intake | 40 mm |
| Material reflector | Powder-coated steel |
| Material mast holder | Galvanized steel |
| Material LNB bracket | plastic |
| Material LNB support arm | aluminum |
| Antenna gain (max.) | 38.5 dB |
| Wind load | 520 N (EN 60728-11) |
| Elevation setting range | 5-48 ° |
| Offset angle | 25 ° |
| Half width | 2.2 ° |
| Mast clamp clamping range | 32-76 mm |
| scope of delivery | Steel mirror, mast bracket, mounting material |
