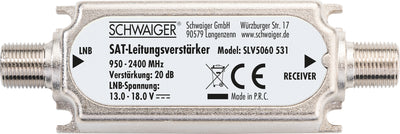

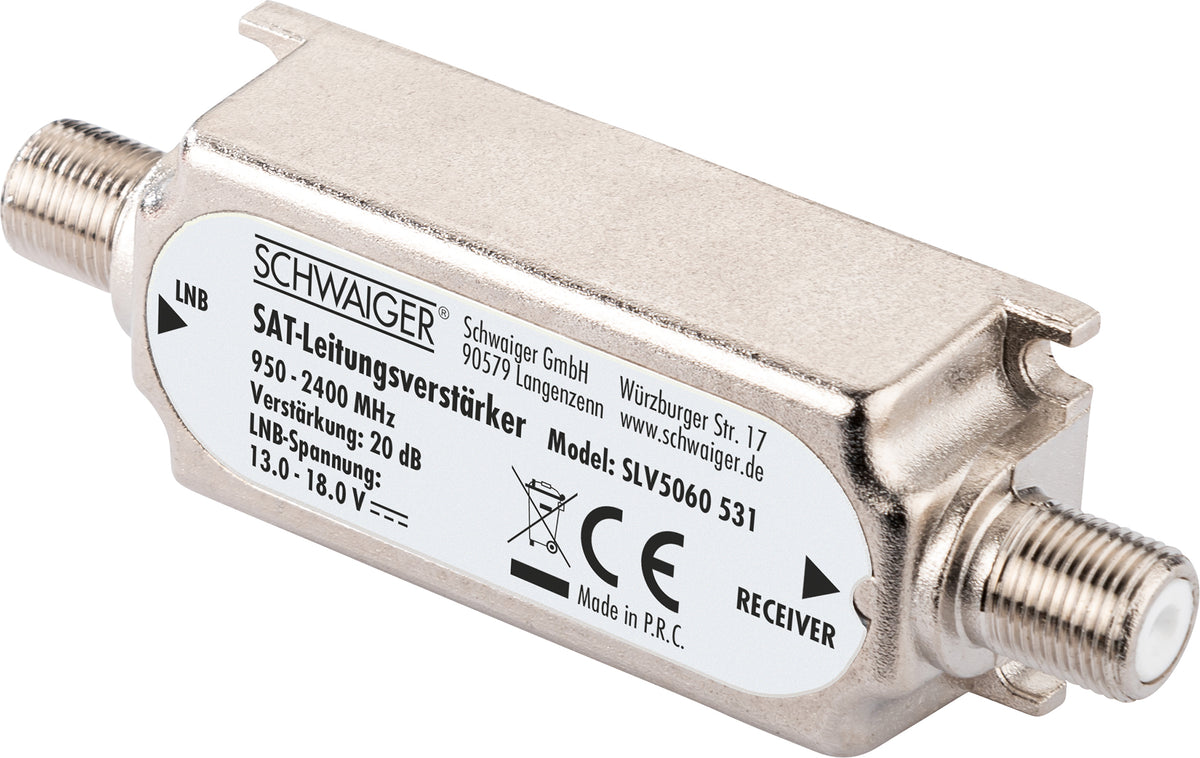

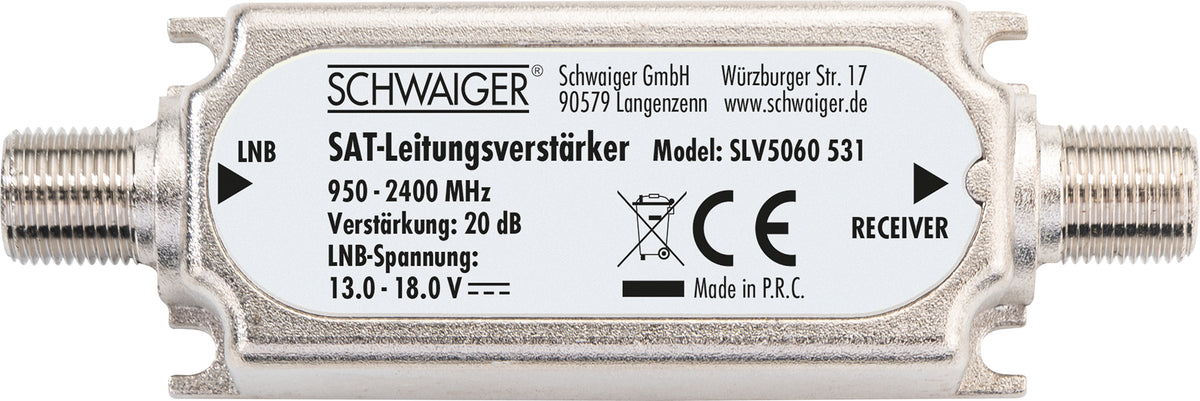

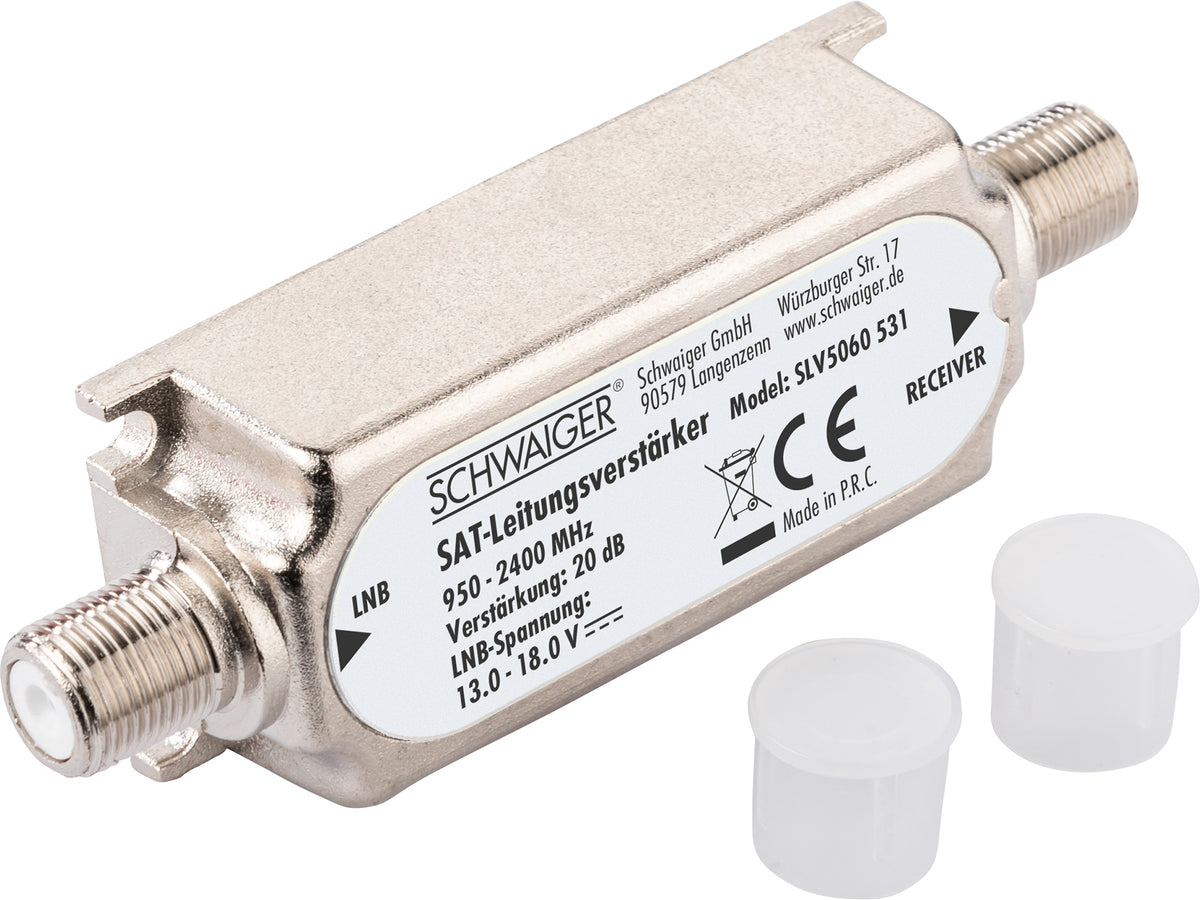

SAT IF line amplifier (20 dB)
SAT IF line amplifier (20 dB)
SAT IF line amplifier (20 dB)

SAT IF line amplifier (20 dB)

SKU SLV5060 531

€40,29
  • Remote power supply via input or output possible
  • Compensation of the attenuation with long connection cables
  • Direct current passage (DC)
Auf Lager

Sichere Zahlung

Apple Pay Bancontact BLIK EPS Google Pay iDEAL Wero Klarna Maestro Mastercard MobilePay PayPal Shop Pay Union Pay Visa

Passend dazu
Produktbeschreibung

This SCHWAIGER® line amplifier for satellite systems is used to compensate for the attenuation in long cable lines. In addition, it offsets the losses in multi-star distributions. The amplifier enables remote power supply via the input and output.

Technische Daten
Connections (input) 1 x F socket
Connections (output) 1 x F socket
Output level (max.) 114 dbµV (IM 3 DIN 45004 B)
Frequency range 950-2400 MHz
Gain (typical) 20 dB
Power consumption 12 - 18 V DC, 60 - 80 mA
weight 80 g
Dimensions (width) 92 mm
Dimensions (height) 29 mm
Dimensions (depth) 55 mm
colour silver
scope of delivery 1x SAT line amplifier
