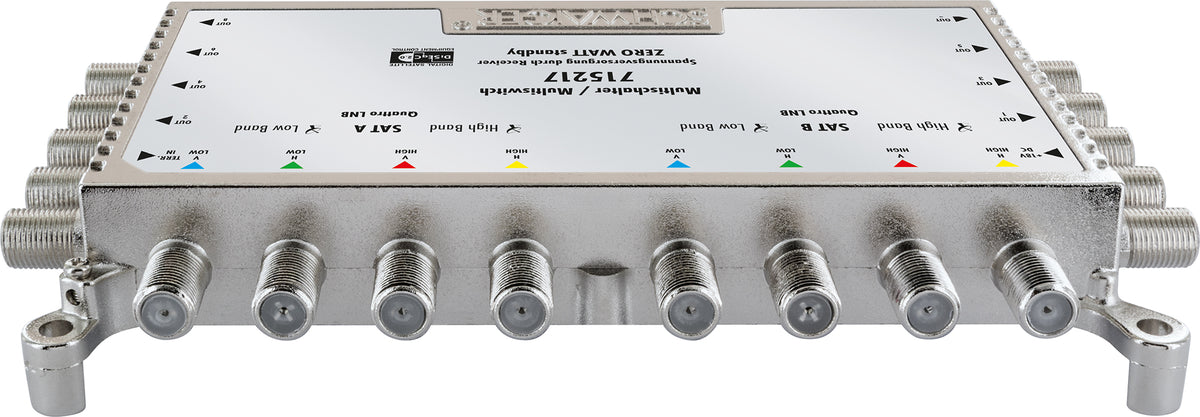

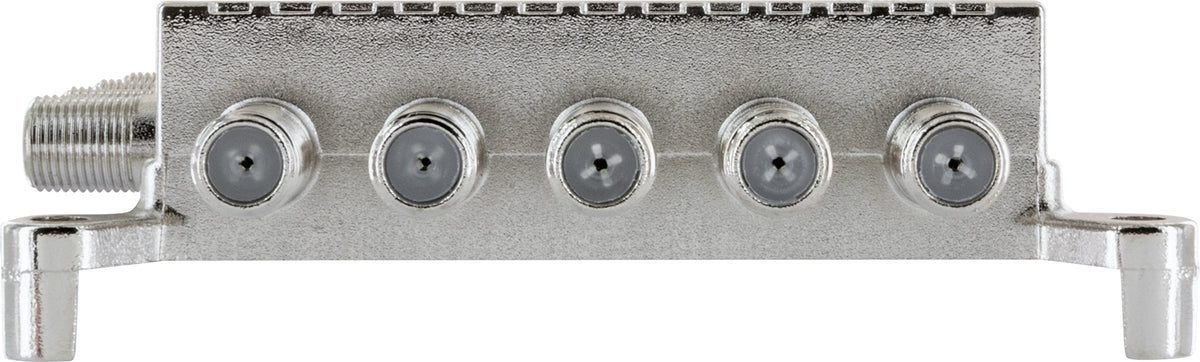

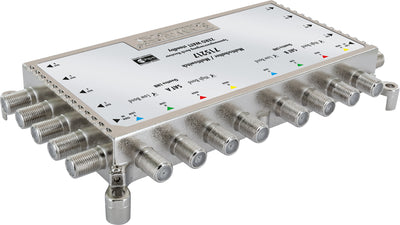

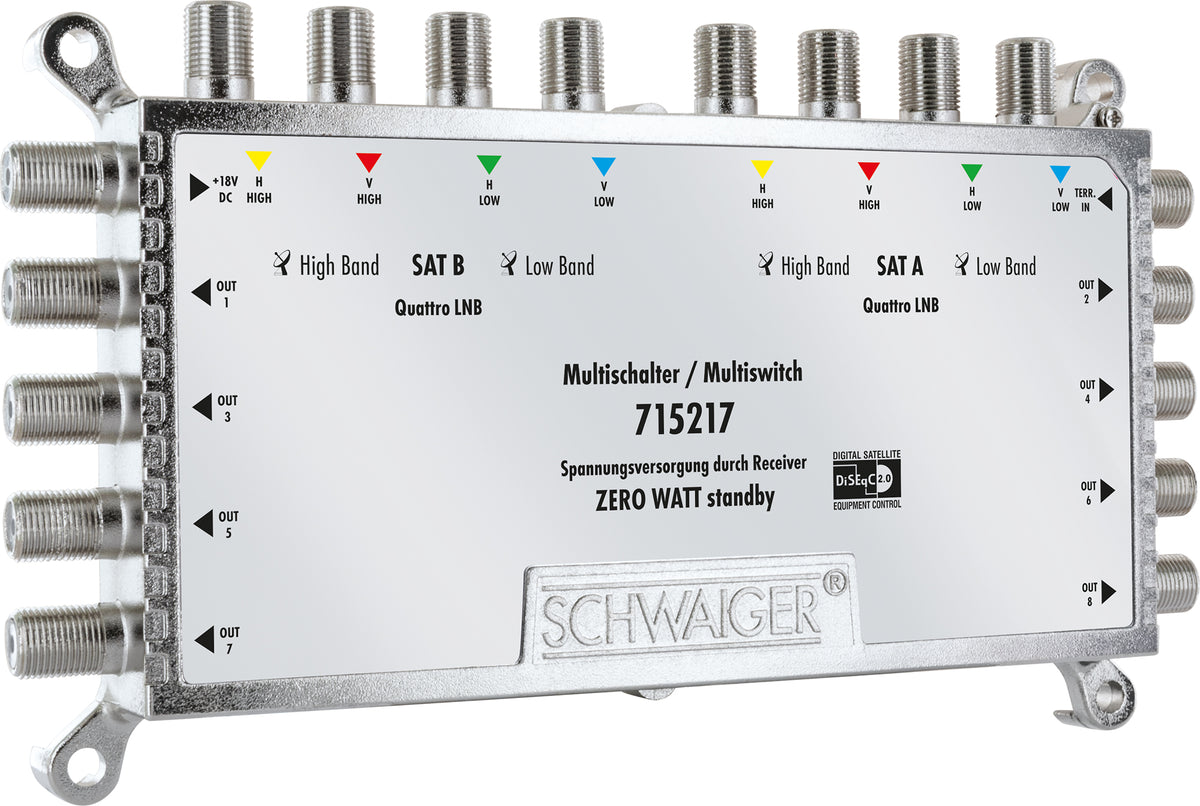

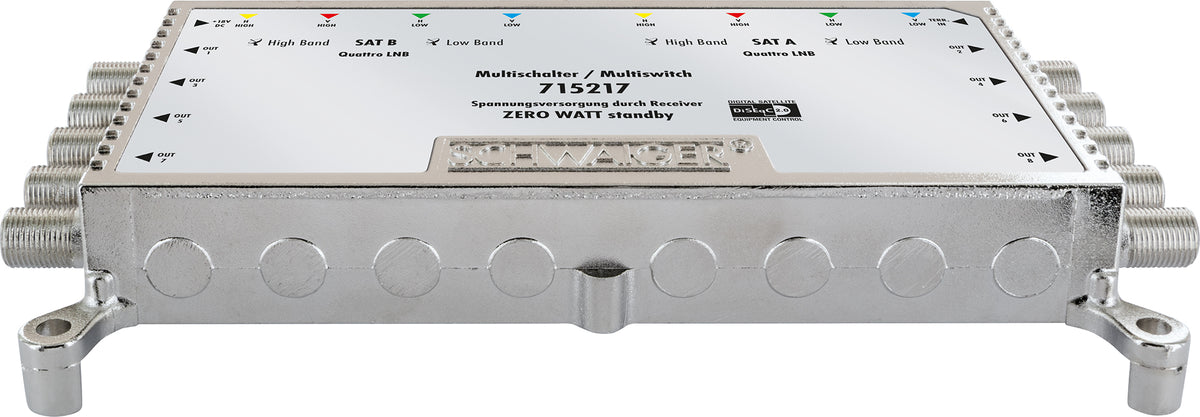

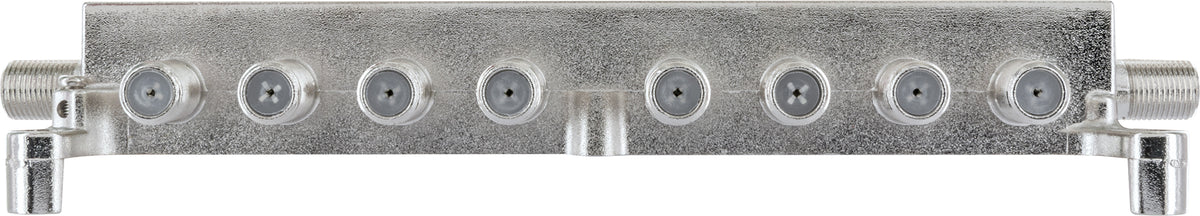

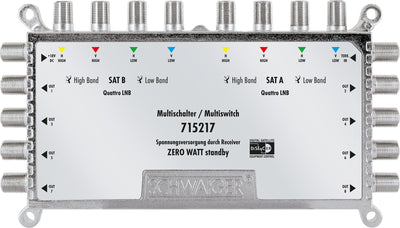

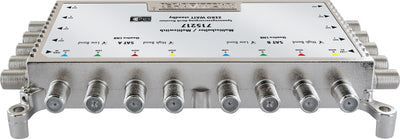

SAT multiswitch 9/8 with power supply
SKU 715217
€99,99
- Multiswitch distributes 2 satellite positions to 8 outputs using only two Quattro LNB's
- Input of terrestrial signals possible (e.g. DVB-T2 or radio programs)
- Independent program diversity for all participants of this reception system
- Very easy to set up and very compact design
Sichere Zahlung
Passend dazu
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwbestaiger.com
Produktbeschreibung
Would you like to receive up to 8 satellite signals with two Quattro LNBs ?
Then this product is just right for you! This SCHWAIGER multiswitch distributes digital signals from two satellite positions to up to 8 participants .
Two Quattro LNBs must be used to feed the signals. All participants can use the full range of programs independently of one another .
This multiswitch is powered purely by the connected receivers.
Technische Daten
| Max. number of participants | 8 participants |
| connections (input) | 8x F-socket (SAT), 1x F-socket (terrestrial) |
| connections (output) | 8x F-socket (SAT) |
| Frequency range | 950-2,150 MHz (SAT), 5 -790 MHz (TV/FM) |
| decoupling | > 30 dB |
| product material | aluminum die-casting |
| Dimensions (Width) | 155 mm |
| Dimensions (Height) | 80mm |
| Dimensions (depth) | 20mm |

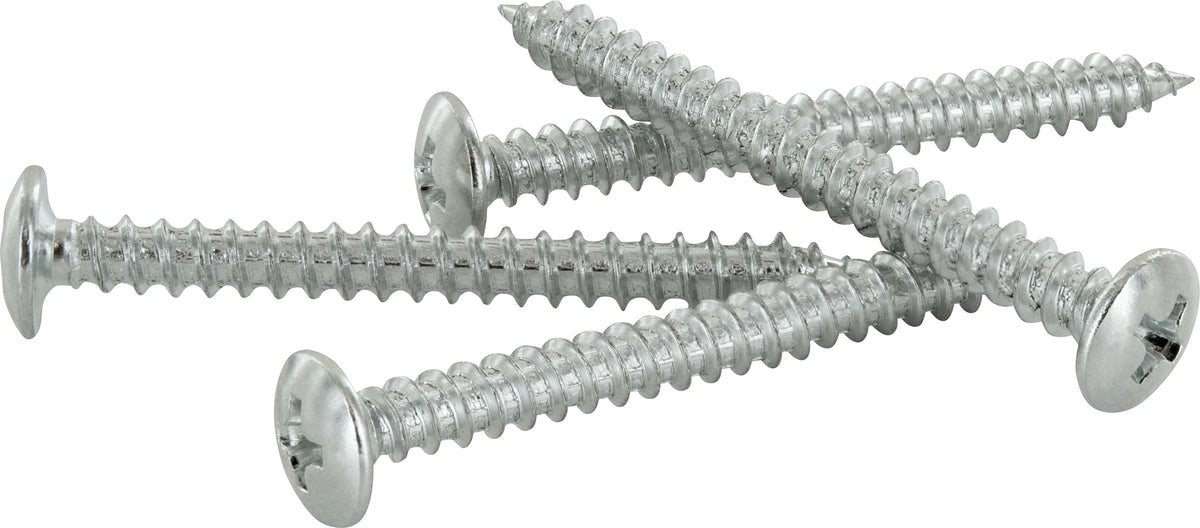

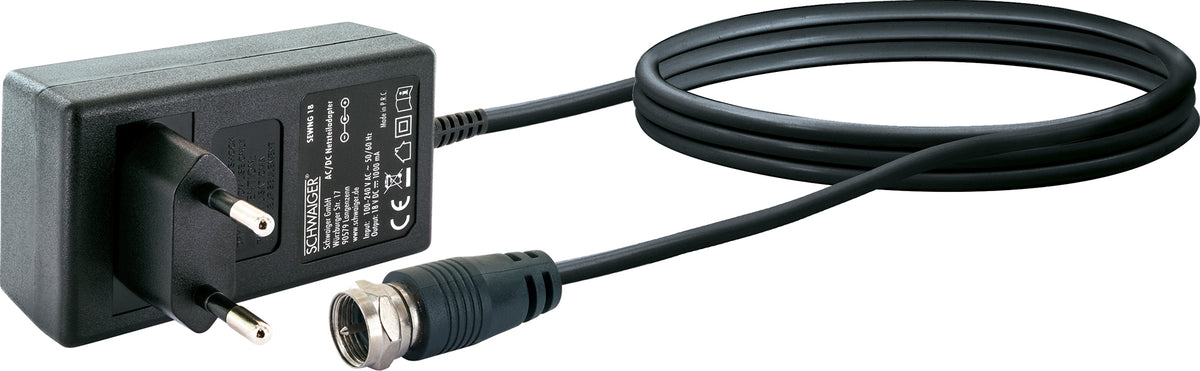

| scope of delivery | 1x SAT multiswitch, 1x power supply, 4x mounting screws |
