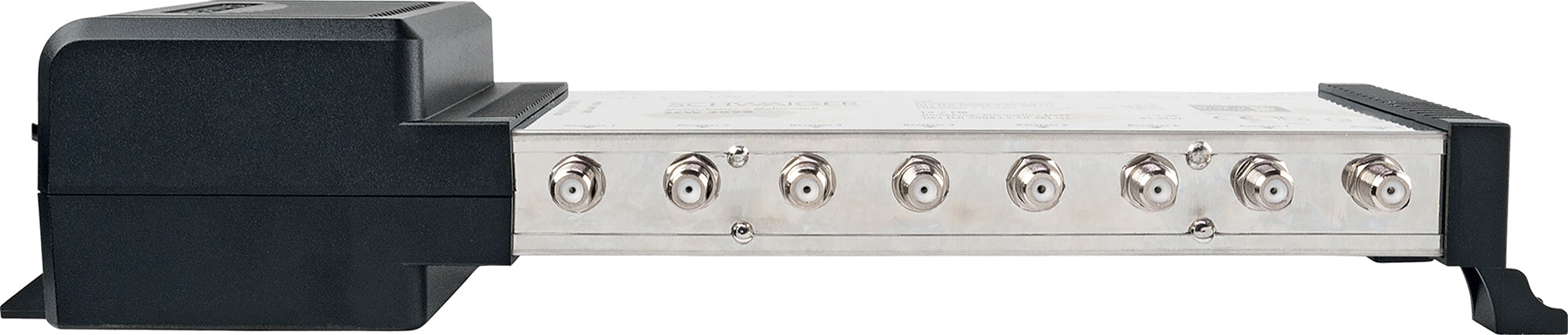

SAT multiswitch 9 → 8
SAT multiswitch 9 → 8
SAT multiswitch 9 → 8

SAT multiswitch 9 → 8

SKU SEW4098 531

€219,00
  • Multiswitch distributes 2 satellite positions to 8 outputs
  • Feeding of terrestrial signals possible (passive)
  • Independent program variety for all participants of this reception system
  • Scope of delivery: 1x SAT multiswitch
Auf Lager

Sichere Zahlung

Apple Pay Bancontact BLIK EPS Google Pay iDEAL Wero Klarna Maestro Mastercard MobilePay PayPal Shop Pay Union Pay Visa

Passend dazu
Produktbeschreibung

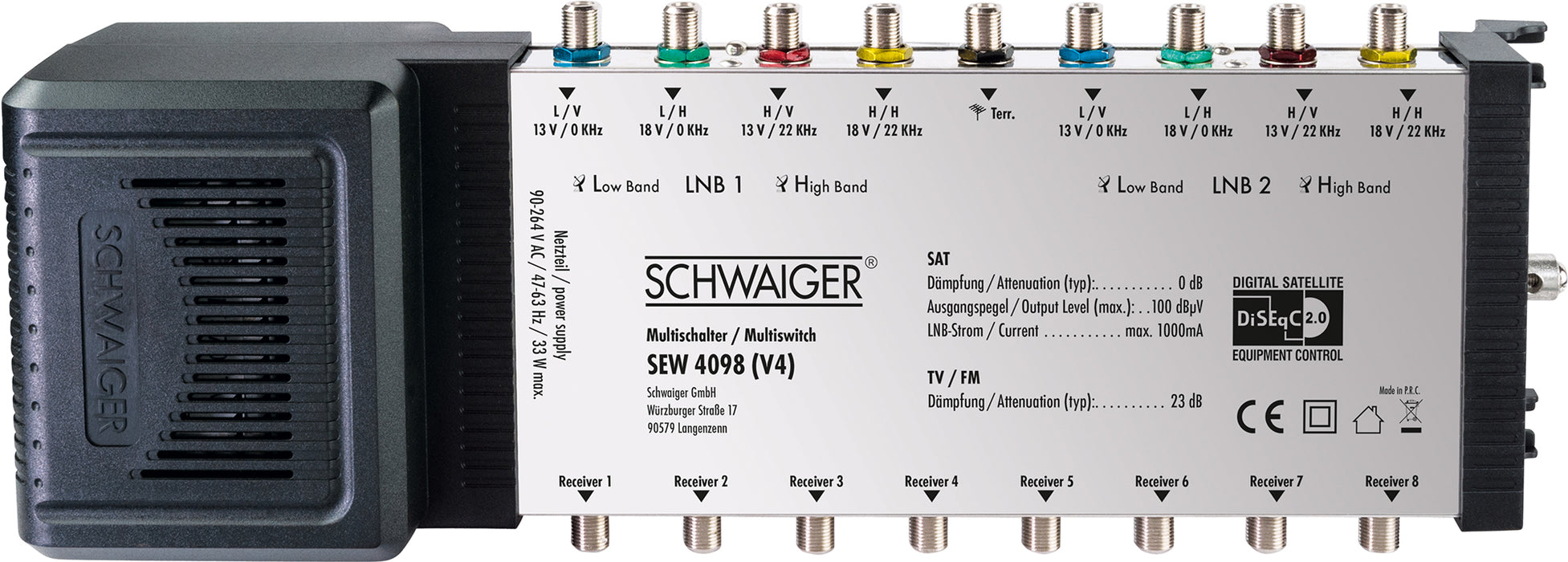

This SCHWAIGER® multiswitch distributes digital signals from two satellite positions to up to 8 participants. Two Quattro LNBs and terrestrial signals can be fed in. All participants can use the full range of programs independently of one another. The special feature of this multiswitch are the colored connections for installation without confusion.
Technische Daten
Place of useIndoor
Connections (input)8 x F socket (75 Ohm) (SAT)
1 x F socket (75 Ohm) (TV / RDF)
Connections (output)8 x F socket (75 Ohm)
Output level (max.)(typ.) 100/85 dbµV (SAT / terrestrial)
Frequency range47 - 862 MHz
950-2150 MHz
Through loss(typ.) 0 dB (SAT)
(typ.) 23 dB (TV / FM)
Power consumptionthrough LNB: (max.) 1000 mA
Power supply230 V AC
Power consumptionmax. 60 W
operating temperatur-10 to +50 ° C

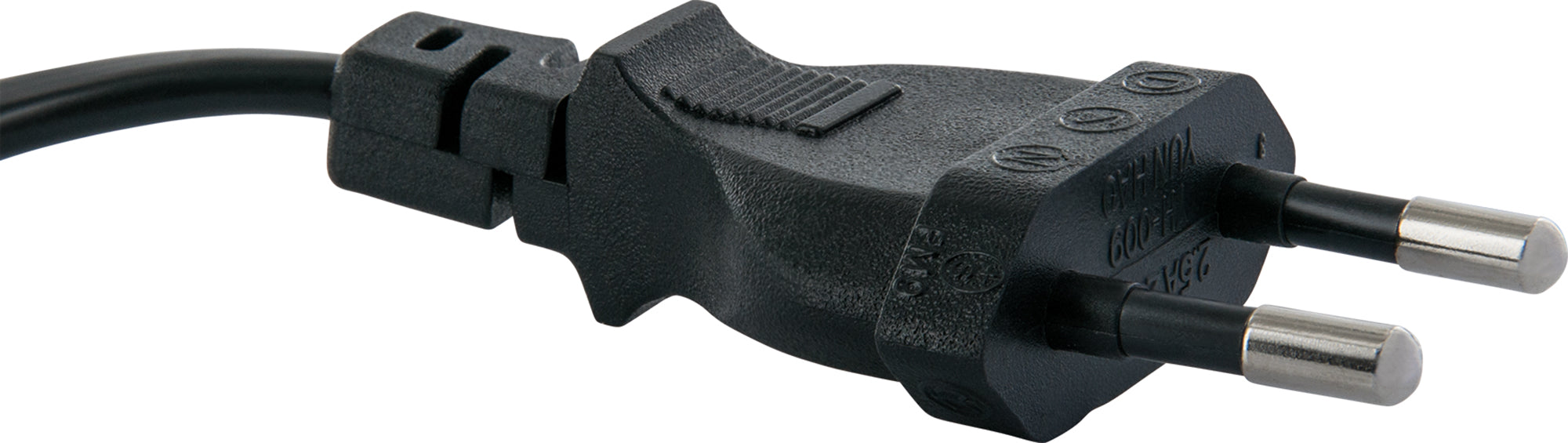

power adapterintegrated
Dimensions (width)345 mm
Dimensions (height)120 mm
Dimensions (depth)68 mm
colourBlack silver
