SAT coaxial cable (115 dB)
SKU KOX11515 532

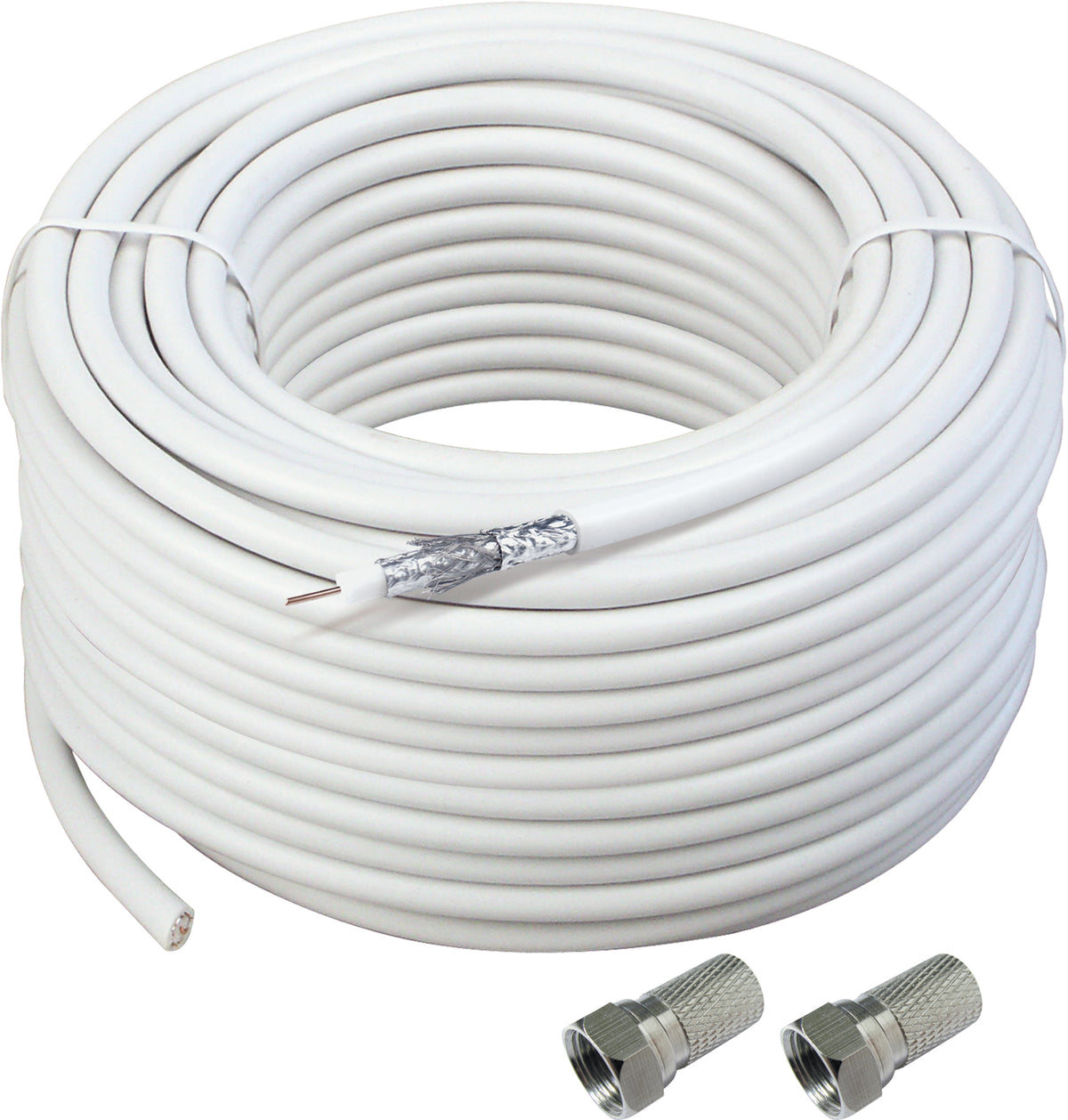

- Set consisting of: coaxial cable (115 dB), triple shielded and 2x Ø 7 mm F-connector (Schwaiger FST 70xx)
- Triple shielding for additional security against electromagnetic interference
- High shielding properties guaranteed
- Moisture-resistant with high long-term stability
- High density and very good insulating properties
Sichere Zahlung
Passend dazu
SAT coaxial cable (115 dB)
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwbestaiger.com
Produktbeschreibung
This SCHWAIGER® coaxial cable is suitable for very high requirements in satellite and cable TV installations. The shielding dimension of 115 dB enables the best possible protection against electromagnetic interference and radio interference of all kinds. In addition, thanks to the cable structure, very low signal attenuation is achieved. The cable can be shortened to any length and equipped with the enclosed F-connectors. SCHWAIGER® offers a suitable stripping tool for this.
Technische Daten
| Impedance | 75 ohms |

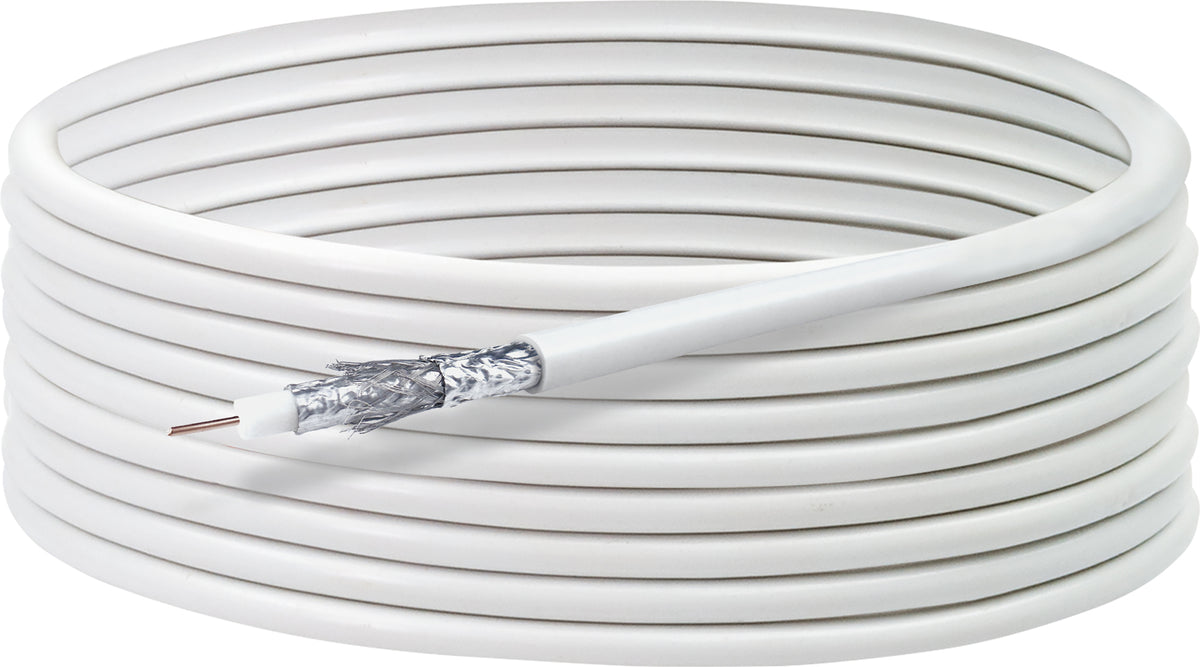

| Cable structure | 1.02 mm (inner conductor) 4.4 mm (dielectric) 7 mm (jacket) |
| Shielding | 3-fold shielded |
| Shielding measure | 115 dB |
| Attenuation at 100 m | 5 dB to 50 MHz 6 dB to 100 MHz 14 dB to 470 MHz 20 dB to 860 MHz 21 dB to 950 MHz 29 dB to 1750 MHz 33 dB to 2150 MHz |
| Shielding material | Aluminum composite foil (double) 84 aluminum braid Aluminum composite foil (double) |
| Inner conductor | Cu |
| Cable length | 15 m or 25 m |
| Product material | plastic |
| classification | Class a |
| colour | White |
| scope of delivery | 1x SAT coaxial cable, 2x F connector |
