SKU SPI994 011

€105,00
  • Reception system for setting up 4 subscriber SAT systems
  • Mast bracket with mounting material
  • Optional multifeed bracket: UHA50 (extension for 2 LNBs), suitable for receiving e.g. ASTRA (19.2º East) and EUTELSAT (13º East)
Auf Lager

Sichere Zahlung

Apple Pay Bancontact BLIK EPS Google Pay iDEAL Wero Klarna Maestro Mastercard MobilePay PayPal Shop Pay Union Pay Visa

Passend dazu
Produktbeschreibung

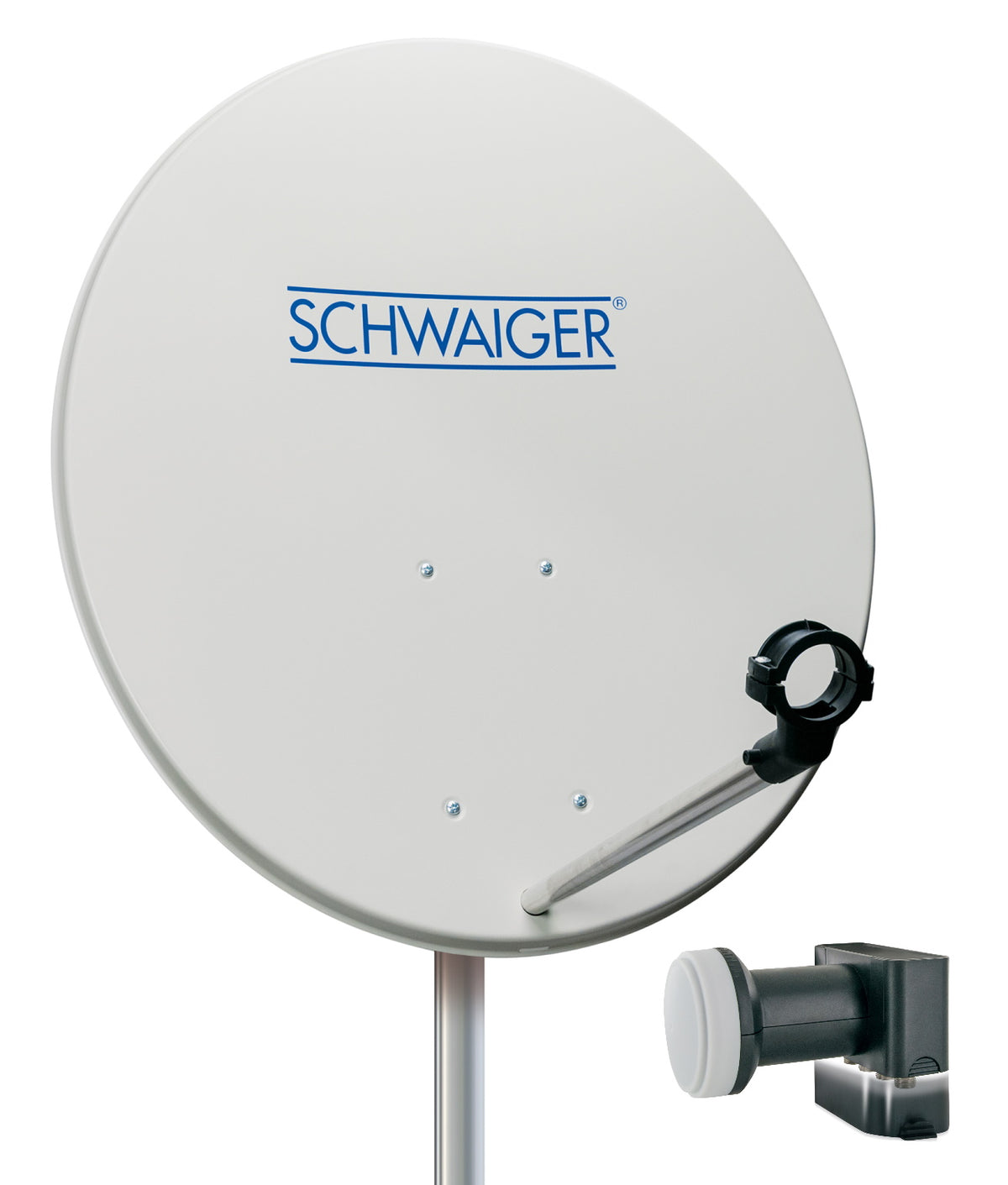

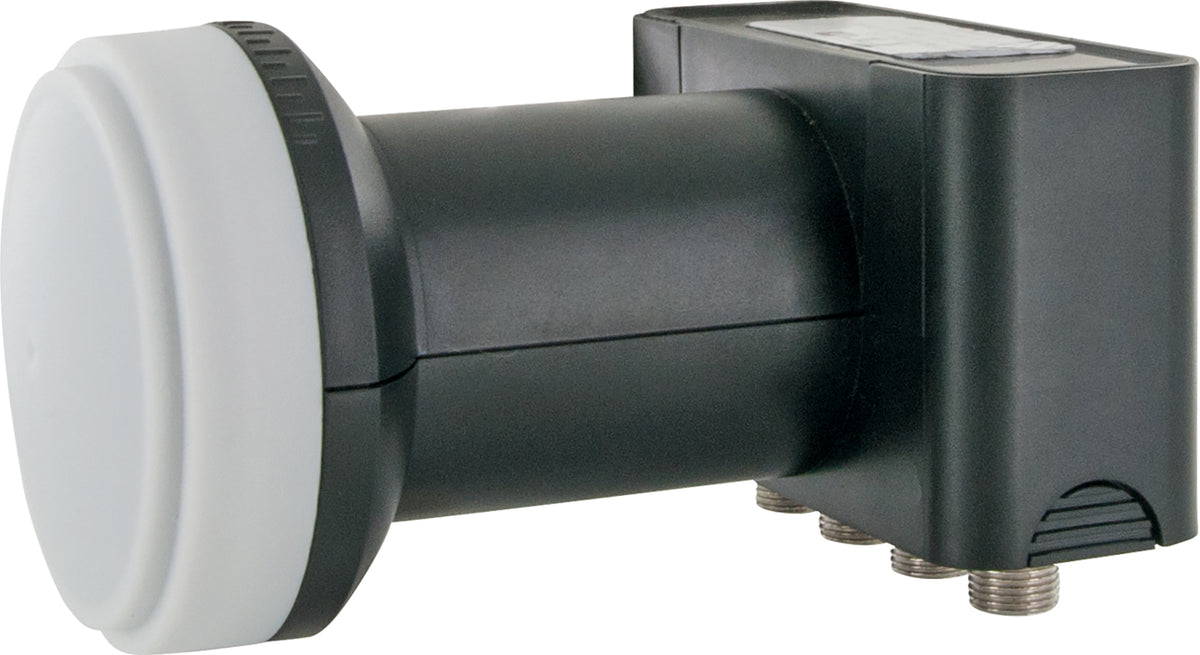

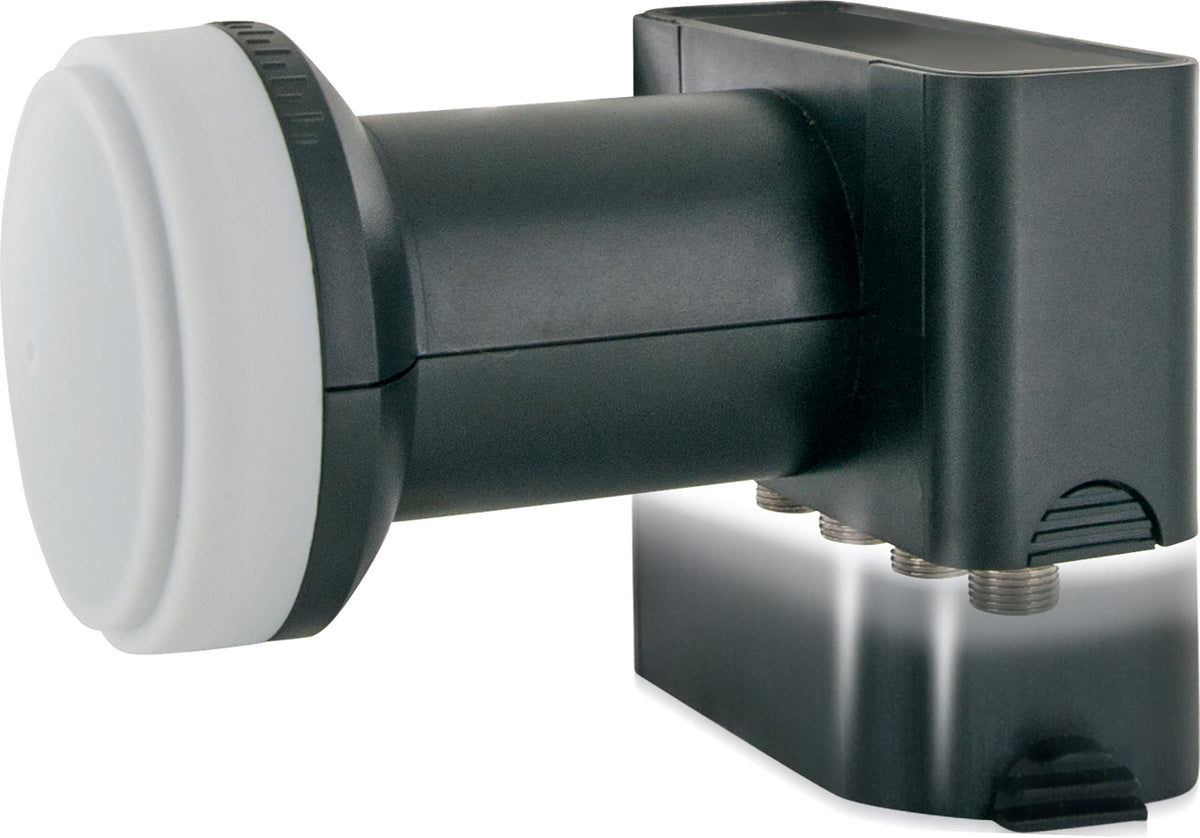

This SCHWAIGER® external unit contains as a package an offset antenna and a Quad LNB for setting up a SAT system for up to 4 participants, corresponds to 4 receivers. The offset antenna can receive all free and encrypted television and radio programs via satellite. All components are optimally matched to one another and are supplied with the necessary mounting accessories.

Technische Daten
Place of use Outdoor area

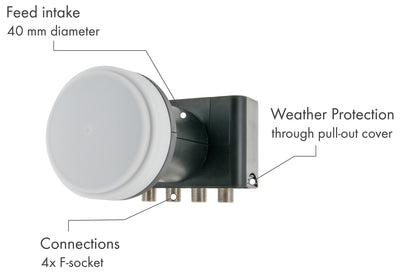

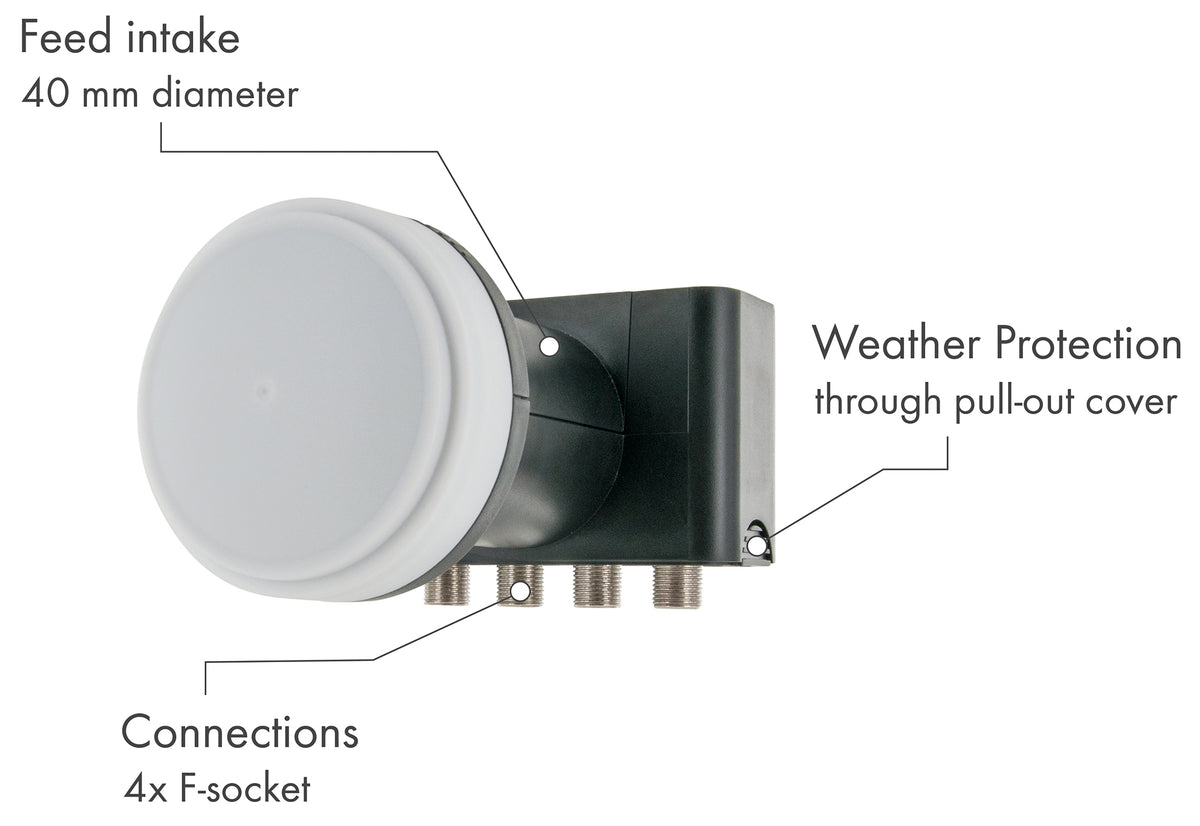

Connections (LNB) 4 x F socket
Input frequency 10.70 - 11.70 GHz (low)
11.70 - 12.75 GHz (high)
Output frequency 950-2,150 MHz
Frequency range 10.70-12.75 GHz
Control function 0 kHz (low)
22 kHz (high)
Noise figure (typical) 0.3 dB
Power consumption <220 mA
Reflector (width) 720 mm
Reflector (height) 820 mm
polarization Decoupling:> 25 dB
Feed intake 40 mm
Antenna gain (max.) 39.5 dB

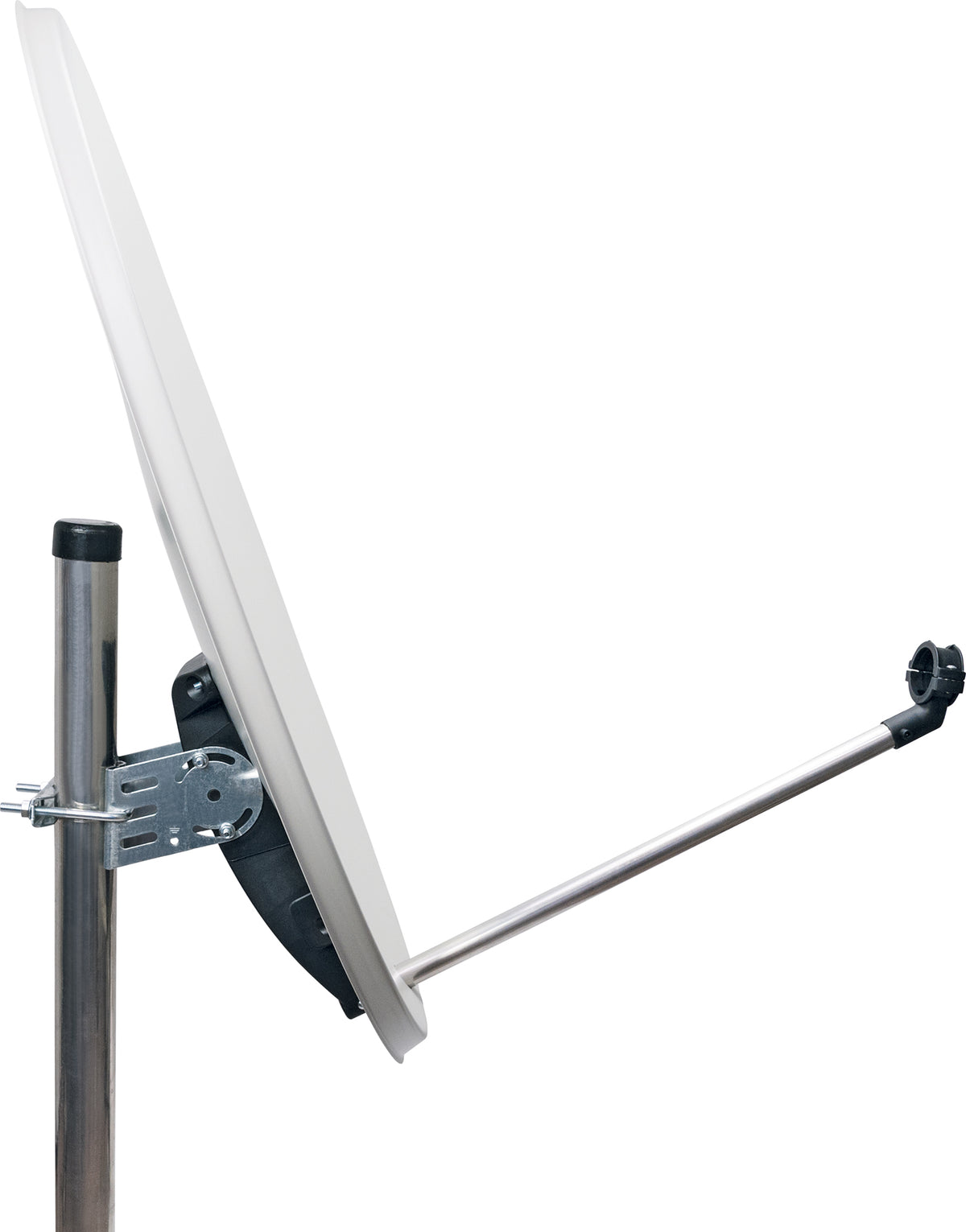

Elevation setting range 5-45 °
Offset angle 25 °

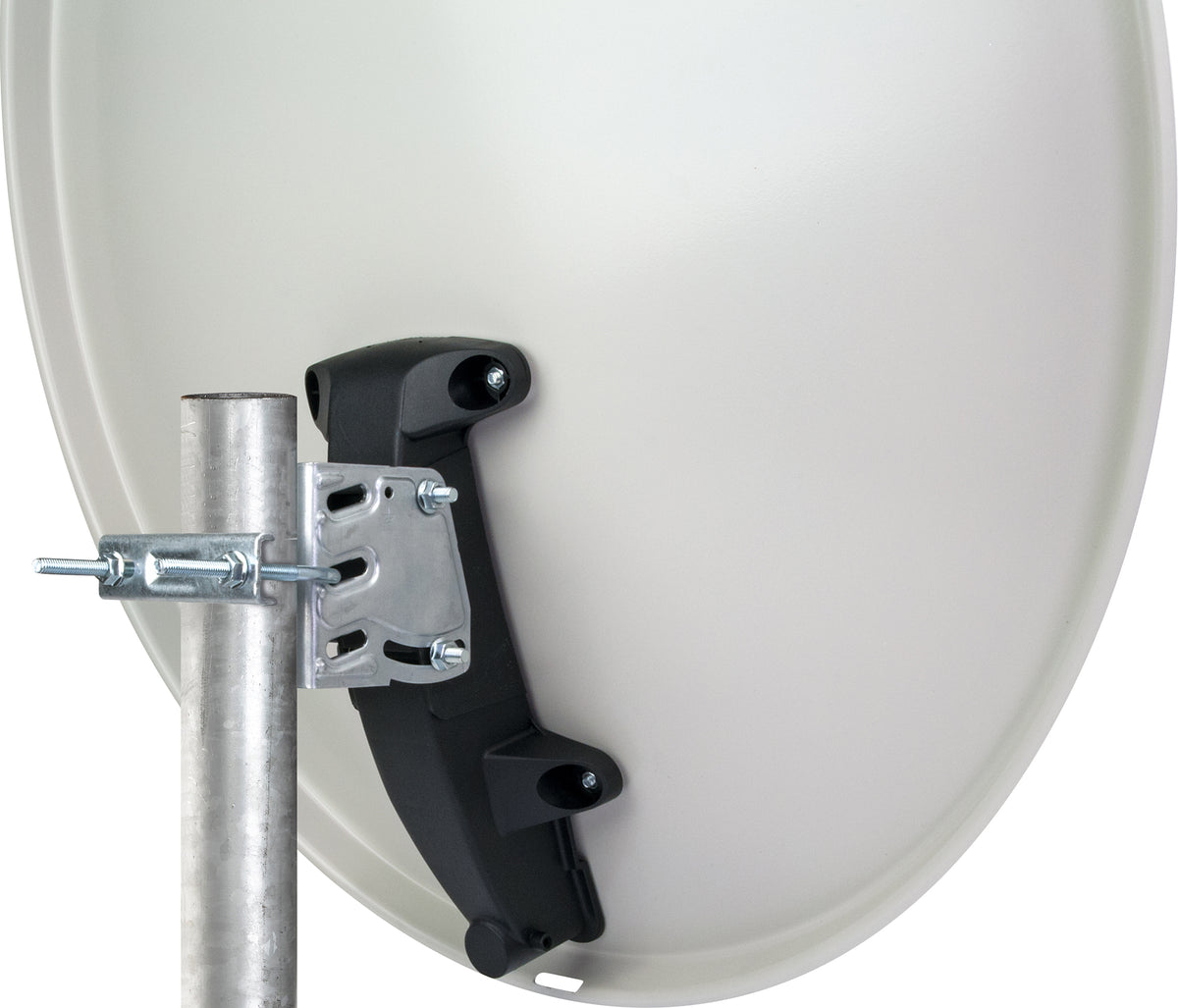

Mast clamp clamping range 32-80 mm
Half width <2 °
colour Light gray (RAL7035)
scope of delivery Steel mirror, Quad LNB, mounting material
