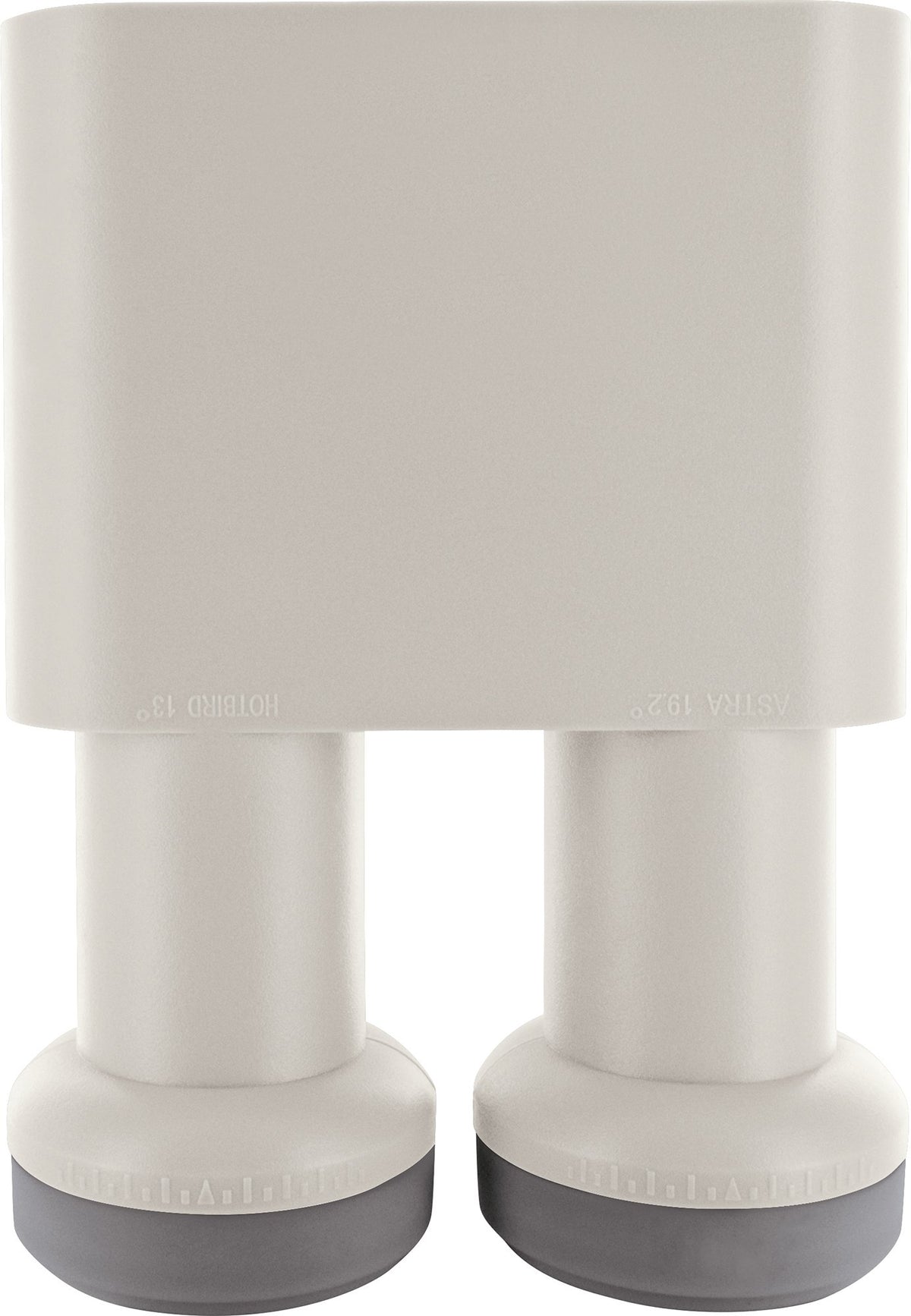

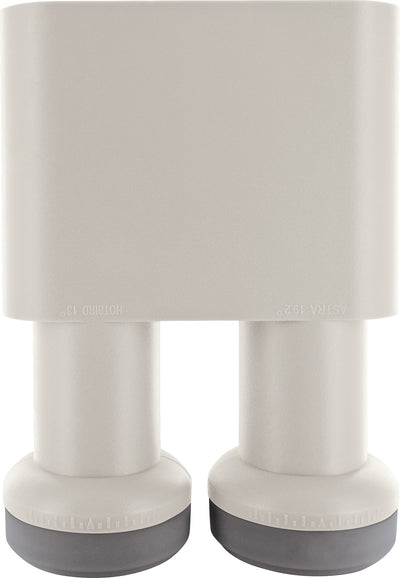

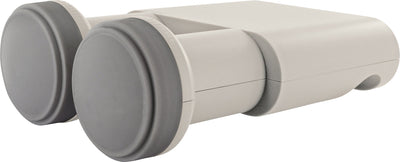

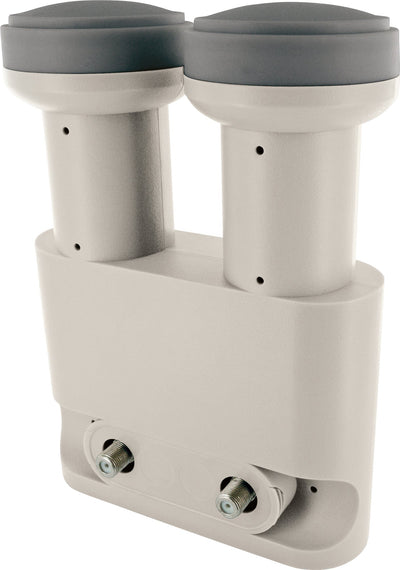

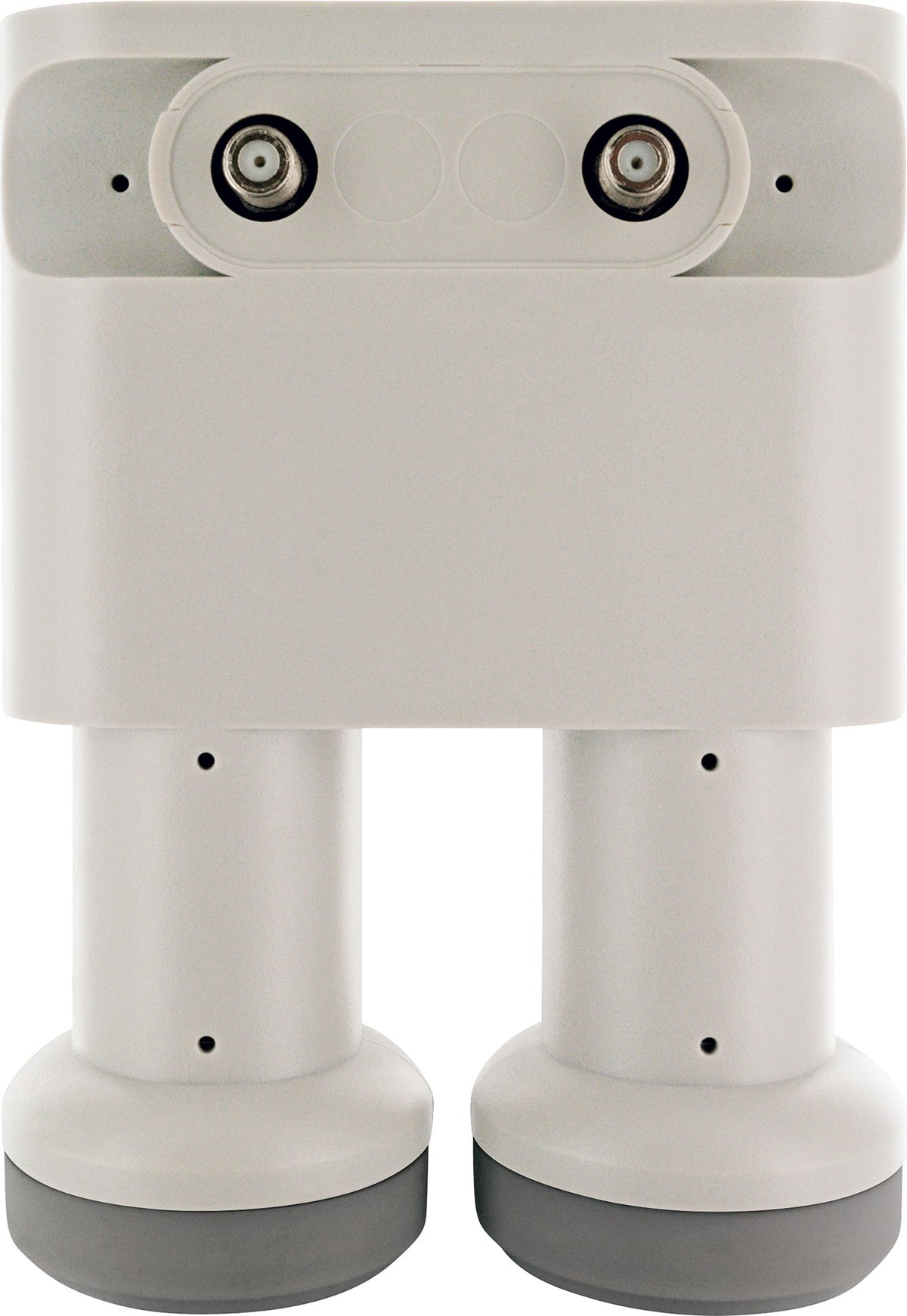

Monoblock Twin LNB (2 TN)
SKU SPS8802 531
€79,99
- Reception system for the construction of 2-subscriber satellite systems
- Independent program variety for all participants of this reception system
- Suitable for offset antennas from 80 cm diameter
- Integrated DiSEqC switching relay for switching between ASTRA and EUTELSAT integrated (signal comes from the receiver)

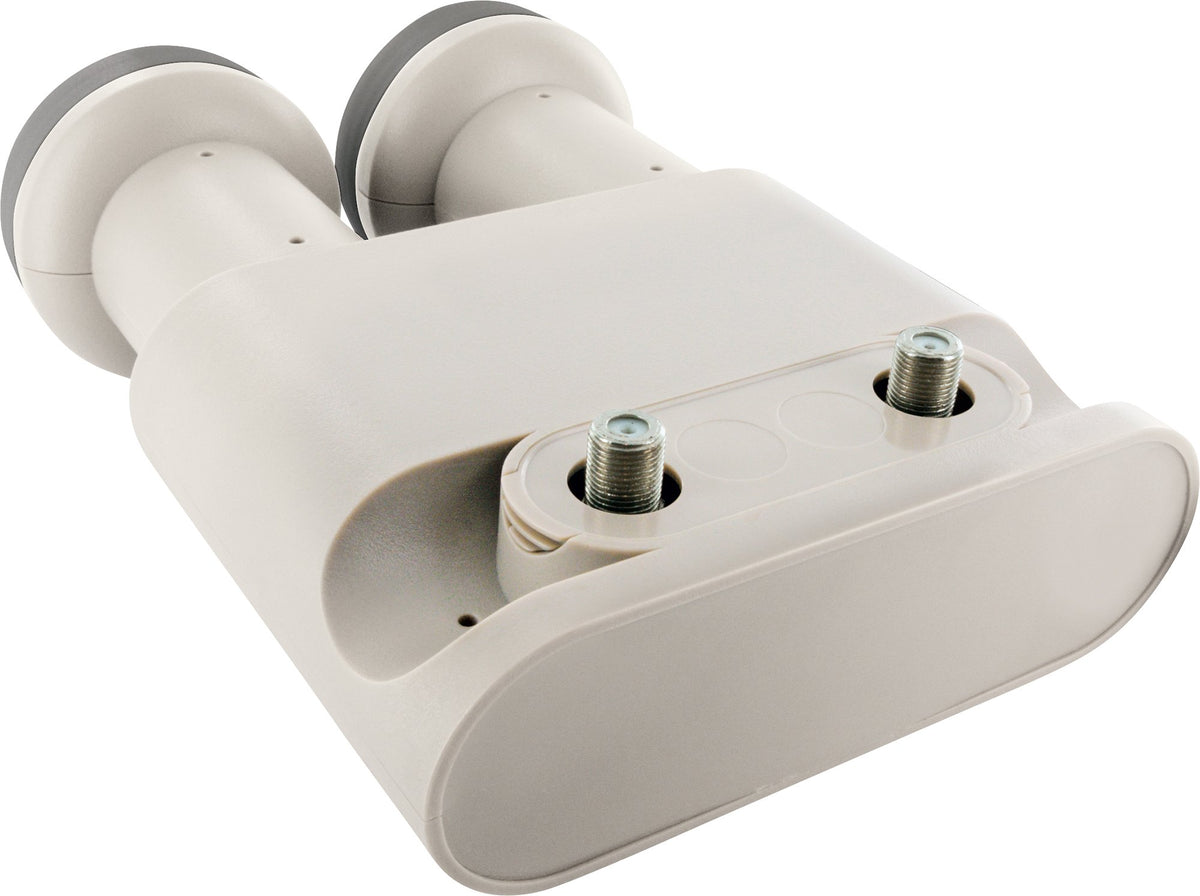

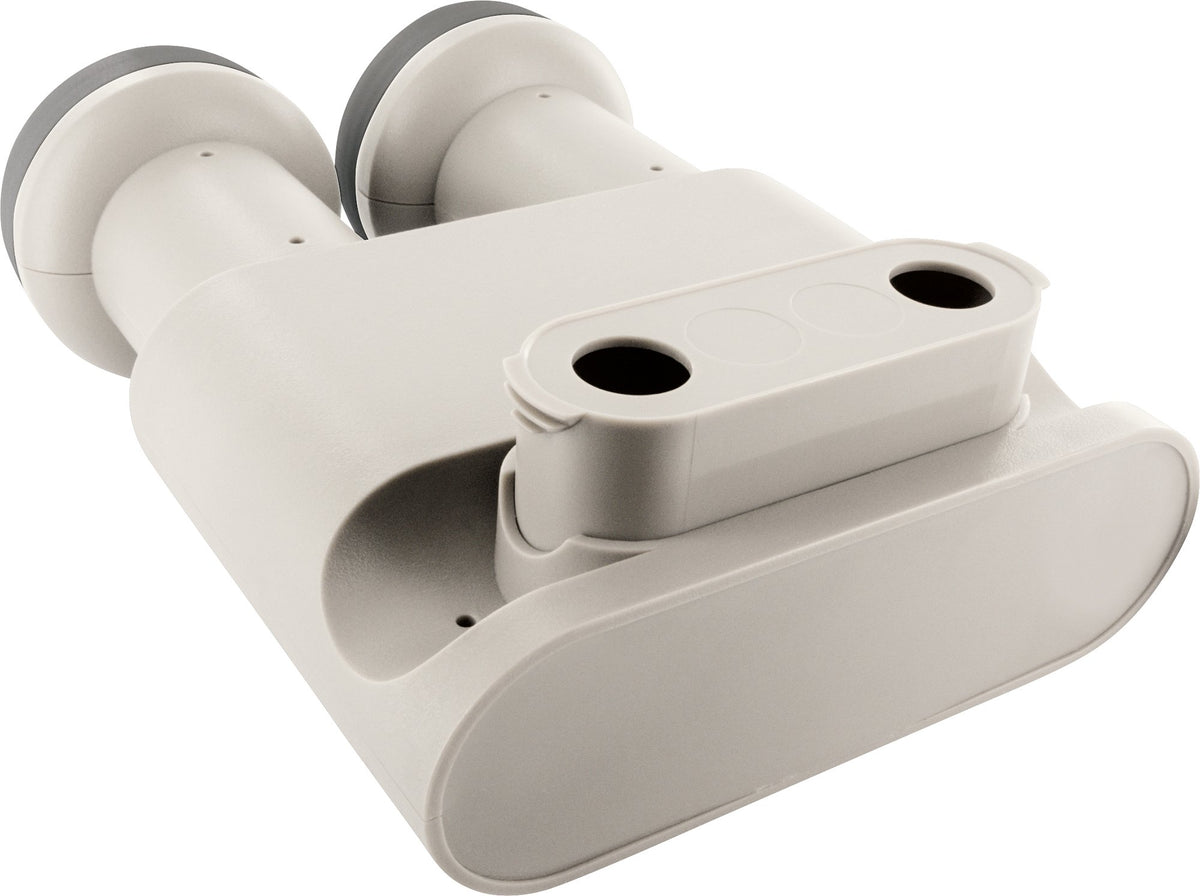

- Protection of the F-connections by pull-out weather protection cover
Sichere Zahlung
Passend dazu
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwbestaiger.com
Produktbeschreibung
This SCHWAIGER® Monoblock Twin LNB can be used to set up a digital satellite system with a maximum of 2 participants. All participants receive the full range of programs via the two satellites Astra 19.2 ° East and Hotbird 13 ° East. The DiSEqC switch is integrated in the LNB. The F connections are protected by a pull-out weather protection cover.
Technische Daten
| Receiving system | Monoblock TWIN (2 TN) |
| connections | 2 x F socket |
| Input frequency | 10.7 - 11.7 GHz (low) 11.7 - 12.75 GHz (high) |
| Output frequency | 950-2,150 MHz |
| Oscillation frequency | 9.75 GHz (low) 10.6 GHz (high) |
| Gain (typical) | > 55 dB |
| Control function | 0 kHz (low) 22 kHz (high) DiSEqC 1.2 |
| polarization | Decoupling:> 18 dB |
| Power supply | vertical: 11.5-14.2V horizontal: 15.8 - 19.0 V. |
| Power consumption | One connection: (max.) 140 mA @ 18V |
| All connections | (max.) 280 mA @ 18V |
| Feed intake | 40 mm |
| operating temperatur | -30 to +60 ° C |
| colour | Light gray |
| weight | 435 g |
| Dimensions (width) | 140 mm |
| Dimensions (height) | 129 mm |
| Dimensions (depth) | 85 mm |
| scope of delivery | 1x monoblock twin LNB |
