Monoblock Quad LNB (4 TN)
SKU SPS8804 531
€83,69
- Reception system for setting up 4 subscriber SAT systems
- Independent program variety for all participants of this reception system
- Suitable for offset antennas from 80 cm diameter
- Integrated DiSEqC switching relay for switching between ASTRA and EUTELSAT integrated (signal comes from the receiver)

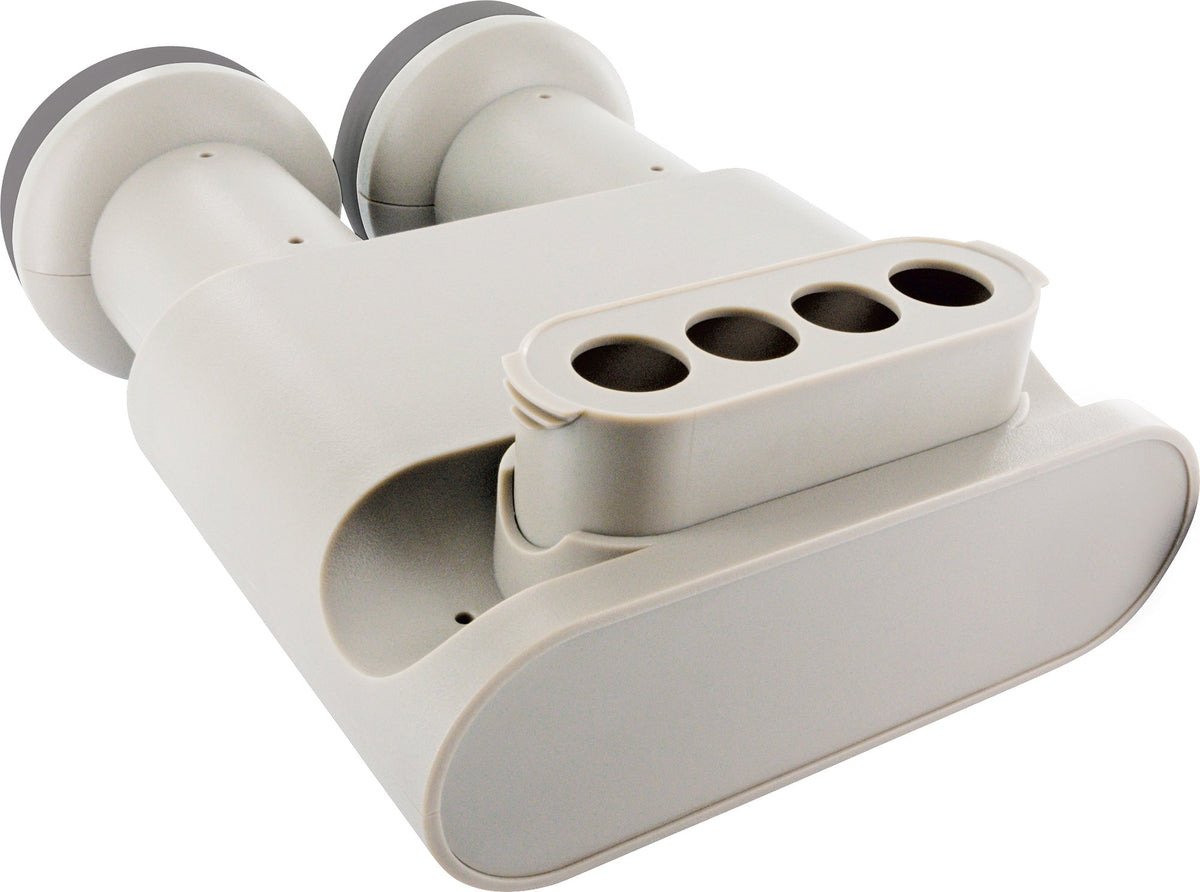

- Protection of the F-connections by pull-out weather protection cover
Auf Lager
Sichere Zahlung
Passend dazu
Monoblock Quad LNB (4 TN)
€83,69
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwbestaiger.com
Produktbeschreibung

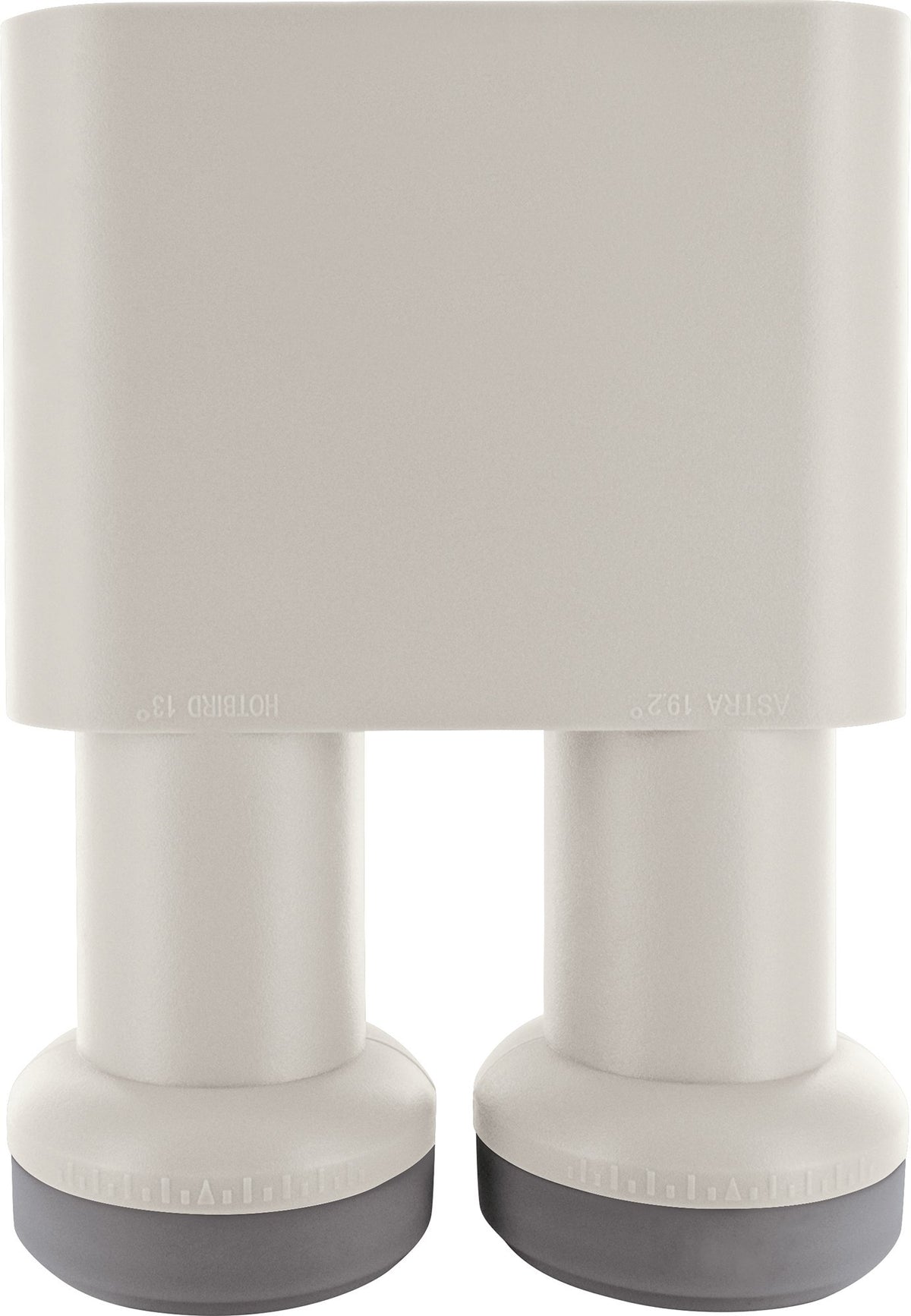

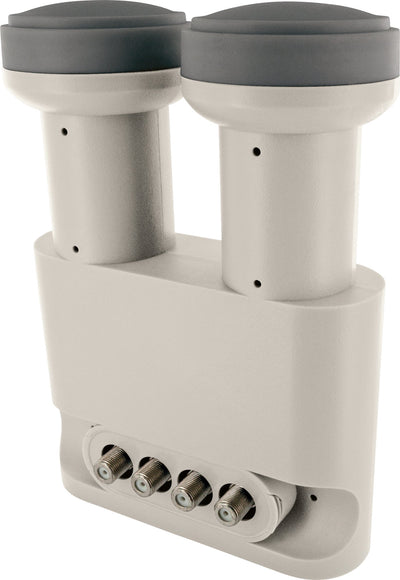

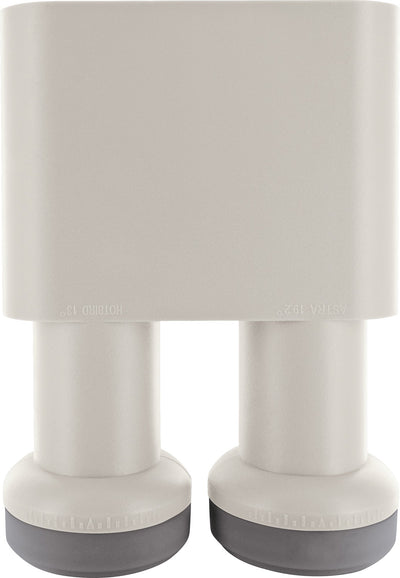

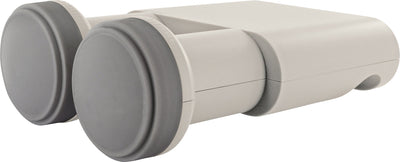

This SCHWAIGER® Monoblock Quad LNB can be used to set up a digital satellite system with a maximum of 4 participants. All participants receive the full range of programs via the two satellites Astra 19.2 ° East and Hotbird 13 ° East. The DiSEqC switch is integrated in the LNB. The F connections are protected by a pull-out weather protection cover.
Technische Daten
| Receiving system | Monoblock QUAD (4 participants) |

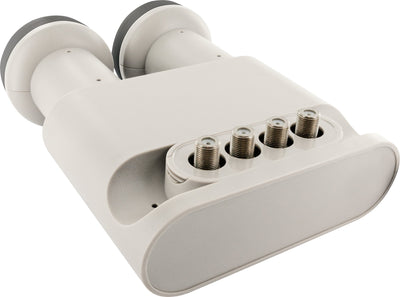

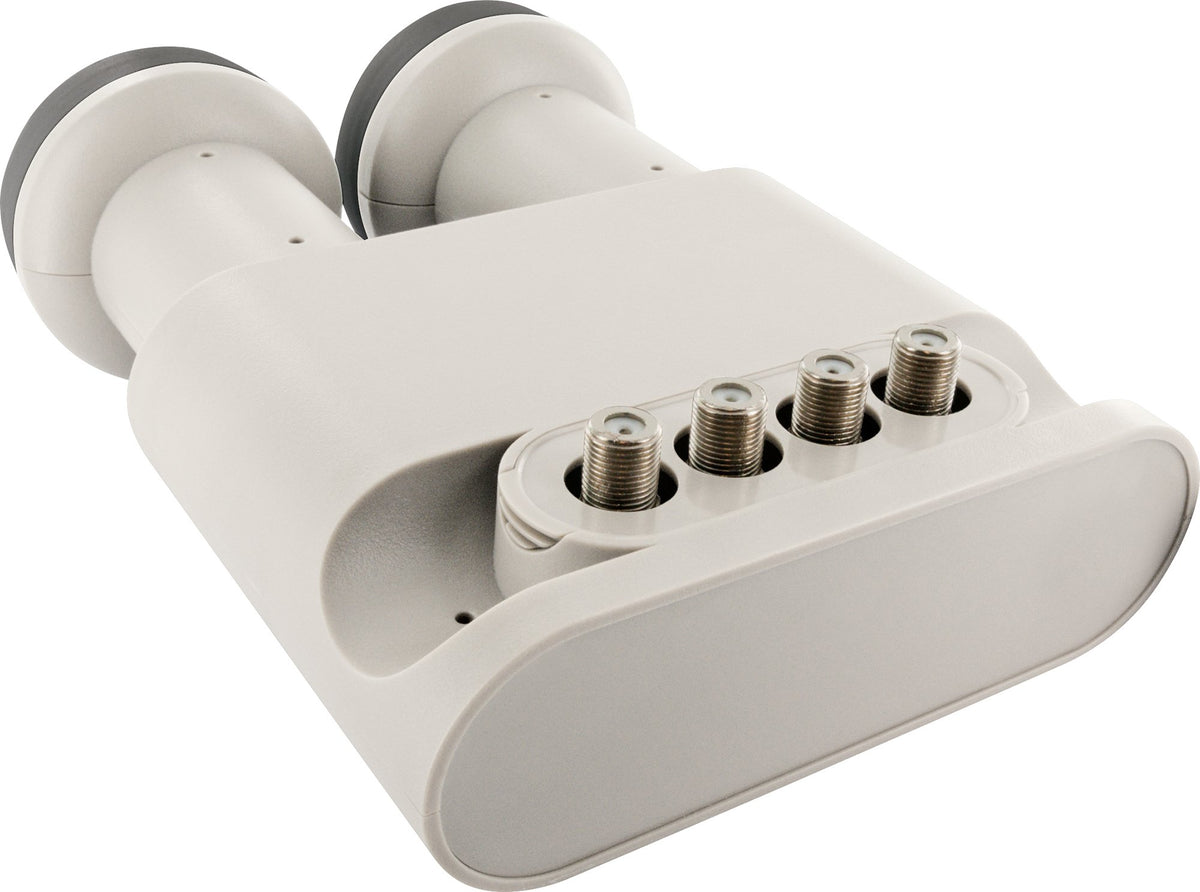

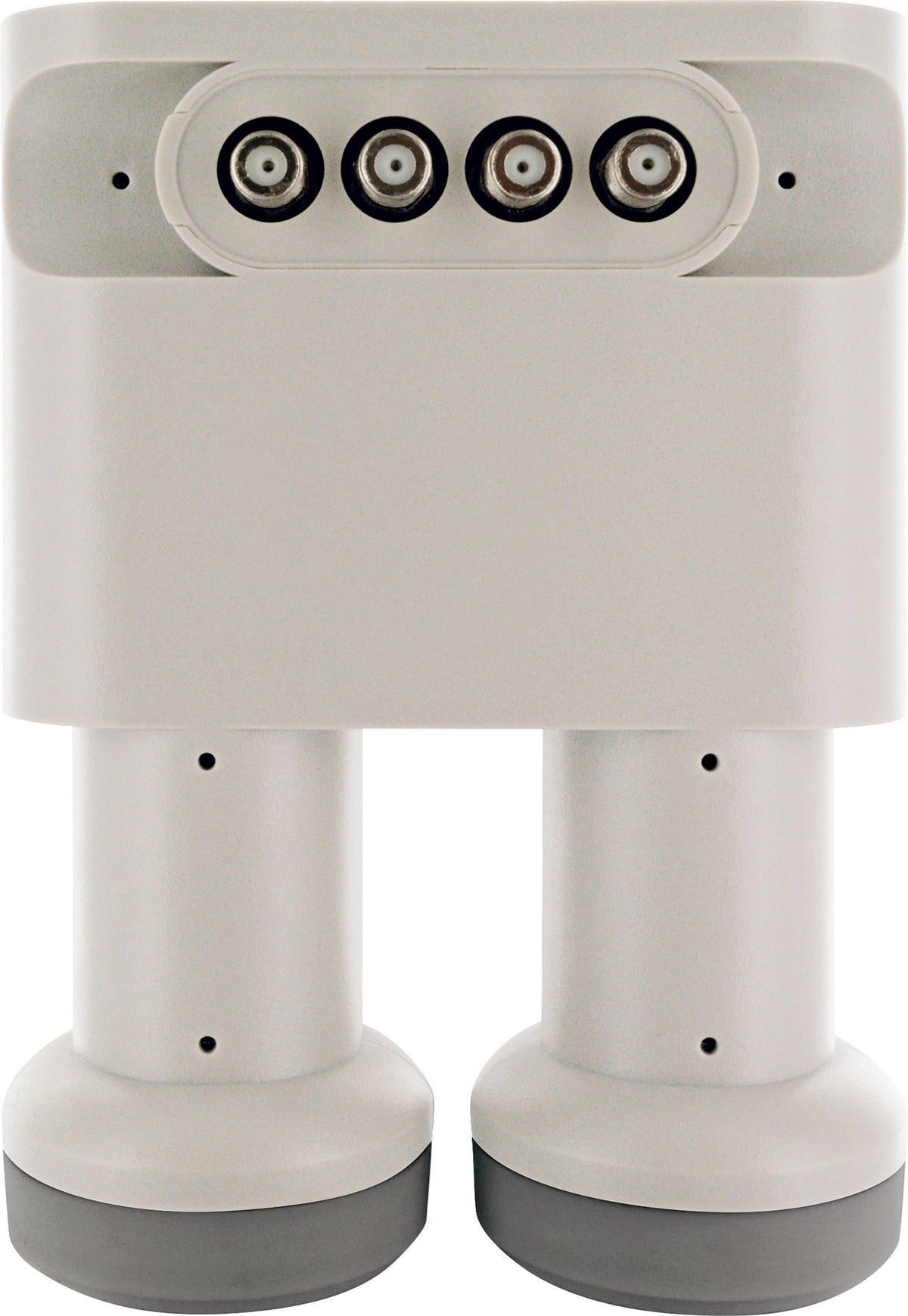

| connections | 4 x F socket |
| Input frequency | 10.7 - 11.7 GHz (low) 11.7 - 12.75 GHz (high) |
| Output frequency | 950-2,150 MHz |
| Oscillation frequency | 9.75 GHz (low) 10.60 GHz (high) |
| Gain (typical) | > 55 dB |
| Control function | 0 kHz (low) 22 kHz (high) DiSEqC 1.0 |
| polarization | Decoupling:> 18 dB |
| Power supply | vertical: 11.5-14.2V horizontal: 15.8 - 19.0 V. |
| Power consumption | One connection: (max.) 140 mA @ 18V |
| All connections | (max.) 310 mA @ 18V |
| Feed intake | 23 - 40 mm |
| operating temperatur | -30 to +60 ° C |
| Product material | Weatherproof die-cast aluminum |
| colour | Light gray |
| weight | 650 g |
| Dimensions (width) | 140 mm |
| Dimensions (height) | 129 mm |
| Dimensions (depth) | 85 mm |
| scope of delivery | 1x Monoblock Quad LNB |
