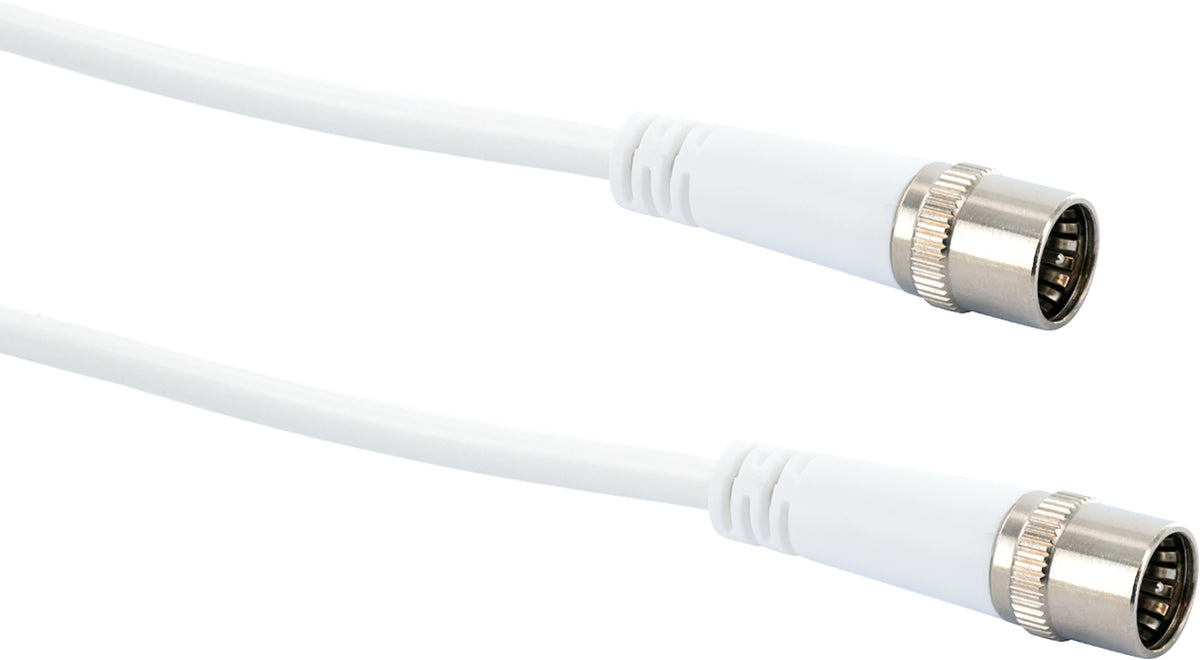

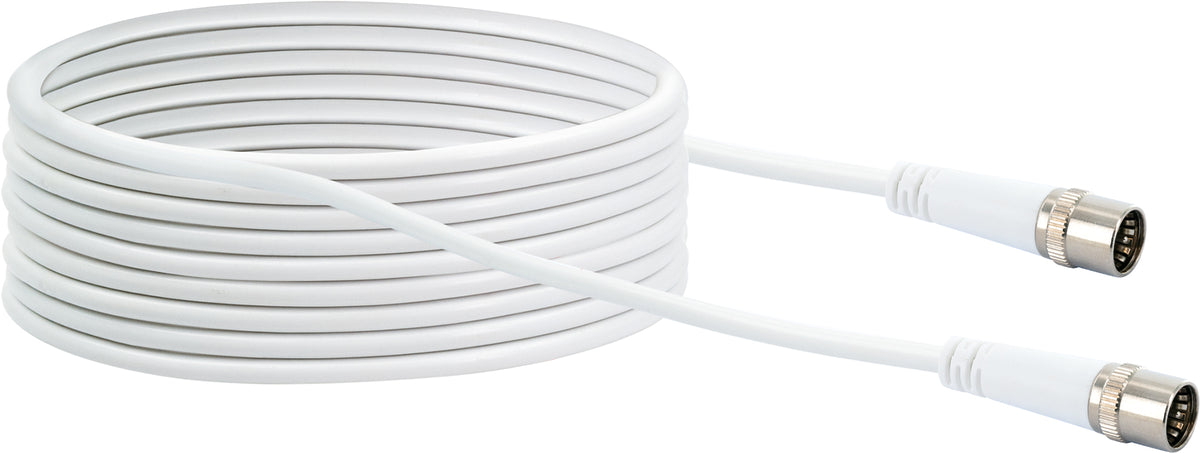

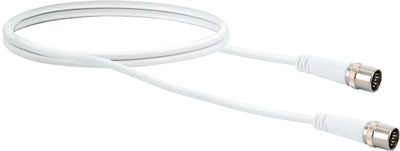

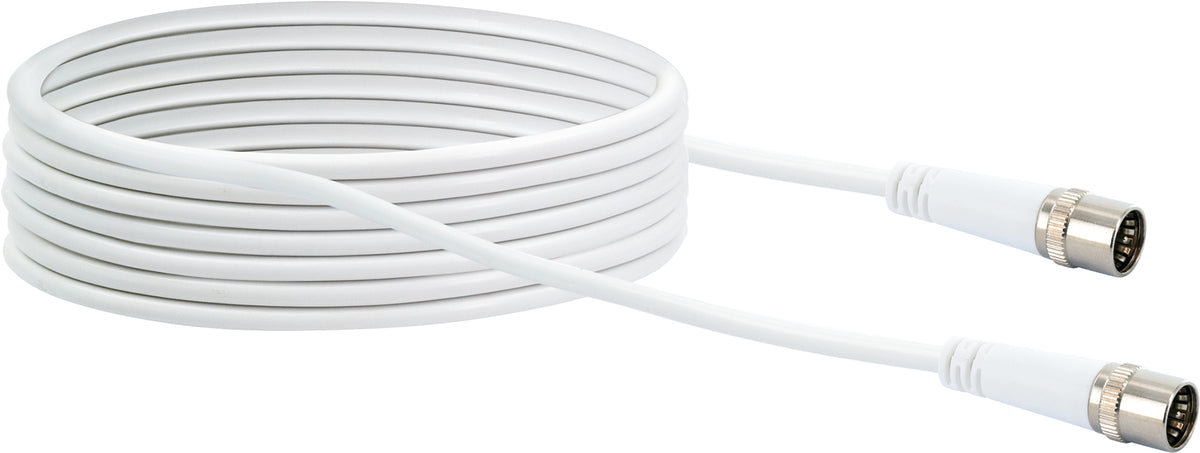

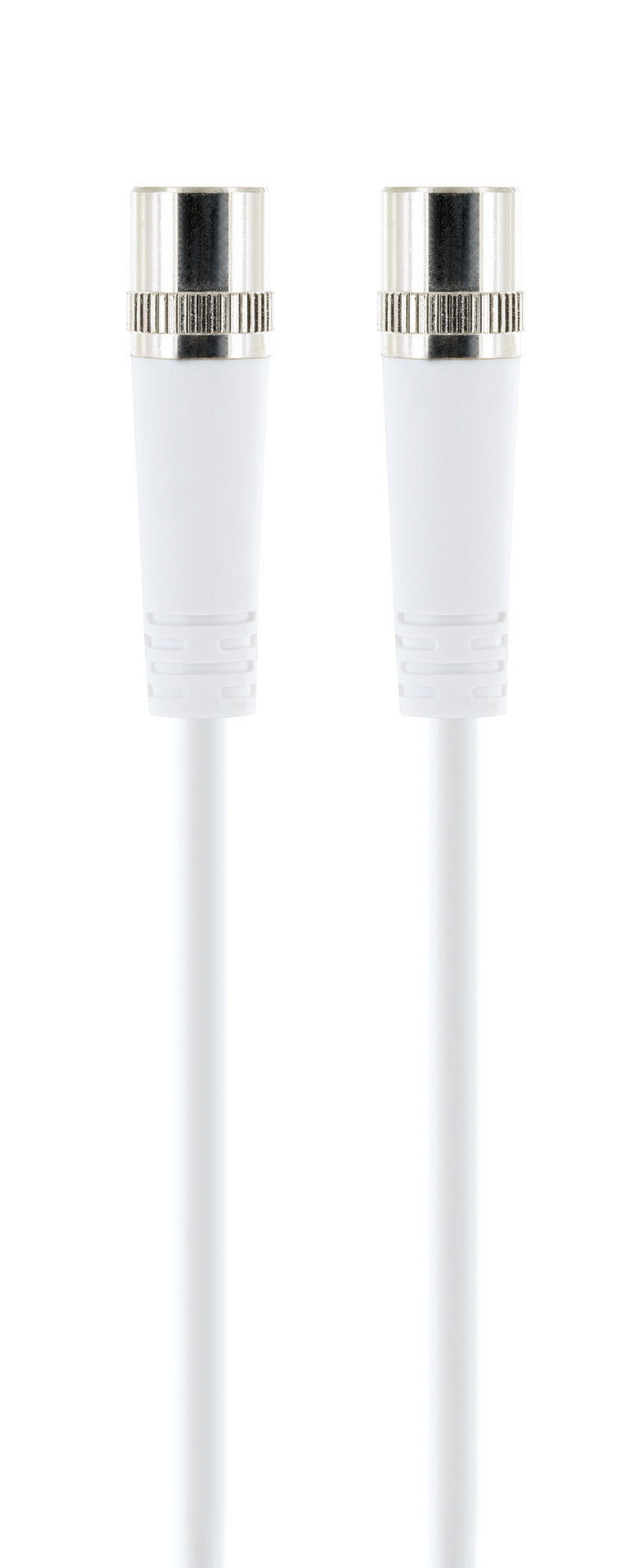

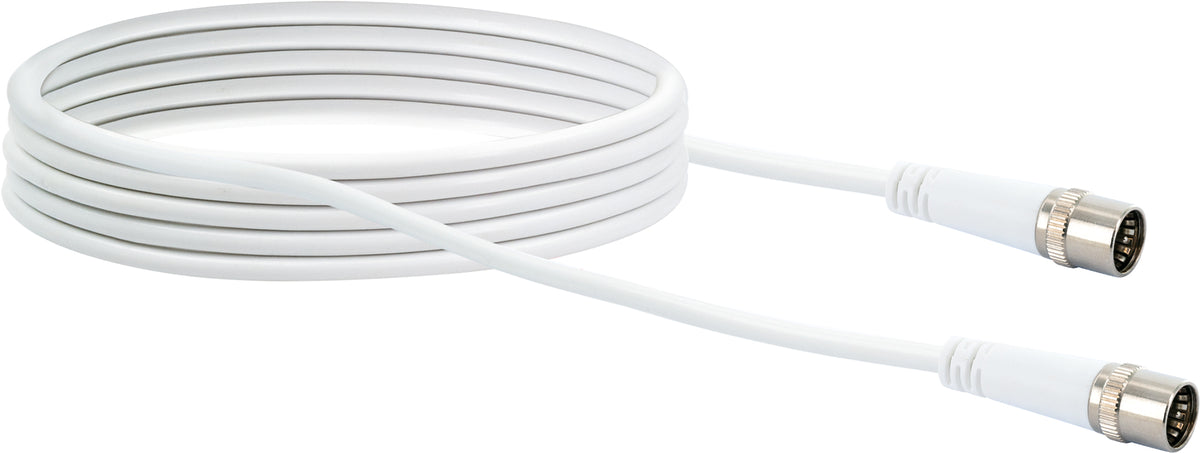

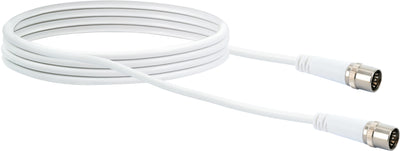

Modem connection cable for self-installation
SKU KDSK15 042
- Coaxial cable with F-Quick connectors with an inner ring for plugging on
- 4-way shielded connection cable (class A + 10 dB) for connecting a cable modem to a multimedia socket
- Can also be used as a connection cable for SAT and cable receivers with an F connector
- Type according to the specification Vodafone / Kabel Deutschland GmbH (type KDG 1 TS 151)
Sichere Zahlung
Passend dazu
Modem connection cable for self-installation
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwbestaiger.com
Produktbeschreibung
This SCHWAIGER® modem connection cable for self-install is designed for higher requirements with high-resolution image and sound transmissions. It is ideally suited for connecting a cable modem to a multimedia socket and also as a connection cable for SET Top Boxes with an F connector. The cable offers the highest possible protection against electromagnetic interference and radio interference of all kinds thanks to the very high shielding dimension (class A + 10dB).
Technische Daten
| connections | 2 x F-Quick connector with inner ring |
| Impedance | 75 ohms |
| Cable structure | 1.08 mm (inner conductor) 3.7 mm (dielectric) 6 mm (jacket) |
| Shielding | 4-fold shielded |
| Shielding measure | Class A + 10 dB |
| Shielding material | 64 aluminum braid Aluminum composite foil 112 aluminum mesh Aluminum composite foil |
| Inner conductor | CCS |
| colour | White |
| scope of delivery | 1x modem connection cable |
