TV ceiling and sloping ceiling bracket "MOTION 7"
SKU LWHD3720 513
- Mount for a flat screen (LCD, LED, TFT, plasma)

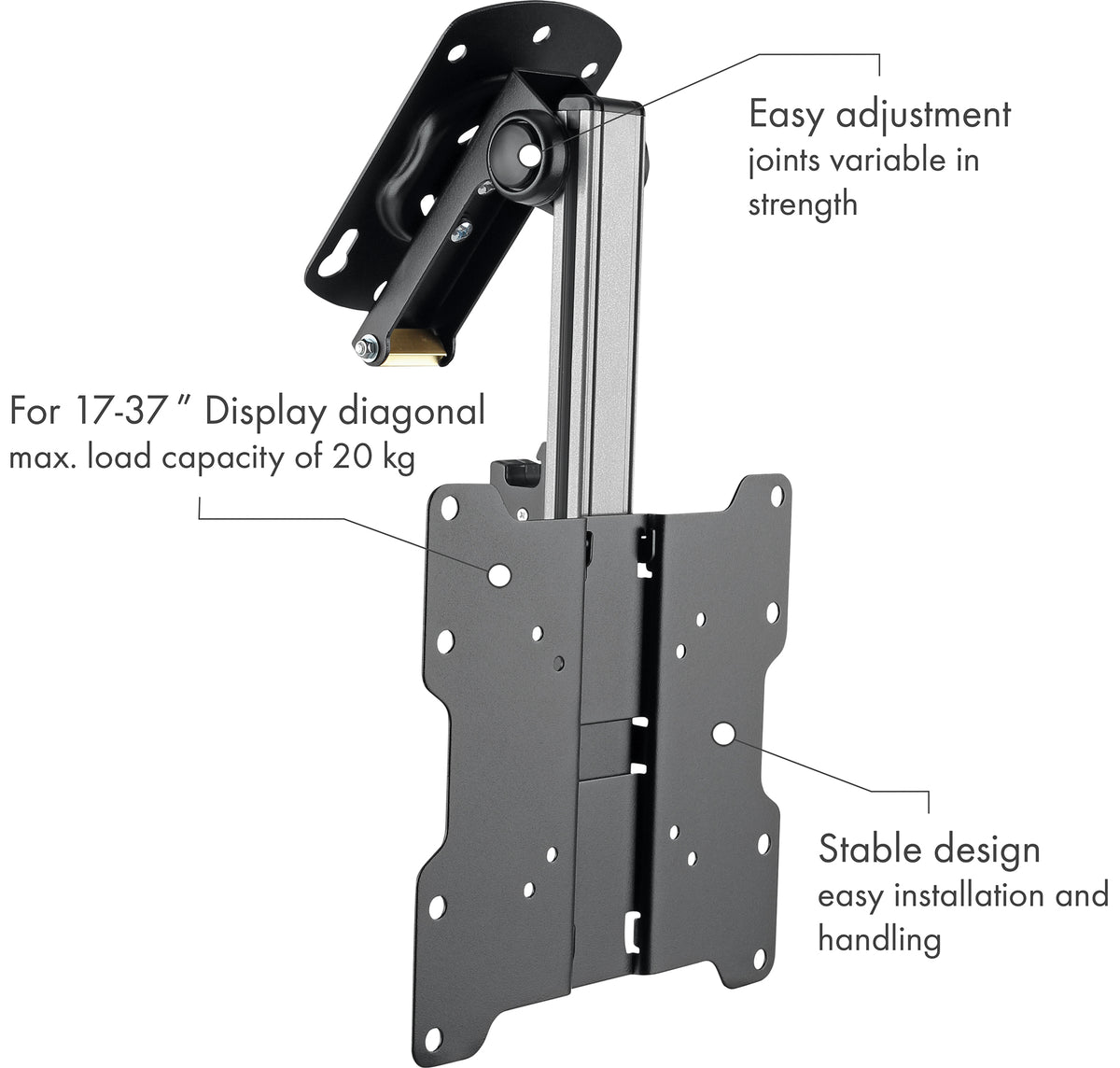

- Joints can be easily adjusted in strength

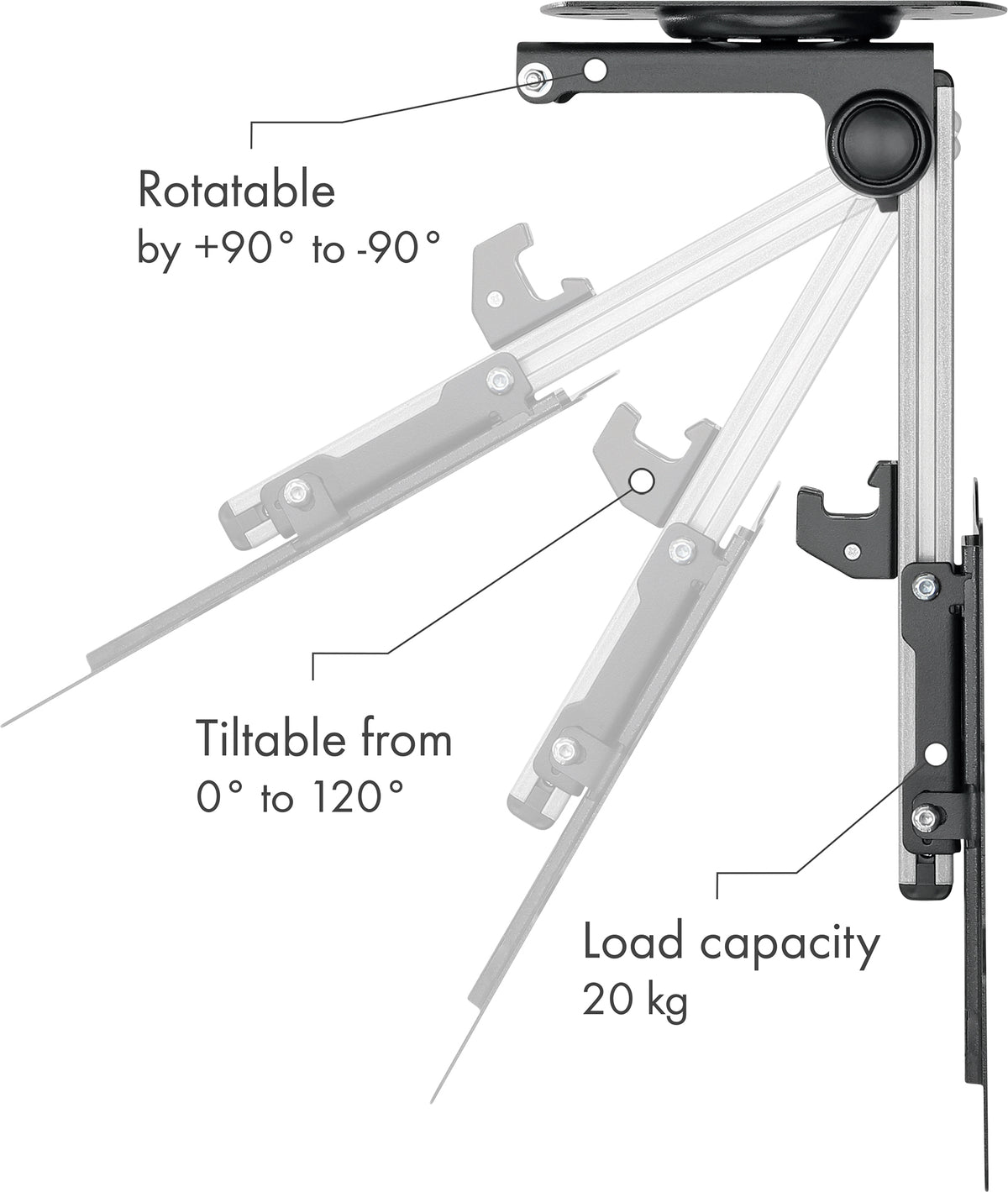

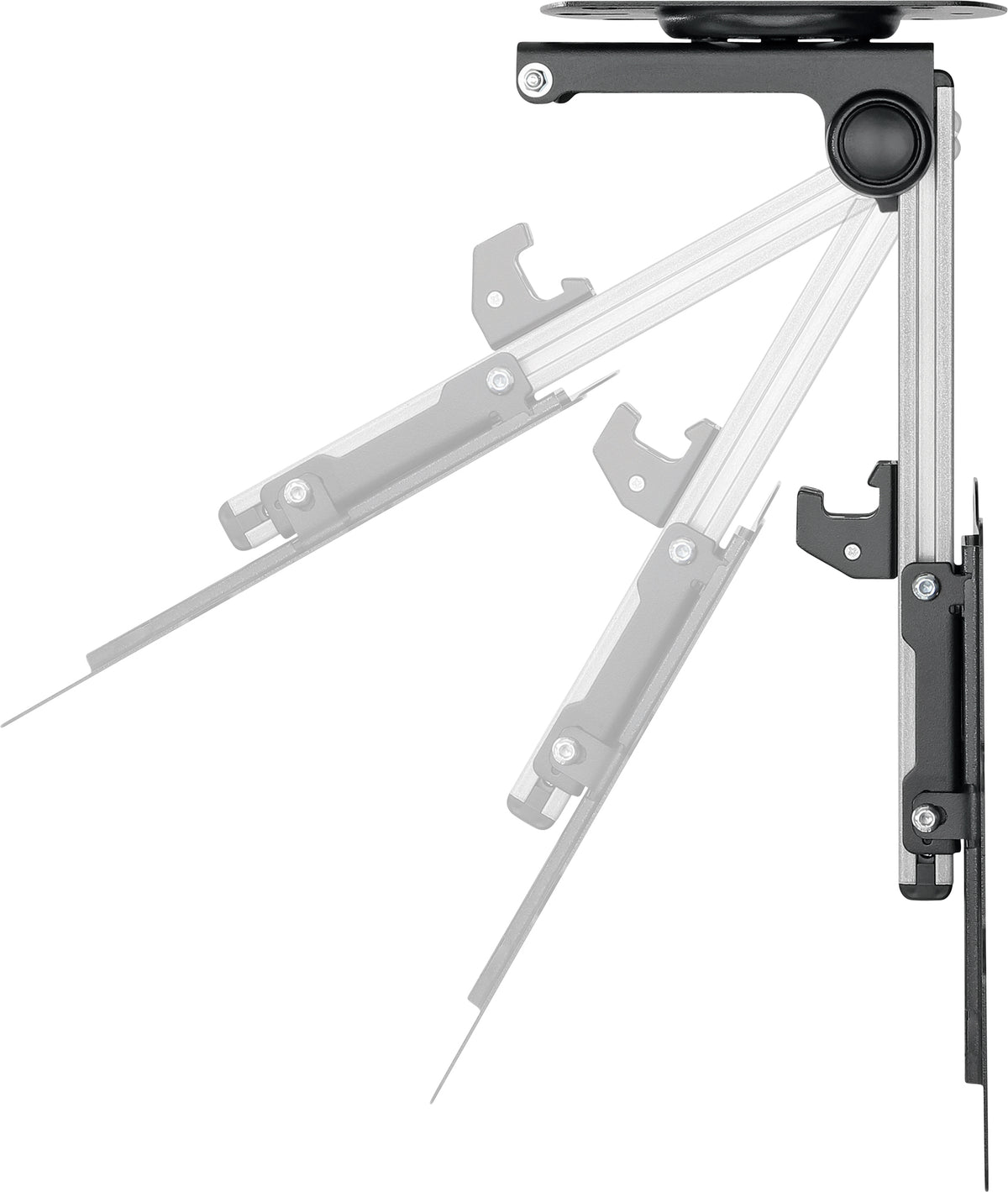

- Can be tilted forward and swiveled left and right
- mounting plate rotatable
- Stable design
Sichere Zahlung
Passend dazu
TV ceiling and sloping ceiling bracket "MOTION 7"
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwbestaiger.com
Produkt Details

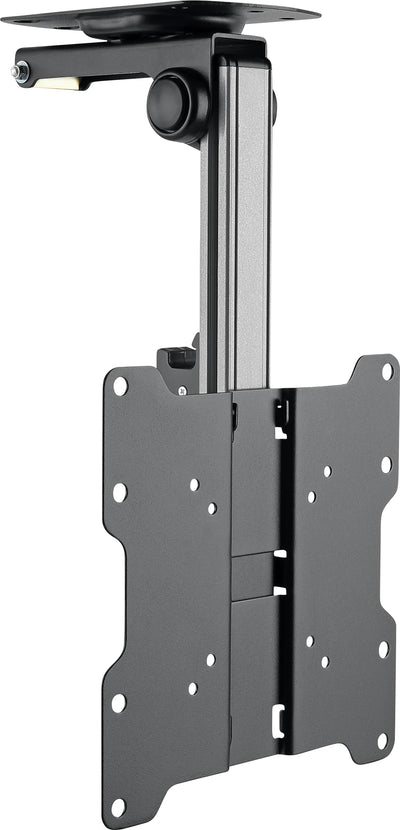

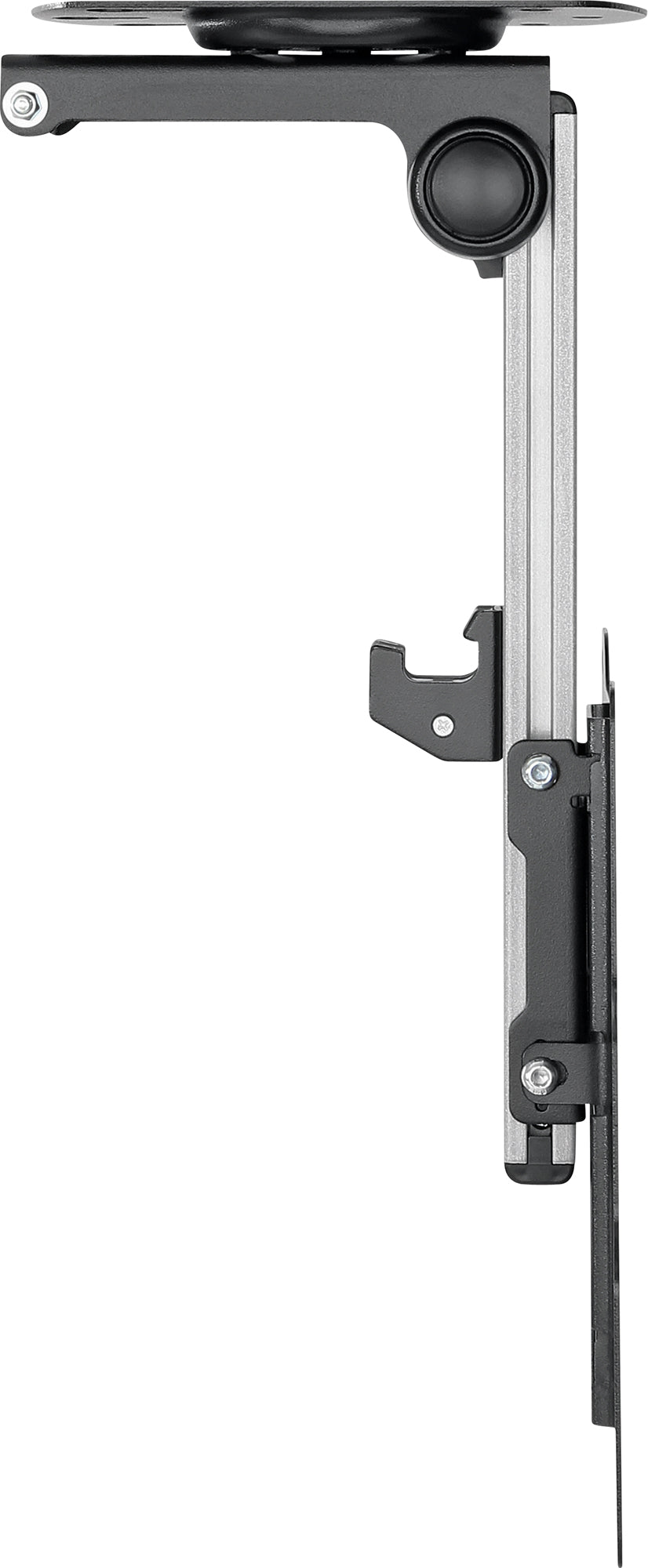

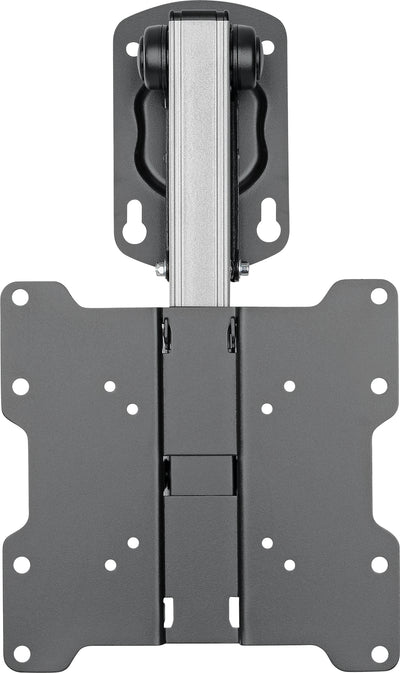

The SCHWAIGER® TV ceiling and pitched roof bracket is designed for the attachment of a flat screen. The wall bracket can be tilted forwards, rotated axially and swiveled to the right or left. The joints can easily be adjusted in terms of strength. Thanks to the integrated folding mechanism, the wall bracket is also ideally suited for cabinet mounting, as it can be folded in at any time to save space, so that no space is permanently lost.
Beschreibung
The SCHWAIGER® TV ceiling and pitched roof bracket is designed for the attachment of a flat screen. The wall bracket can be tilted forwards, rotated axially and swiveled to the right or left. The joints can easily be adjusted in terms of strength. Thanks to the integrated folding mechanism, the wall bracket is also ideally suited for cabinet mounting, as it can be folded in at any time to save space, so that no space is permanently lost.
Technische Daten

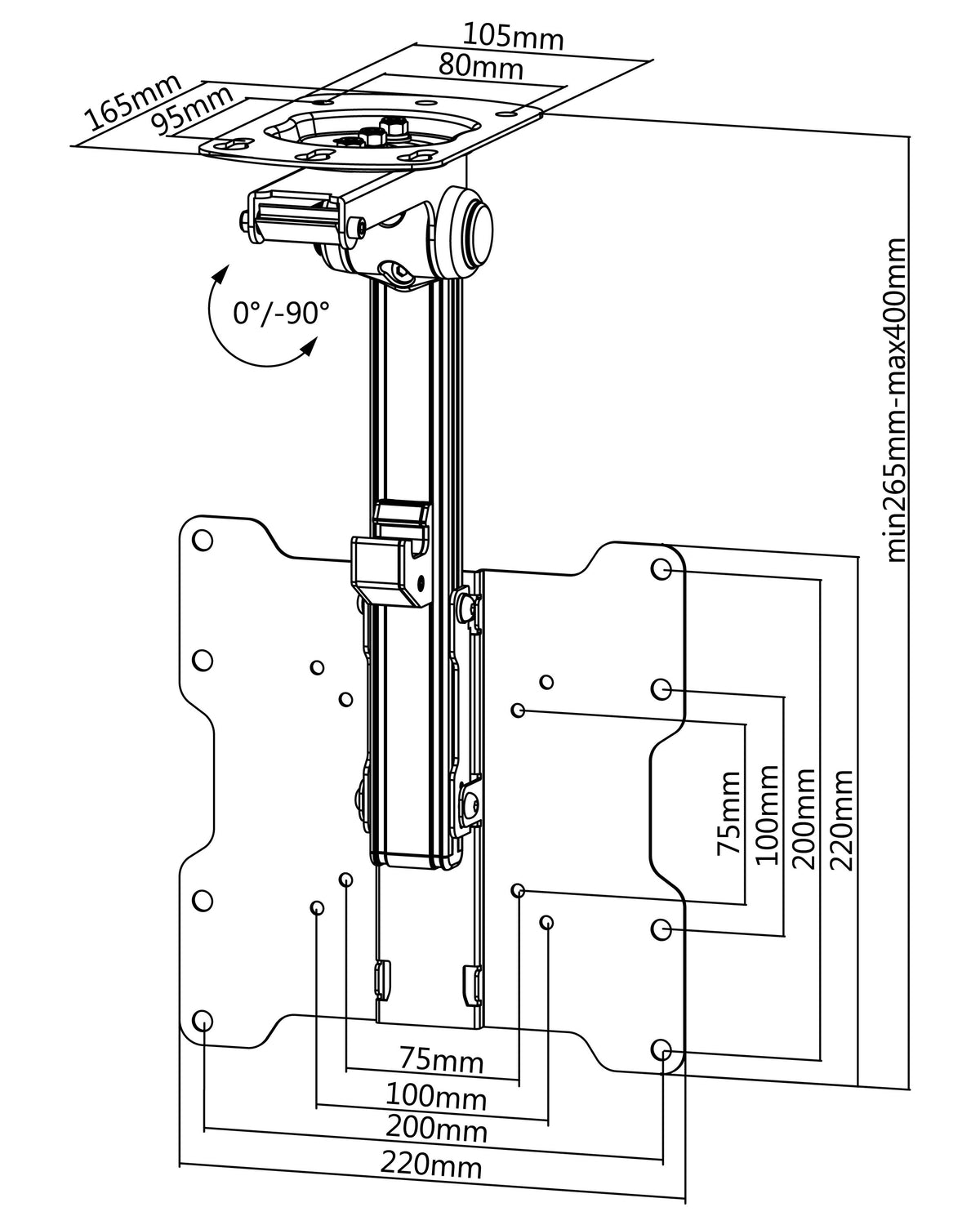

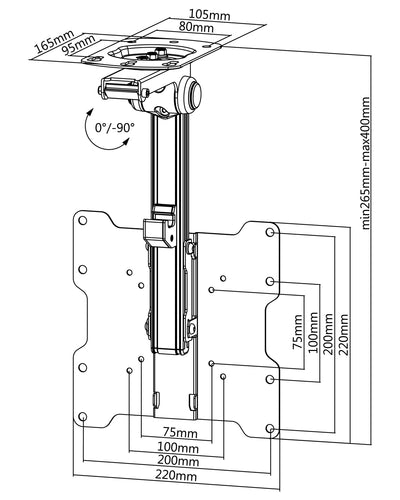

| VESA standard | 75 x 75 100 x 100 200 x 100 200 x 200 |
| Screen diagonal | 94 cm (17" - 37") |
| Ceiling clearance | 400 mm |
| Tiltable (vertical) | 0° to -90° |
| Rotatable (axial) | +45° to -45° |
| Resilience | 20 kg |
| Color | Black |
| Product material | Powder-coated steel |
| Weight | 1.8 kg |
| Dimensions (width) | 220 mm |
| Dimensions (Height) | 170 mm |
| Dimensions (depth) | 400 mm |
| Scope of delivery | 1x wall mount, 1x mounting accessories, user manual |
