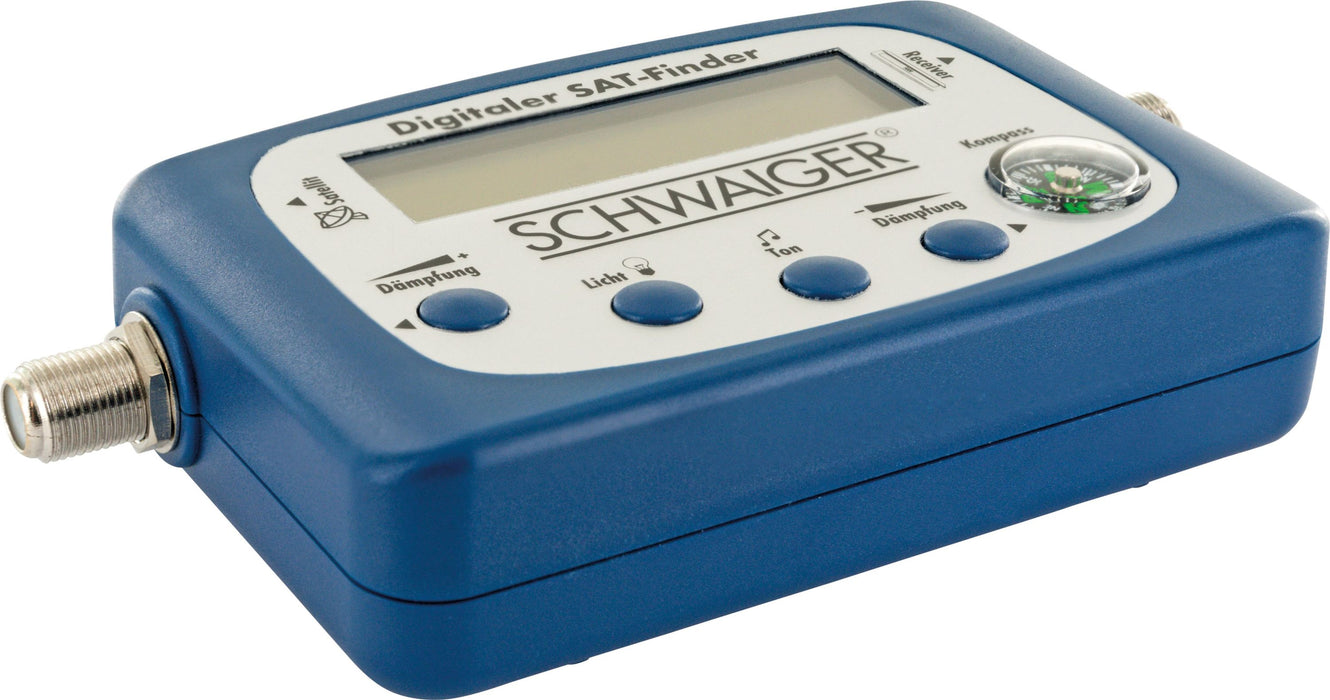

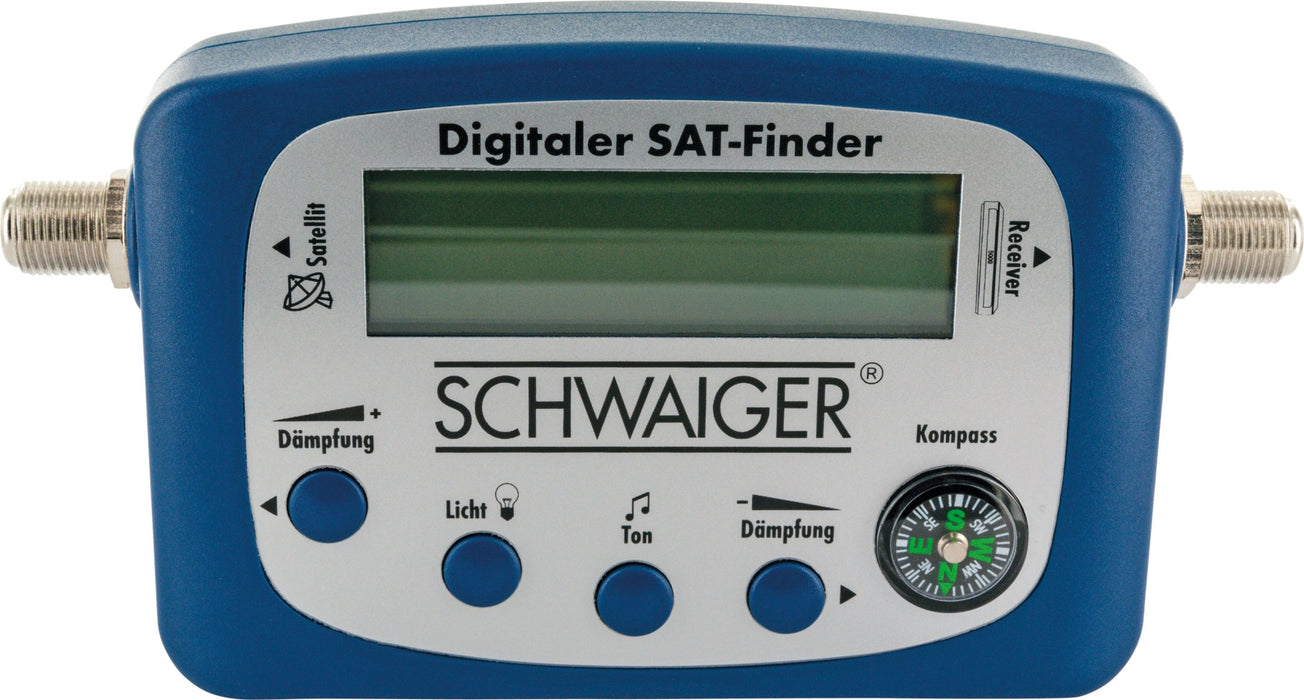

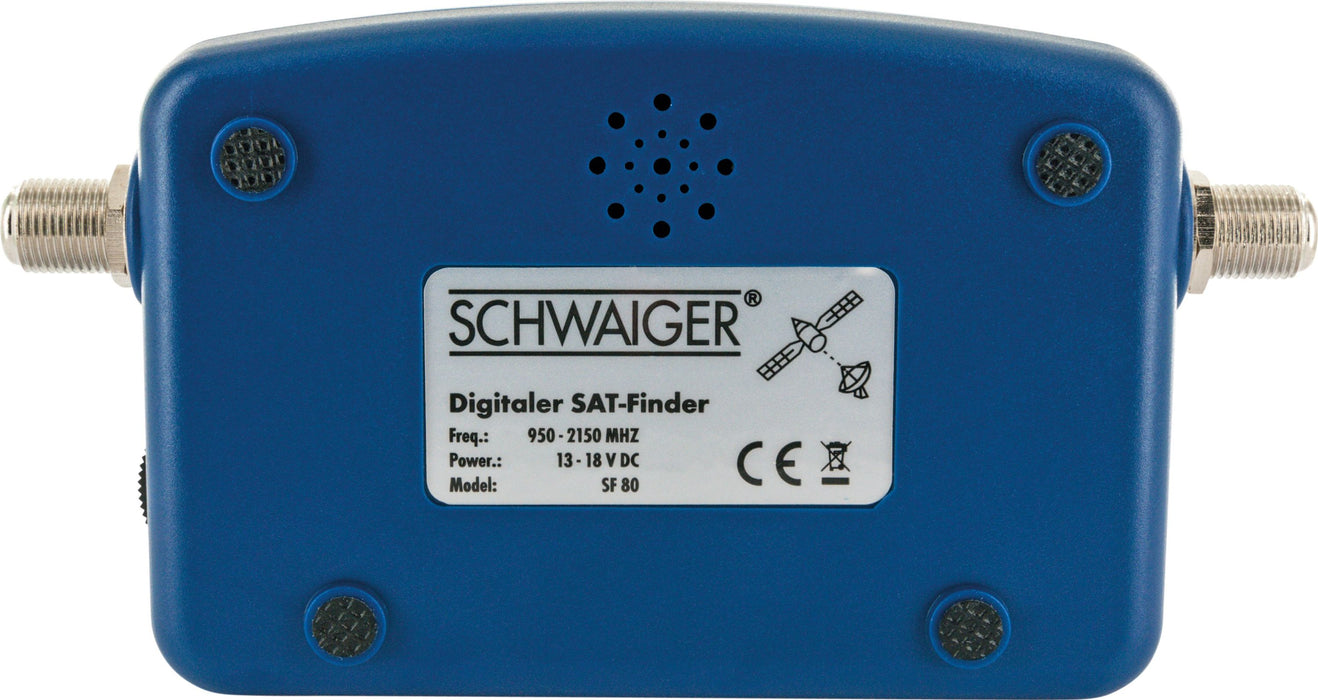

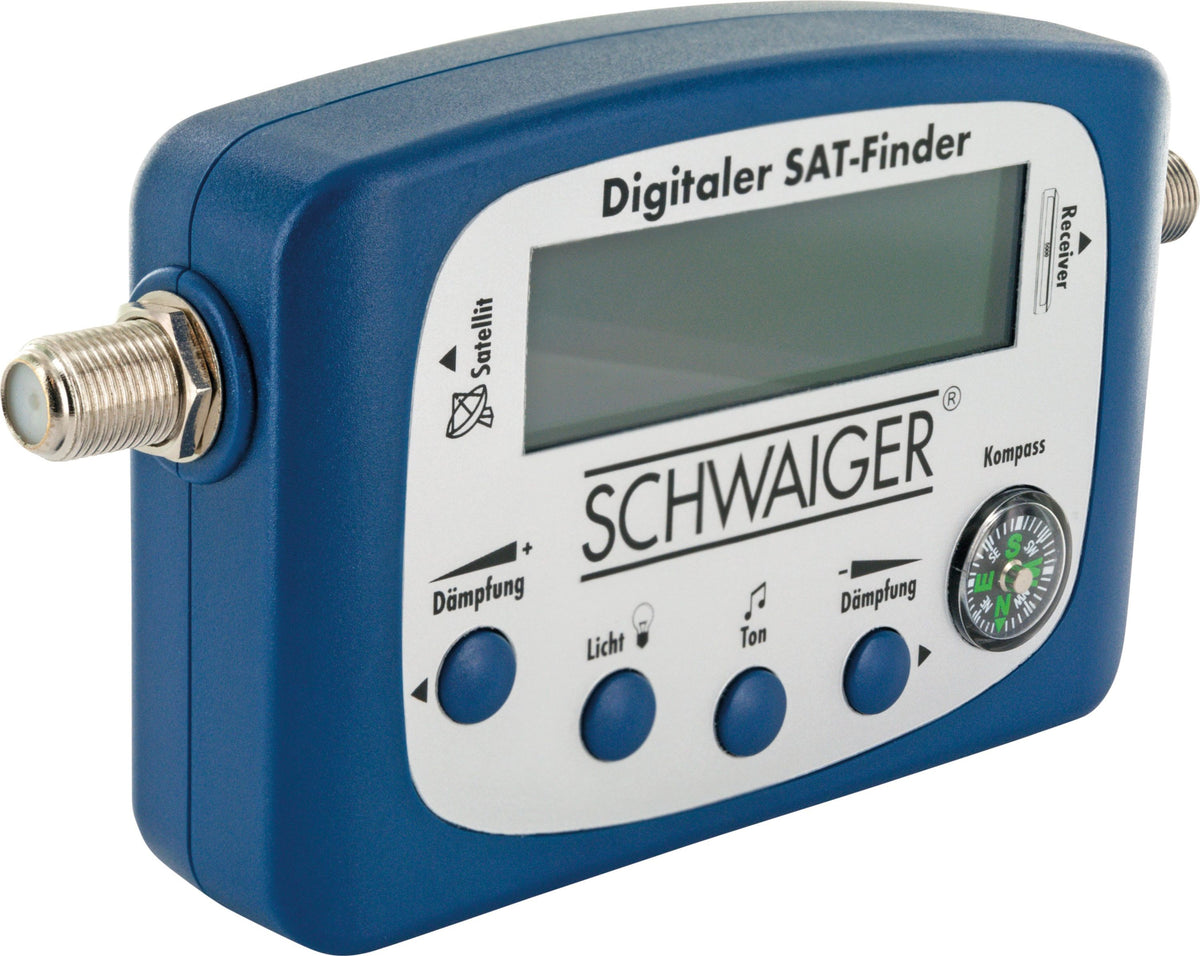

SAT finder with LCD display
SAT finder with LCD display
SAT finder with LCD display
SAT finder with LCD display

SAT finder with LCD display

SKU 715170

Sale price€21,99Regular price €24,99
  • Fast and precise alignment of SAT offset antennas to the satellite
  • Particularly suitable for ASTRA and EUTELSAT
  • Compass for exact horizontal alignment
  • Power supply via the connected receiver
  • Connections in F-technology
Auf Lager

Sichere Zahlung

Apple Pay Bancontact BLIK EPS Google Pay iDEAL Wero Klarna Maestro Mastercard MobilePay PayPal Shop Pay Union Pay Visa

Passend dazu
Produktbeschreibung

With this SAT Finder from SCHWAIGER®, a satellite system, especially ASTRA and EUTELSAT, can be aligned quickly and precisely. The device is characterized by its ease of use and is ideal for home use. The illuminated display and the acoustic signal indicator enable quick adjustment of the satellite system. The switchable signal attenuation allows a safe setting to maximum even on LNBs with a very high output level.

Technische Daten
Connections (input) 1 x F-socket
Connections (output) 1 x F-socket
Advertisement LCD-Display
Frequency range 950 - 2150MHz
Display signal quality Yes
Display signal strength Yes
Transmission loss < 3 dB (typical)
Power consumption (max.) 110mA
Power supply 12 - 20V
Product material plastic
Dimensions (width) 100mm
Dimensions (Height) 24mm
Dimensions (depth) 67mm
Color Blue
Scope of delivery 1x satellite finder
