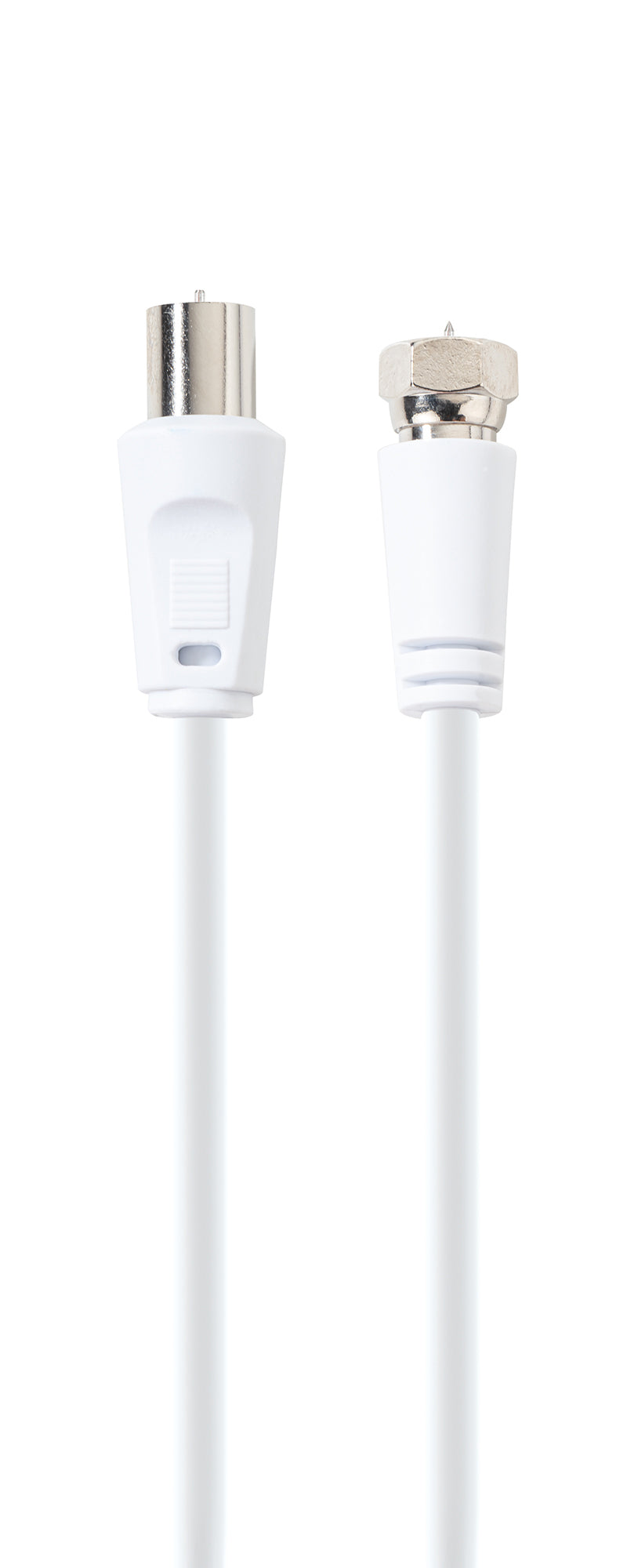

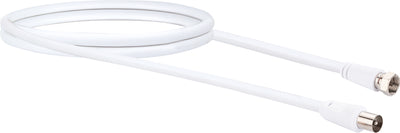

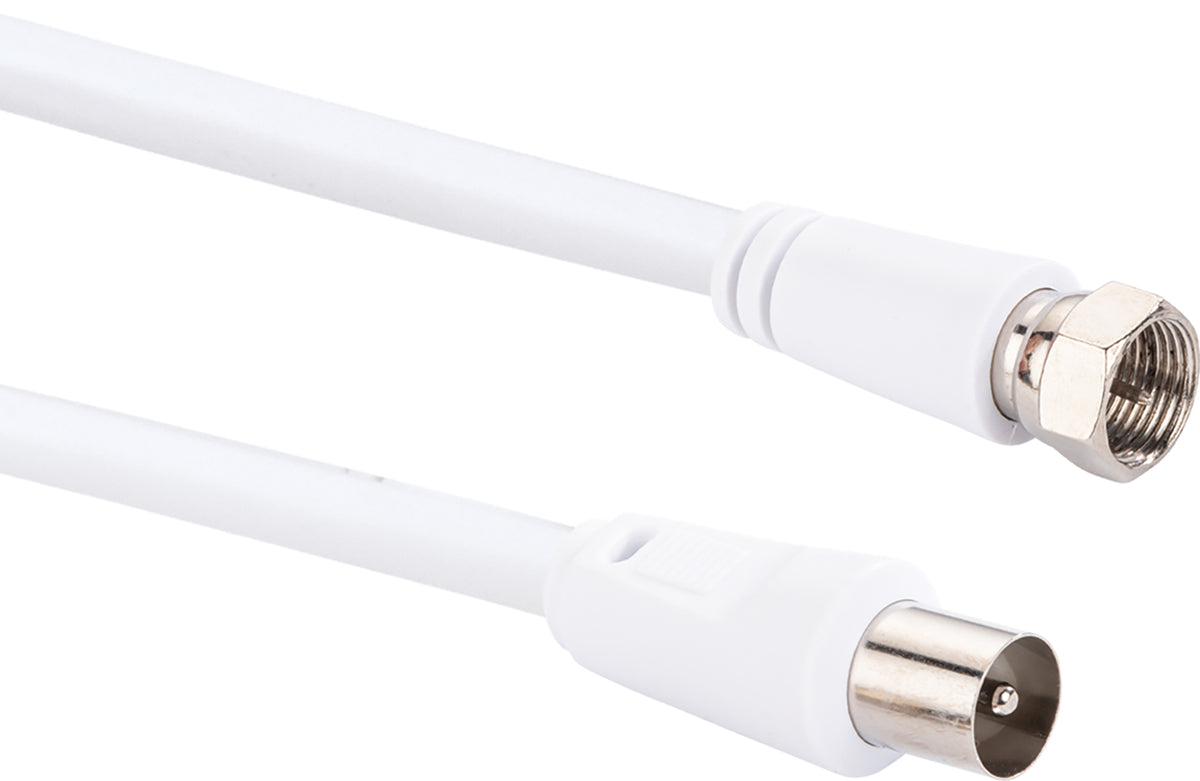

SAT/Antenna Adapter cable (75 dB)
SKU KVCK161 532
€11,59
- Double shielding for low susceptibility to electromagnetic interference
- Stable inner PIN with nickel coating
- Robust plug, encapsulated on both sides
Auf Lager
Sichere Zahlung
Passend dazu
SAT/Antenna Adapter cable (75 dB)
1.5 m
€11,59
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwbestaiger.com
Produktbeschreibung
This SCHWAIGER® SAT connection cable can be used to connect the satellite receiver to the SAT or antenna socket. This cable is shielded twice and is therefore less susceptible to interference that can affect the cable from outside. The cable offers a shielding dimension of 75 dB.
Technische Daten
| connections | 1 x F connector 1 x IEC connector |
| Cable shape | around |
| Impedance | 75 ohms |
| plug | metal |
| Cable structure | 0.5 mm (inner conductor) 2.8 mm (dielectric) 5 mm (jacket) |
| Shielding | double shielded |
| Shielding measure | > 75 dB |
| Shielding material | Aluminum composite foil 64 braid |
| Inner conductor | CCS |
| Product material | plastic |
| colour | White |
| scope of delivery | 1x SAT antenna adapter cable |
Downloads & Dokumente
Hier können Sie das vollständige Datenblatt herunterladen.
