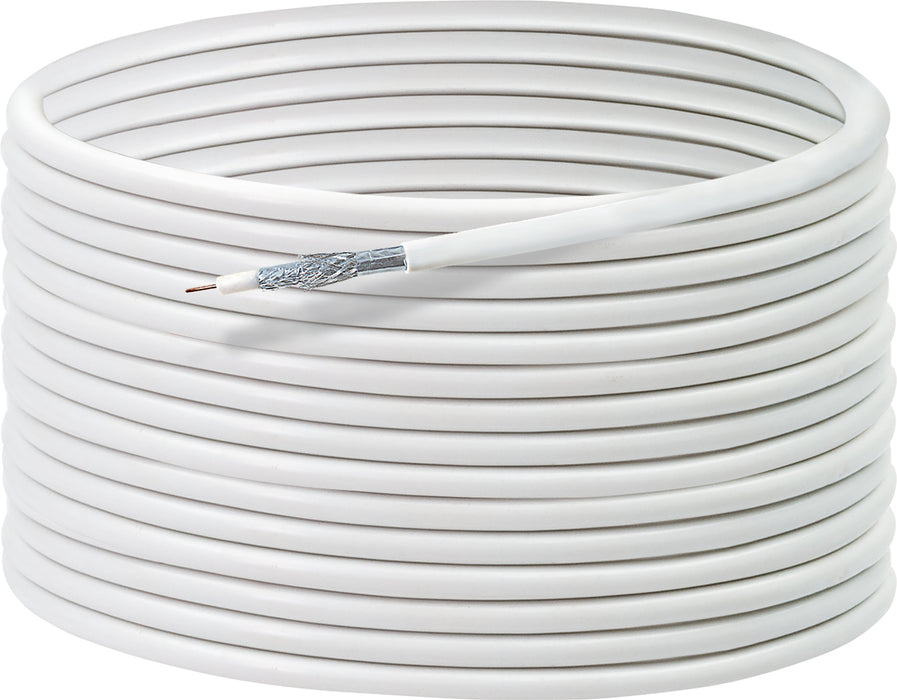

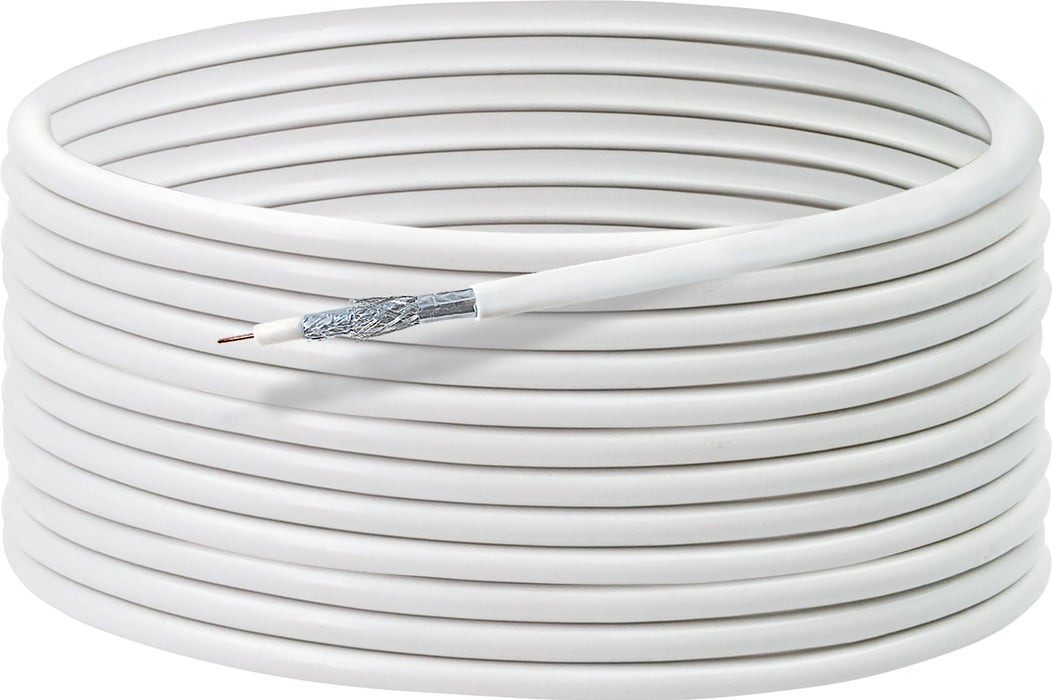

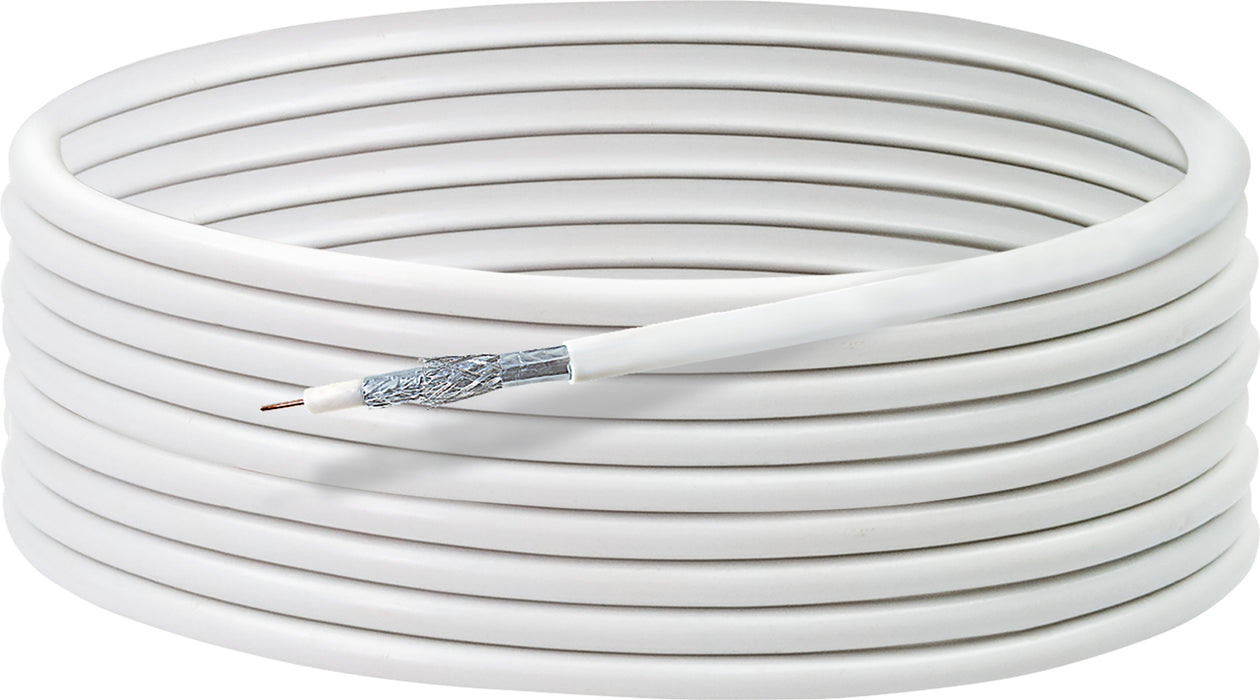

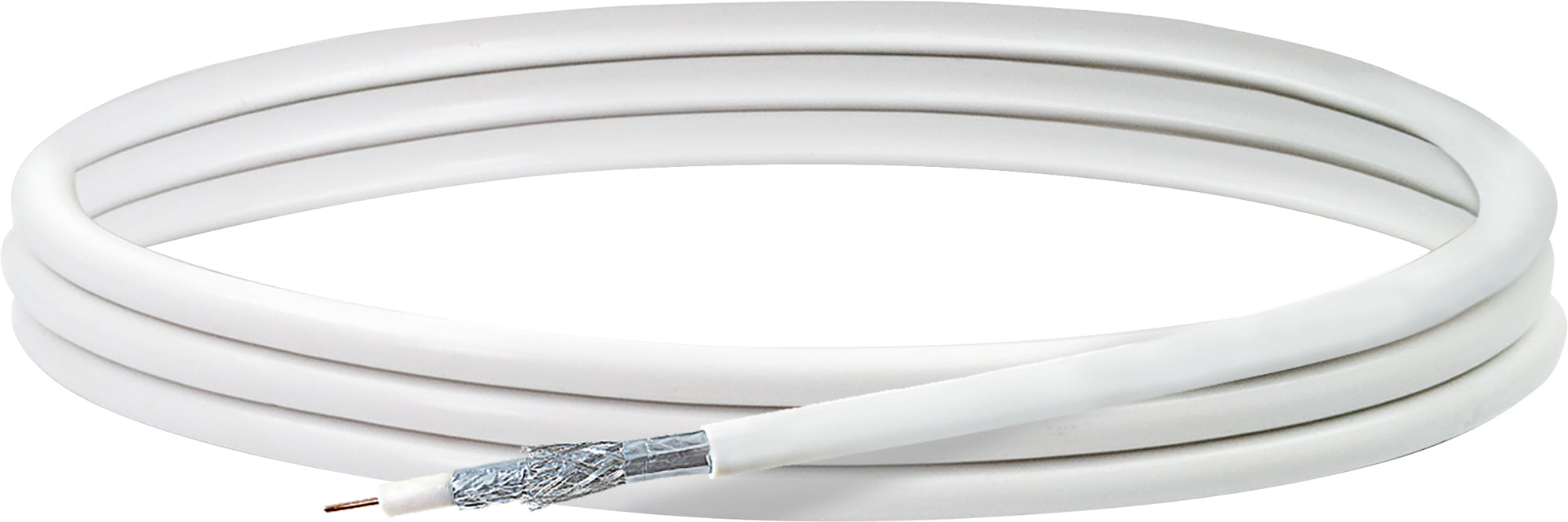

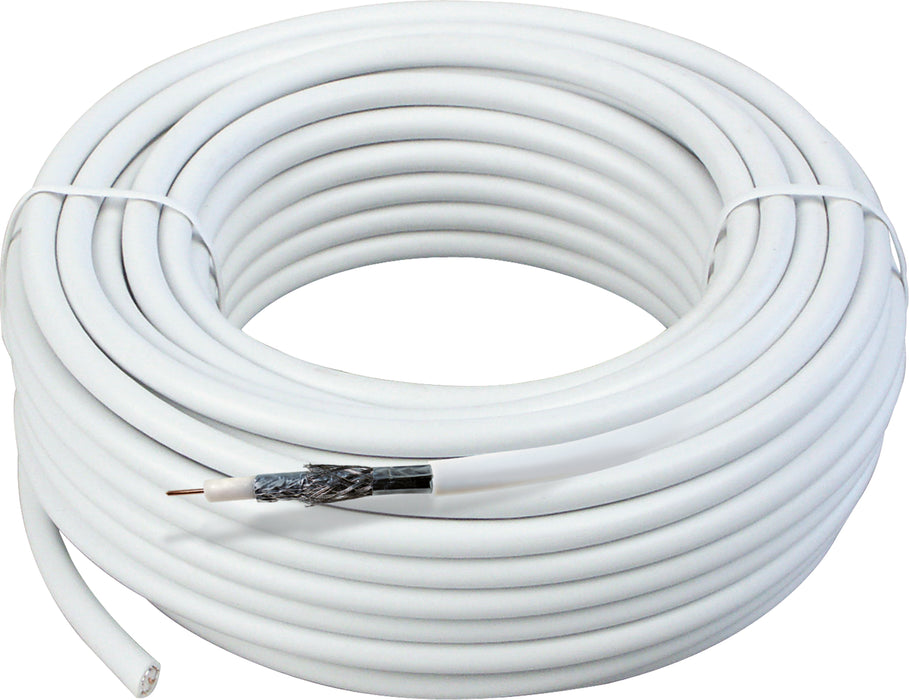

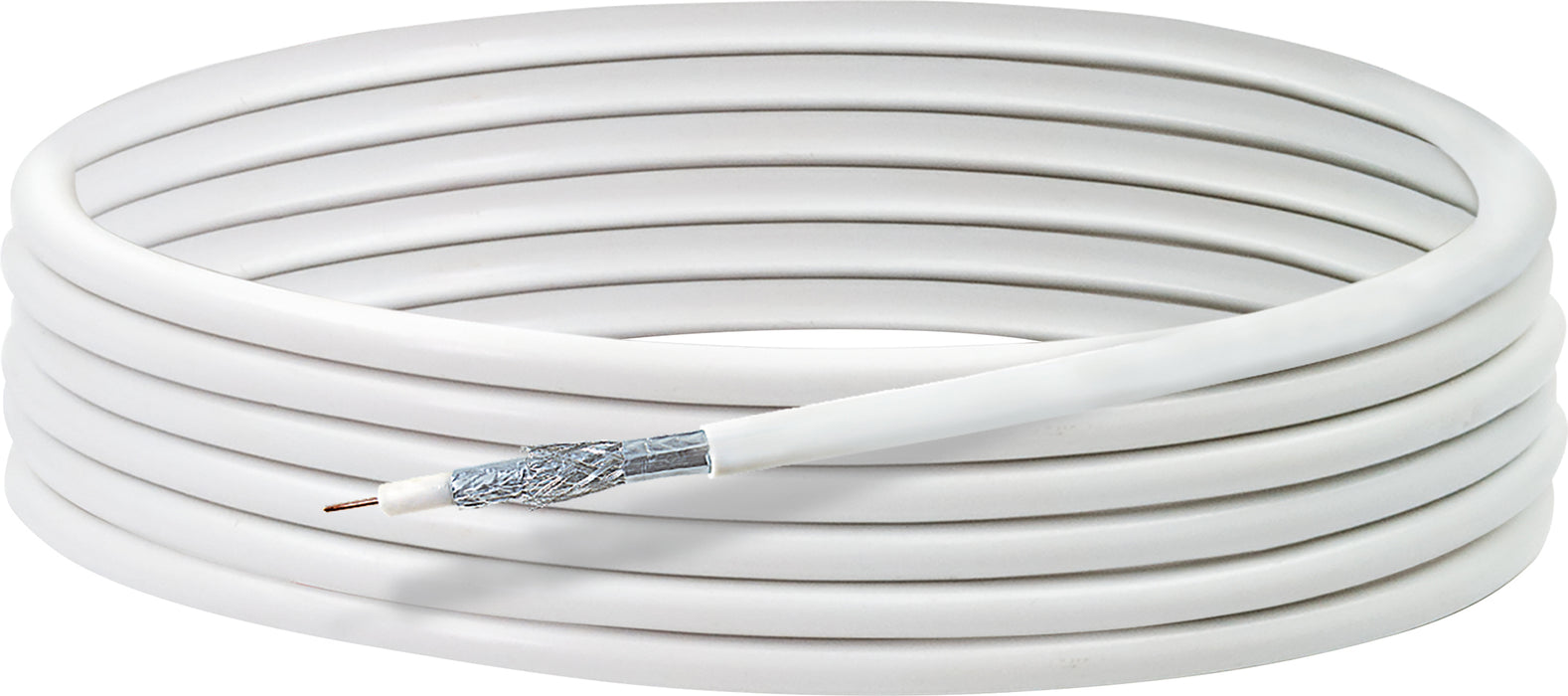

SAT coaxial cable (110 dB)
SKU KOX810 012
€34,29
- Triple shielding for additional security against electromagnetic interference
- High shielding properties guaranteed
- High density and very good insulating properties
- Matching F connector: Ø 7 mm (Schwaiger FSTHD 7002)
Auf Lager
Sichere Zahlung
Passend dazu
SAT coaxial cable (110 dB)
10 m
€34,29
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwbestaiger.com
Produktbeschreibung
This SCHWAIGER® coaxial cable is suitable for higher requirements in satellite and cable TV installations. The cable offers maximum protection from electromagnetic interference thanks to its high shielding level of 110 dB. In addition, thanks to the cable structure, very low signal attenuation is achieved. The cable can be shortened to any length and equipped with appropriate F connectors. SCHWAIGER® offers a suitable stripping tool for this.
Technische Daten
| Impedance | 75 ohms |

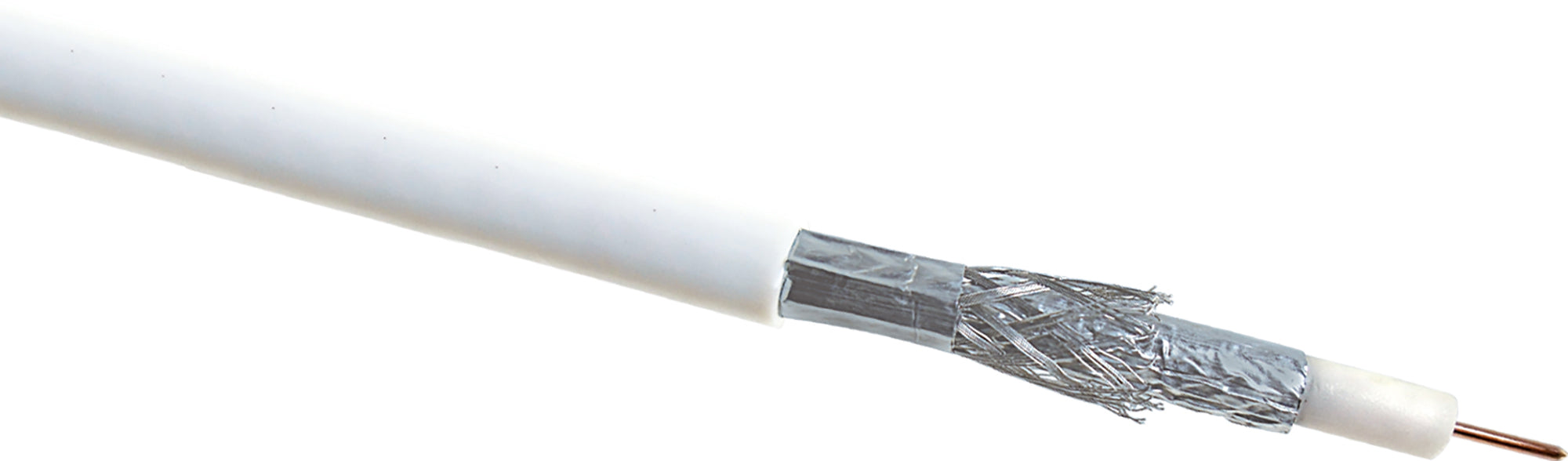

| Cable structure | 1.02 mm (inner conductor) 4.5 mm (dielectric) 7.1 mm (jacket) |
| Shielding | 3-fold shielded |
| Shielding measure | 110 dB |
| Attenuation at 100 m | 5 dB to 50 MHz 6 dB to 100 MHz 14 dB to 470 MHz 20 dB to 860 MHz 21 dB to 950 MHz 29 dB to 1750 MHz 33 dB to 2150 MHz |
| Shielding material | Aluminum composite foil 84 aluminum braid Aluminum composite foil |
| Inner conductor | Cu |
| Product material | plastic |
| classification | Class a |
| colour | White |
| scope of delivery | 1x SAT coaxial cable |
Downloads & Dokumente
Hier können Sie das vollständige Datenblatt herunterladen.
