DVB-T2 (T) external antenna (active)
SKU DTA4000 011
€60,39
- Reception of digital television programs
- With integrated amplifier
- Built-in LTE blocking filter to filter out LTE cellular frequencies

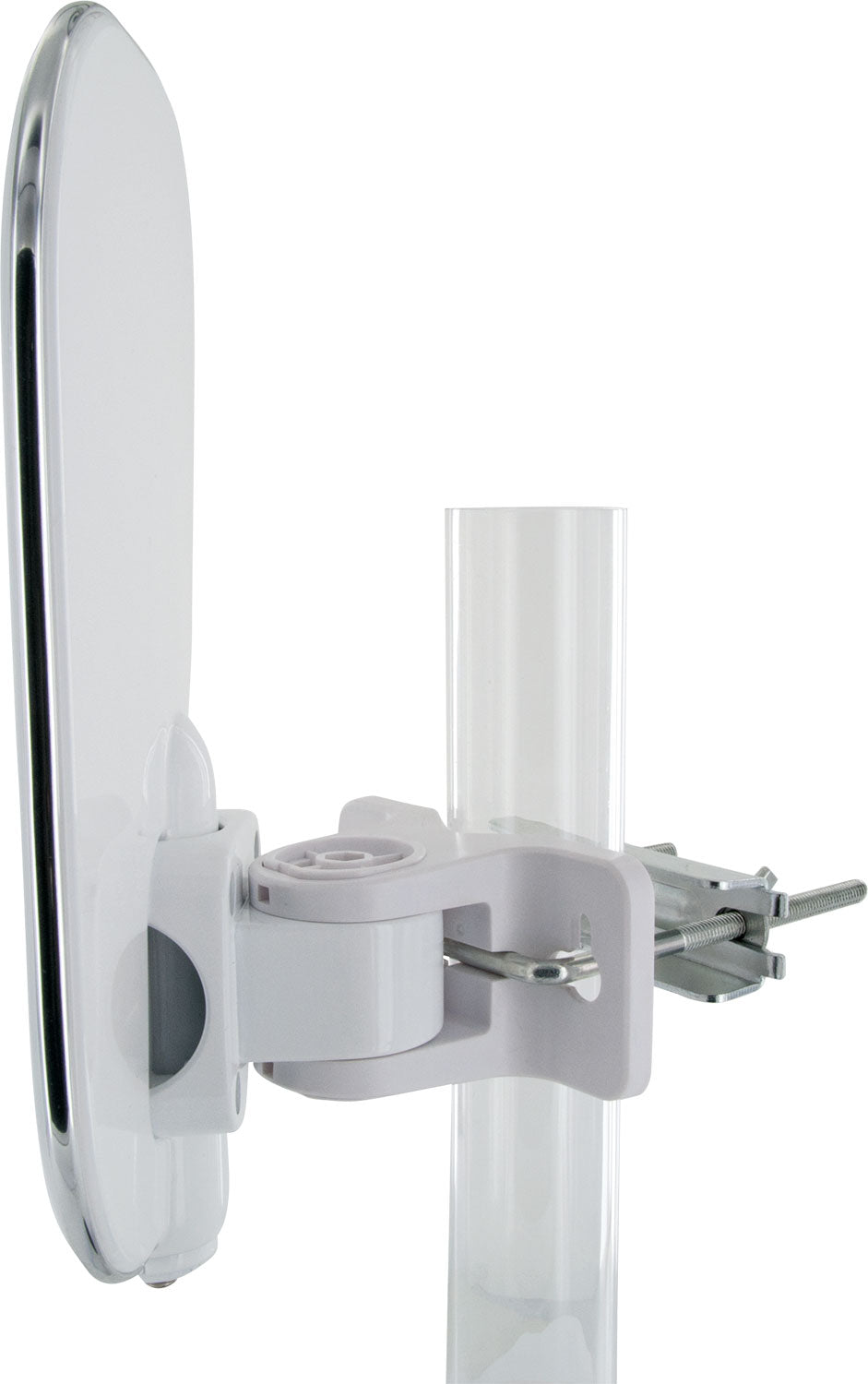

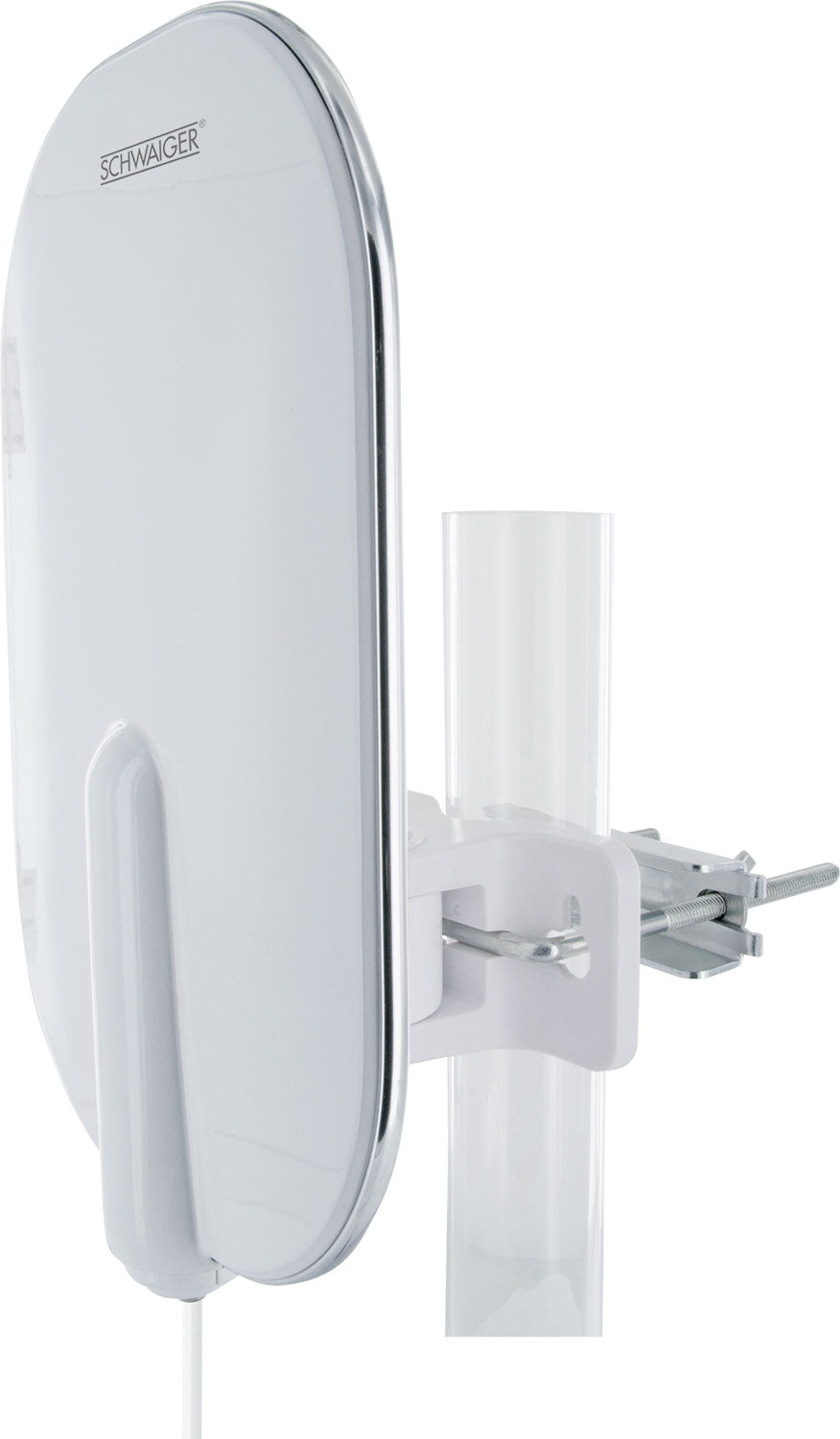

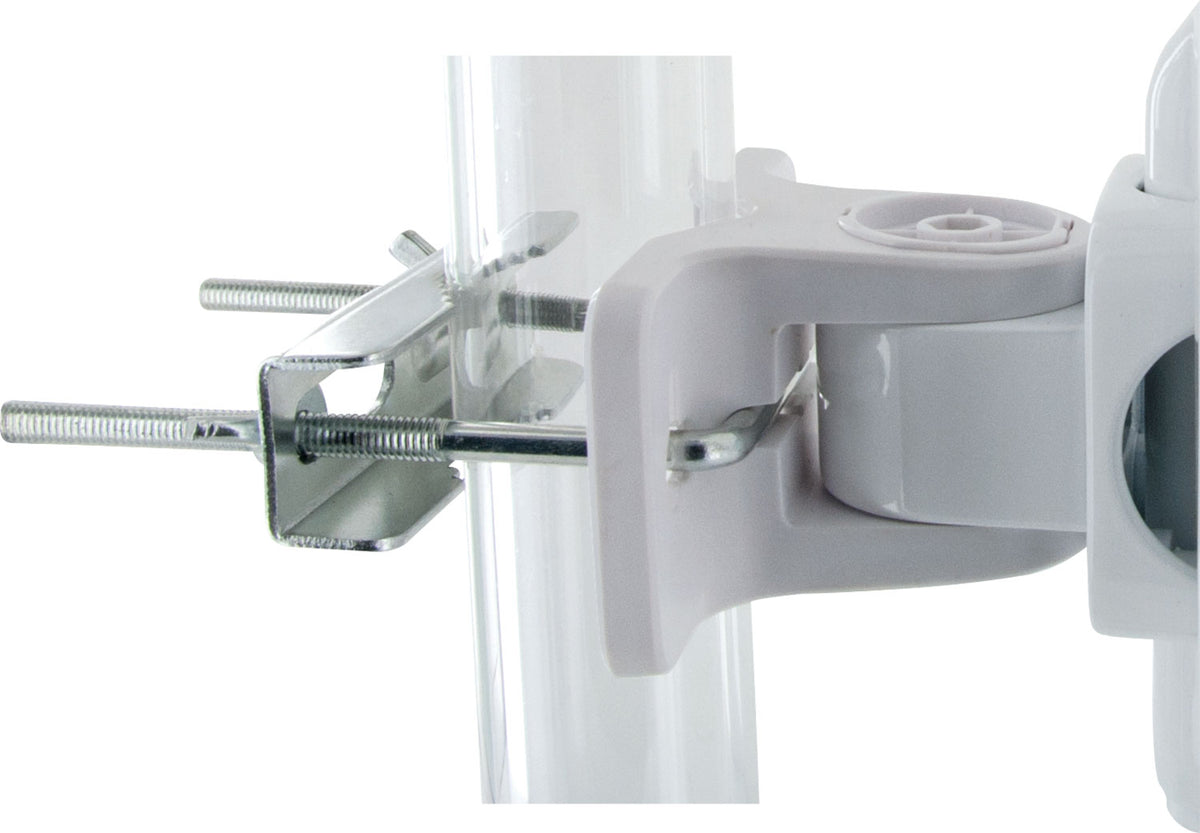

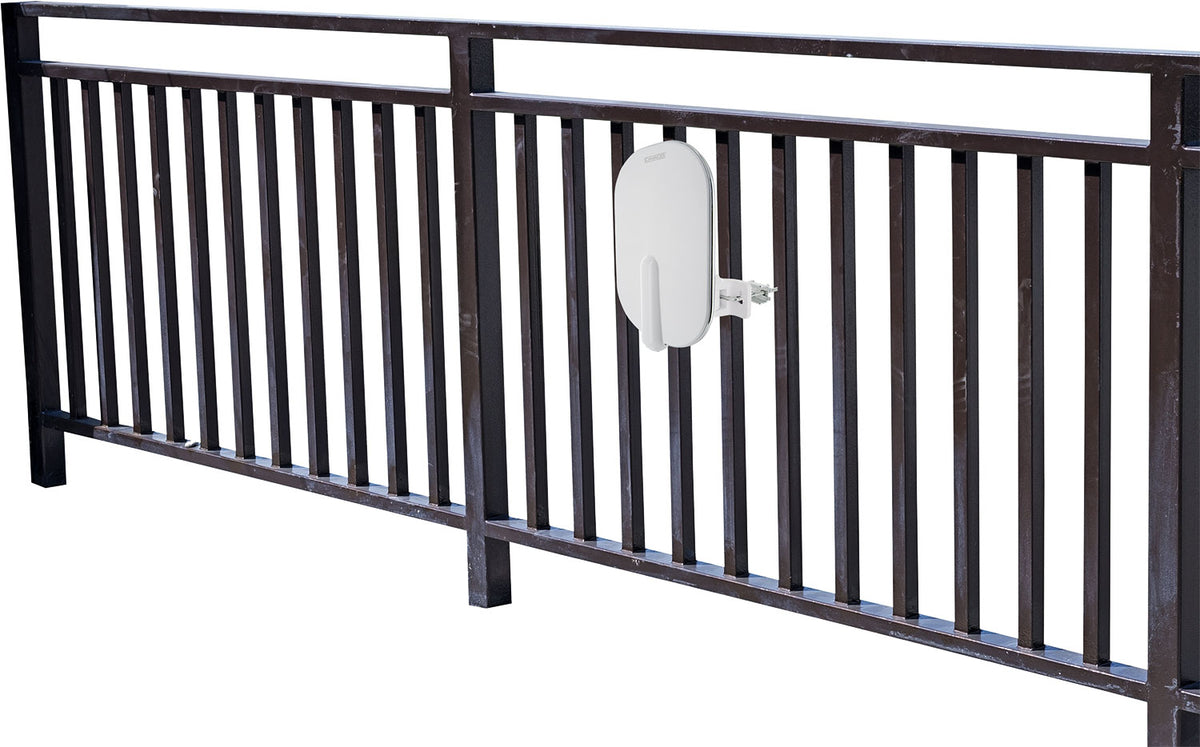

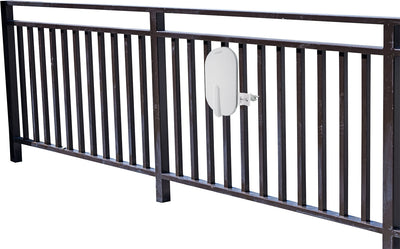

- Suitable for wall and pole mounting as well as for attachment to the railing

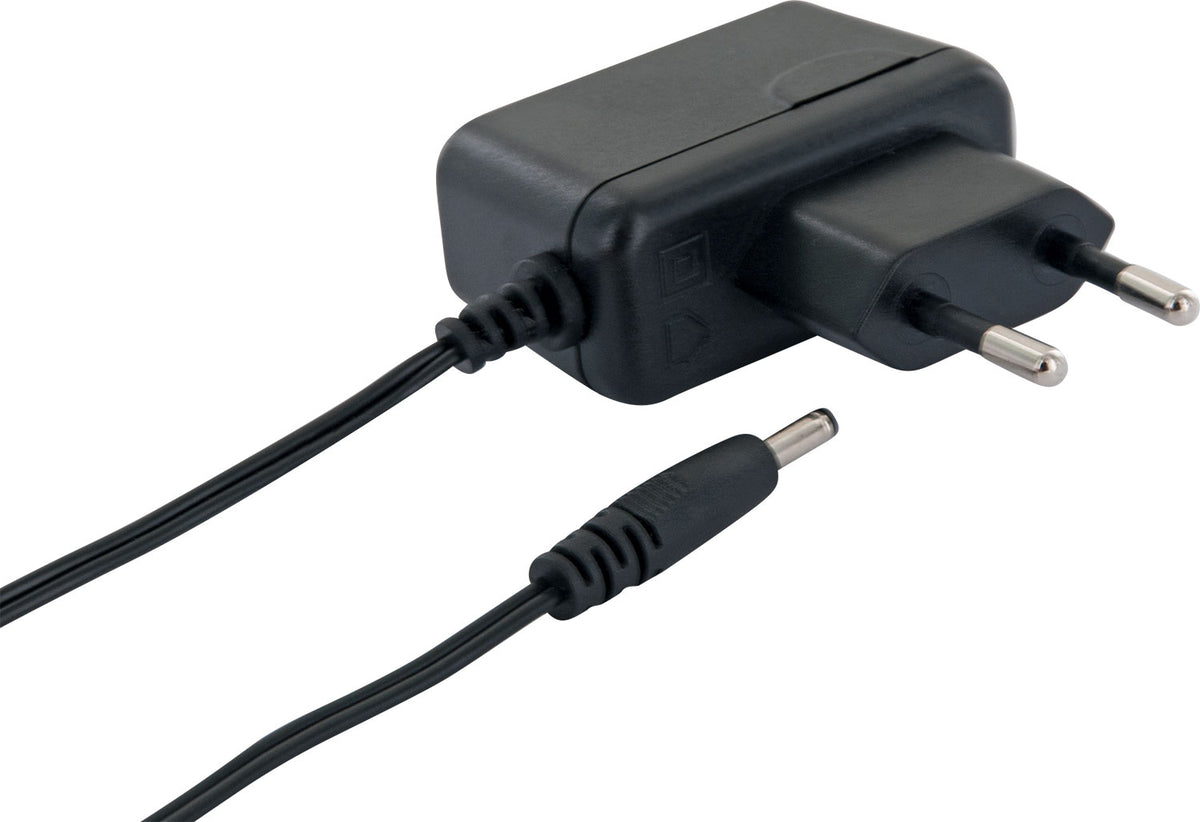

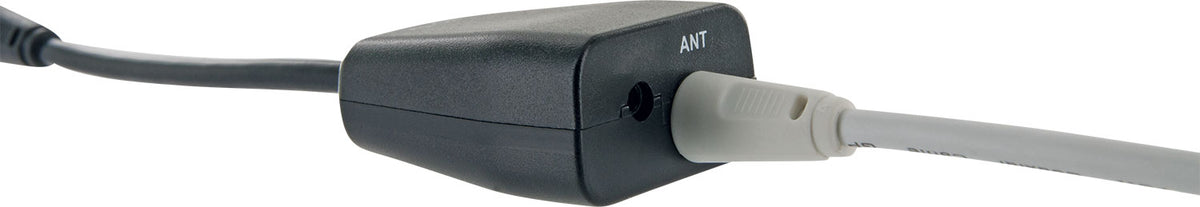

- Power supply directly via DVB-T2 (T) receiver or via plug-in power supply with transfer gate
Auf Lager
Sichere Zahlung
Passend dazu
DVB-T2 (T) external antenna (active)
€60,39
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwbestaiger.com
Produktbeschreibung

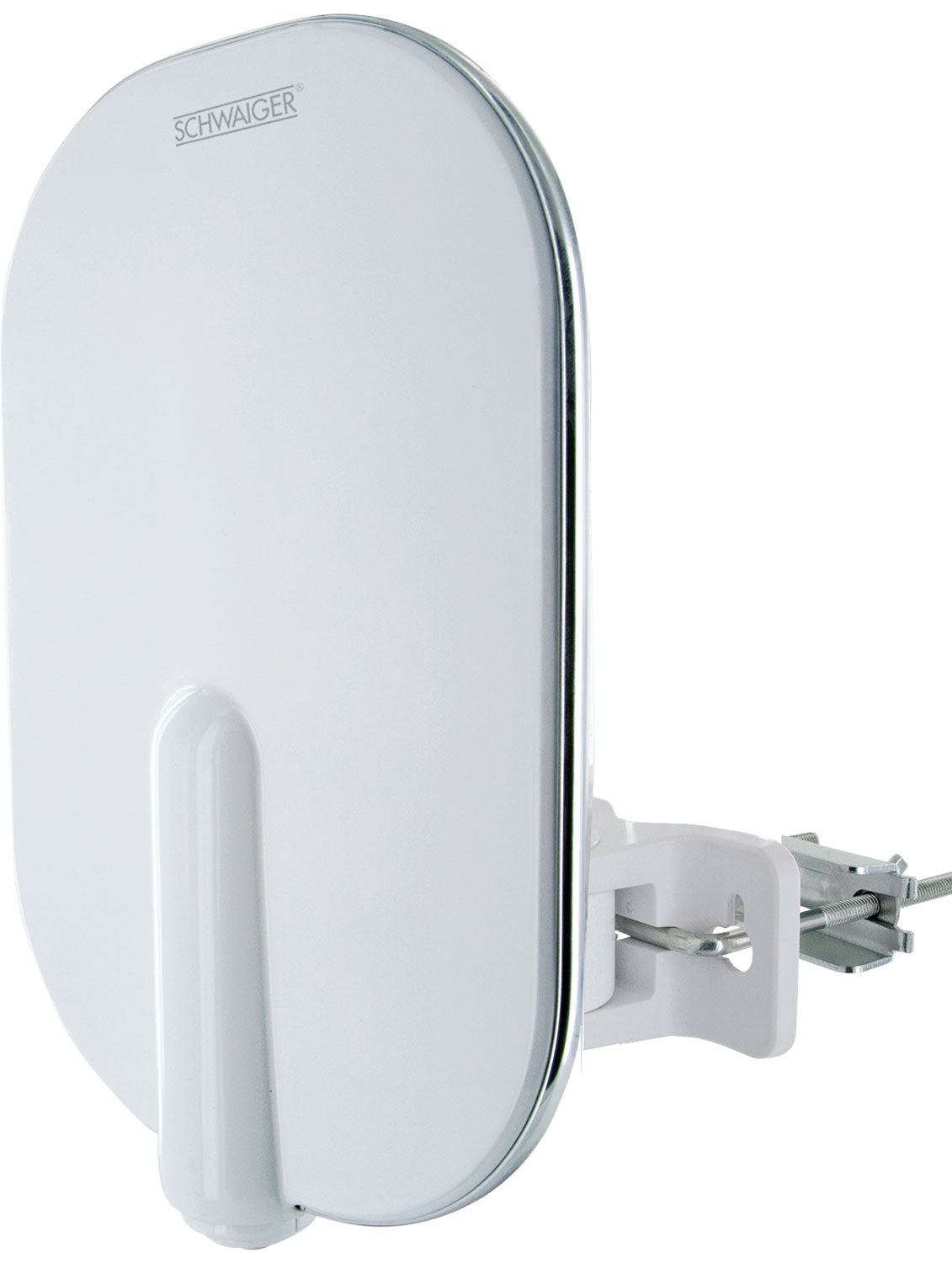

The SCHWAIGER® DVB-T2 (T) external antenna is suitable for terrestrial reception of digital television programs. The introduction of LTE as the standard for mobile Internet leads in some places to problems with the reception of digital terrestrial television. The antenna therefore has an LTE notch filter that filters out the LTE cellular frequency above 790 MHz. DVB-T2 (T) can therefore be received without restriction.
Technische Daten
| technology | DVB-T / DVB-T2 |
| Place of use | Outdoor area |
| connections | 1 x F socket |
| Product material | (IPx4) splash-proof |
| Cable length | 8.5 m |
| Frequency range | 470 - 790 MHz (UHF) channels 21 - 60 |
| Power supply | Plug-in power supply: 5 - 6 V DC / min. 50 mA Receiver: 5 - 6 V DC, 50 mA |
| Dimensions (width) | 155 mm |
| Dimensions (height) | 245 mm |
| Dimensions (depth) | 90 mm |
| scope of delivery | Active external antenna (UHF), coaxial connection cable (8.5 m), external plug-in power supply (100-240 V AC), transfer switch, mast suspension, operating instructions with safety instructions |
Downloads & Dokumente
Hier können Sie das vollständige Datenblatt herunterladen.
