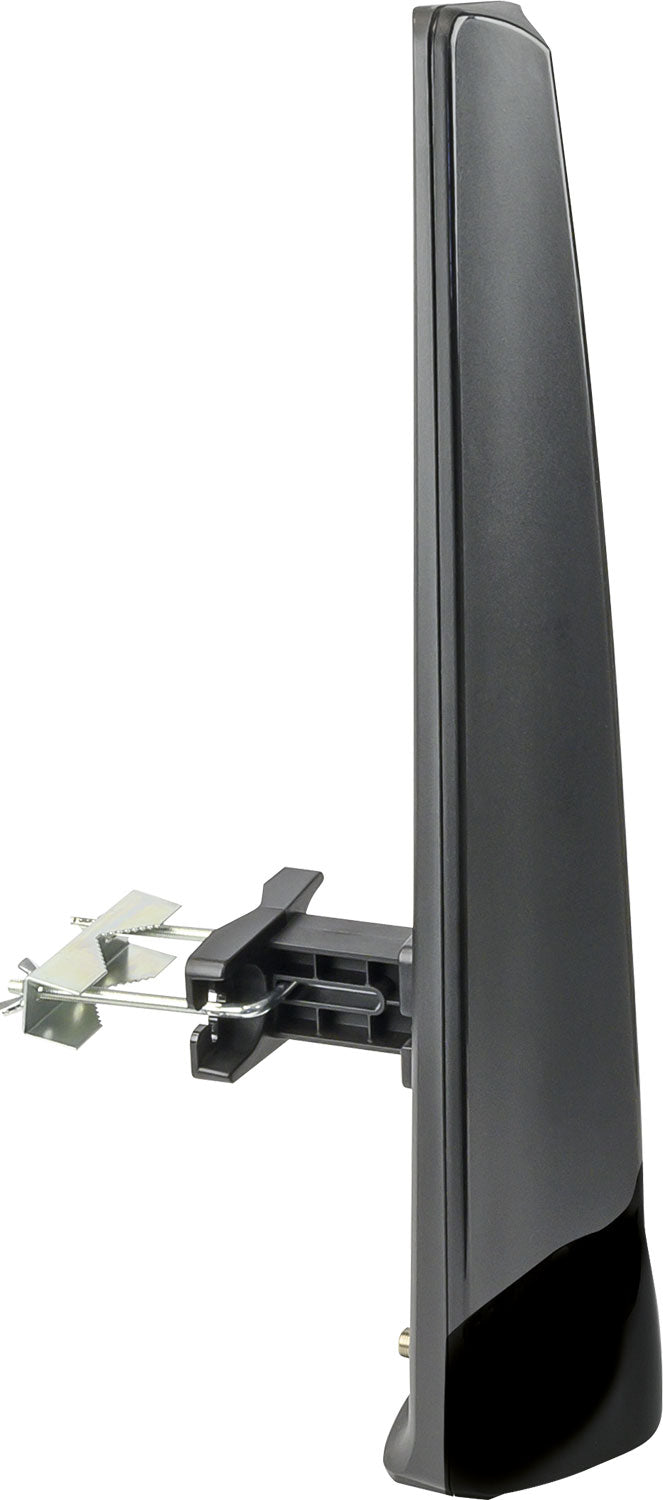

Outdoor antenna DVB-T2 UHF VHF DAB+ active
SKU DTAN5000
- Receives DVB-T2, DAB+, UHF and VHF signals in HD
- Built-in broadband amplifier for best picture and sound reception
- Withstands extreme weather conditions thanks to its compact design

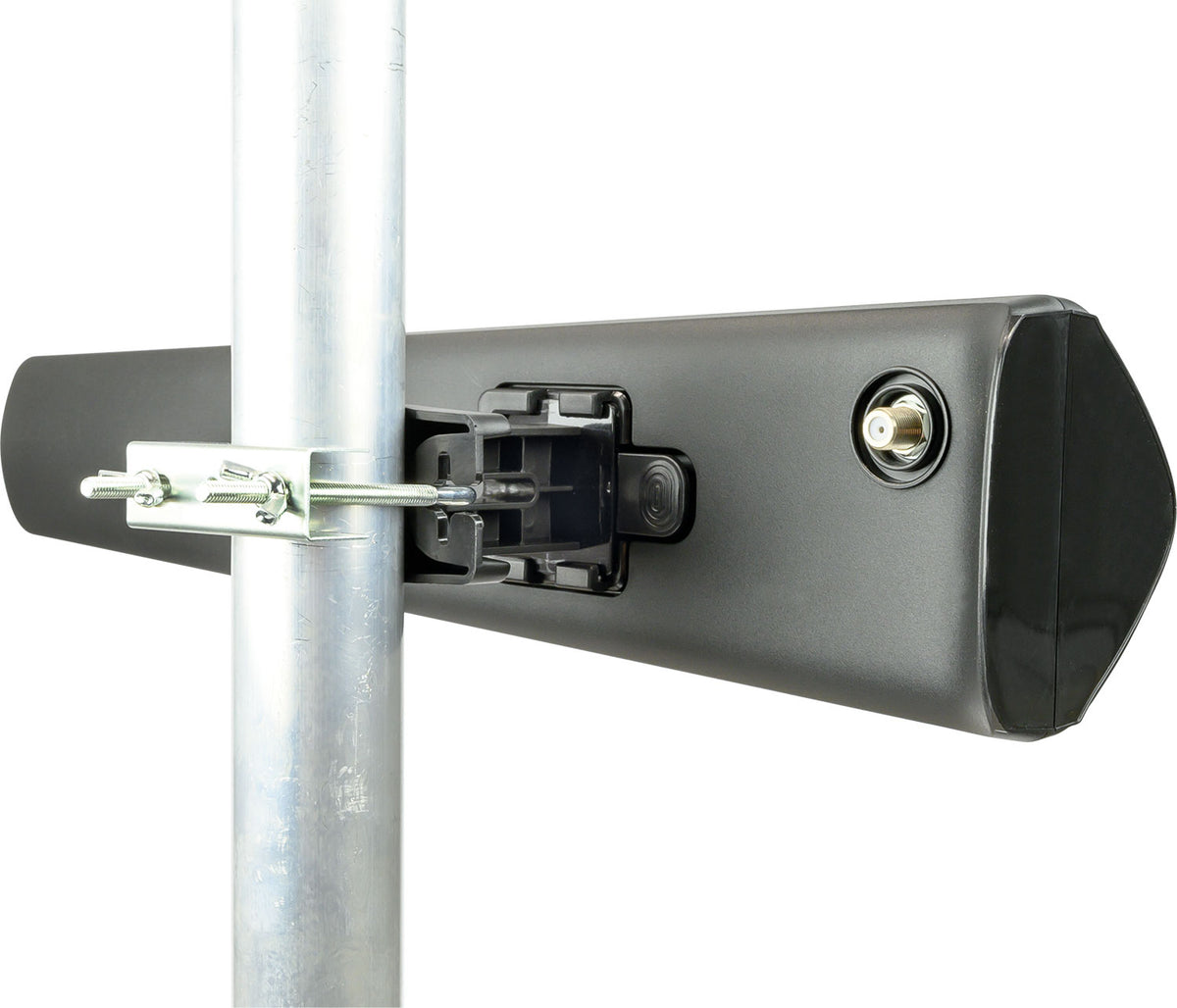

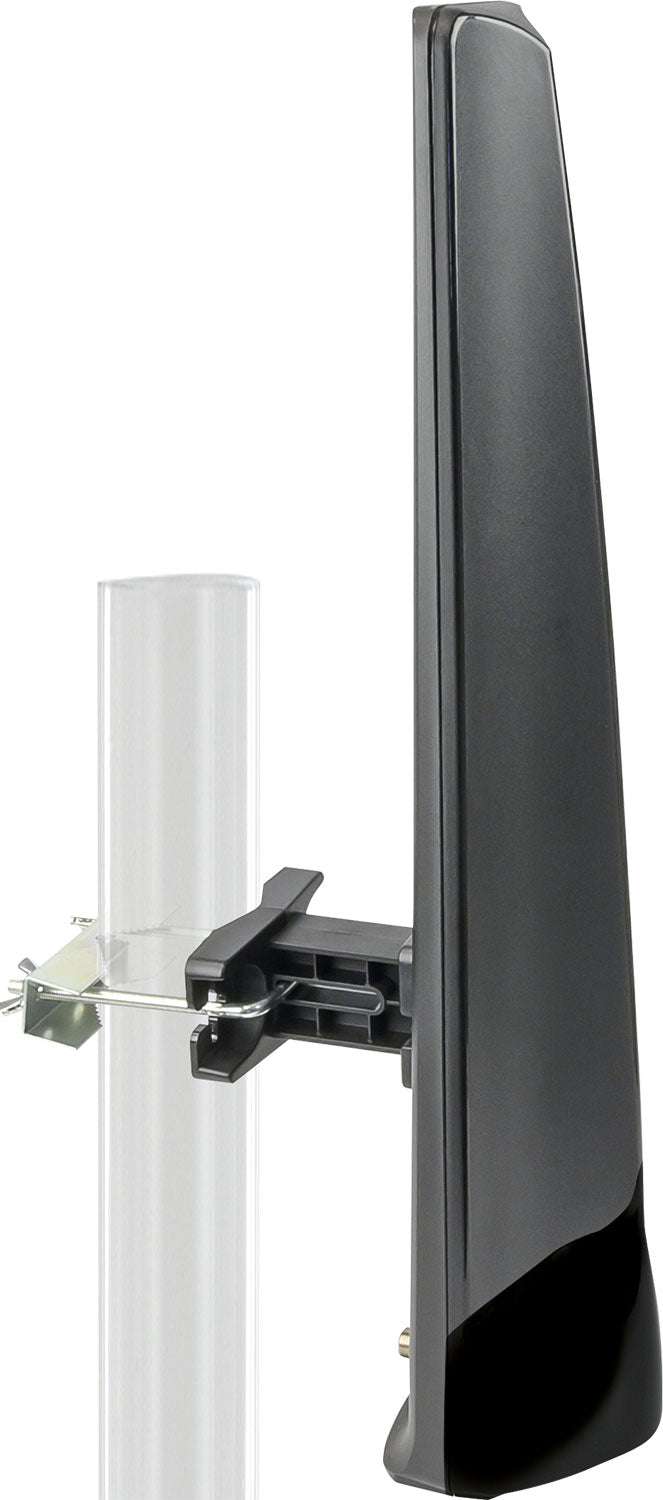

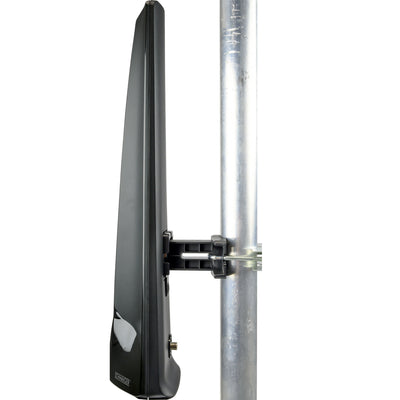

- Can be aligned horizontally or vertically on a house wall, mast or railing
- Is waterproof and UV-resistant IPX4 (only the product, not the power supply)

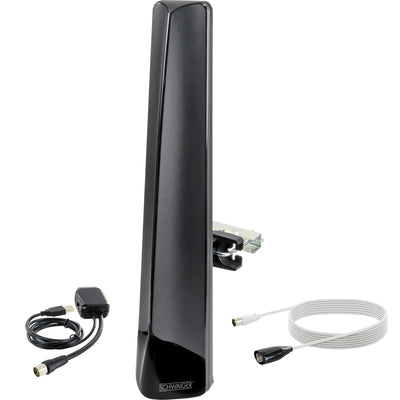

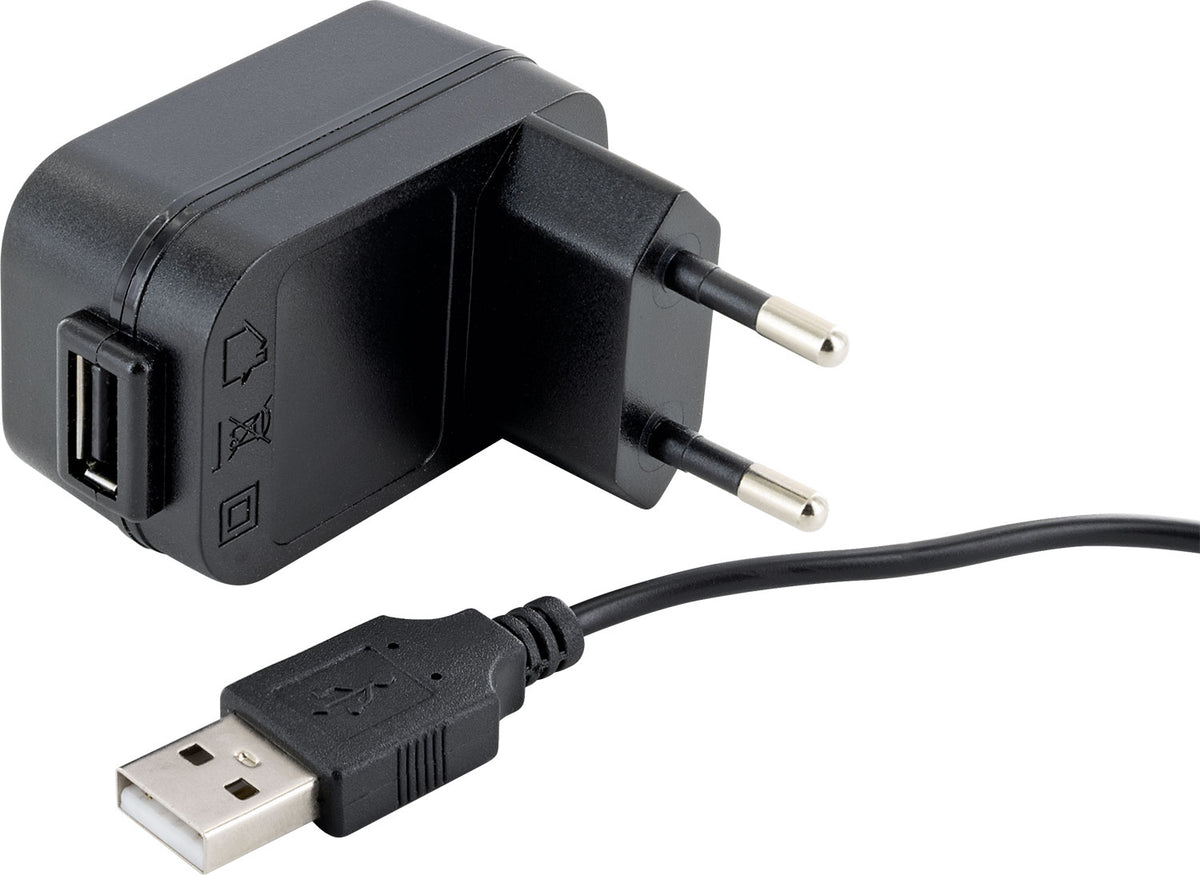

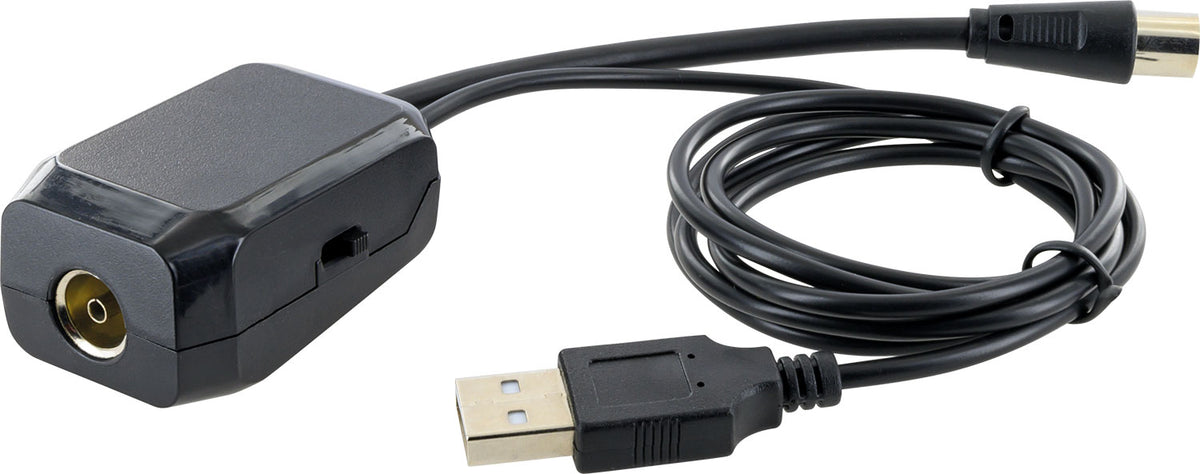

- Scope of delivery: outdoor antenna, power supply with EU plug, feed switch, coaxial cable 8.5 m, mast mount
Sichere Zahlung
Passend dazu
Outdoor antenna DVB-T2 UHF VHF DAB+ active
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwbestaiger.com
Produktbeschreibung
Our SCHWAIGER outdoor antenna, with improved wind flow and snow drift prevention, is designed to withstand extreme weather conditions, allowing reception of full HD and digital TV signals, as well as local VHF and UHF signals. It can receive both DVB-T2 and DAB+ signals and features a built-in broadband amplifier for the best picture and sound reception. The antenna can be aligned horizontally and vertically and is weatherproof, waterproof, and UV-resistant. It can be mounted on a wall, mast, or railing (balcony).
Technische Daten
| Area of application | Outside / Power supply inside |
| VHF | 174 - 230 MHz |
| UHF | 470 - 790 MHz |
| Impedance | 75 Ω |
| Input voltage | AC 230 V |
| Working voltage | DC 5 V / 550 mA |
| Reinforcement | VHF 15 dB / UHF 18 dB |
| Input | 100 - 240V〜50/60Hz〜0.15A |
| output | 5 V / 0.55 A |
| Suitable for | TV |
| Protection class | IPX4 (only the product, not the power adapter) |

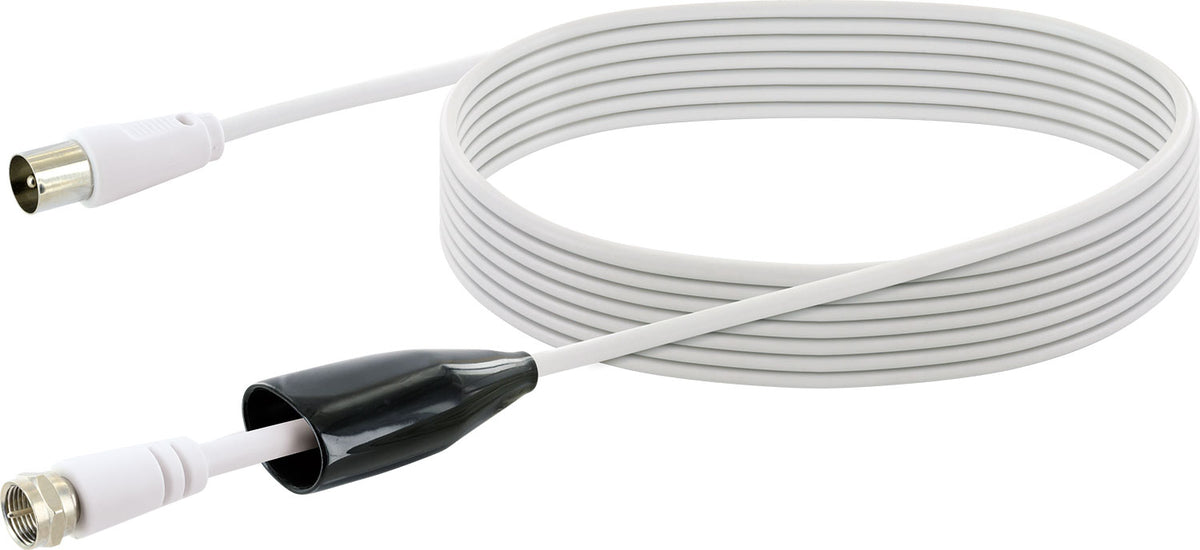

| Coaxial cable length | 8.5 m |
| USB cable length | 1.0 m |
| Antenna dimensions | 405 x 98 x 80 mm |
| Color | Black |
| Weight | 1 kg |
| Scope of delivery | Outdoor antenna, power supply with EU plug, feed switch, coaxial cable 8.5 m, mast mount |
