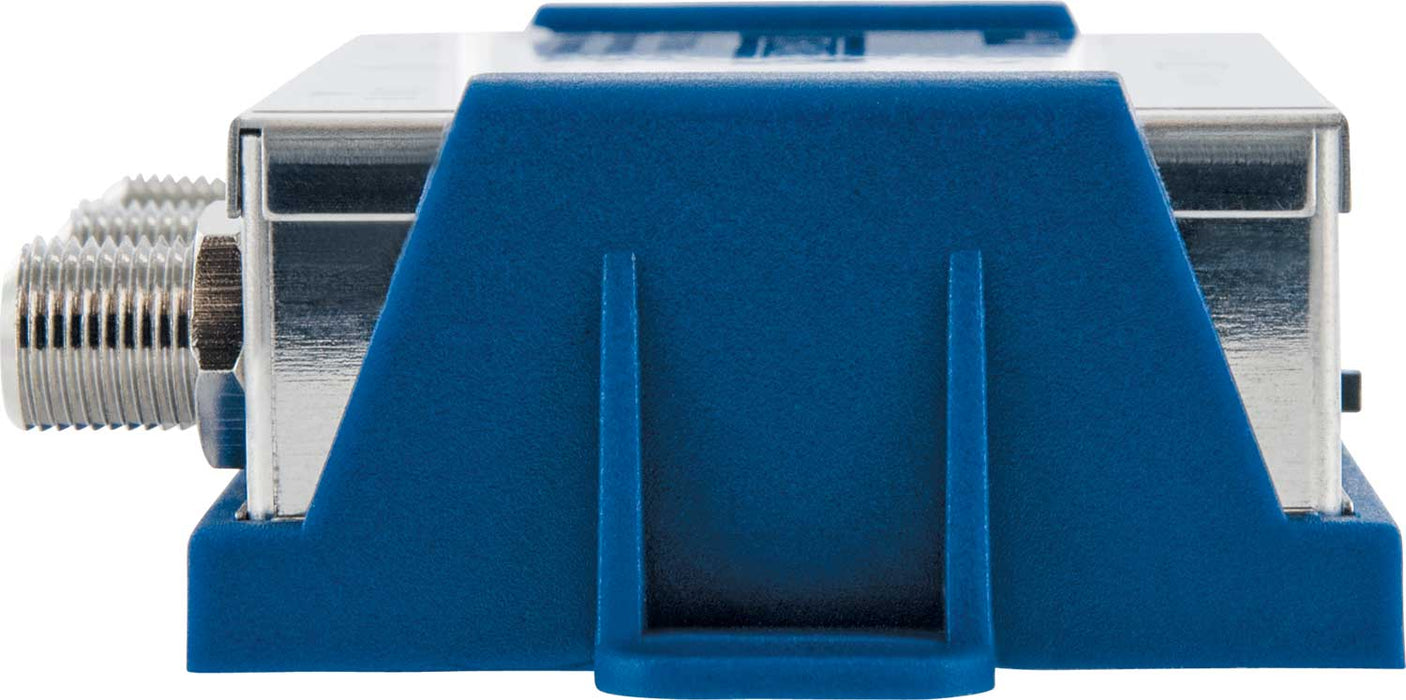

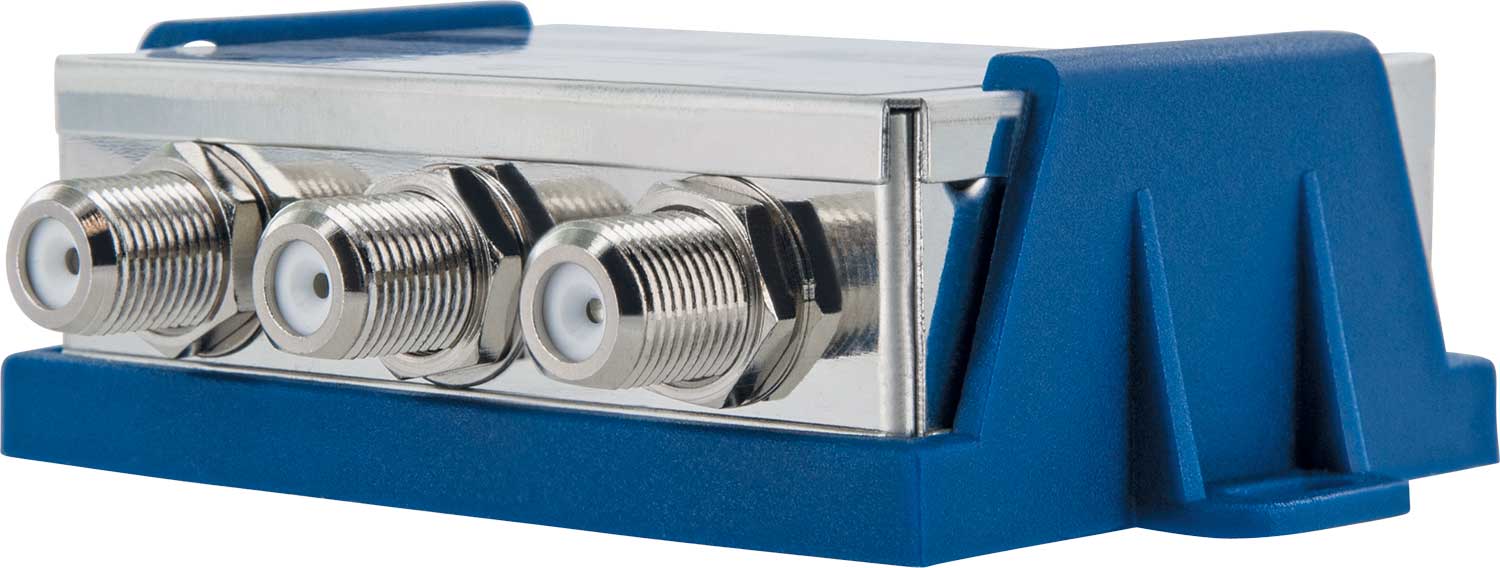

DiSEqC 1.0 switch (2> 1)
DiSEqC 1.0 switch (2> 1)
DiSEqC 1.0 switch (2> 1)
DiSEqC 1.0 switch (2> 1)

DiSEqC 1.0 switch (2> 1)

SKU KFR6025 531

€40,09
  • DiSEqC switch distributes two universal single LNBs to one participant
  • Selector switch for DiSEqC commands "Position SA / SB" or "Option A / B"
  • Interconnection of SAT multiswitches via their outputs is possible
  • Selection of the satellite position by DiSEqC or Toneburst signal
  • Direct current passage (DC)
Auf Lager

Sichere Zahlung

Apple Pay Bancontact BLIK EPS Google Pay iDEAL Wero Klarna Maestro Mastercard MobilePay PayPal Shop Pay Union Pay Visa

Passend dazu
Produktbeschreibung

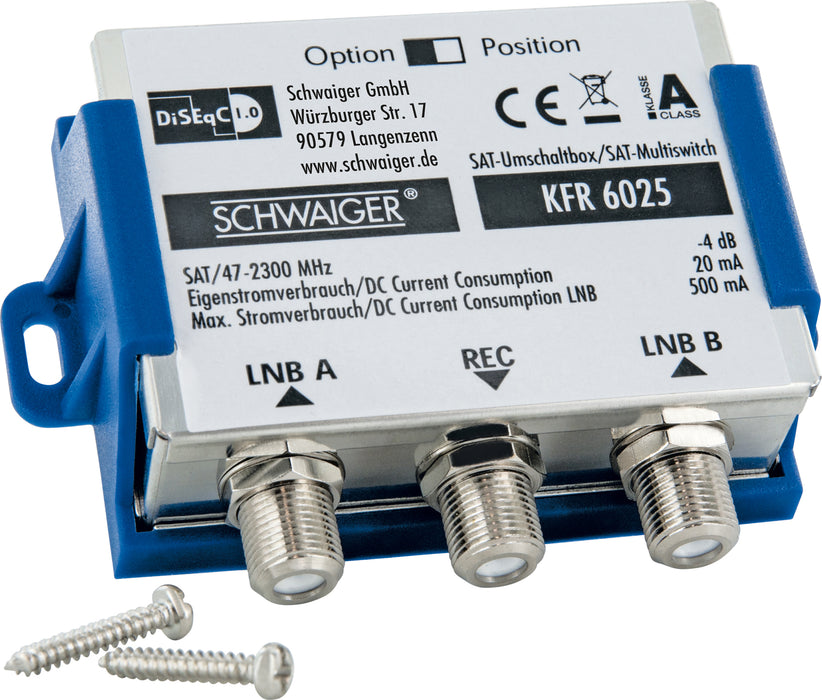

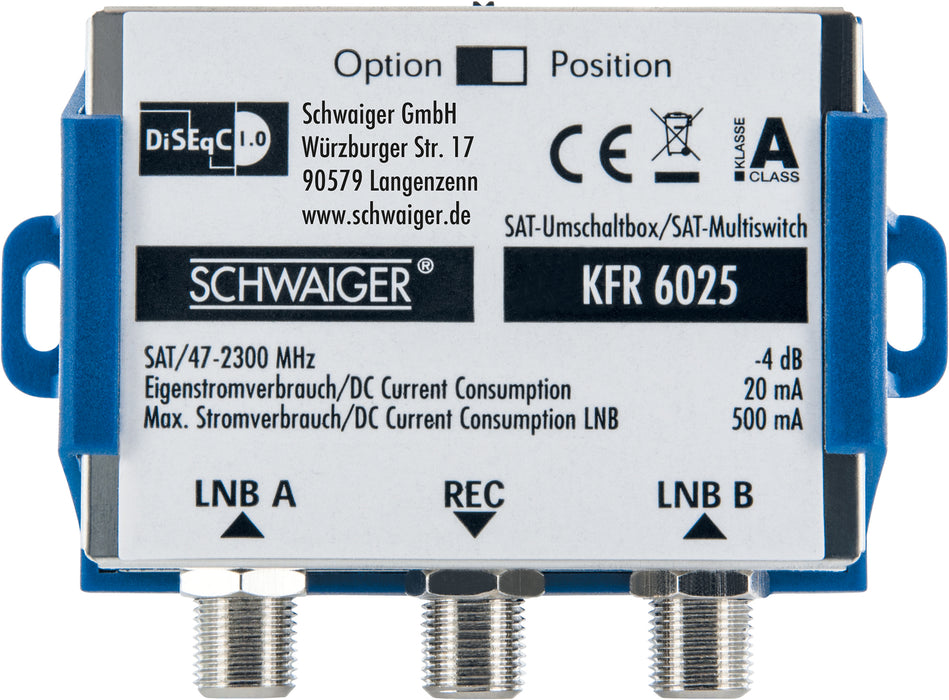

This SCHWAIGER® DiSEqC switch distributes 2 single LNBs to 1 participant (receiver). The switch enables the satellite positions to be selected using DiSEqC commands or tone burst signals. A selector switch enables the desired DiSEqC commands to be set. The device is also suitable for interconnecting multi-switches.

Technische Daten
Place of use Indoor
classification Class a
Connections (input) 2 x F socket (75 Ohm)
Connections (output) 1 x F socket (75 ohms)
Frequency range 47-2300 MHz
Control function DiSEqC 1.0
Through loss 4 dB
Power consumption (max.) 20 mA
Power supply 13/18 V, 500 mA max.
Dimensions (width) 81 mm
Dimensions (height) 101 mm
Dimensions (depth) 41 mm
colour silver
scope of delivery 1x DiSEqC switch, 1x cable tie
