Two-device amplifier (2x 8 dB)
SKU BS6822 531
€66,79
- For distributing an antenna or cable connection to two end devices (e.g. TV / receiver)
- Compensation of distribution losses when operating two TV or radio sets on one antenna socket
- Attenuation compensation for long connection cables (up to 20 m)
Auf Lager
Sichere Zahlung
Passend dazu
Two-device amplifier (2x 8 dB)
€66,79
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwbestaiger.com
Produktbeschreibung

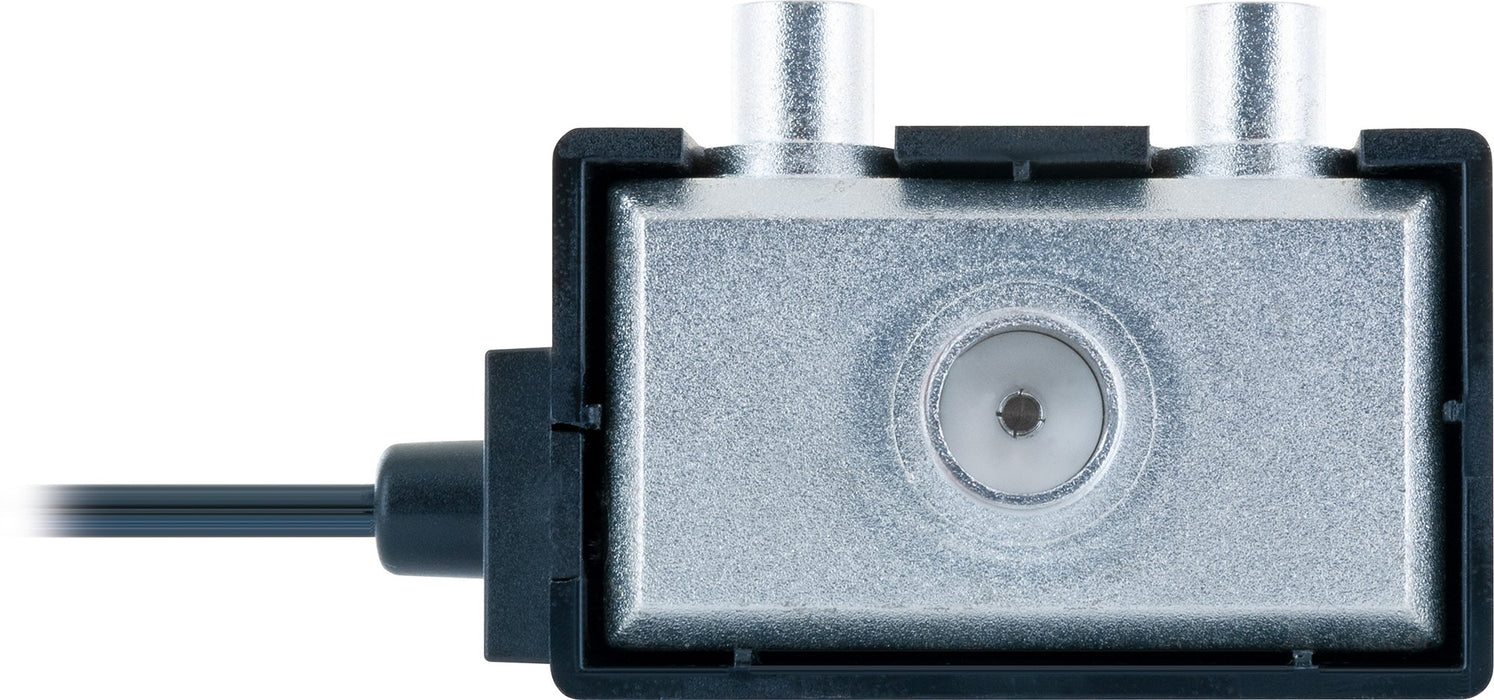

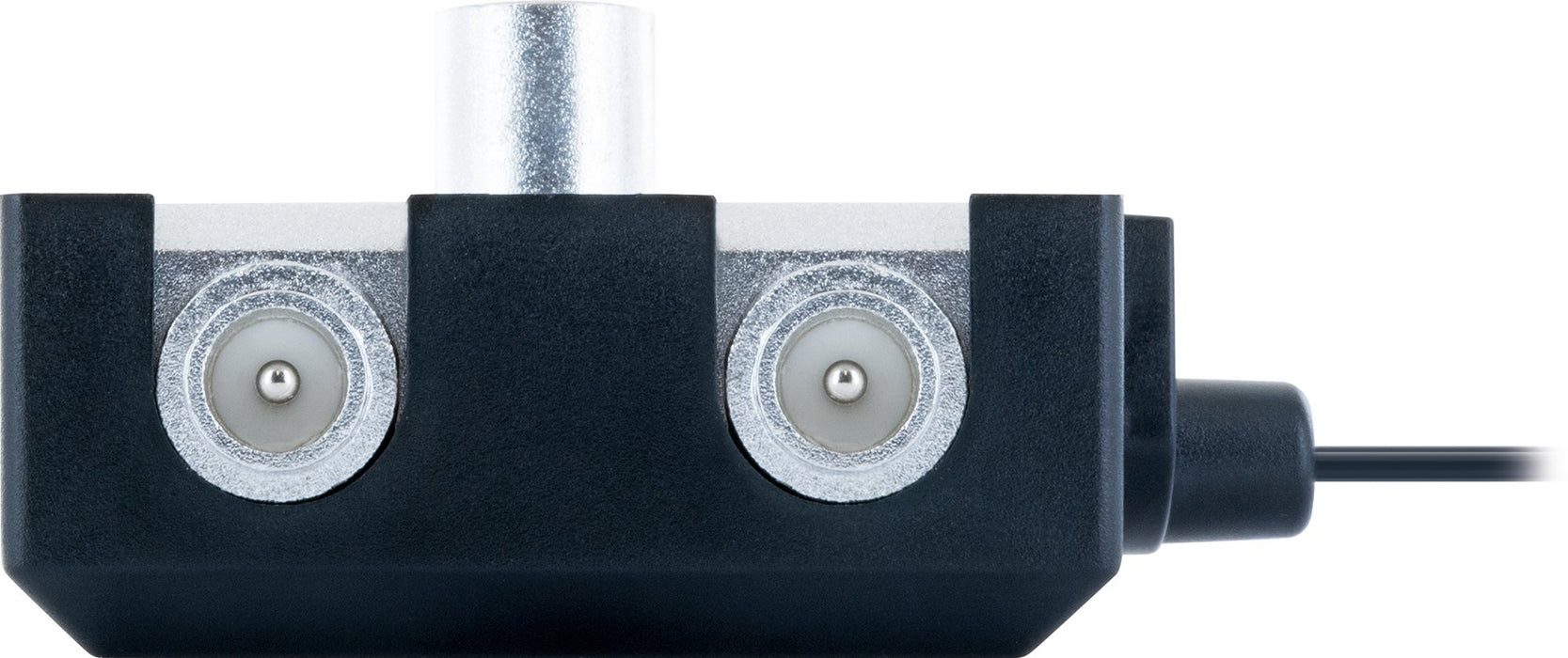

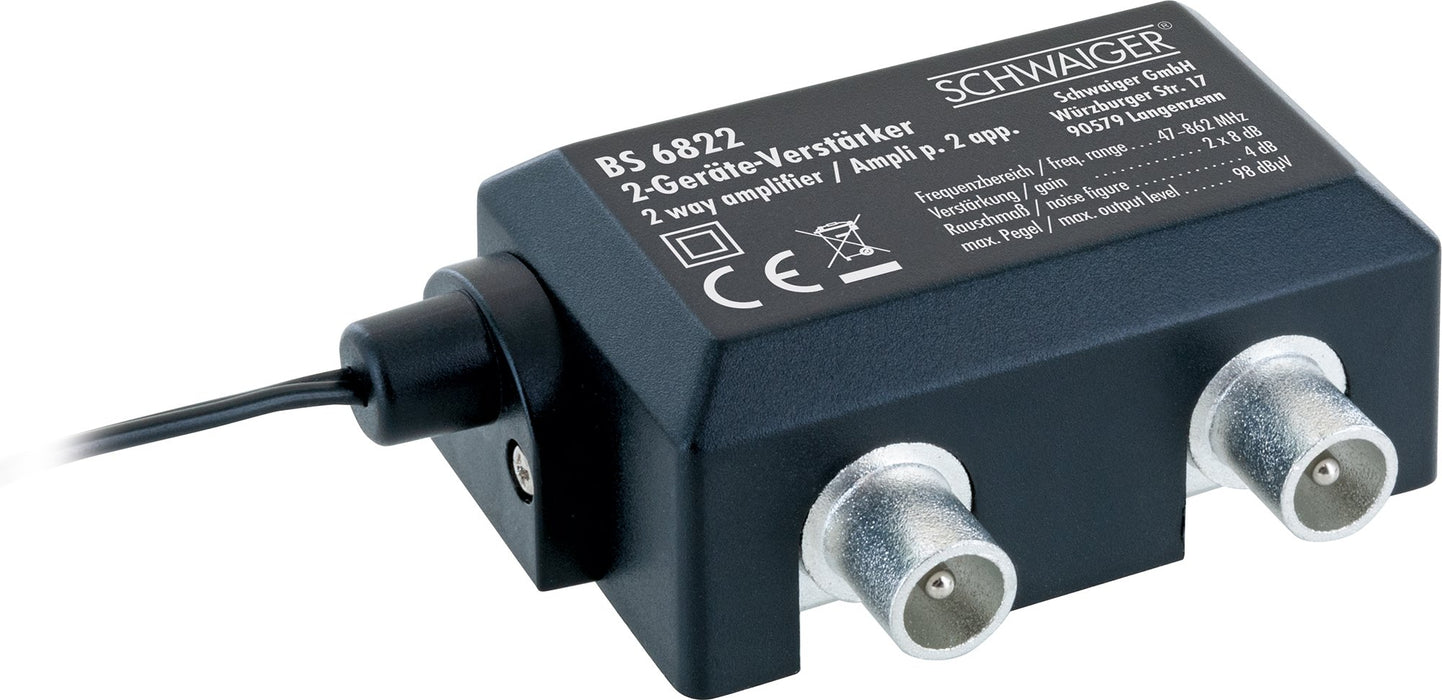

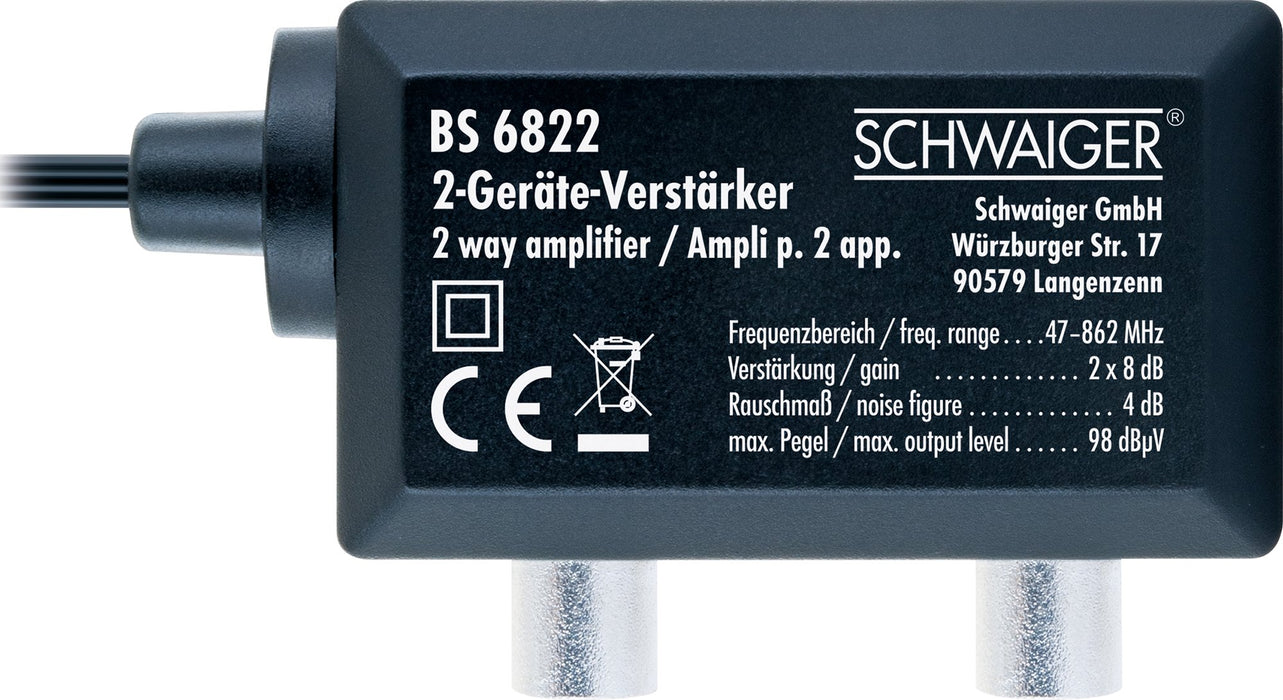

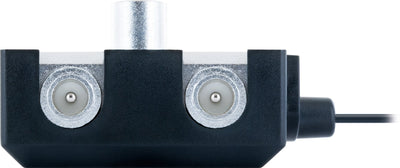

This SCHWAIGER® two-device amplifier is suitable for connecting two television or radio devices to an antenna socket and compensates for distribution and power losses. It compensates for the attenuation with long connection cables of up to 20 m.
Technische Daten
| connections (input) | 1 x IEC socket |
| connections (output) | 2 x IEC connectors |
| output level (max.) | 98 dbµV (IM 3 DIN 45004 B, 60 dB) |
| Frequency range | 47-862 MHz |
| reinforcement (typical) | 2x 8 dB |
| noise figure (typical) | 4 dB |
| Cable length | 1.5m |

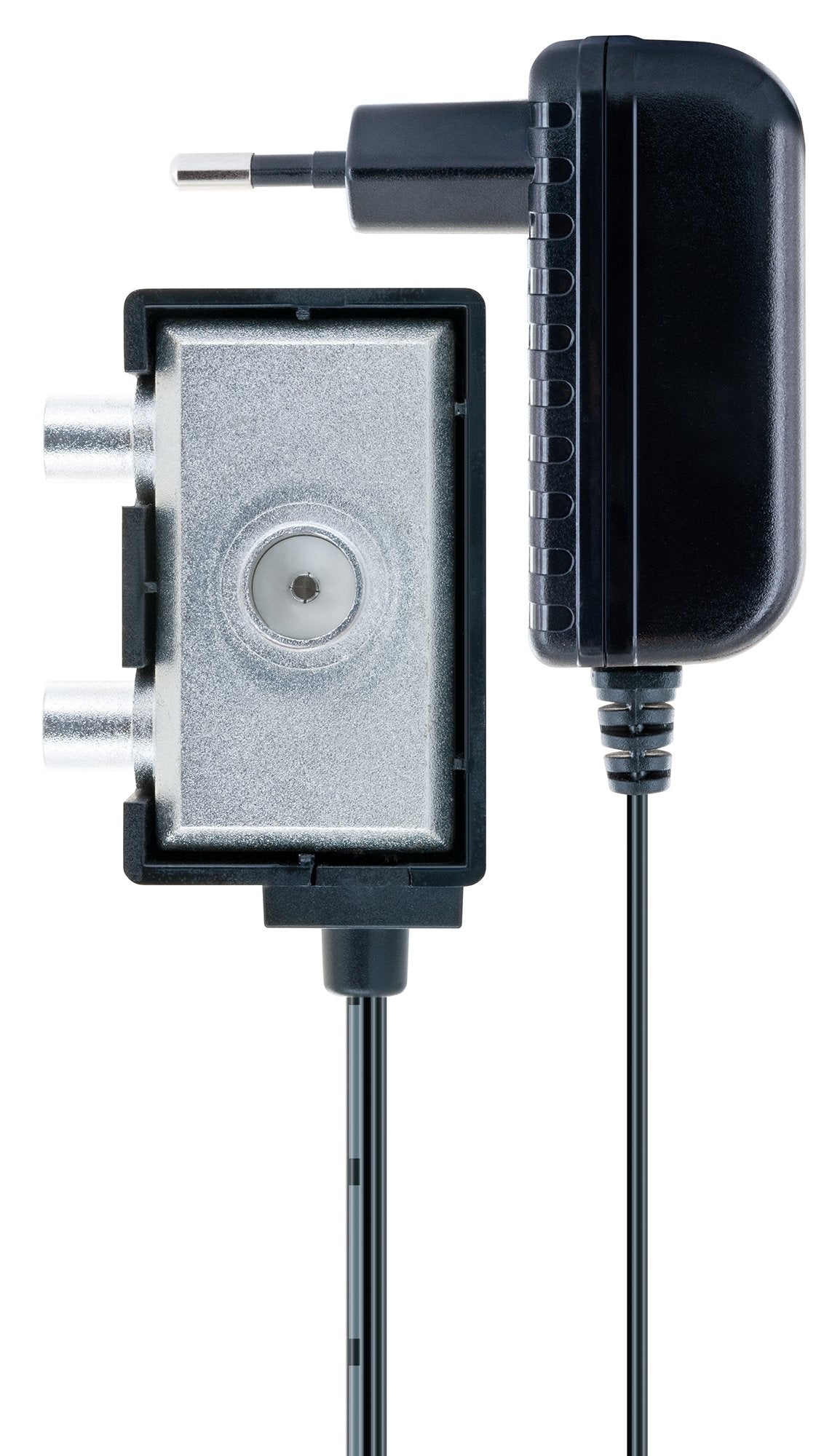

| Power supply | 230 V, 50 Hz, 0.7 W |
| Color | black/silver |
| Weight | 265 g |
| Dimensions (Width) | 60mm |
| Dimensions (depth) | 35mm |
| Dimensions (Height) | 44 mm |
| scope of delivery | 1x two-device amplifier |
Downloads & Dokumente
Hier können Sie das vollständige Datenblatt herunterladen.
