2-way plug-on distributor (TV)
2-way plug-on distributor (TV)

2-way plug-on distributor (TV)

SKU ASV45 532

€13,79
  • Distribution of one TV connection to two TV outputs
  • Connection of two televisions possible
  • Solid metal housing for high active and passive interference immunity
Auf Lager

Sichere Zahlung

Apple Pay Bancontact BLIK EPS Google Pay iDEAL Wero Klarna Maestro Mastercard MobilePay PayPal Shop Pay Union Pay Visa

Passend dazu
Produktbeschreibung

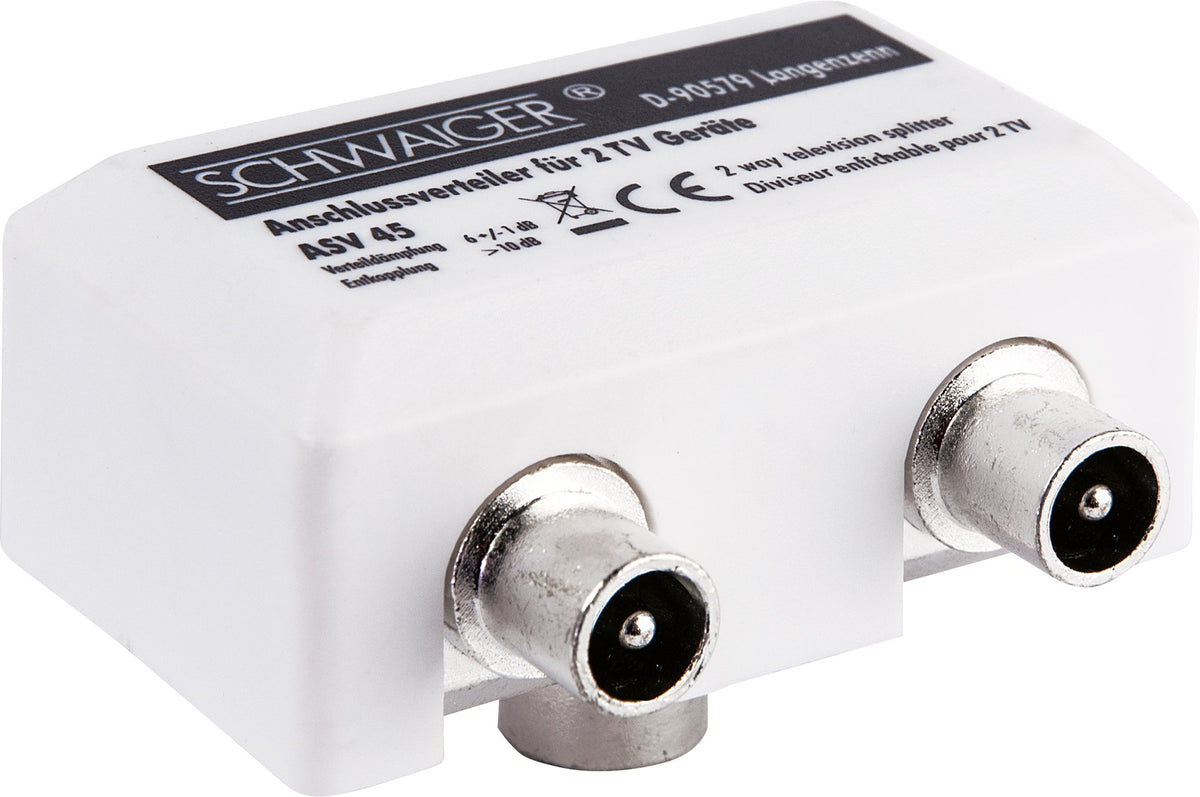

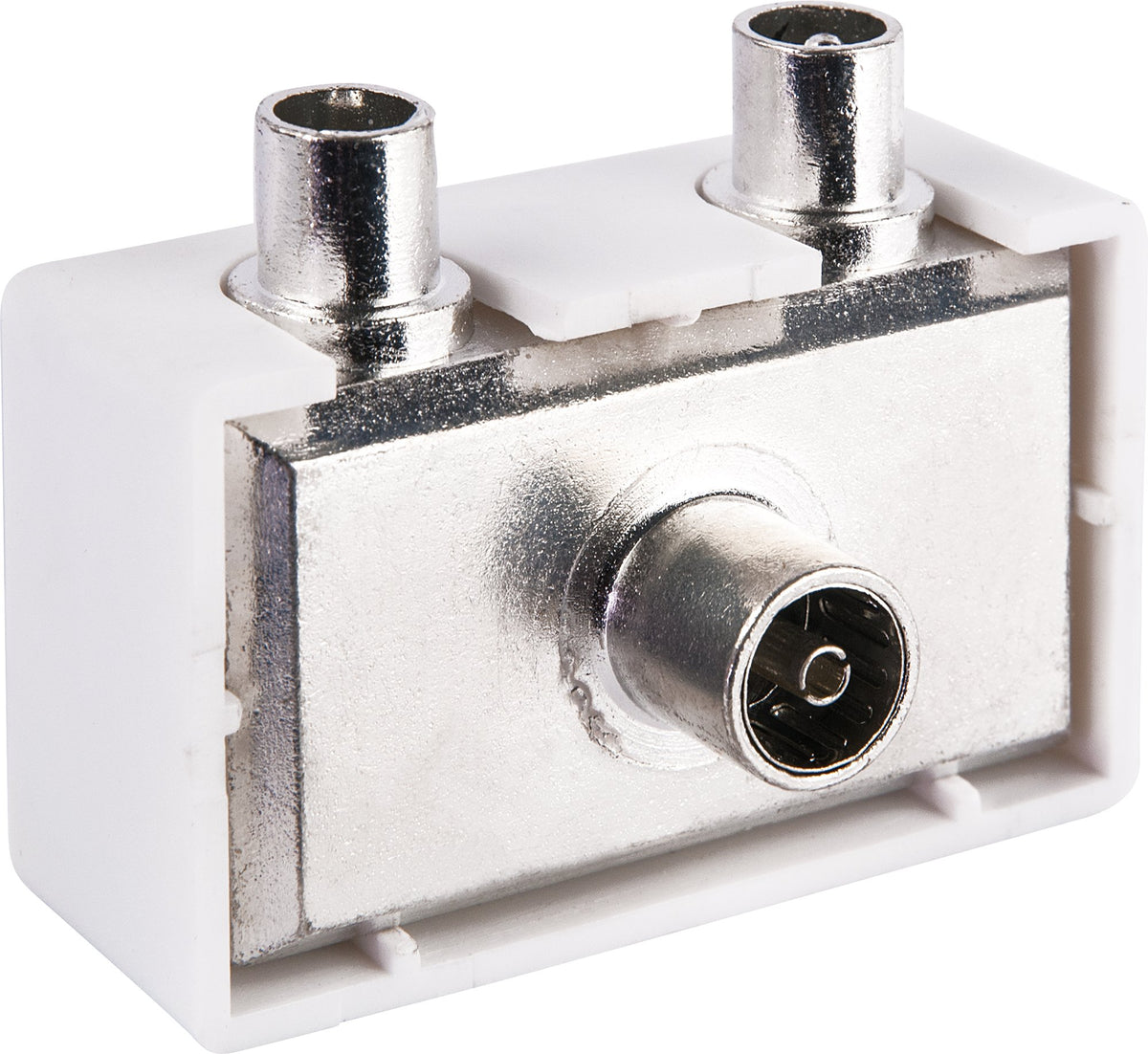

This SCHWAIGER® connection distributor is simply plugged into the TV connection of an antenna socket and thus enables a second television set to be operated. The connection distributor is made of solid metal with a plastic housing for high active and passive interference immunity.

Technische Daten
technology Broadband cable systems
distribution 2-way
Product material Metal, plastic
Connections (input) 1 x IEC socket
Connections (output) 2 x IEC plugs
Frequency range 5 - 1000 MHz
Distribution attenuation 6 dB
colour White
Dimensions (width) 60 mm
Dimensions (depth) 37 mm
Dimensions (height) 36 mm
scope of delivery 1x connection distributor
