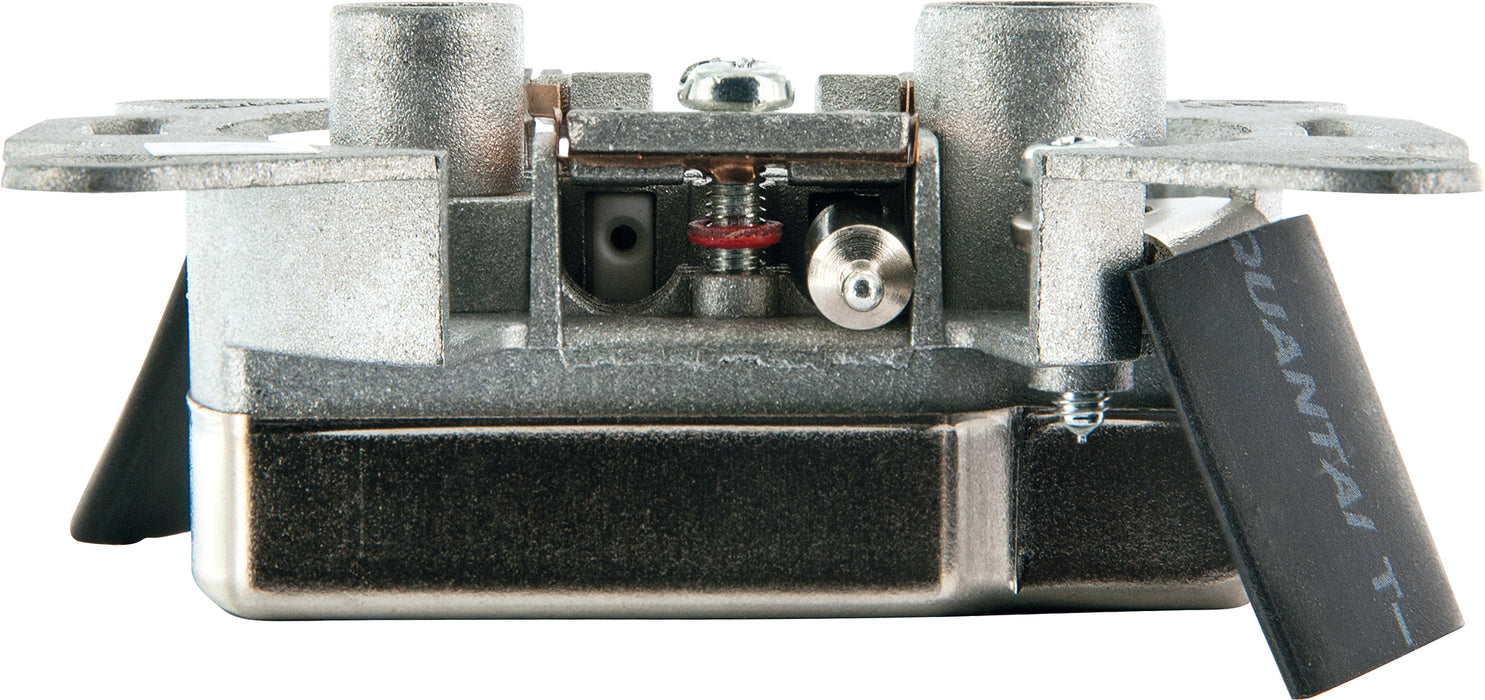

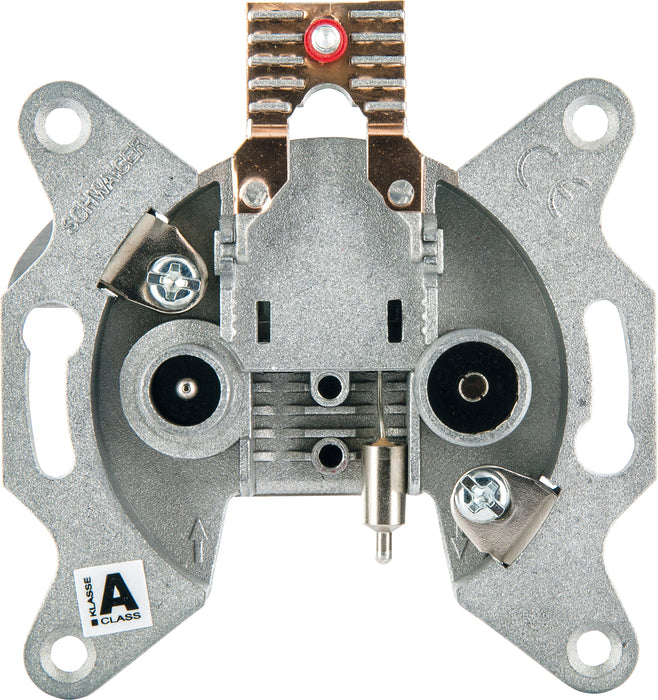

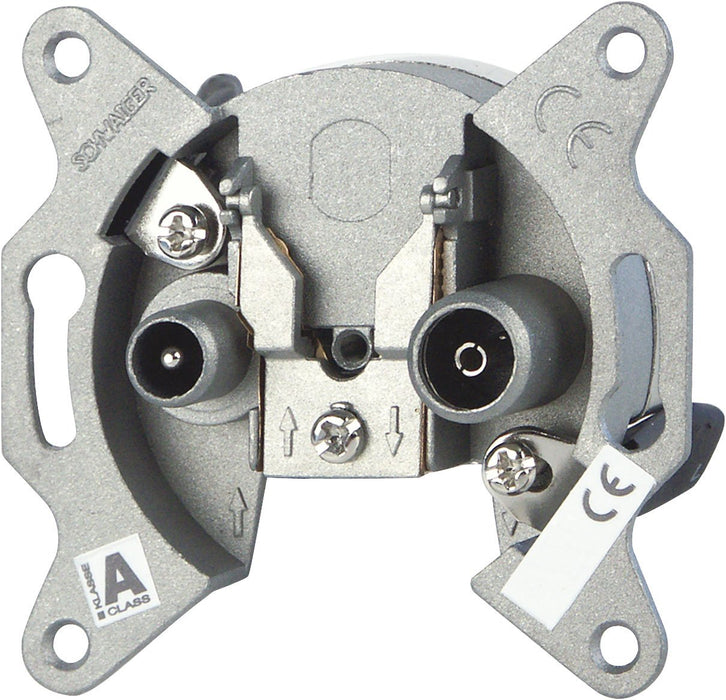

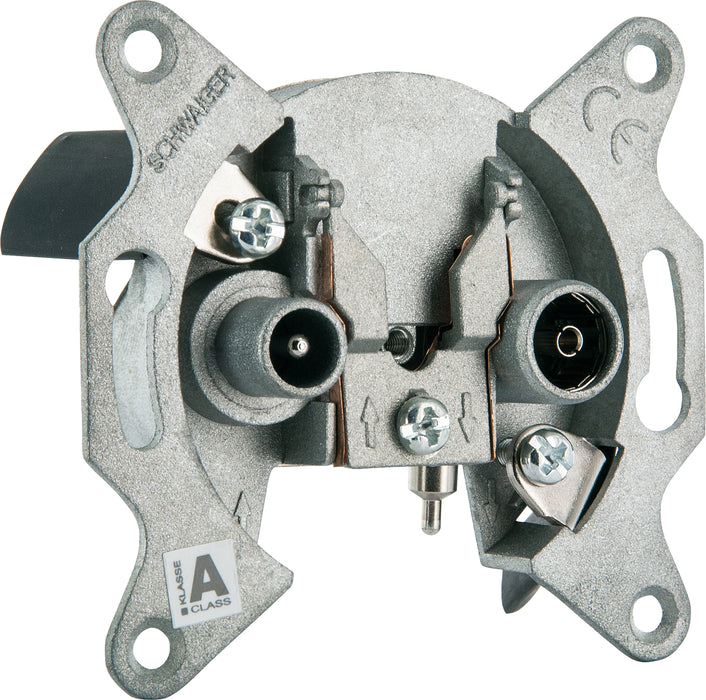

Antenna socket (8 dB)
SKU RDS30 531
€33,19
- Hinged clamp for fixing the outer conductor (max. 7.5 mm)
- Clamping technology for screwless inner conductor fastening (∅ 0.8 - 1.3 mm)
- Claw fastening for plaster inserts (55 mm)
Auf Lager
Sichere Zahlung
Passend dazu
Antenna socket (8 dB)
€33,19
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwbestaiger.com
Produktbeschreibung
This SCHWAIGER® antenna socket is suitable for use on community antennas, broadband cable and satellite systems. Thanks to the special clamping technology, the cable connections do not have to be screwed.
Technische Daten
| Product material | Die-cast aluminum |
| technology | Broadband cable systems Community antenna systems Satellite systems |
| connections | 1 x IEC socket 1 x IEC connector |
| Connections (input) | 1 x detachable contact clamping spring |
| Connections (output) | 1 x detachable contact clamping spring |
| Frequency range | 5 - 2150 MHz |
| Decoupling | 862/2150 MHz 28/22 dB (TV / RDF) 862/2150 MHz 32/22 dB output / TV |
| Connection loss | (typ.) 8 dB |
| Through loss | 4 dB (terrestrial) 6 dB (SAT) |
| Installation depth | 22 mm |
| colour | silver |
| Dimensions (width) | 70 mm |
| Dimensions (depth) | 22 mm |
| Dimensions (height) | 66 mm |
| scope of delivery | 1x antenna socket |
