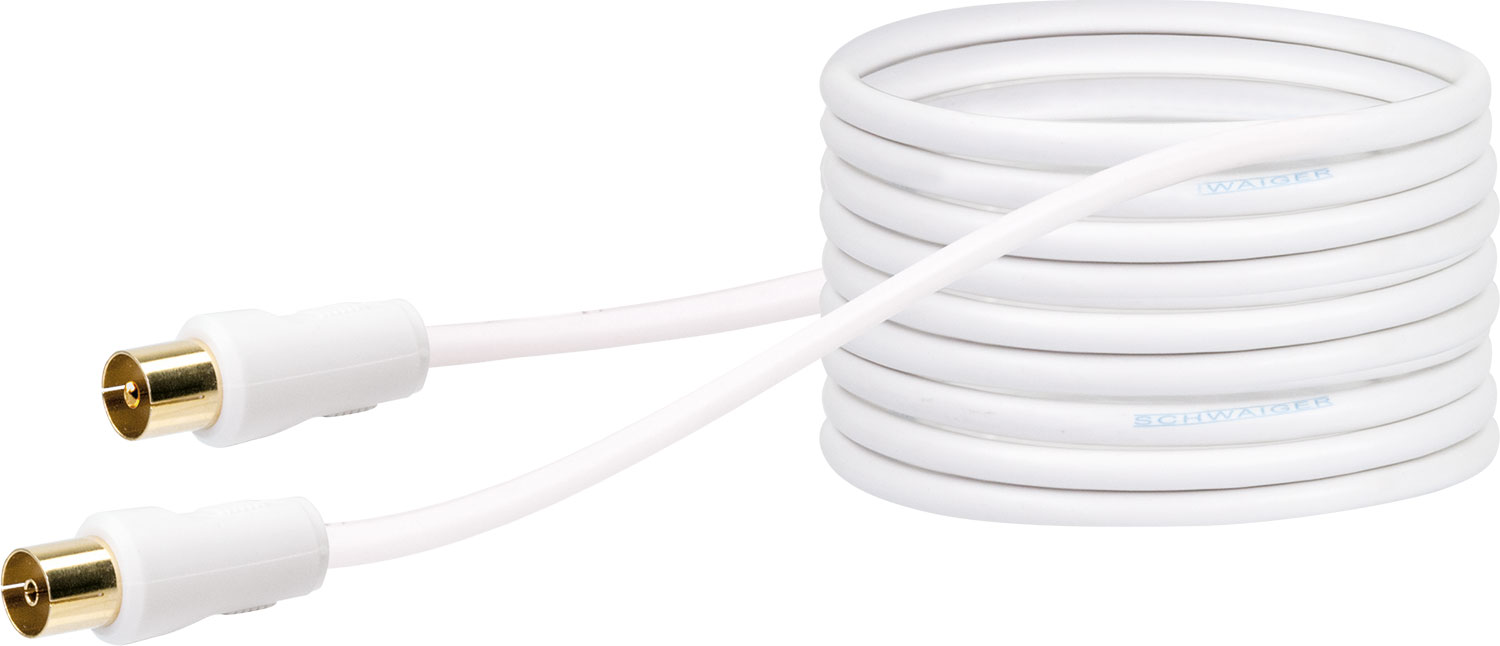

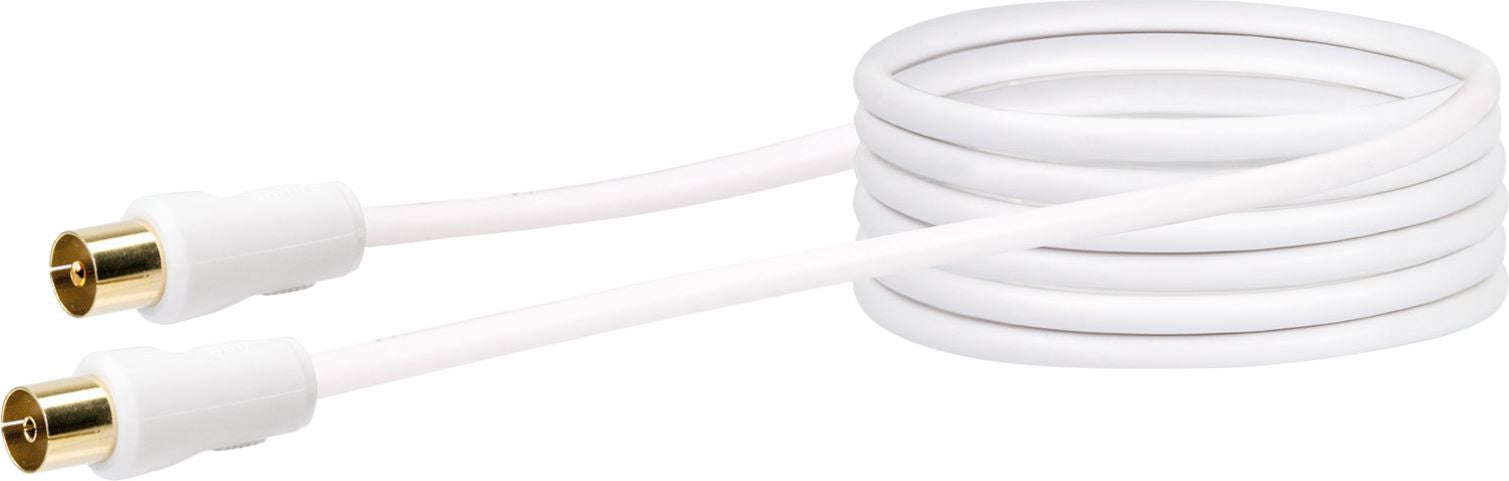

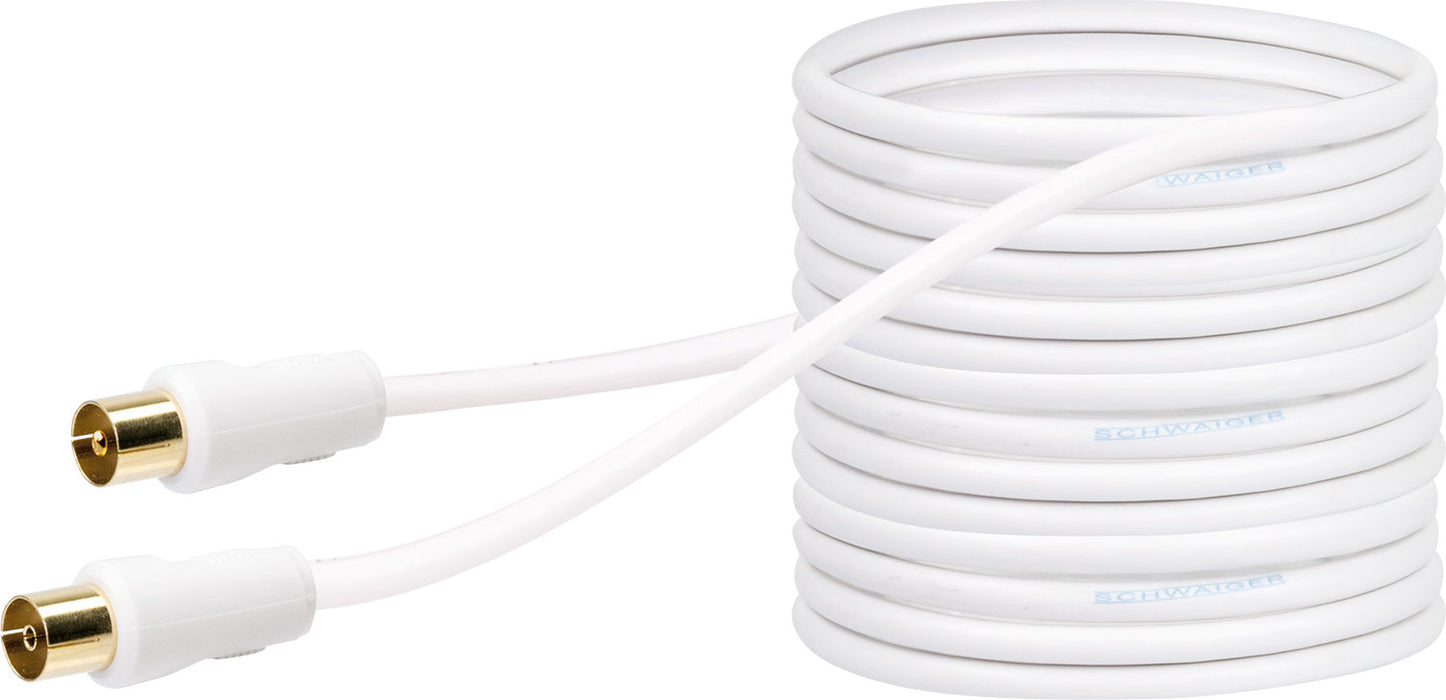

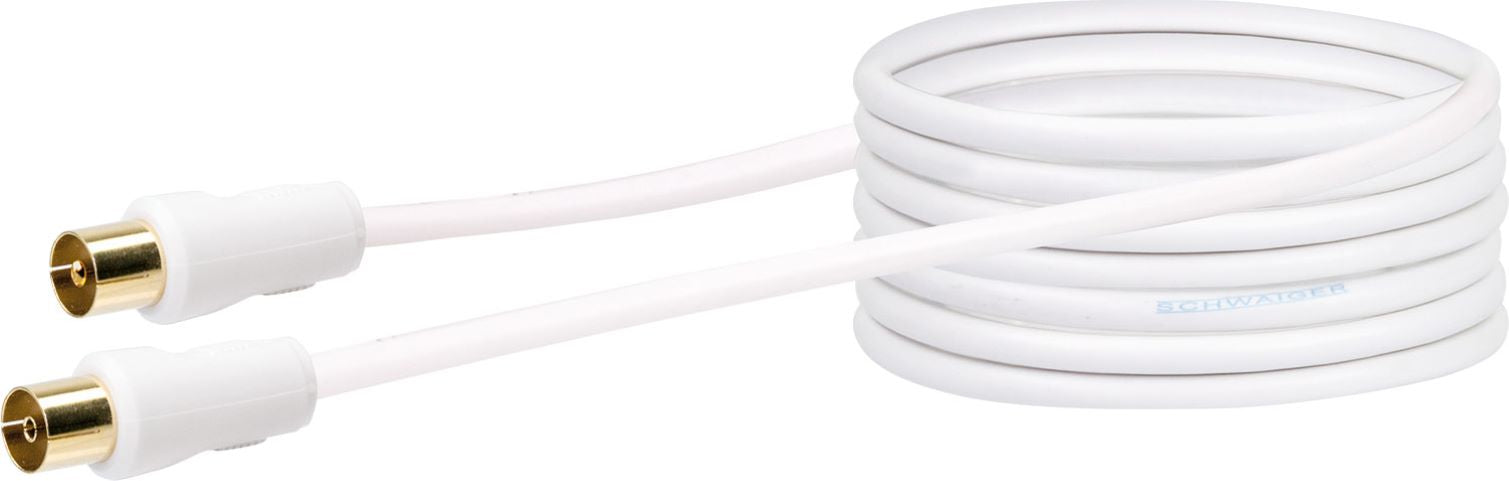

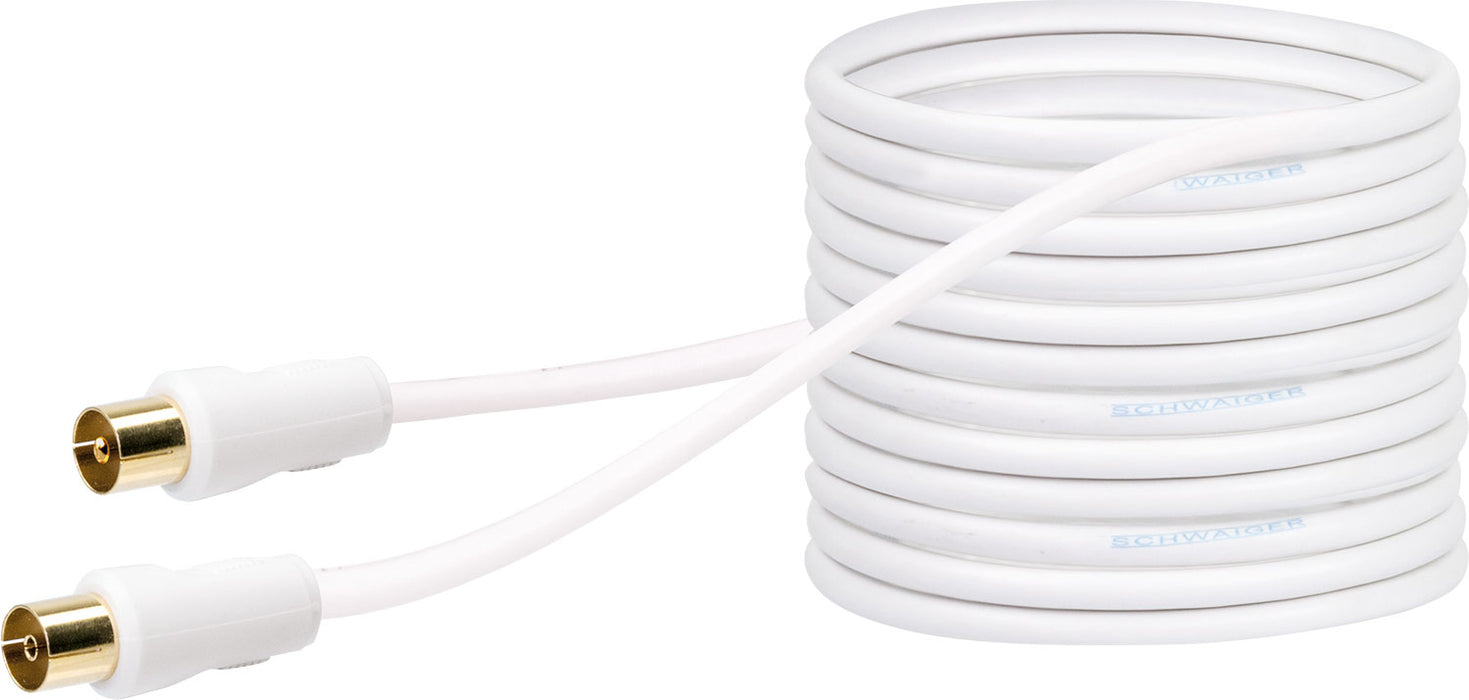

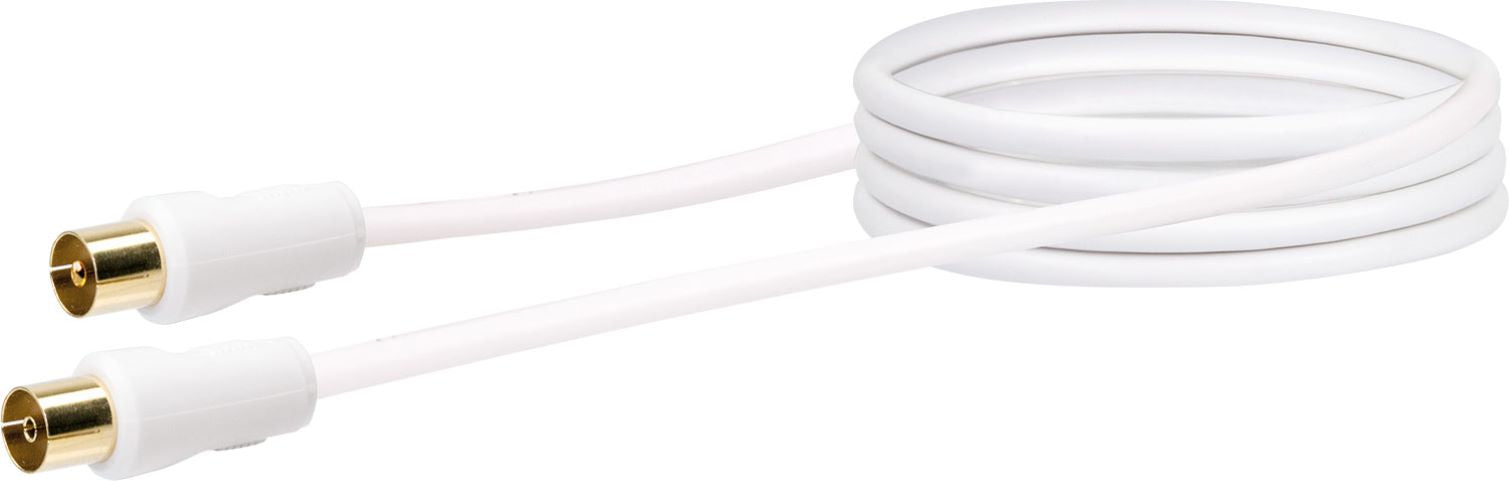

Antenna connection cable (90 dB)
Antenna connection cable (90 dB)
Antenna connection cable (90 dB)
Antenna connection cable (90 dB)
Antenna connection cable (90 dB)
Antenna connection cable (90 dB)

Antenna connection cable (90 dB)

SKU KVKHQ200 532

€47,59
Cable length
Cable length: 20 m
  • For connecting a device with an antenna connection to the antenna socket
  • Particularly suitable for HDTV via cable TV
  • Double shielding for the best possible protection against electromagnetic interference
  • High shielding properties guaranteed
  • Best conductivity and minimum transmission resistance thanks to gold-plated contacts
  • Robust plastic plug
  • Scope of delivery: 1x antenna connection cable
Auf Lager

Sichere Zahlung

Apple Pay Bancontact BLIK EPS Google Pay iDEAL Wero Klarna Maestro Mastercard MobilePay PayPal Shop Pay Union Pay Visa

Passend dazu
Produktbeschreibung
This SCHWAIGER® antenna connection cable is suitable for antenna and cable television installation. The double shielded cable offers additional security against electromagnetic interference due to the increased shielding dimension of 90 dB. The cable is used between the antenna socket and a receiver.
Technische Daten
Cable length20 m
connections1 x IEC connector
1 x IEC socket
Impedance75 ohms
plugPlastic / contact: gold-plated metal
Cable structure0.65 mm (inner conductor)
4.4 mm (dielectric)
6.5 mm (jacket)
Shielding measure90 dB
Shielding2-fold shielded
Shielding materialAluminum composite foil
Aluminum braid
colourWhite
