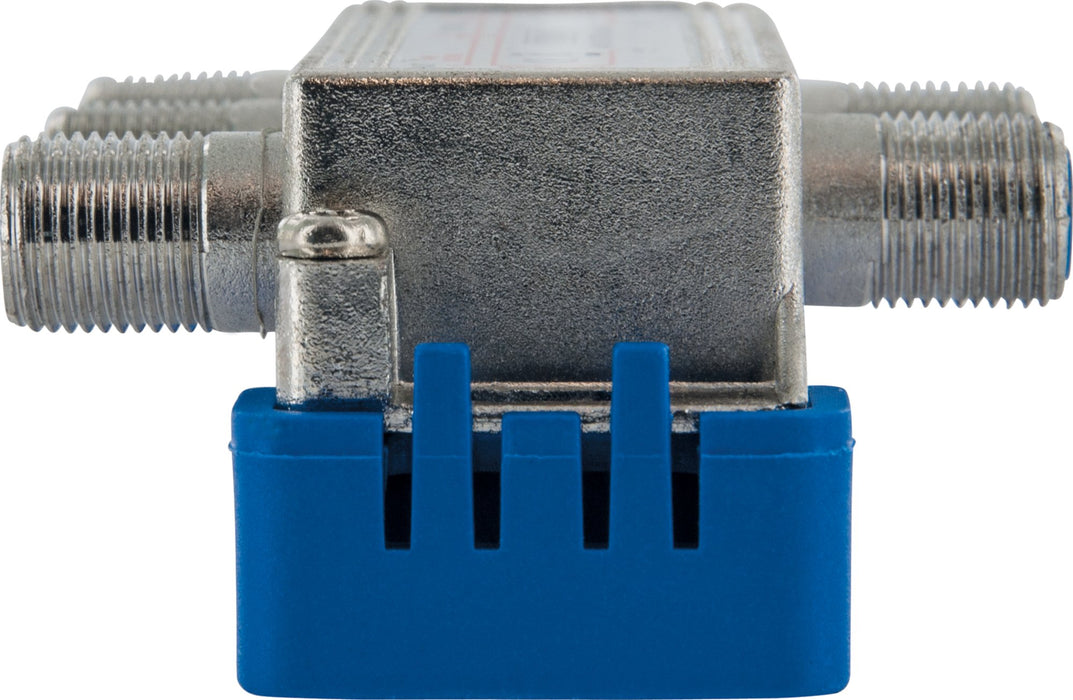

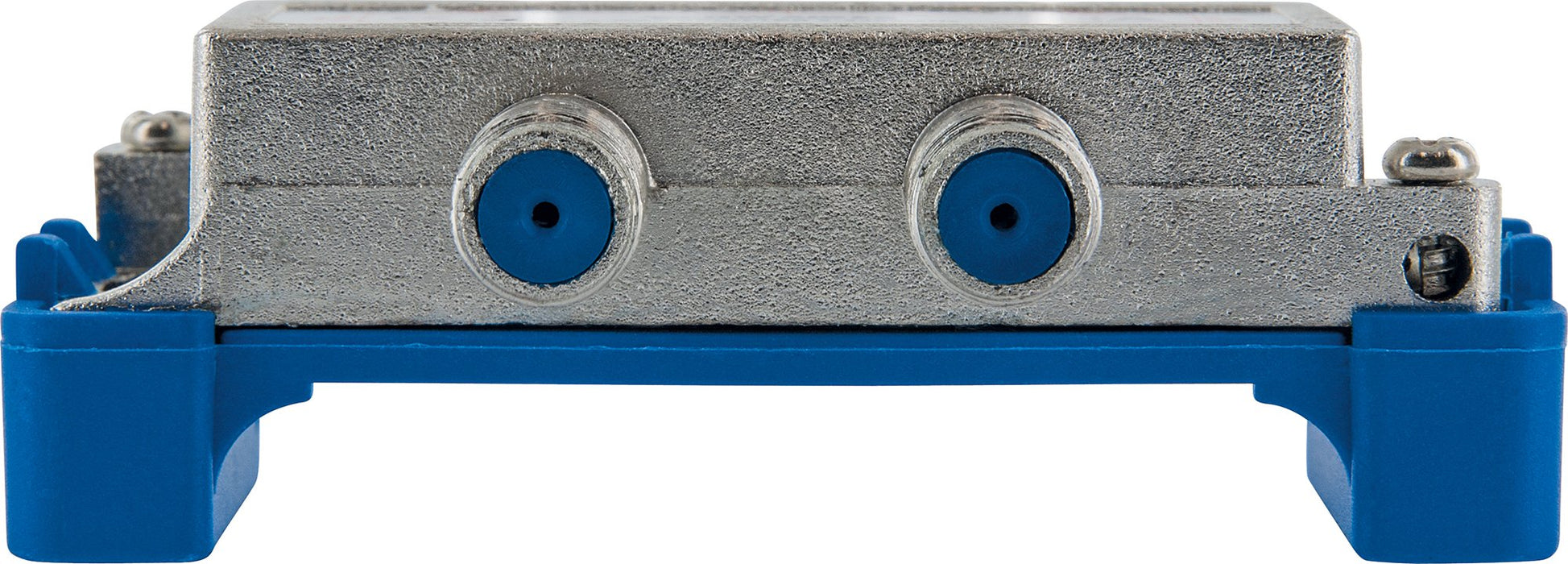

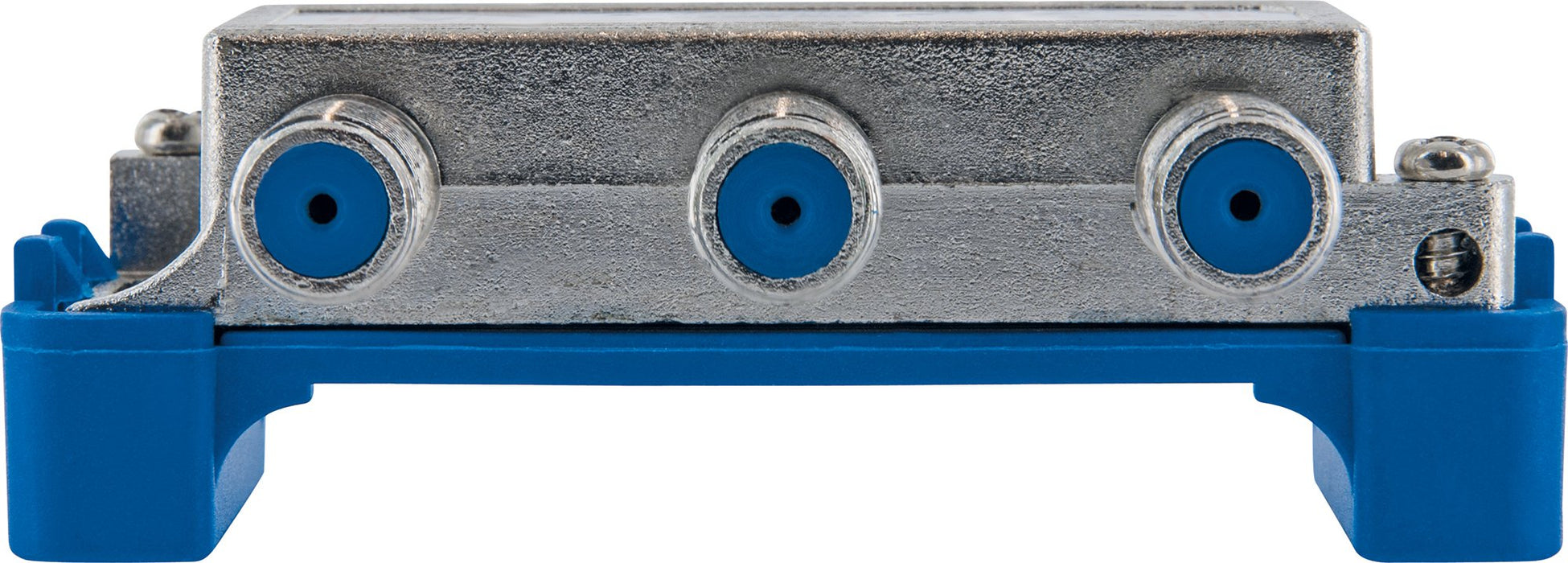

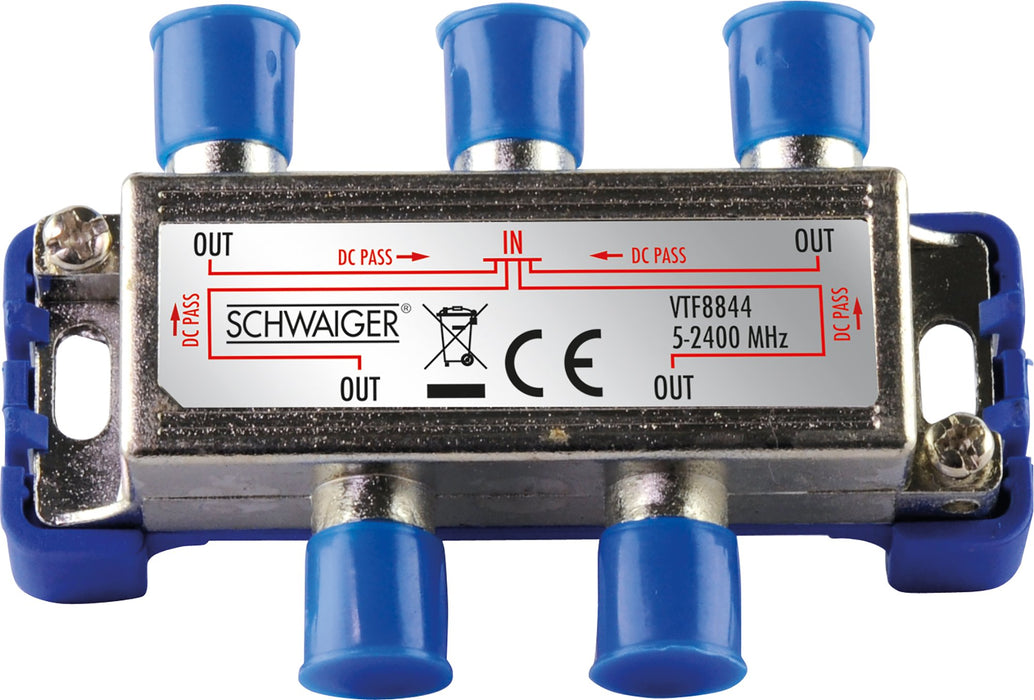

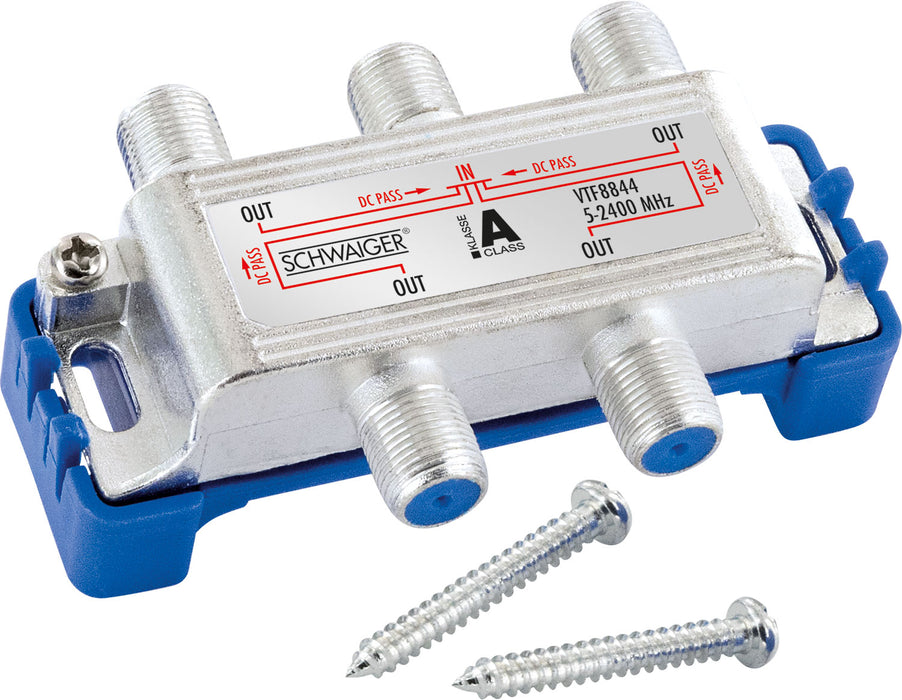

4-way distributor for satellite, antenna and cable systems 9 dB
SKU 719505
€6,99
- Distributors for cable, antenna and satellite systems
- Lightweight and compact design
- Plastic spacer for cable entry
- Direct current (DC) passage
Auf Lager
Sichere Zahlung
Passend dazu
4-way distributor for satellite, antenna and cable systems 9 dB
€6,99
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwbestaiger.com
Produktbeschreibung
The SCHWAIGER® 4-way distributor is designed for use in home distribution systems. The direct current passage makes the distributor ideal for use in satellite distribution systems. A plastic spacer enables optimal cable routing.
Technische Daten
| distribution | 4-way |
| classification | Class A |
| Connections (input) | 1 x F-socket |
| Connections (output) | 4 x F-socket |
| Mounting type | Surface-mounted |
| Frequency range | 5 - 2400MHz |
| Direct current passage | Yes |
| Return channel compatible | Yes |
| Return loss | > 10 dB |
| Distribution attenuation | (typ.) 9 dB |
| Decoupling | > 20dB |
| Shielding factor | 110dB |
| Product material | Die-cast aluminum, corrosion-protected |
| Dimensions (Width) | 80mm |
| Dimensions (Height) | 53mm |
| Dimensions (depth) | 28mm |
| Color | silver/blue |
| Scope of delivery | 1x distributor |
