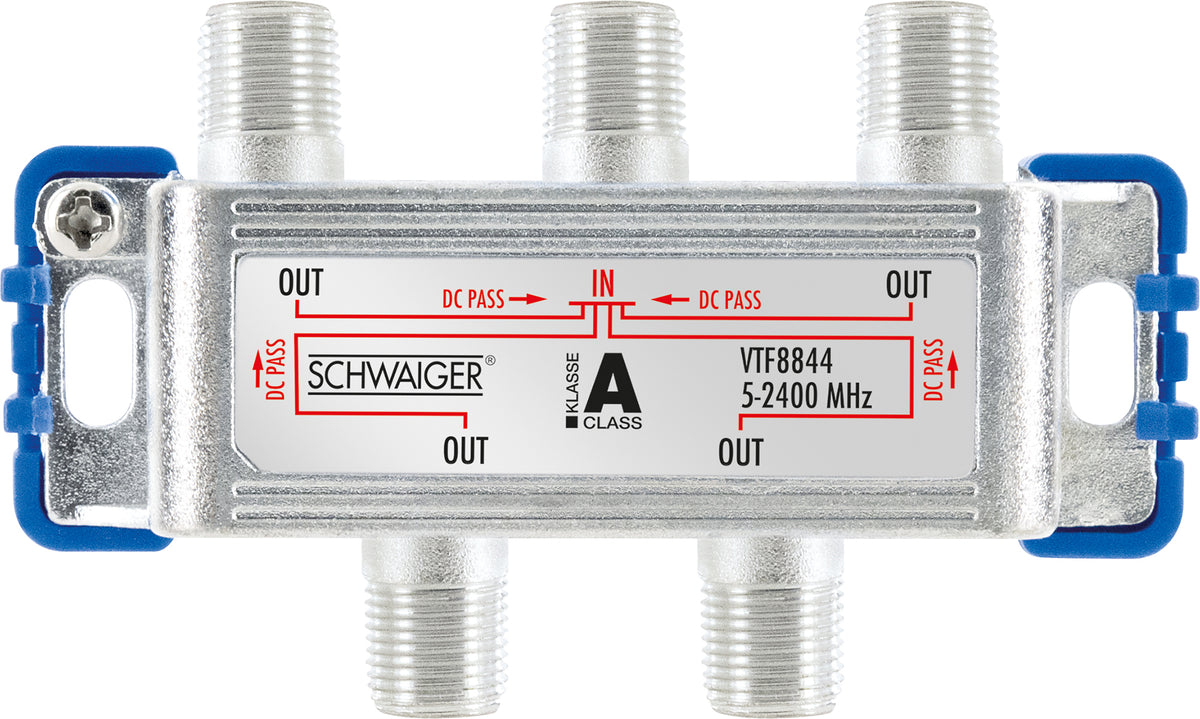

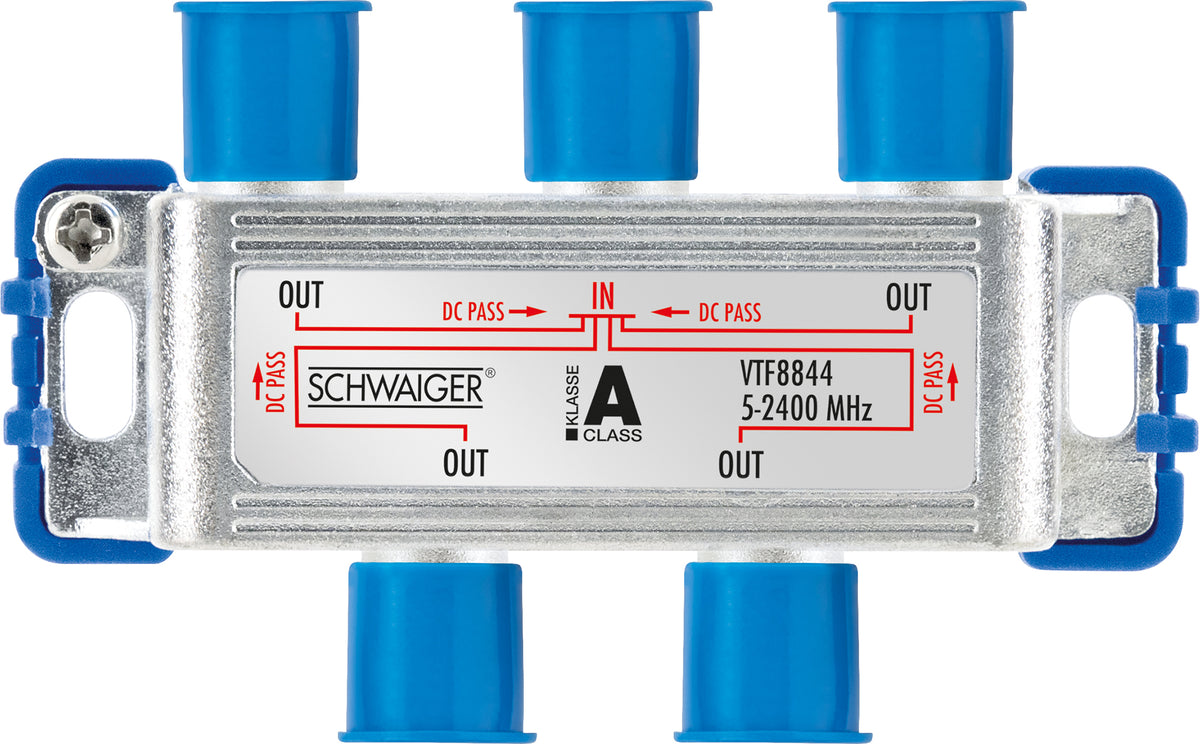

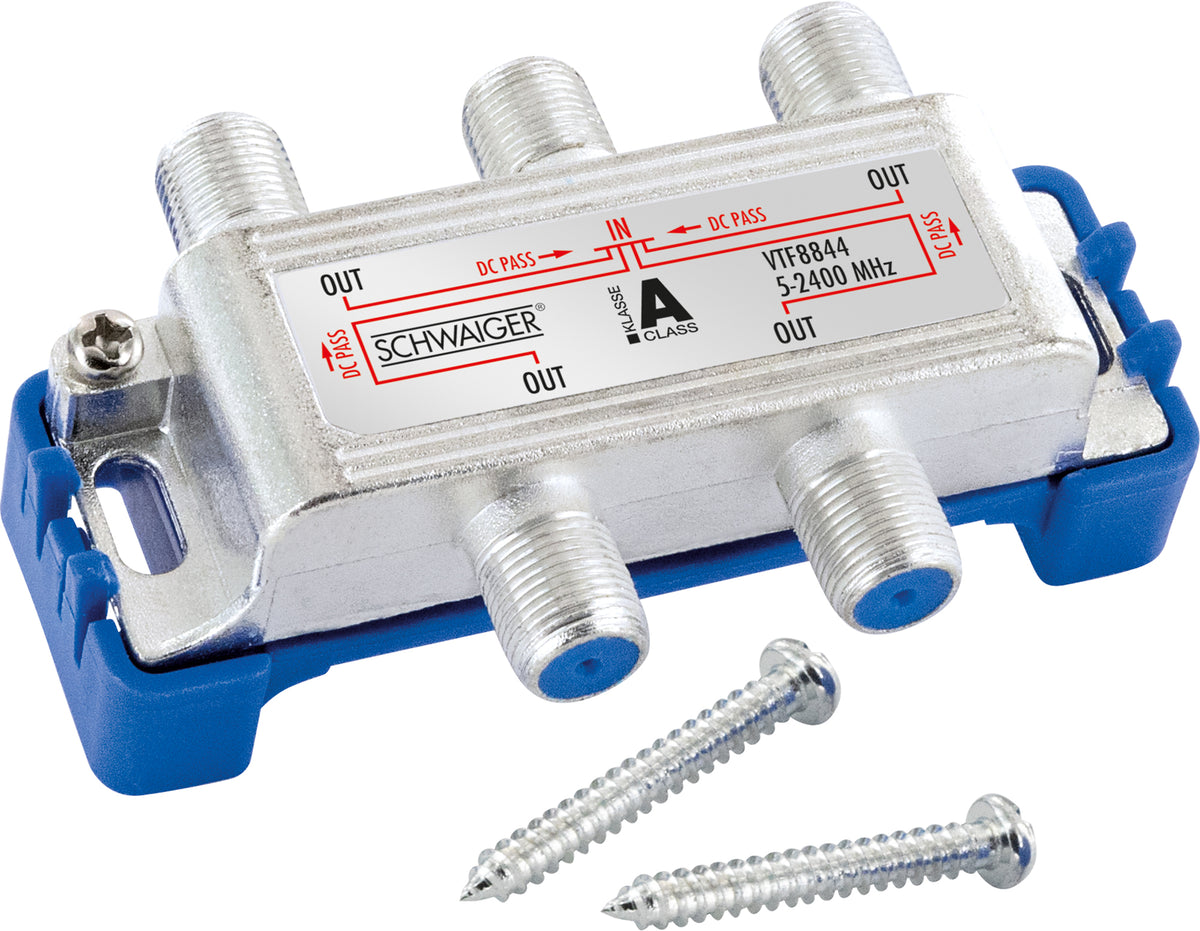

4-way distributor (9 dB)
4-way distributor (9 dB)
4-way distributor (9 dB)

4-way distributor (9 dB)

SKU VTF8844 241

€16,19
  • Distributor for cable, antenna and satellite systems
  • Light and compact design
  • Plastic spacer for cable entry
  • Direct current passage (DC)
Auf Lager

Sichere Zahlung

Apple Pay Bancontact BLIK EPS Google Pay iDEAL Wero Klarna Maestro Mastercard MobilePay PayPal Shop Pay Union Pay Visa

Passend dazu
Produktbeschreibung

The SCHWAIGER® 4-way distributor is designed for use in house distribution systems. Due to the direct current passage, the distributor is ideally suited for applications in SAT distribution systems. A plastic spacer enables optimal cable feedthrough.



Technische Daten
distribution 4-way
classification Class a
Connections (input) 1 x F socket
Connections (output) 4 x F socket
Mounting type Surface-mounted
Frequency range 5 - 2400 MHz
Direct current passage Yes
Suitable for return channels Yes
Return loss > 10 dB
Distribution attenuation (typ.) 9 dB
Decoupling > 20 dB
Shielding measure 110 dB
Product material Die-cast aluminum protected against corrosion
Dimensions (width) 80 mm
Dimensions (height) 53 mm
Dimensions (depth) 28 mm
colour Silver blue
scope of delivery 1x distributor (4-way)
