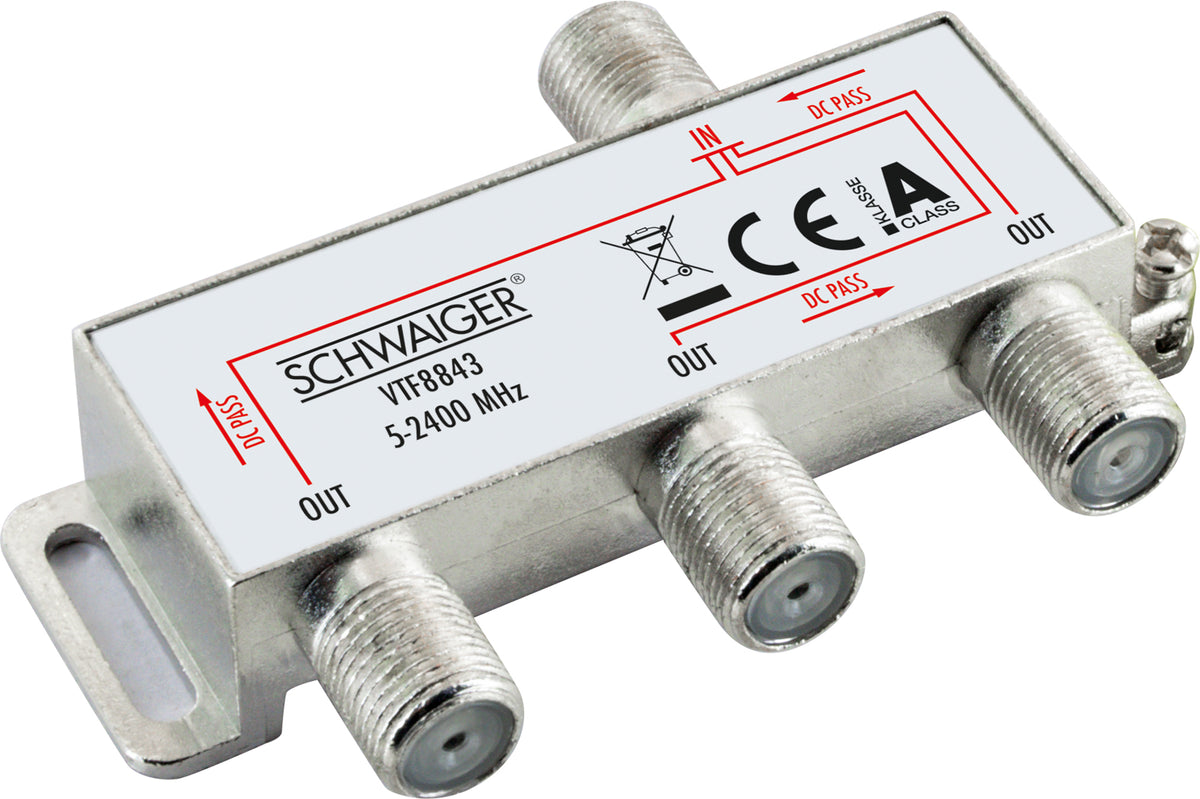

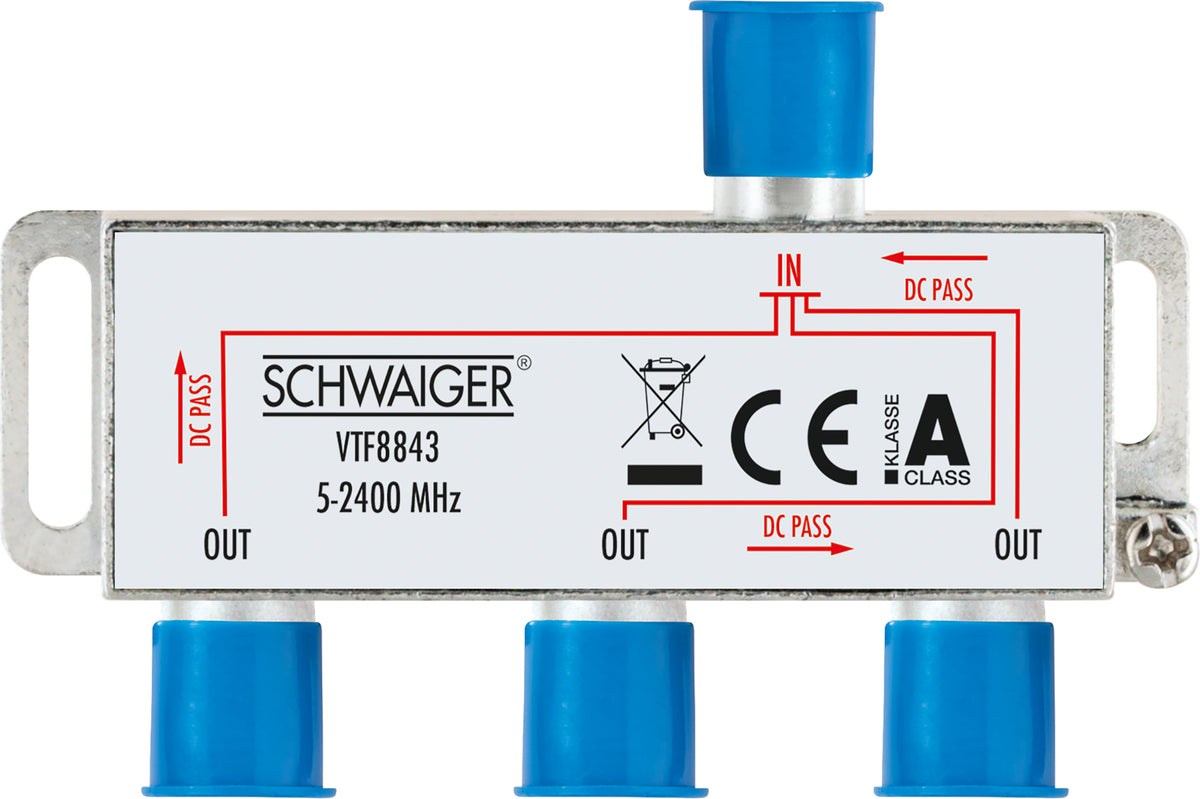

3-way distributor for satellite, antenna and cable systems 8 dB
SKU 719499
€6,50
- Distributors for cable, antenna and satellite systems
- Lightweight and compact design
- Plastic spacer for cable entry
- Direct current (DC) passage
Auf Lager
Sichere Zahlung
Passend dazu
3-way distributor for satellite, antenna and cable systems 8 dB
€6,50
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwbestaiger.com
Produktbeschreibung
The SCHWAIGER® 3-way distributor is designed for use in home distribution systems. The direct current passage makes the distributor ideal for use in satellite distribution systems. A plastic spacer enables optimal cable routing.
Technische Daten
| distribution | 3-fold |
| classification | Class A |
| Connections (input) | 1 x F-socket |
| connections (output) | 3 x F-socket |
| Mounting type | surface-mounted |
| Frequency range | 5 - 2400 MHz |
| direct current passage | Yes |
| return channel capable | Yes |
| return loss | > 10 dB |
| distribution attenuation | (typ.) 8 dB |
| decoupling | > 20 dB |
| product material | Die-cast aluminum, corrosion-protected |
| Dimensions (width) | 78 mm |
| Dimensions (Height) | 50mm |
| Dimensions (depth) | 27mm |
| Color | Silver/Blue |
| Scope of delivery | 1x 3-way distributor |
Downloads & Dokumente
Hier können Sie das vollständige Datenblatt herunterladen.
