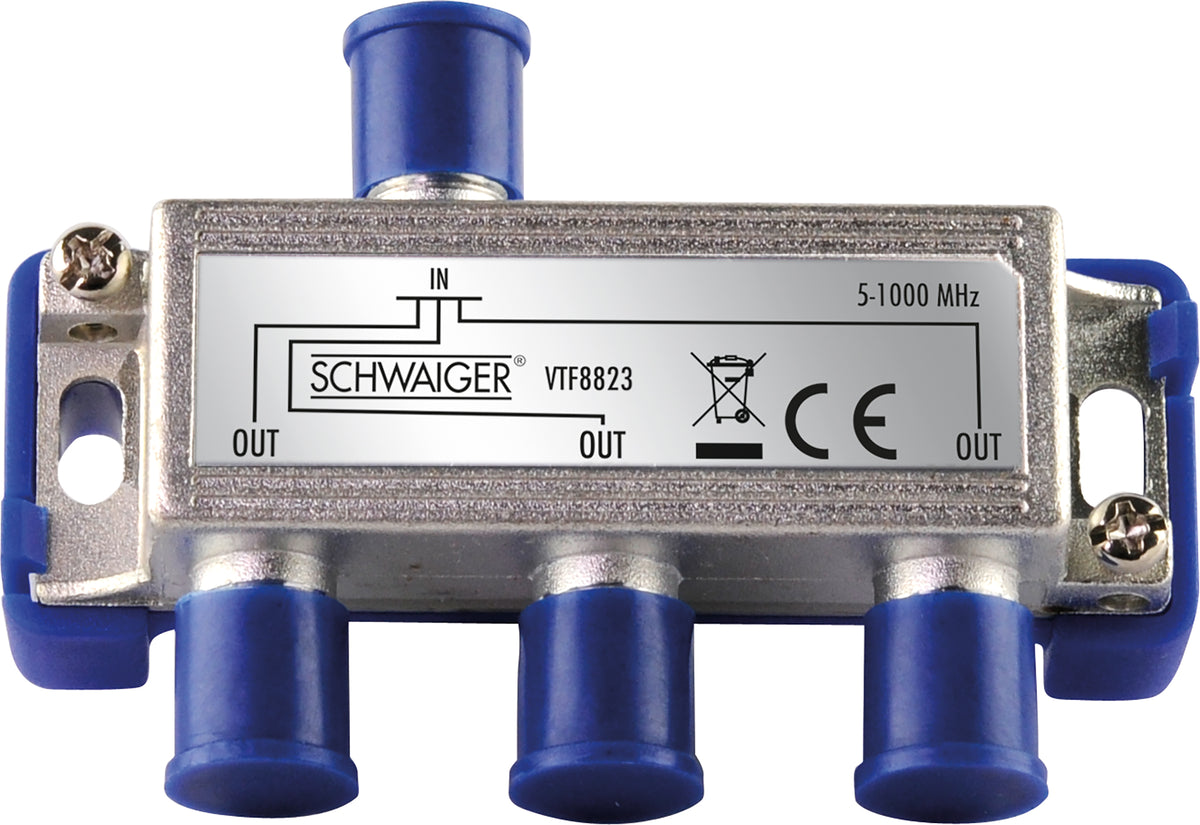

3-way distributor (6.5 dB)
SKU VTF8823 241
€12,69
- Solid metal housing for high active and passive interference immunity
- Inner conductor capacitively separated
- Light and compact design
- Plastic spacer for cable entry
Sichere Zahlung
Passend dazu
Kontaktieren Sie unsere Experten:
(+49) 09101702-299
hotline@schwbestaiger.com
Produktbeschreibung
The SCHWAIGER® 3-way distributor is designed for use in cable and antenna systems. A plastic spacer enables optimal cable feedthrough.
Technische Daten
| distribution | 3-way |
| Product material | Die-cast aluminum protected against corrosion |
| Connections (input) | 1 x F socket |
| Connections (output) | 3 x F socket |
| Mounting type | Surface-mounted |
| Frequency range | 5 - 1000 MHz |
| Suitable for return channels | Yes |
| Distribution attenuation | 6.5 dB |
| Decoupling | > 25 dB |
| colour | violet |
| weight | 60 g |
| Dimensions (width) | 72 mm |
| Dimensions (height) | 50 mm |
| Dimensions (depth) | 27 mm |
| scope of delivery | 1x distributor (3-way) |
Downloads & Dokumente
Hier können Sie das vollständige Datenblatt herunterladen.
