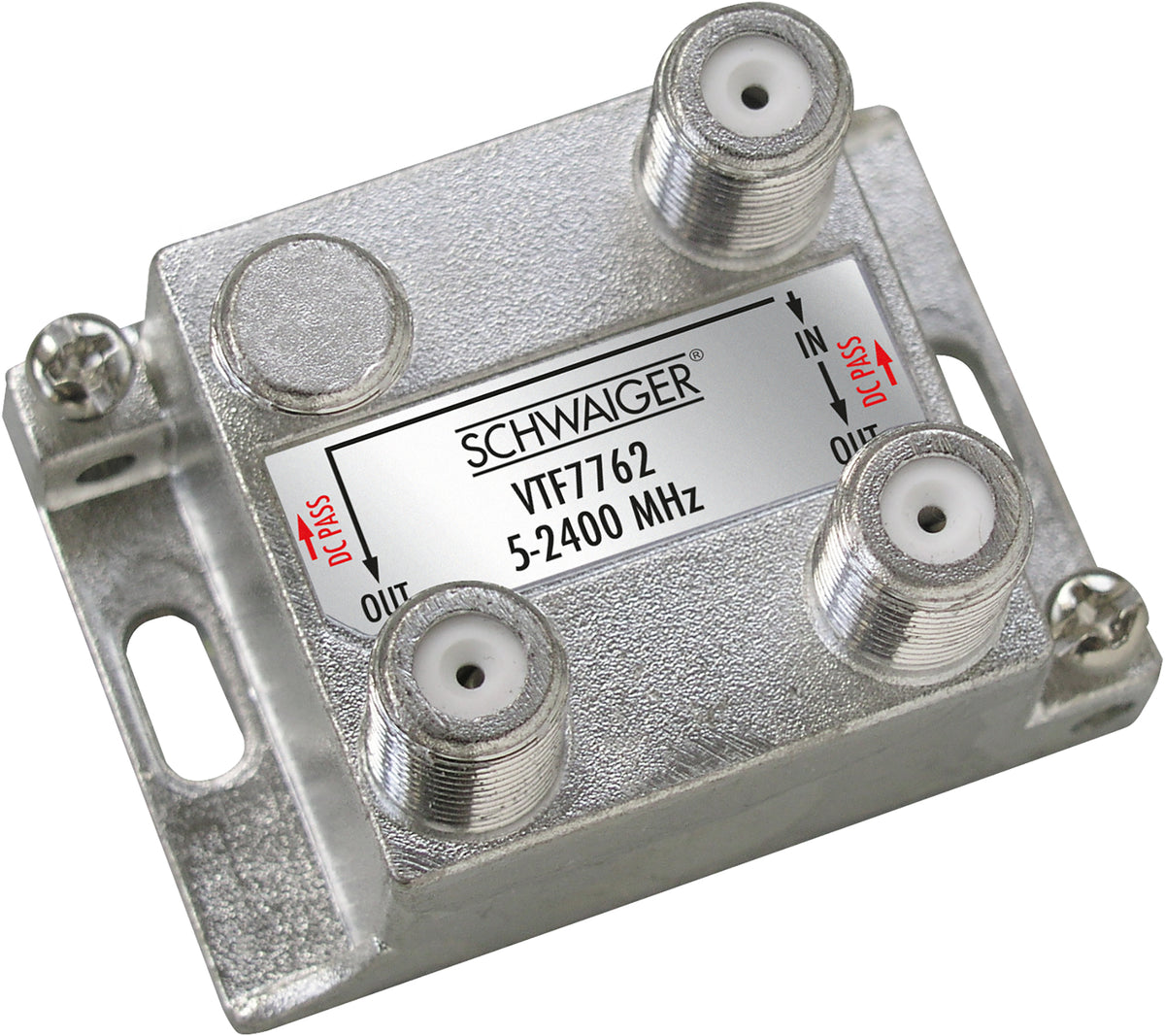

2-way distributor (4 dB)

2-way distributor (4 dB)

SKU VTF7762 531

€21,09
  • Distributor for cable, antenna and satellite systems
  • Connections going upwards
  • Solid metal housing for high active and passive interference immunity
  • Direct current passage (DC)
Auf Lager

Sichere Zahlung

Apple Pay Bancontact BLIK EPS Google Pay iDEAL Wero Klarna Maestro Mastercard MobilePay PayPal Shop Pay Union Pay Visa

Passend dazu
Produktbeschreibung

The SCHWAIGER® broadband distributor is designed for use in house distribution systems. Due to the direct current passage and the frequency range up to 2400 MHz, the distributor is ideally suited for applications in SAT distribution systems.

Technische Daten
distribution 2-way
Connections (input) 1 x F socket
Connections (output) 2 x F socket
Frequency range 5 - 2400 MHz
Distribution attenuation 4 dB
Shielding measure 110 dB
Product material metal
Dimensions (width) 48 mm
Dimensions (height) 35 mm
Dimensions (depth) 30 mm
colour silver
scope of delivery 1x distributor (2-way)
Downloads & Dokumente

Hier können Sie das vollständige Datenblatt herunterladen.

Datenblatt (PDF)
Downloadbereich
